LTM4659
量产Ultrathin, Low VIN 10A Step-Down DC/DC μModule Regulator
- 产品模型
- 2
概述
- Tiny Surface Mount, 4mm × 4mm × 1.43mm LGA
- Silent Switcher®2 Architecture
- Ultralow EMI Noise
- Input Voltage Range: 2.25V to 5.5V
- Output Voltage Range: 0.5V to VIN
- 10A DC Output Current
- Current Mode Control, Fast Transient Response
- Multiphase Parallel Current Sharing with Multiple LTM4659s
- Output Soft-Start with Voltage Tracking
- External Frequency Synchronization
- Selectable Pulse-Skipping Mode
- Power Good Indicator
- Die Temperature Monitoring Output
- Overvoltage, Overcurrent, and
- Overtemperature Protection

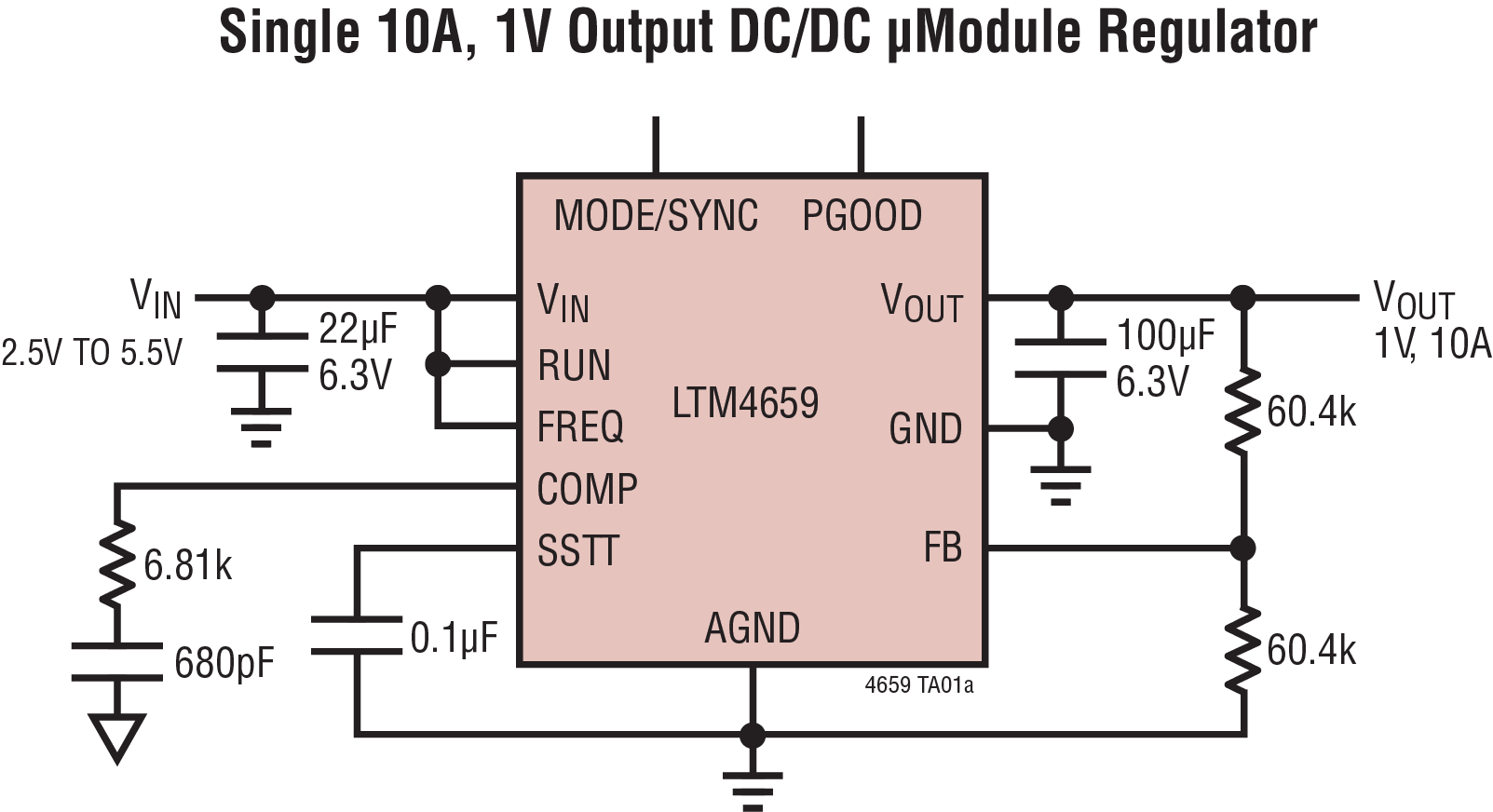

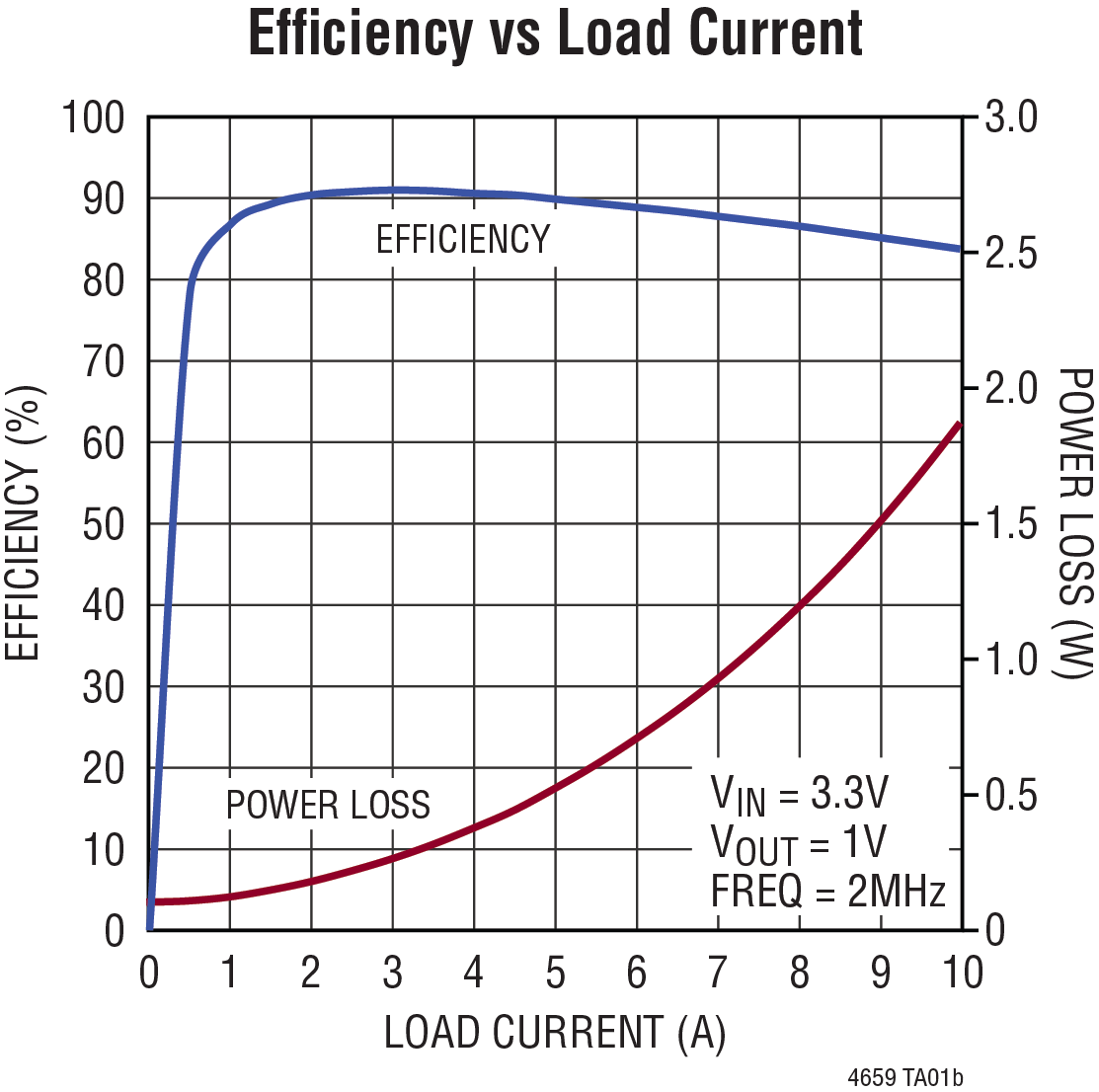

The LTM®4659 is a complete 10A step-down switch-ing mode μModule® regulator in a tiny 4mm × 4mm × 1.43mm LGA package. The package includes the switching controller, power MOSFETs, inductor and all support components. Operating over an input voltage range of 2.25V to 5.5V, the LTM4659 supports an output voltage range of 0.5V to VIN set by external resistors. Its high-efficiency design delivers 10A continuous output current. Only ceramic input and output capacitors are needed.
The LTM4659 employs a Silent Switcher 2 architecture with internal hot loop bypass capacitors to achieve both low EMI and high efficiency at high switching frequencies.
The LTM4659 also supports frequency synchronization, multiphase operation, selectable pulse-skipping mode (PSM) operation, and output voltage tracking for supply rail sequencing. Its high switching frequency and a current mode architecture enables a very fast transient response to line and load changes without sacrificing stability.
Fault protection features include overvoltage, overcurrent, and overtemperature protection. The LTM4659 is lead(Pb)-Free and RoHS-compliant.
参考资料
数据手册 1
用户手册 1
视频 2
解决方案设计及宣传手册 1
ADI 始终高度重视提供符合最高质量和可靠性水平的产品。我们通过将质量和可靠性检查纳入产品和工艺设计的各个范围以及制造过程来实现这一目标。出货产品的“零缺陷”始终是我们的目标。查看我们的质量和可靠性计划和认证以了解更多信息。

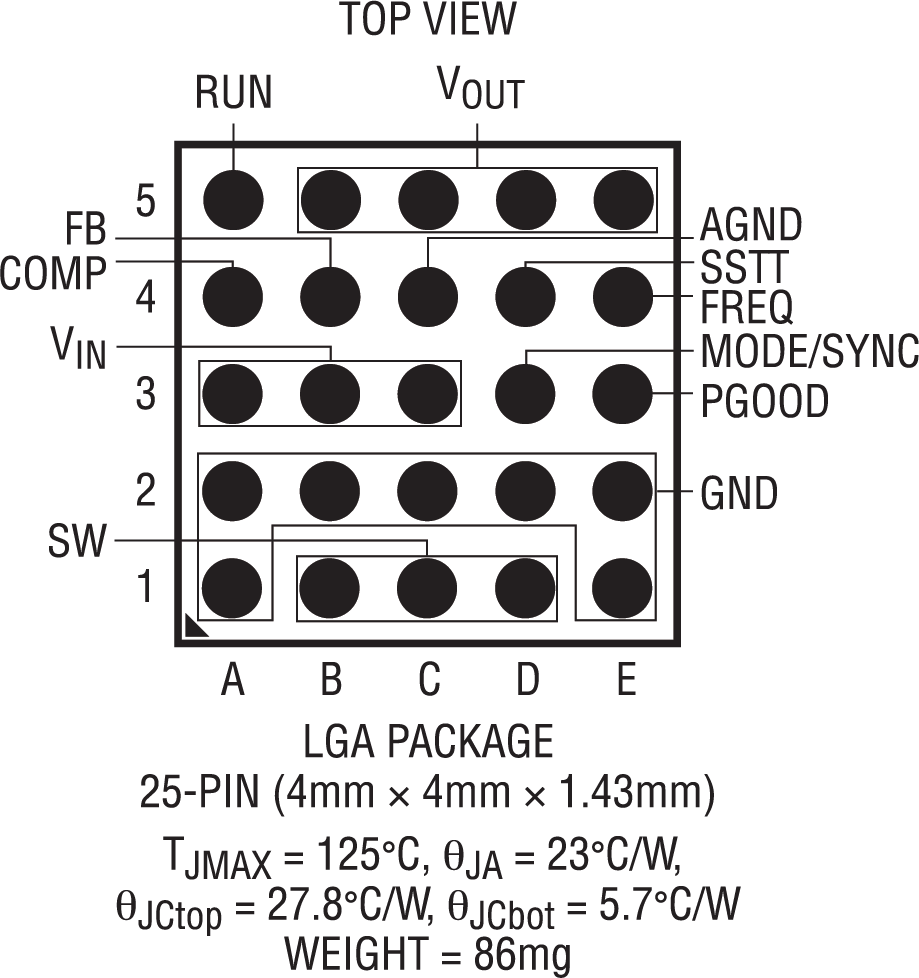

| 产品型号 | 引脚/封装图-中文版 | 文档 | CAD 符号，脚注和 3D模型 |
|---|---|---|---|
| LTM4659EV#PBF | 25-Terminal Land Grid Array with Embedded Die | ||
| LTM4659IV#PBF | 25-Terminal Land Grid Array with Embedded Die |
这是最新版本的数据手册
软件资源
找不到您所需的软件或驱动?
申请驱动/软件工具及仿真模型
LTspice
LTspice中提供以下器件型号：
- LTM4659
LTpowerCAD 1
LTpowerCAD中提供以下器件的设计工具：
- LTM4659
LTspice®是一款强大高效的免费仿真软件、原理图采集和波形观测器，为改善模拟电路的仿真提供增强功能和模型。
LTpowerCAD®是一种电源设计程序，它选择功率级元件，提供详细效率信息，显示快速环路波特图稳定性和负载瞬态分析，并可导出至LTspice进行仿真。
评估套件

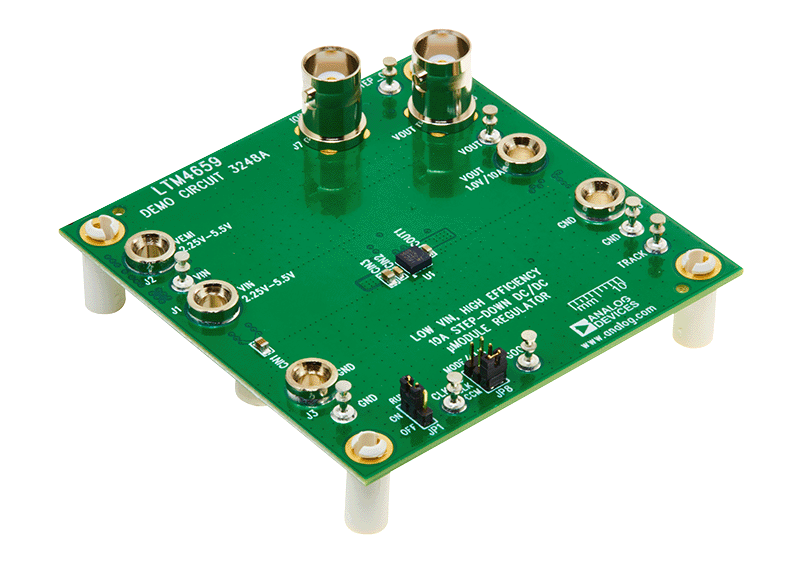

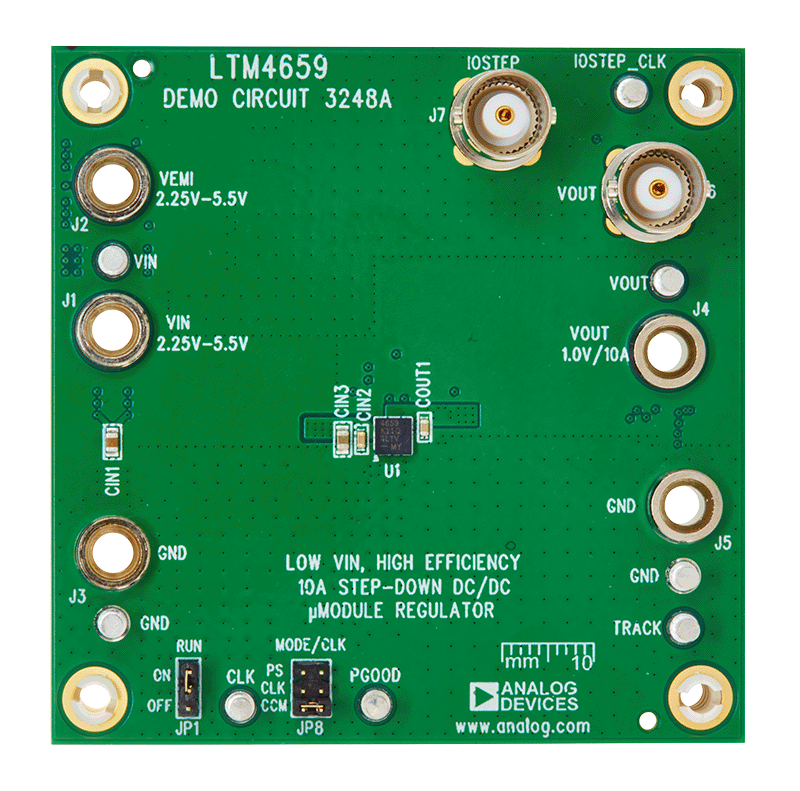

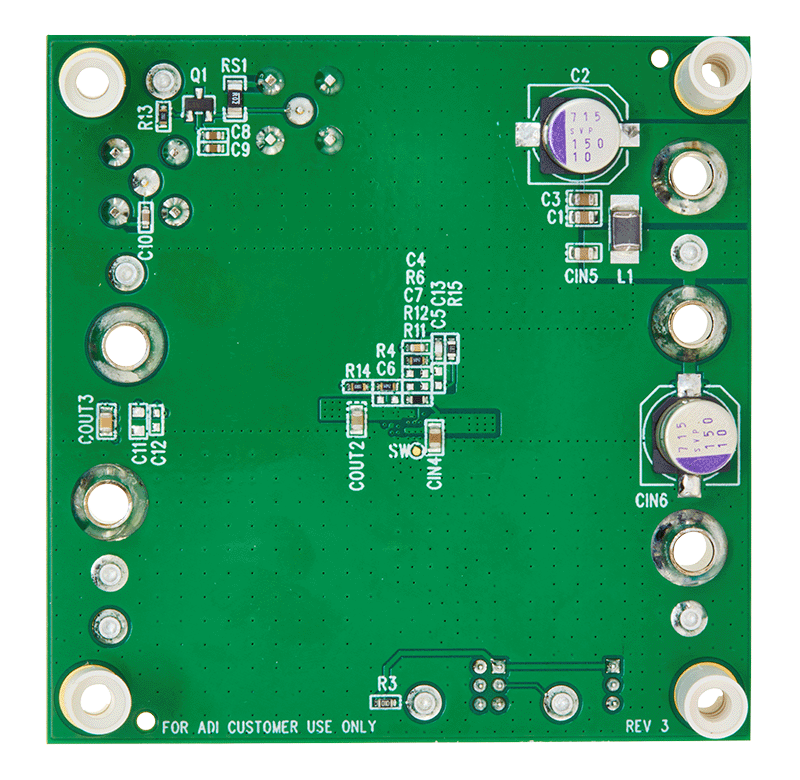

低 VIN、高效率、双 10A 降压型 DC-DC µModule 稳压器
