RFスイッチ

アナログ・デバイセズの高性能RFスイッチは、計測器、通信、防衛、航空宇宙の各分野のアプリケーションに最適な、多様なラインナップの製品を提供しています。


GaAsおよびシリコン(SOI)プロセスで製造されたRFスイッチは、CMOSスイッチに比べ、大電力処理、優れた直線性、広い周波数帯域動作を特長としています。アナログ・デバイセズの新しいシリコン(SOI)RFスイッチは、小型のSMTパッケージに収納され、他のソリューションにはない低挿入損失、高絶縁性、広帯域幅、高速スイッチング/セトリング・タイムを実現した、比類のない性能を提供します。

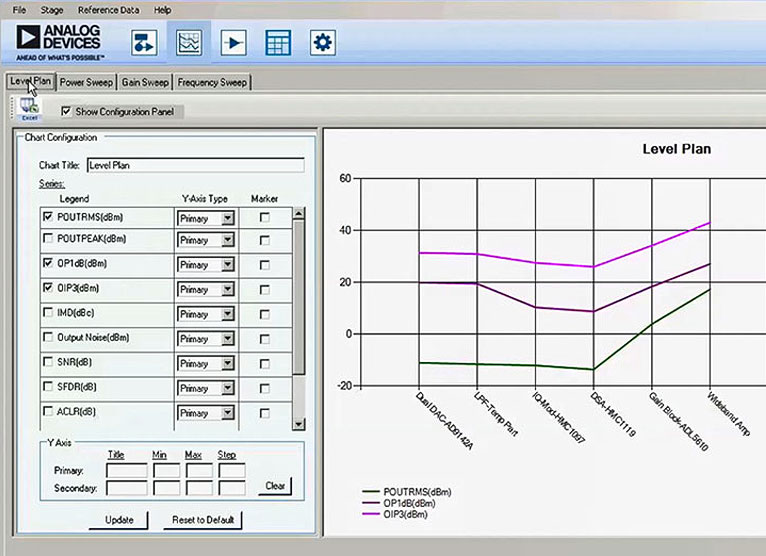

Analog Design Tool: ADIsimRF™

ADIsimRF is an easy-to-use RF signal chain calculator. It calculates Cascaded Gain, Noise Figure, IP3, P1dB and Power Consumption. The number of stages can be varied up to a maximum of 20. Stages can be easily inserted, removed or temporarily muted.

ADIsimRF™

RFスイッチ

  2つめ以降の並び替え条件は、“Shift” キーを押しながら選択してください。
SortOrderPart#RF Switch ConfigRF FeaturesFreq Response RF
(min)
(Hz)
Freq Response RF
(max)
(Hz)
Insertion Loss
(typ)
(dB)
Off Isolation
(typ)
(dB)
Input Power
(max)
(dBm)
Specified at Freq
(Hz)
IIP3
(typ)
(dBm)
Absorptive/ReflectivePrice (100-499)
($ US)
1ADRF5019 SPDT Silicon (SOI) 100M 13G 0.8 45 35 8G 60 Non-Reflective $6.74 (ADRF5019BCPZN)
2ADRF5549 RX Front End, SPDT 2-Stage LNA, High Power SPDT 1.8G 2.8G 0.6 25 40 2.3G- Reflective, Reflective Open $12.20 (ADRF5549BCPZN)
3ADRF5545A RX Front End, SPDT 2-Stage LNA, High Power SPDT 2.4G 4.2G 0.65 25 40 3.6G- Reflective, Reflective Open $12.20 (ADRF5545ABCPZN)
4ADL8111 SP4T Silicon (SOI) 10M 8G 2- 20-- Non-Reflective $48.75 (ADL8111ACCZN)
5ADRF5547 RX Front End, SPDT 2-Stage LNA, High Power SPDT 3.7G 5.3G 0.5 25 40 4.6G- Reflective, Reflective Open $12.20 (ADRF5547BCPZN)
6ADRF5047 SP4T Silicon (SOI) 9k 44G 2.7 37 27 40G 50 Reflective, Reflective Short $93.22 (ADRF5047BCCZN)
7ADRF5046 SP4T Silicon (SOI) 100M 44G 2.5 33 27.5 40G 50 Reflective, Reflective Short $88.78 (ADRF5046BCCZN)
8ADRF5515 RX Front End, SPDT 2-Stage LNA, High Power SPDT 3.4G 3.8G 0.45 18.5 43 3.6G- Reflective-
9ADRF5300 SPDT Silicon (SOI) 24G 32G 1.1 38 28 30G 52 Reflective-
10ADRF5301 SPDT Silicon (SOI) 35G 44G 1.8 28 28 40G 52 Reflective-
11HMC347B SPDT GaAs 100M 20G 1.7 45 27 20G 41 Non-Reflective $48.32 (HMC347B)
12ADRF5132 SPDT Silicon (SOI) 700M 5G 0.65 42 43 3.5G 65 Reflective, Reflective Open $16.58 (ADRF5132BCPZN)
13ADRF5044 SP4T Silicon (SOI) 100M 30G 2.6 43 24 30G 50 Non-Reflective $74.73 (ADRF5044BCCZN)
14ADRF5027 SPDT Silicon (SOI) 9k 44G 2.2 48 24 40G 54 Non-Reflective $71.93 (ADRF5027BCCZN)
15ADRF5026 SPDT Silicon (SOI) 100M 44G 2.4 50 24 40G 53 Non-Reflective $68.50 (ADRF5026BCCZN)
16ADRF5025 SPDT Silicon (SOI) 9k 44G 1.4 36 27 40G 50 Reflective, Reflective Short $79.12 (ADRF5025BCCZN)
17ADRF5024 SPDT Silicon (SOI) 100M 44G 1.4 36 27 40G 50 Reflective, Reflective Short $75.35 (ADRF5024BCCZN)
18ADRF5250 SP5T Silicon (SOI) 100M 6G 1.5 50 33 4G 57 Non-Reflective $3.92 (ADRF5250BCPZ)
19ADRF5043 SP4T Silicon (SOI) 9k 44G 2.6 38 24 40G 50 Non-Reflective-
20ADRF5042 SP4T Silicon (SOI) 100M 44G 2.6 41 24 40G 48 Non-Reflective-
21HMC321A SP8T GaAs 0 8G 2.5 30 26 6G 40 Non-Reflective $18.56 (HMC321ALP4E)
22ADRF5160 SPDT Silicon (SOI) 700M 4G 0.8 40 47.5 3.5G 70 Reflective, Reflective Open $20.34 (ADRF5160BCPZ)
23ADRF5045 SP4T Silicon (SOI) 9k 30G 2.4 45 24 30G 50 Non-Reflective $78.47 (ADRF5045BCCZN)
24HMC784A SPDT, T/R GaAs 0 4G 0.6 30 39 2G 62 Reflective, Reflective Short $6.41 (HMC784AMS8GE)
25HMC547ALP3E SPDT GaAs 0 20G 2 38 25 18G 45 Non-Reflective $49.49 (HMC547ALP3E)
26HMC547ALC3 SPDT GaAs 0 28G 1.9 40 25 20G 46 Non-Reflective $59.31 (HMC547ALC3)
27HMC427A Transfer GaAs 0 8G 1.5 43 27 6G 43 Reflective, Reflective Open $27.21 (HMC427ALP3E)
28HMC347ALP3E SPDT GaAs 0 14G 2 40 27 14G 47 Non-Reflective $47.05 (HMC347ALP3E)
29HMC347A-Die SPDT GaAs 0 20G 2.1 40 27 20G 45 Non-Reflective $48.32 (HMC347A)
30HMC986A SPDT GaAs 0.1G 50G 2.3 32 25 40G 40 Reflective, Reflective Short $88.55 (HMC986A)
31ADRF5130 SPDT Silicon (SOI) 0.7G 3.5G 0.7 41 44.5 3.5G 65 Reflective, Reflective Open $15.07 (ADRF5130BCPZ)
32ADRF5040 SP4T Silicon (SOI) 9k 12G 0.8 34 33 8G 58 Non-Reflective $13.19 (ADRF5040BCPZ)
33ADRF5021 SPDT Silicon (SOI) 9k 30G 2 60 24 30G 52 Non-Reflective $65.39 (ADRF5021BCCZN)
34ADRF5020 SPDT Silicon (SOI) 0.1G 30G 2 60 24 30G 52 Non-Reflective $62.28 (ADRF5020BCCZN)
35HMC574A SPDT, T/R GaAs 0 3G 0.3 28 39 2G 63 Reflective, Reflective Short $2.92 (HMC574AMS8E)
36HMC344A SP4T GaAs 100M 8G 1.7 36 28 6G 44 Non-Reflective $17.24 (HMC344ALP3E)
37HMC322ALP4E SP8T GaAs 0 8G 2.5 35 26.5 6G 40 Non-Reflective $15.84 (HMC322ALP4E)
38HMC270A SPDT GaAs 0G 8G 1 45 29 6G 42 Non-Reflective $3.50 (HMC270AMS8GE)
39HMC252A SP6T GaAs 0 3G 0.8 45 29.8 2.5G 47 Non-Reflective $8.66 (HMC252AQS24E)
40HMC244A SP4T GaAs 0 4G 0.8 40 27 2G 47 Non-Reflective $140.21 (HMC244AG16)
41HMC7992 SP4T Silicon (SOI) 0.1G 6G 0.7 37 33 4G 58 Non-Reflective $4.08 (HMC7992LP3DE)
42HMC8038 SPDT Silicon (SOI) 0.1G 6G 0.8 60 34 4G 60 Non-Reflective $3.57 (HMC8038LP4CE)
43HMC1118 SPDT Silicon (SOI) 9k 13G 0.68 48 35 8G 62 Non-Reflective $7.33 (HMC1118LP3DE)
44HMC641A-Die SP4T GaAs 100M 18G 2.1 42 24 12G 41 Non-Reflective $74.11 (HMC641A)
45HMC545A SPDT GaAs 0G 3G 0.3 31 34 2G 51 Reflective, Reflective Short $1.36 (HMC545AE)
46HMC199A SPDT GaAs 0 2.5G 0.4 25 29.3 2G 55 Reflective, Reflective Open $2.54 (HMC199AMS8E)
47HMC544A SPDT, T/R GaAs 0G 4G 0.4 16 39 2G 60 Reflective, Reflective Open $1.14 (HMC544AE)
48HMC641ALP4E SP4T GaAs 100M 20G 3 40 26.5 20G 41 Non-Reflective $52.61 (HMC641ALP4E)
49HMC641ALC4 SP4T GaAs 0 20G 1.8 42 26.5 12G 41 Non-Reflective $90.59 (HMC641ALC4)
50HMC345A SP4T GaAs 0 8G 2 35 24 6G 43 Non-Reflective $14.98 (HMC345ALP3E)
