ADGM3121

新規設計に推奨

3mm × 3mm DPDT MEMS Switch, 0Hz/DC to 24GHz

利用上の注意

本データシートの英語以外の言語への翻訳はユーザの便宜のために提供されるものであり、リビジョンが古い場合があります。最新の内容については、必ず最新の英語版をご参照ください。

なお、日本語版のデータシートは基本的に「Rev.0」(リビジョン0)で作成されています。そのため、英語版が後に改訂され、複数製品のデータシートがひとつに統一された場合、同じ「Rev.0」の日本語版のデータシートが異なる製品のデータシートとして表示されることがあります。たとえば、「ADM3307E」の場合、日本語データシートをクリックすると「ADM3311E」が表示されます。これは、英語版のデータシートが複数の製品で共有できるように1本化され、「ADM3307E/ADM3310E/ADM3311E/ADM3312E/ADM3315E」(Rev.J)と改訂されたからで、決して誤ってリンクが張られているわけではありません。和文化されたデータシートを少しでも有効に活用していただくためにこのような方法をとっておりますので、ご了解ください。

アナログ・デバイセズ社は、提供する情報が正確で信頼できるものであることを期していますが、その情報の利用に関して、あるいはその利用によって生じる第三者の特許やその他の権利の侵害に関して一切の責任を負いません。また、アナログ・デバイセズ社の特許または特許の権利の使用を明示的または暗示的に許諾するものでもありません。仕様は予告なしに変更する場合があります。本紙記載の商標および登録商標は、各社の所有に属します。

Viewing:

製品情報

  • −3dB frequency bandwidth:
    • RF1A and RF1B: 24GHz
    • RF2A and RF2B: 22GHz
  • High bit rate capability up to 64Gbps
  • RF performance characteristics
    • Channel RF1A and Channel RF1B:
      • Insertion loss: 0.5dB (typical) at 6GHz
      • Return loss: 24dB (typical) at 6GHz
      • Isolation: 24dB (typical) at 6GHz
    • Channel RF2A and Channel RF2B:
      • Insertion loss: 0.4dB (typical) at 6GHz
      • Return loss: 29dB (typical) at 6GHz
      • Isolation: 26dB (typical) at 6GHz
  • High input IIP3: 70dBm (typical)
  • High RF power handling: 33dBm (maximum)
  • On resistance: 1.9Ω (typical)
  • High DC current handling: 200mA
  • High switch cycle count: 100 million cycles (minimum at +85°C)
  • Fast switching time: 200μs TON (maximum)
  • Integrated 3.3V driver for simple control with parallel interface and SPI
  • Space saving integrated passive shunt resistors
  • Small 3mm × 3mm × 1.5mm, 24-lead land grid array package
  • Temperature range: −40°C to +85°C

The ADGM3121 is a wideband, double-pole, double-throw (DPDT) switch, fabricated using Analog Devices, Inc., microelectromechanical system (MEMS) switch technology. This technology enables a small form factor, wide RF bandwidth, highly linear, low insertion loss switch that is operational down to 0Hz/DC, making it an ideal solution for a wide range of RF and precision equipment switching needs.

An integrated driver chip generates a high voltage to electrostatically actuate switch that can be controlled by a parallel interface or a serial peripheral interface (SPI). All switches are independently controllable.

The device is packaged in a 24-lead, 3mm × 3mm × 1.5mm land grid array package. To ensure optimum operation of the ADGM3121 refer to the Critical Operational Requirements section.

The on-resistance (RON) performance of the ADGM3121 is affected by part-to-part variation, channel-to-channel variation, cycle actuations, settling time post turn on, bias voltage, and temperature changes.

APPLICATIONS

  • ATE load and probe boards
  • DC with high speed loopback testing
  • Supports digital standards: high speed serialization/deserialization, PCIe Gen4/Gen5/Gen6, USB 4, and PAM 4
  • Relay replacements
  • Reconfigurable filters and attenuators
  • Military and microwave radios
  • Cellular infrastructure: 5G mmWave

ADGM3121
3mm × 3mm DPDT MEMS Switch, 0Hz/DC to 24GHz
ADGM3121 Functional Block Diagram ADGM3121 Pin Configuration ADGM3121 Chip Illustration
myAnalogに追加

myAnalogの製品セクション(通知受け取り)、既存/新規プロジェクトに製品を追加する。

新規プロジェクトを作成
質問する
サポート

アナログ・デバイセズのサポート・ページはアナログ・デバイセズへのあらゆるご質問にお答えするワンストップ・ポータルです。


ドキュメント

さらに詳しく
myAnalogに追加

myAnalogのリソース・セクション、既存/新規プロジェクトにメディアを追加する。

新規プロジェクトを作成

ソフトウェア・リソース

必要なソフトウェア/ドライバが見つかりませんか?

ドライバ/ソフトウェアをリクエスト

ツールおよびシミュレーション


評価用キット

eval board
EVAL-ADGM3121

Evaluating the ADGM3121 3mm × 3mm DPDT MEMS Switch, 0Hz/DC to 24GHz

機能と利点

  • Single-supply voltage: 3.3V
  • Wide frequency range: DC to 24GHz
  • 2.92mm connectors for RF signals
  • Parallel interface and SPI
  • On-board calibration through transmission line for analyzer calibration

製品詳細

This user guide describes the EVAL-ADGM3121SDZ for the ADGM3121, a dual-chip, RF switching solution containing a double- pole, double-throw (DPDT), microelectromechanical systems (MEMS) switch, and a control chip co-packaged in a compact, 3.00mm × 3.00mm × 1.50mm, LGA package.

The DPDT switch uses Analog Devices, Inc., MEMS switch technology, providing optimum performance in terms of bandwidth, power handling capability, and linearity for RF applications. The control chip generates the high-voltage signals needed for the MEMS switch and allows the user to control its operation through a simple and flexible complementary metal-oxide semiconductor (CMOS)/low voltage transistor to transistor logic (LVTTL)-compliant parallel-interface as well as through a serial-peripheral interface (SPI). It is possible to daisy-chain multiple ADGM3121 devices together to enable the configuration of multiple devices with a minimal number of digital lines.

For SPI, the EVAL-ADGM3121SDZ connects to the USB port of a PC through the system demonstration platform (SDP) board. The EVAL-SDP-CB1Z board (SDP-B controller board) is available to order at the Analog Devices website.

The ADGM3121 comes fitted with connectors for RF and control signals as well as links to control the operation of the switch and evaluate its performance.

For full details on the ADGM3121, see the ADGM3121 data sheet, which must be consulted in conjunction with this user guide when using the EVAL-ADGM3121SDZ.

EVAL-ADGM3121
Evaluating the ADGM3121 3mm × 3mm DPDT MEMS Switch, 0Hz/DC to 24GHz

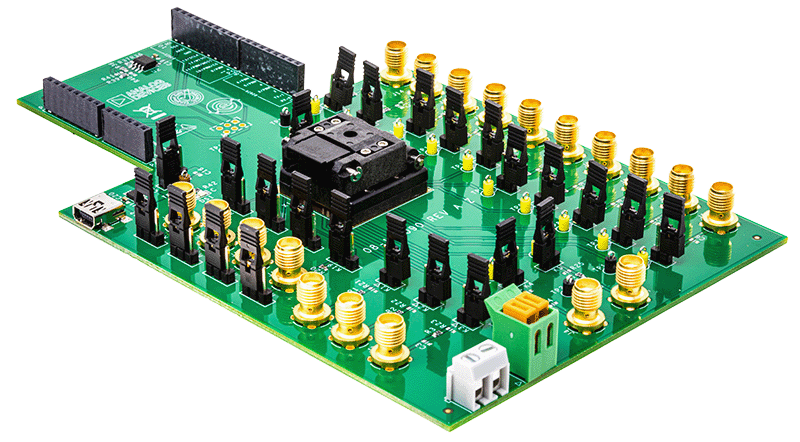

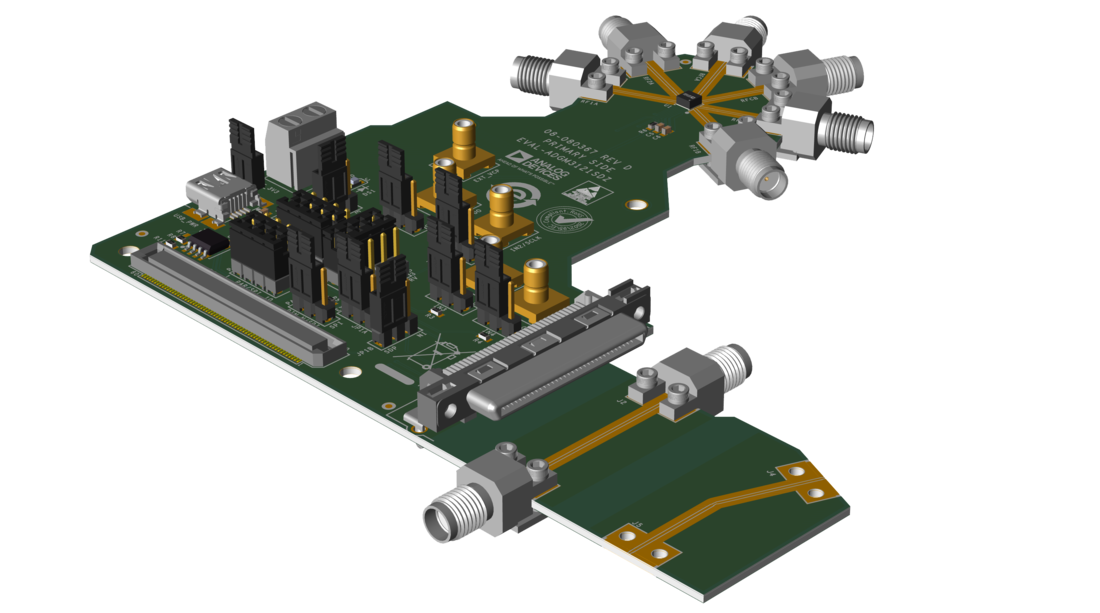

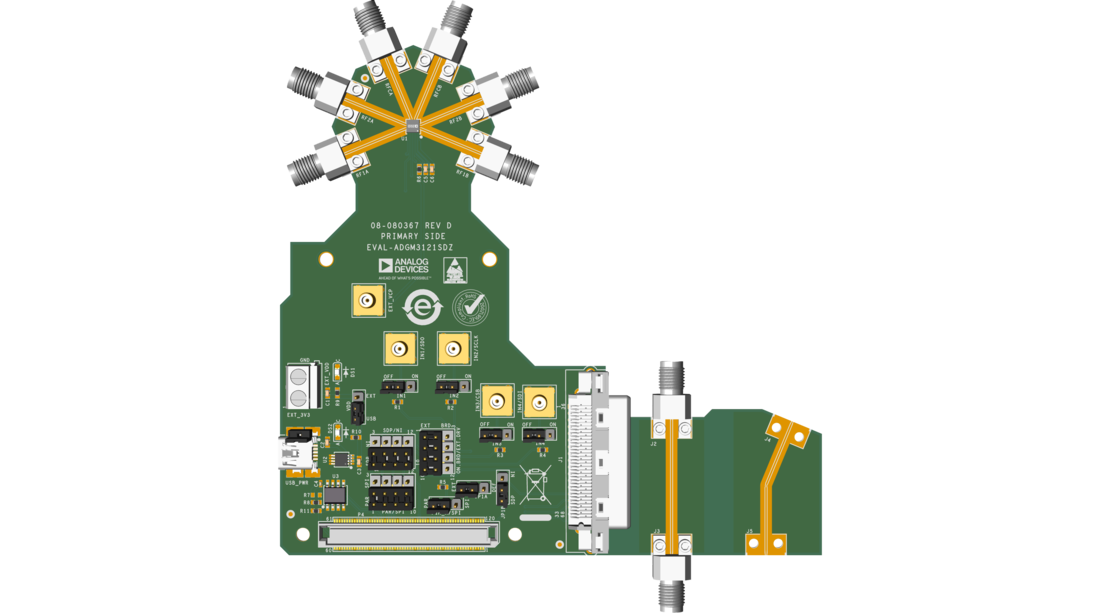

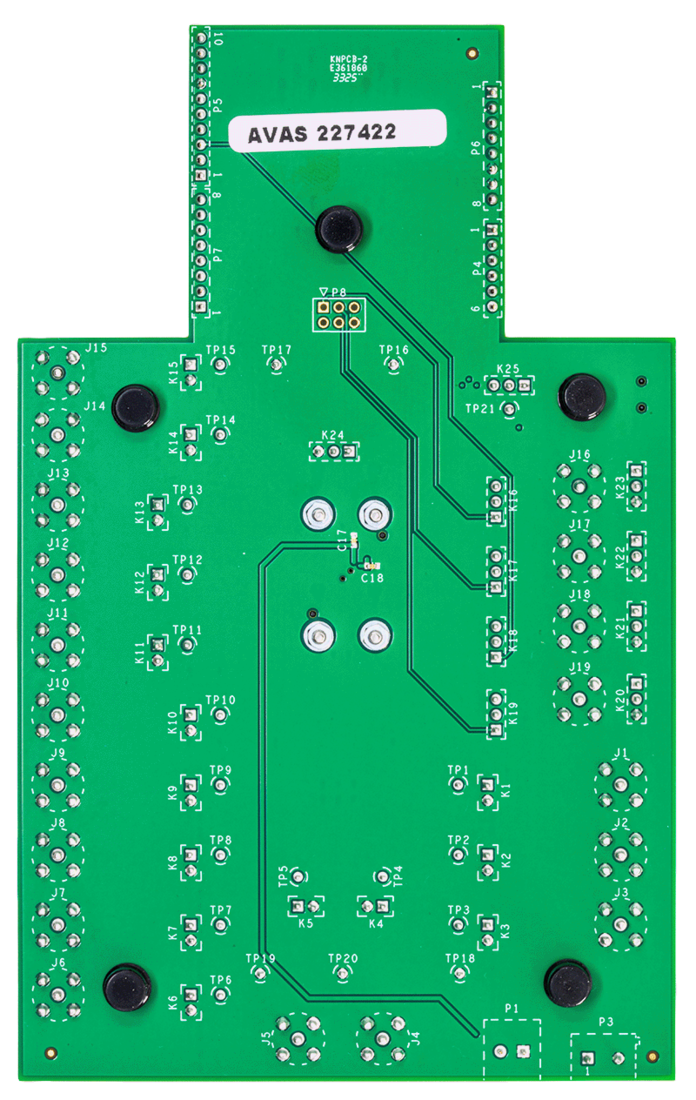

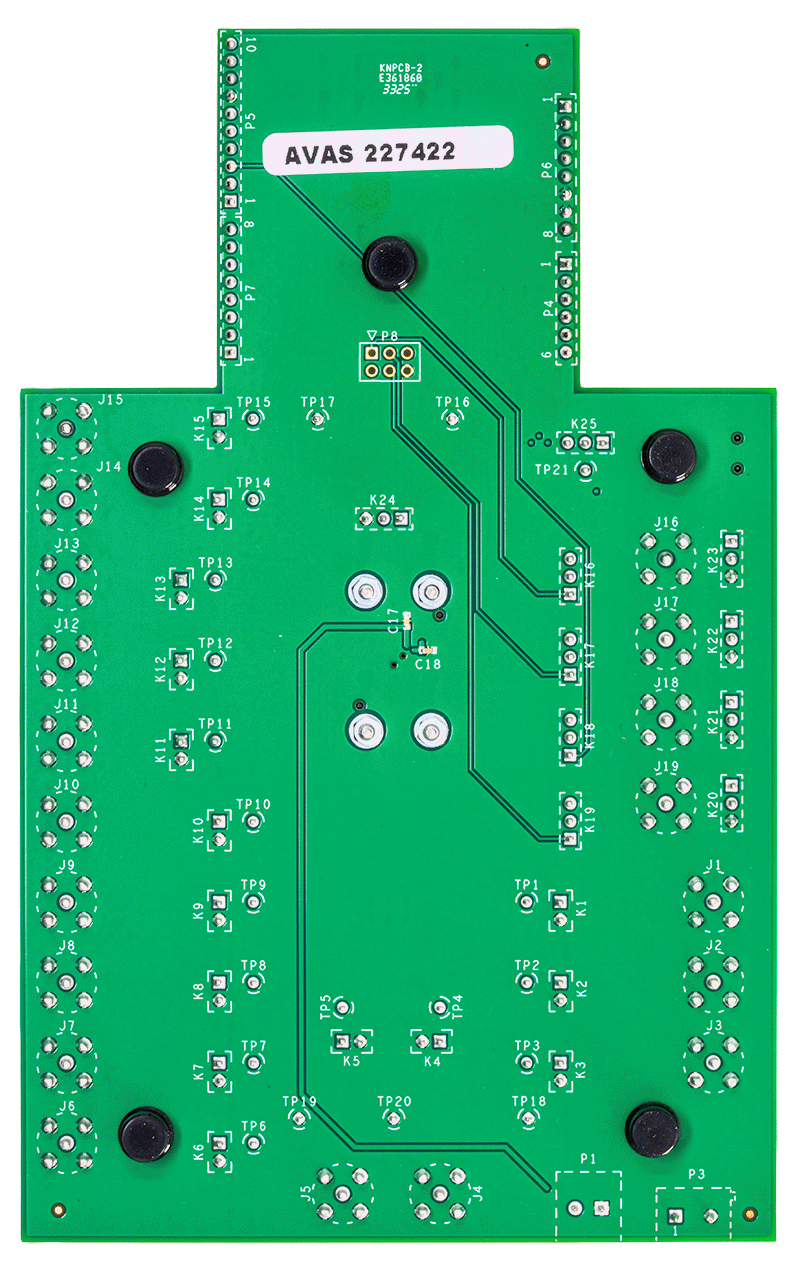

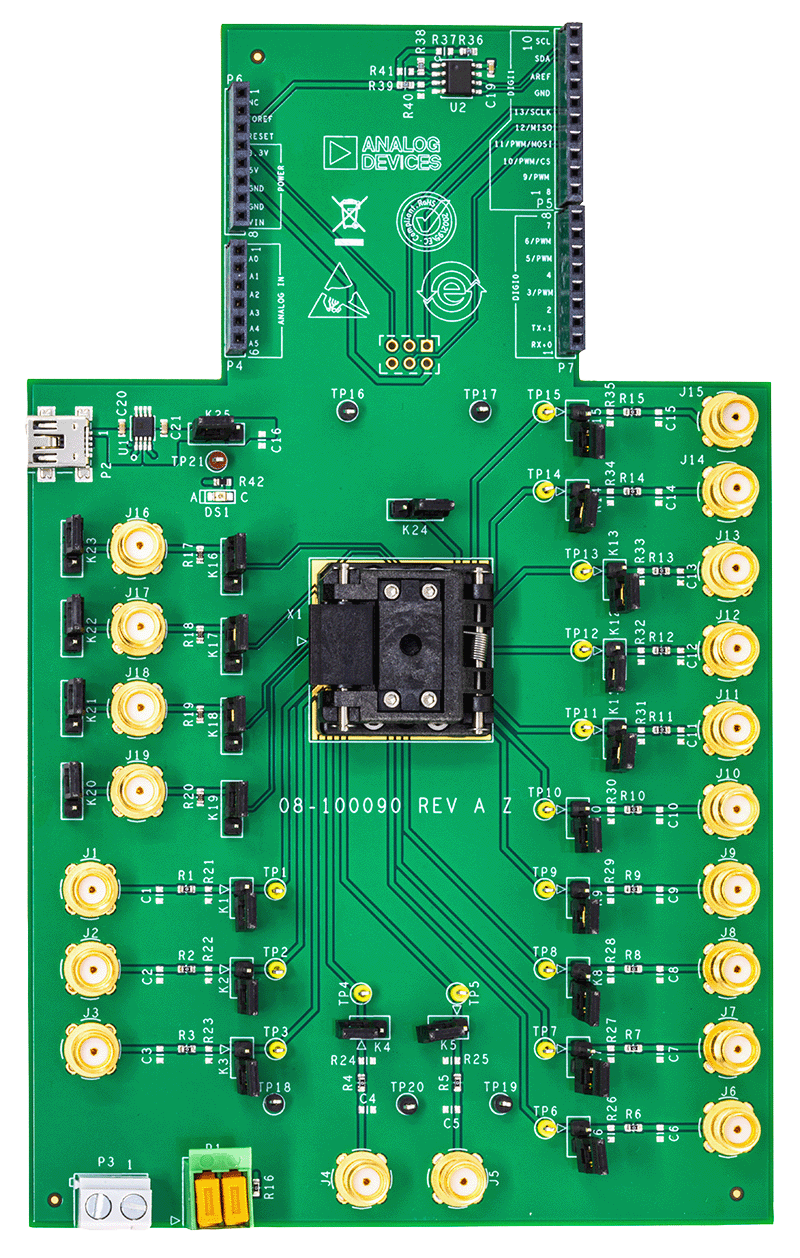

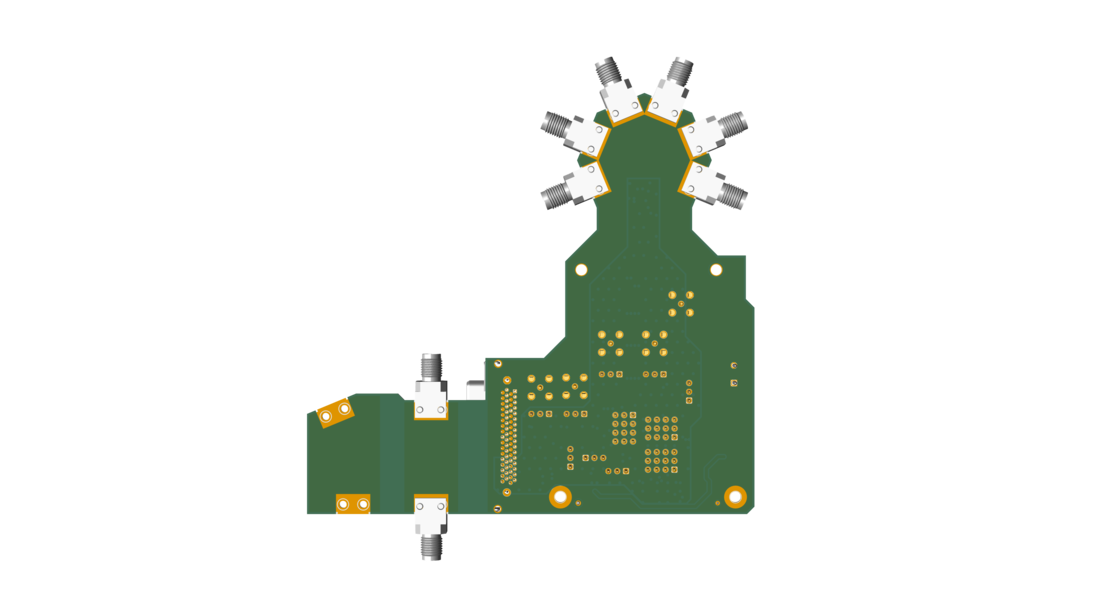

EVAL-ADGM3121 Evaluation Board Photo Angle View EVAL-ADGM3121 Evaluation Board Photo Top View EVAL-ADGM3121 Evaluation Board Photo Bottom View
