MAX2032
High-Linearity, 650MHz to 1000MHz Upconversion/Downconversion Mixer with LO Buffer/Switch
Show More
Fully Integrated SiGe Passive Mixer, Featuring Excellent IIP3, 2LO - 2RF, and LO ± 2IF Performance
Not the part you were looking for?
Ask a Question
Submit your question below and we will return the best answer from ADI’s knowledge database:
Search
Other places you can find help
Support
Analog Devices Support Portal is a one-stop shop to answer all your ADI questions.
Visit the ADI Support Page
Features
- 650MHz to 1000MHz RF Frequency Range
- 650MHz to 1250MHz LO Frequency Range
- 570MHz to 900MHz LO Frequency Range (Refer to the MAX2029 Data Sheet)
- DC to 250MHz IF Frequency Range
- 7dB Conversion Loss
- +33dBm Input IP3
- +24dBm Input 1dB Compression Point
- 7dB Noise Figure
- Integrated LO Buffer
- Integrated RF and LO Baluns
- Low -3dBm to +3dBm LO Drive
- Built-In SPDT LO Switch with 49dB LO1 to LO2 Isolation and 50ns Switching Time
- Pin Compatible with the MAX2039/MAX2041 1700MHz to 2200MHz Mixers
- External Current-Setting Resistor Provides Option for Operating Mixer in Reduced-Power/Reduced-Performance Mode
.svg?rev=fd385c90e2cf4716ae9a8c8d20e6b8e3&la=en&h=24&w=24&hash=A302DF48F94BAAA11877AF223F27157A){kind=icon}
The MAX2032 high-linearity passive upconverter or downconverter mixer is designed to provide +33dBm IIP3, 7dB NF, and 7dB conversion loss for a 650MHz to 1000MHz RF frequency range to support a multitude of base-station applications. With a 650MHz to 1250MHz LO frequency range, this particular mixer is ideal for high-side LO injection architectures. For a pin-to-pin-compatible mixer meant for low-side LO injection, refer to the MAX2029.

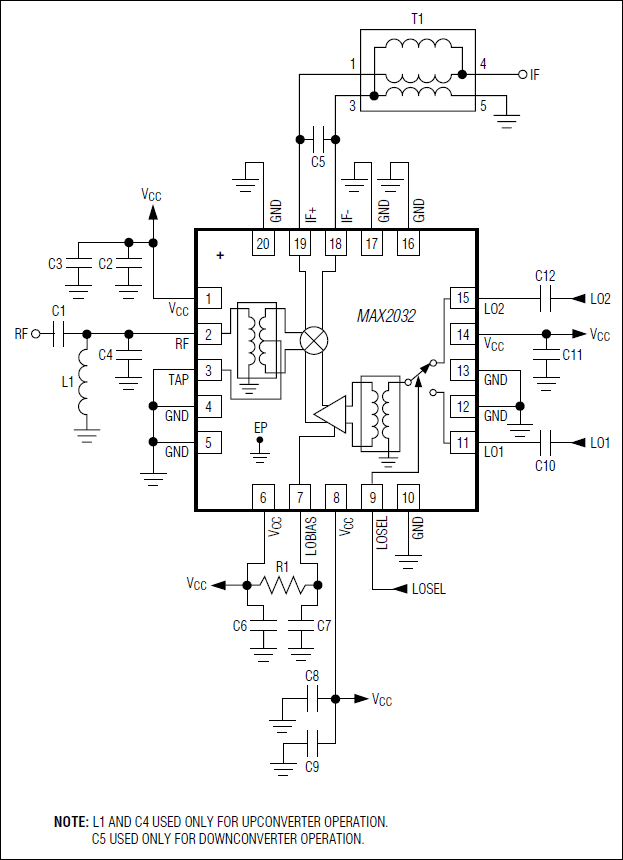

In addition to offering excellent linearity and noise performance, the MAX2032 also yields a high level of component integration. This device includes a double-balanced passive mixer core, a dual-input LO selectable switch, and an LO buffer. On-chip baluns are also integrated to allow for a single-ended RF input for downconversion (or RF output for upconversion), and single-ended LO inputs. The MAX2032 requires a nominal LO drive of 0dBm, and supply current is guaranteed to be below 100mA.
The MAX2032 is pin compatible with the MAX2039/MAX2041 1700MHz to 2200MHz mixers, making this family of passive upconverters and downconverters ideal for applications where a common PCB layout is used for both frequency bands.
The MAX2032 is available in a compact 20-pin thin QFN package (5mm x 5mm) with an exposed pad. Electrical performance is guaranteed over the extended -40°C to +85°C temperature range.
Applications
- Digital and Spread-Spectrum Communication Systems
- GSM 850/GSM 900 2G and 2.5G EDGE Base Stations
- Integrated Digital Enhanced Network (iDEN®) Base Stations
- Microwave and Fixed Broadband Wireless Access
- Predistortion Receivers
- WCDMA/LTE and cdma2000® Base Stations
- WiMAX™ Base Stations and Customer Premise Equipment
- Wireless Local Loop
