ADMV1013

RECOMMENDED FOR NEW DESIGNS

ADMV1013

24 GHz to 44 GHz, Wideband, Microwave Upconverter

RECOMMENDED FOR NEW DESIGNS

Not the part you were looking for?

Go to Product Selection Table

View All Documentation

Ask a Question

Submit your question below and we will return the best answer from ADI’s knowledge database:

Other places you can find help

Support

Analog Devices Support Portal is a one-stop shop to answer all your ADI questions.

Visit the ADI Support Page

Ask the ADI community for help.

Ask the EngineerZone Community

FAQs

Sales & Ordering FAQs

Part Models 2

1ku List Price Starting From $102.61

Features

Wideband RF output frequency range: 24 GHz to 44 GHz
2 upconversion modes
- Direct conversion from baseband I/Q to RF
- Single-sideband upconversion from real IF
LO input frequency range: 5.4 GHz to 10.25 GHz
LO quadrupler for up to 41 GHz
Matched 50 Ω single-ended RF output and IF inputs

Option between matched 100 Ω balanced or 50 Ω single-ended LO inputs
100 Ω balanced baseband inputs
Sideband suppression and carrier feedthrough optimization
Variable attenuator for transceiver power control
Programmable via 4-wire SPI interface

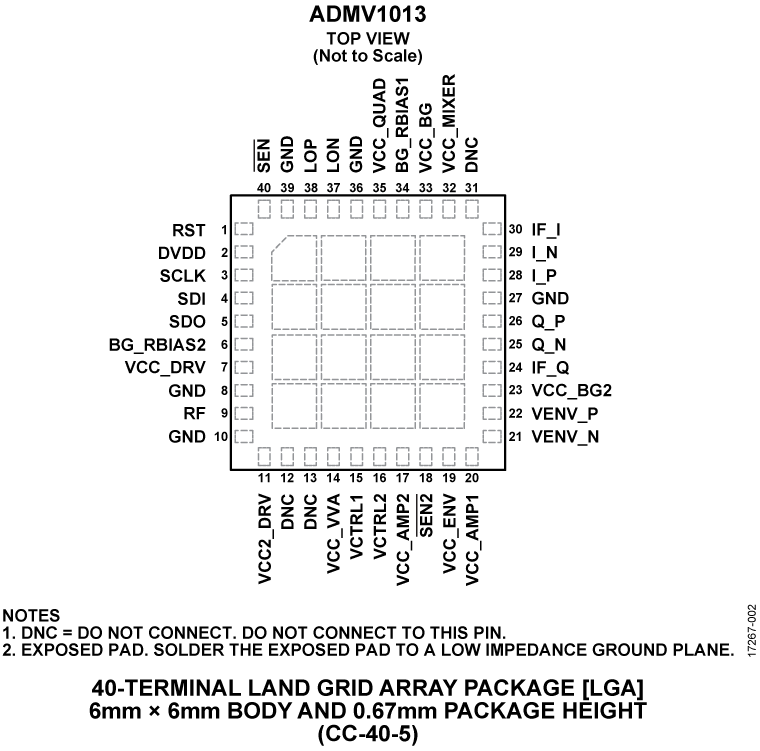

40-terminal land grid array package (LGA)

Additional Details

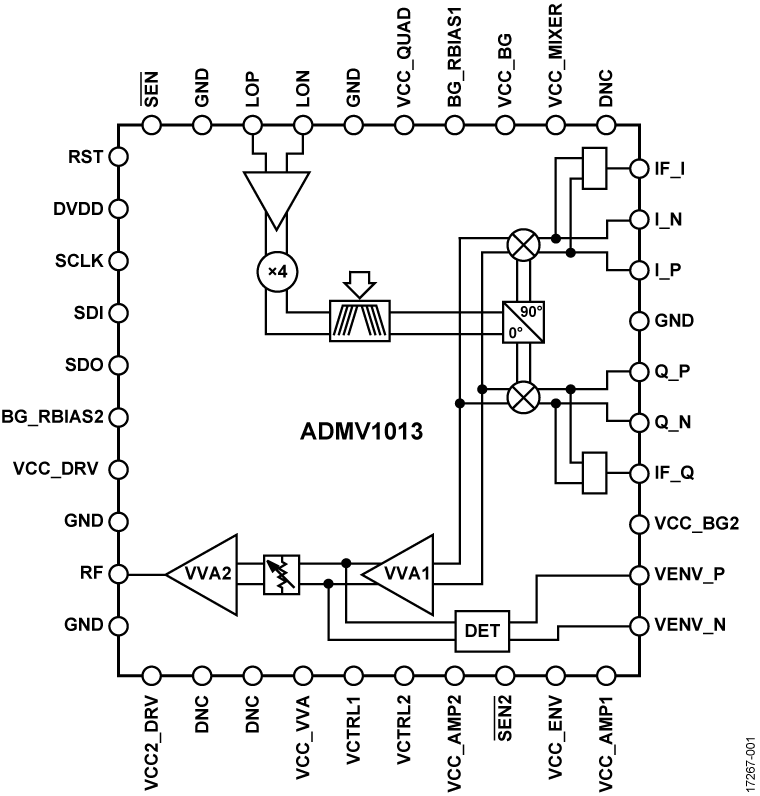

The ADMV1013 is a wideband, microwave upconverter optimized for point to point microwave radio designs operating in the 24 GHz to 44 GHz radio frequency (RF) range.

The upconverter offers two modes of frequency translation. The device is capable of direct conversion to RF from baseband in-phase quadrature (I/Q) input signals, as well as single-sideband (SSB) upconversion from complex intermediate frequency (IF) inputs. The baseband I/Q input path can be disabled and modulated complex IF signals, anywhere from 0.8 GHz to 6.0 GHz, can be inserted in the IF path and upconverted to 24 GHz to 44 GHz while suppressing the unwanted sideband by typically better than 26 dBc. The serial port interface (SPI) allows adjustment of the quadrature phase and mixer gate voltage to allow optimum sideband suppression and local oscillator (LO) nulling. In addition, the SPI interface allows powering down the output envelope detector to reduce power consumption.

The ADMV1013 upconverter comes in a 40-terminal land grid array package (LGA) package. The ADMV1013 operates over the −40°C to +85°C case temperature range.

Applications

Point to point microwave radios
Radar, electronic warfare systems
Instrumentation, automatic test equipment (ATE)

View All Documentation

Ask a Question

Submit your question below and we will return the best answer from ADI’s knowledge database:

Other places you can find help

Support

Analog Devices Support Portal is a one-stop shop to answer all your ADI questions.

Visit the ADI Support Page

Ask the ADI community for help.

Ask the EngineerZone Community

FAQs

Sales & Ordering FAQs

Part Models 2

1ku List Price Starting From $102.61

Technical Documents 4

ADMV1013: 24 GHz to 44 GHz, Wideband, Microwave Upconverter Data Sheet (Rev.B) 01/31/2019

UG-1461: Evaluating the ADMV1013 24 GHz to 44 GHz, Wideband Microwave Upconverter (Rev.B) 02/01/2019

24 GHz to 44 GHz Wideband Integrated Upconverters and Downconverters Boost Microwave Radio Performance While Reducing Size 06/01/2019

How Error Vector Magnitude (EVM) Measurement Improves Your System-Level Performance 04/01/2021

Reference Materials 6

5G mmW RF Front-End ICs 24 GHz to 48.2 GHz 09/15/2022

ADMV1013 Linux GitHub Driver Source Code 08/29/2024

ADMV1013 GitHub no-OS Driver Source Code 08/13/2024

RF, Microwave, and Millimeter Wave Product Selection Guide 07/13/2018

Bits to Beams: RF Technology Evolution for 5G Millimeter Wave Radios 12/01/2018

Instrumentation Grade mmWave Signal Chains 06/22/2020

Design Resources 2

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
ADMV1013ACCZ	40-Lead LGA	HTML Material Declaration HTML Reliablity Data	Ultra Librarian SamacSys
ADMV1013ACCZ-R7	40-Lead LGA	HTML Material Declaration HTML Reliablity Data	Ultra Librarian SamacSys

ADMV1013ACCZ
Pin/Package Drawing
40-Lead LGA
Documentation

HTML Material Declaration

HTML Reliablity Data

CAD Symbols, Footprints, and 3D Models
Ultra Librarian
SamacSys

ADMV1013ACCZ-R7
Pin/Package Drawing
40-Lead LGA
Documentation

HTML Material Declaration

HTML Reliablity Data

CAD Symbols, Footprints, and 3D Models
Ultra Librarian
SamacSys

Software 2

ADMV1013 Linux GitHub Driver Source Code NEW

ADMV1013 GitHub no-OS Driver Source Code NEW

View Evaluation Software

Companion Parts 20

Parts	Product Life Cycle	Description
Baseband Programmable VGA-Filters1
ADRF6520	RECOMMENDED FOR NEW DESIGNS	Dual Programmable Filters and VGAs for 2 GHz Channel Spacing for μW Radios
Digital Control VGAs1
ADL5205	RECOMMENDED FOR NEW DESIGNS	Dual, 35 dB Range, 1 dB Step Size DGA
Fractional-N PLL6
ADF4372	RECOMMENDED FOR NEW DESIGNS	Microwave Wideband Synthesizer with Integrated VCO
ADF4371	RECOMMENDED FOR NEW DESIGNS	Microwave Wideband Synthesizer with Integrated VCO
ADF5610	Obsolete	Microwave Wideband Synthesizer with Integrated VCO
HMC704	LAST TIME BUY	8 GHz 19-Bit Fractional-N PLL
ADF5355	RECOMMENDED FOR NEW DESIGNS	Microwave Wideband Synthesizer with Integrated VCO
ADF5356	RECOMMENDED FOR NEW DESIGNS	Microwave Wideband Synthesizer with Integrated VCO
Fully Differential Amplifiers2
ADL5569	RECOMMENDED FOR NEW DESIGNS	6.5 GHz, Ultrahigh Dynamic Range, Differential Amplifier
ADL5567	RECOMMENDED FOR NEW DESIGNS	4.3 GHz, Ultrahigh Dynamic Range, Dual Differential Amplifier
LDO Plus1
LT3042	RECOMMENDED FOR NEW DESIGNS	20V, 200mA, Ultralow Noise, Ultrahigh PSRR RF Linear Regulator
Microwave and mmWave Tx/Rx2
HMC8100	RECOMMENDED FOR NEW DESIGNS	Intermediate Frequency Receiver 800 MHz - 4000 MHz
HMC8200	RECOMMENDED FOR NEW DESIGNS	Intermediate Frequency Transmitter 800 MHz to 4000 MHz
Positive Linear Regulators (LDO)3
ADM7172	RECOMMENDED FOR NEW DESIGNS	6.5 V, 2 A, Ultralow Noise, High PSRR, Fast Transient Response CMOS LDO
ADM7170	RECOMMENDED FOR NEW DESIGNS	6.5 V, 500 mA, Ultralow Noise, High PSRR, Fast Transient Response CMOS LDO
ADP7102	RECOMMENDED FOR NEW DESIGNS	20 V, 300 mA, Low Noise, CMOS LDO
Single-Channel Voltage Output D/A Converters1
AD5601	PRODUCTION	2.7 V to 5.5 V, <100 μA, 8-Bit nanoDAC, SPI Interface in LFCSP and SC70
Standard High Speed D/A Converters2
AD9174	RECOMMENDED FOR NEW DESIGNS	Dual, 16-Bit, 12.6 GSPS RF DAC and Direct Digital Synthesizer
AD9172	RECOMMENDED FOR NEW DESIGNS	Dual, 16-Bit, 12.6 GSPS RF DAC with Channelizers
Ultralow Noise Regulators1
LT3045	RECOMMENDED FOR NEW DESIGNS	20V, 500mA, Ultralow Noise, Ultrahigh PSRR Linear Regulator

Alternative Parts 1

Parts	Product Life Cycle	Description
ADMV1014	RECOMMENDED FOR NEW DESIGNS	24 GHz to 44 GHz, Wideband, Microwave Downconverter

EVAL-ADMV1013

ADMV1013 Evaluation Board

Download

EVAL-ADMV1013

ADMV1013 Evaluation Board

Features and Benefits

Fully featured evaluation board for the ADMV1013
On-board USB for SPI control
5 V operation
ACE software interface for SPI control

Buy Now View Details

Product Detail

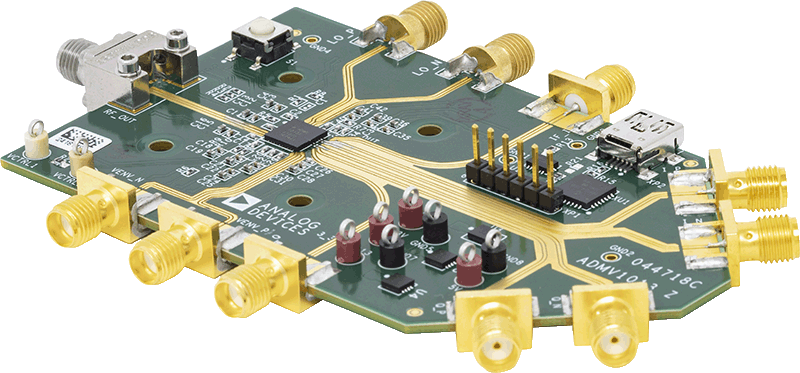

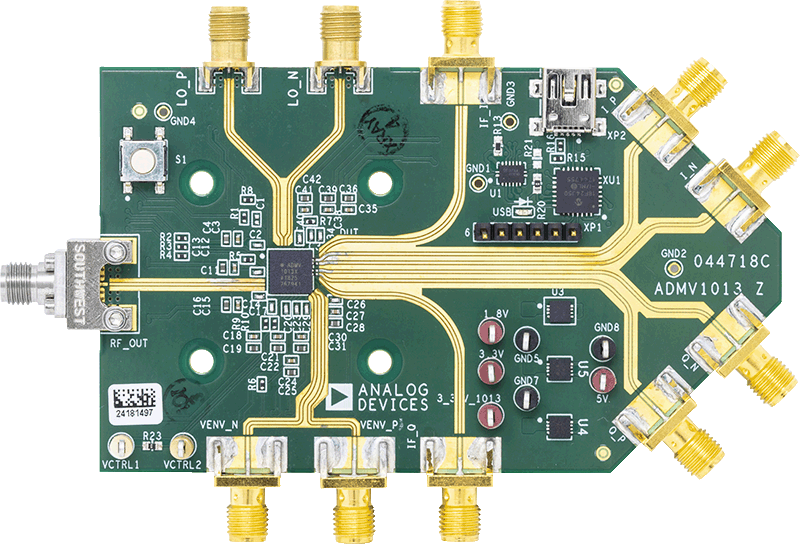

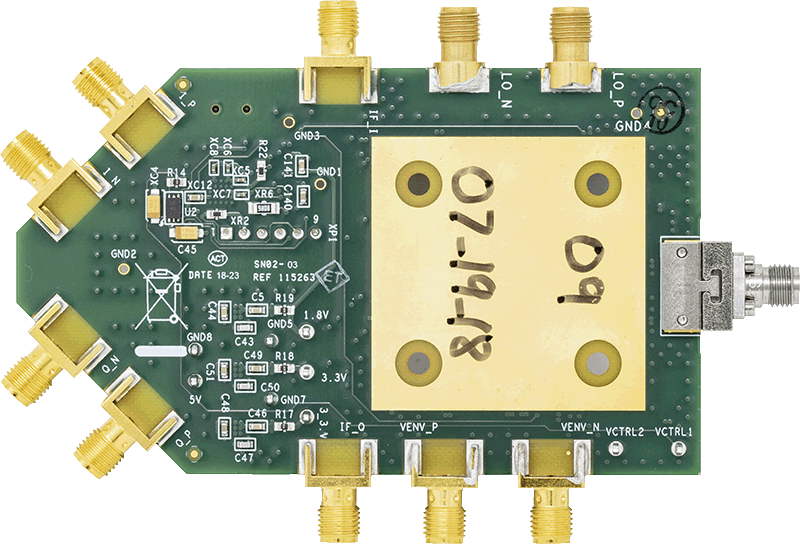

TThe ADMV1013-EVALZ evaluation board incorporates the ADMV1013 with a microcontroller, low dropout (LDO) regulators, and the AD5601 nanoDAC^® to allow the quick and easy evaluation of the ADMV1013. The microcontroller allows the user to configure the ADMV1013 register map through the Analysis, Control, Evaluation (ACE) software. The LDO regulators allow the ADMV1013 to be powered on by a single supply, and offer power supply ripple rejection. The AD5601 nanoDAC allows the user to attenuate the radio frequency (RF) power from the mixer of the ADMV1013 without using an external power supply.

The ADMV1013 is a silicon germanium (SiGe) design, wideband, microwave upconverter optimized for point to point microwave radio designs operating in a frequency range of 24 GHz to 44 GHz.

The ADMV1013 comes in a compact, thermally enhanced, 6 mm × 6 mm LGA package, and operates over a temperature range of −40°C to +85°C. For full details on the ADMV1013, see the ADMV1013 data sheet. Consult the data sheet in conjunction with this user guide when using the ADMV1013-EVALZ evaluation board.

Resources

ZIP

ADMV1013 Gerber Files

380.21 K

PDF

UG-1461: Evaluating the ADMV1013 24 GHz to 44 GHz, Wideband Microwave Upconverter (Rev.B)

85.86 M

Software

ZIP

ADMV1013 Trace De-Embed Files

3.54 M

ZIP

ADMV1013 USB Drivers

5.55 M

EVAL-ADMV1013

ADMV1013 Evaluation Board

LTspice

LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.

S-Parameter 1

Simulation Model

S-Parameter

ADMV1013 S-Parameters

271.94 KB

ADIsimRF

ADIsimRF is an easy-to-use RF signal chain calculator. Cascaded gain, noise, distortion and power consumption can be calculated, plotted and exported for signal chains with up to 50 stages. ADIsimRF also includes an extensive data base of device models for ADI’s RF and mixed signal components.

Open Tool
