Features and Benefits
- Wide band: DC - 8 GHz RF Input, 4 GHz 19-Bit Prescaler
- Industry Leading Phase Noise & Spurious -112 dBc/Hz @ 8 GHz Fractional, 50 kHz Offset
- -230 dBc/Hz Frac. Mode
- -233 dBc/Hz Int. Mode 100 MHz PFD
- High PFD rate: 100 MHz
- 24 Lead 4x4mm SMT Package: 16mm²
The HMC704 has been designed for the best phase noise and lowest spurious content possible in an integrated synthesizer. Fabricated in a SiGe BiCMOS process, this Fractional-N frequency synthesizer consists of a very low noise digital phase detector, VCO divider, reference divider and a precision controlled charge pump.
Ultra low in-close phase noise and low spurious allows wide loop bandwidths for faster frequency hopping and low micro-phonics. Exact frequency mode with 24-bit fractional modulator provides the ability to generate fractional frequencies with zero frequency error, an important feature for Digital Pre-Distortion systems.
The serial interface offers read back capability and is compatible with a wide variety of protocols.
- Microwave Point-to-Point Radios
- Base Stations for Mobile Radio
(GSM, PCS, DCS, CDMA, WCDMA)
- Wireless LANs, WiMAX
- Communications Test Equipment
- CATV Equipment
Markets and Technologies
Product Lifecycle Last Time Buy
All products in this family will be obsolete soon. Please contact ADI Sales or Distributors to arrange for final purchases and read our Obsolescence Information to review the time periods for placing final orders and receiving final shipments.

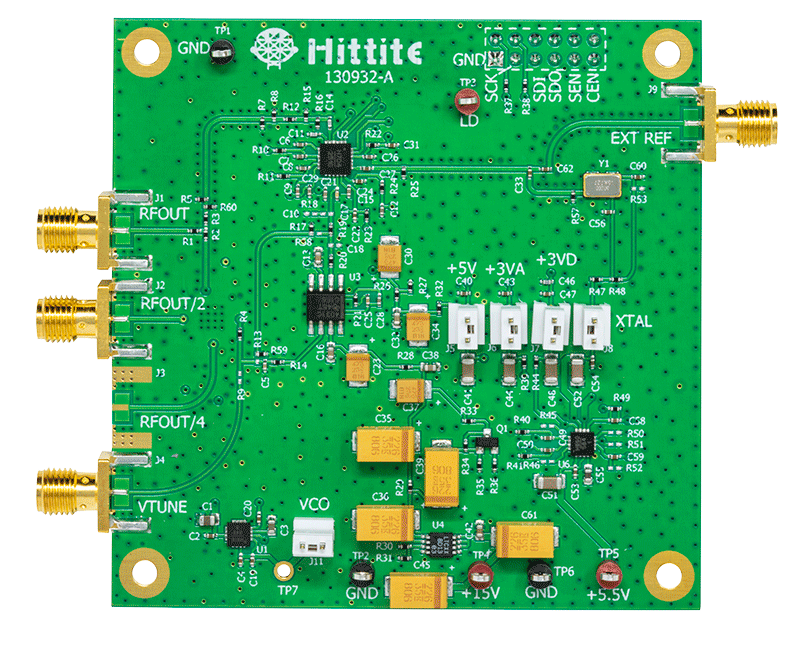

Evaluation Kits (1)
Documentation & Resources
Phase-Locked Loop (PLL) Fundamentals7/9/2018 Analog Dialogue
Wideband Phase-Locked Loops with Integrated Voltage Controlled Oscillators: Can They Replace a Discrete Solution?4/1/2016
Analyzing Optimizing and Eliminating Integer Boundary Spurs in Phase-Locked Loops with VCOs at up to 13.6 GHz8/1/2015 Analog Dialogue
Tools & Simulations
ADIsimPLL enables the rapid and reliable evaluation of new high performance PLL products from ADI. It is the most comprehensive PLL Synthesizer design and simulation tool available today. Simulations performed include all key non-linear effects that are significant in affecting PLL performance. ADIsimPLL removes at least one iteration from the design process, thereby speeding the design- to-market.
For those developers dealing with integer boundary spurs from Analog’s PLL synthesizers, the best solution is ADIsimFrequencyPlanner. The frequency planner quickly analyzes the PFD frequency for a user’s output requirements and then optimizes the frequency of each output to identify the highest contributing integer boundary spur performance.
