ADMV1014

RECOMMENDED FOR NEW DESIGNS

24 GHz to 44 GHz, Wideband, Microwave Downconverter

Data Sheet (Rev. B) Product Selection Table

Part Models: 2
1ku List Price: Starting From $99.97

Viewing:

Part Details

Wideband RF input frequency range: 24 GHz to 44 GHz
2 downconversion modes
- Direct conversion from RF to baseband I/Q
- Image rejecting downconversion to complex IF
LO input frequency range: 5.4 GHz to 10.25 GHz
LO quadrupler for up to 41 GHz
Matched 50 Ω, single-ended RF input, and complex IF outputs
Option between matched 100 Ω balanced or 50 Ω single-ended LO inputs

100 Ω balanced baseband I/Q output impedance with adjustable output common-mode voltage level
Image rejection optimization
Square law power detector for setting mixer input power
Variable attenuator for receiver power control
Programmable via a 4-wire SPI interface
32-terminal, 5 mm × 5 mm LGA package

Part Models: 2
1ku List Price: Starting From $99.97

Documentation

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
ADMV1014ACCZ	32-Lead LGA (5mm x 5mm)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
ADMV1014ACCZ-R7	32-Lead LGA (5mm x 5mm)	Material Declaration Reliablity Data	Ultra Librarian SamacSys

This is the most up-to-date revision of the Data Sheet.

Software Resources

Device Drivers 2

Can't find the software or driver you need?

Hardware Ecosystem

Parts	Product Life Cycle	Description
Fractional-N PLL 6
ADF4372	RECOMMENDED FOR NEW DESIGNS	Microwave Wideband Synthesizer with Integrated VCO
ADF4371	RECOMMENDED FOR NEW DESIGNS	Microwave Wideband Synthesizer with Integrated VCO
ADF5610	Obsolete	Microwave Wideband Synthesizer with Integrated VCO
HMC704	LAST TIME BUY	8 GHz 19-Bit Fractional-N PLL

ADF5356	RECOMMENDED FOR NEW DESIGNS	Microwave Wideband Synthesizer with Integrated VCO
ADF5355	RECOMMENDED FOR NEW DESIGNS	Microwave Wideband Synthesizer with Integrated VCO
LDO Plus 1
LT3042	RECOMMENDED FOR NEW DESIGNS	20V, 200mA, Ultralow Noise, Ultrahigh PSRR RF Linear Regulator
Microwave and mmWave Tx/Rx 2
HMC8100	RECOMMENDED FOR NEW DESIGNS	Intermediate Frequency Receiver 800 MHz - 4000 MHz
HMC8200	RECOMMENDED FOR NEW DESIGNS	Intermediate Frequency Transmitter 800 MHz to 4000 MHz
Positive Linear Regulators (LDO) 4
ADM7172	RECOMMENDED FOR NEW DESIGNS	6.5 V, 2 A, Ultralow Noise, High PSRR, Fast Transient Response CMOS LDO
ADM7170	RECOMMENDED FOR NEW DESIGNS	6.5 V, 500 mA, Ultralow Noise, High PSRR, Fast Transient Response CMOS LDO
ADP7102	RECOMMENDED FOR NEW DESIGNS	20 V, 300 mA, Low Noise, CMOS LDO
LT3045	RECOMMENDED FOR NEW DESIGNS	20V, 500mA, Ultralow Noise, Ultrahigh PSRR Linear Regulator
Single-Channel Voltage Output D/A Converters 1
AD5601	PRODUCTION	2.7 V to 5.5 V, <100 μA, 8-Bit nanoDAC, SPI Interface in LFCSP and SC70
Standard High Speed A/D Converters 1
AD9208	RECOMMENDED FOR NEW DESIGNS	14-Bit, 3GSPS, JESD204B, Dual Analog-to-Digital Converter

Parts	Product Life Cycle	Description
ADMV1013	RECOMMENDED FOR NEW DESIGNS	24 GHz to 44 GHz, Wideband, Microwave Upconverter

Tools & Simulations

S-Parameter 1

ADMV1014 S-Parameters

ADIsimRF

ADIsimRF is an easy-to-use RF signal chain calculator. Cascaded gain, noise, distortion and power consumption can be calculated, plotted and exported for signal chains with up to 50 stages. ADIsimRF also includes an extensive data base of device models for ADI’s RF and mixed signal components.

Open Tool

LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.

Evaluation Kits

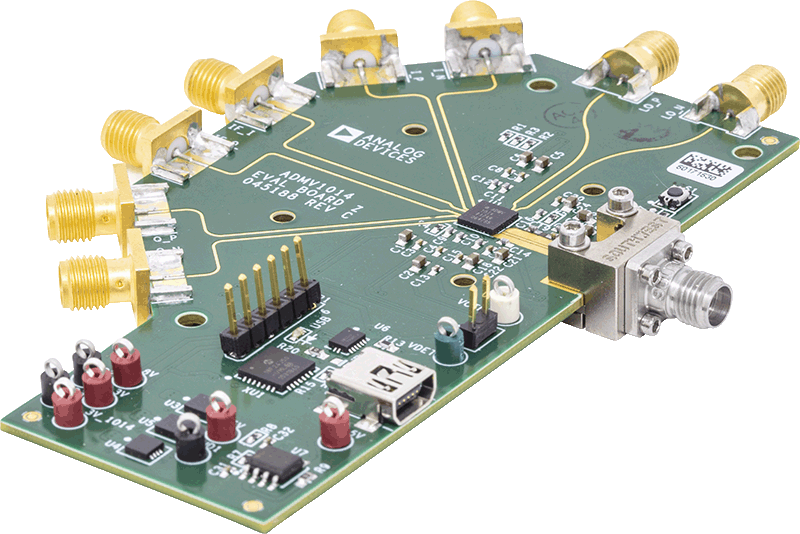

ADMV1014 Evaluation Board

Buy Now View Details

Features and Benefits

Full featured evaluation board for the ADMV1014
On-board USB for SPI control
5 V operation
ACE software interface for SPI control

Product Details

The ADMV1014 is a silicon germanium (SiGe) design, wideband, microwave downconverter optimized for point to point microwave radio designs operating in the 24.5 GHz to 43.5 GHz frequency range.

The downconverter offers two modes of frequency translation. The device is capable of direct quadrature demodulation to baseband I/Q output signals, as well as image rejection downconversion to a complex intermediate frequency (IF) output carrier frequency. The baseband outputs can be dc-coupled, but are typically ac-coupled with a sufficiently low, high pass corner frequency to ensure adequate demodulation accuracy. The serial port interface (SPI) allows fine adjustment of the quadrature phase to allow the user to optimize I/Q demodulation performance. Alternatively, the baseband I/Q outputs can be disabled, and the I/Q signals can be passed through an on-chip active balun to provide two single-ended, quadrature, complex IF outputs between 800 MHz and 6000 MHz. When used as an image rejecting downconverter, the unwanted image term is typically suppressed to better than 30 dBc below the desired sideband. The ADMV1014 offers a flexible local oscillator (LO) system, including a frequency quadruple option allowing a range of LO frequencies from 21.6 GHz to 41 GHz to cover a radio frequency (RF) input range as wide as 24.5 GHz to 44 GHz. A square law power detector is provided to allow monitoring of the power levels at the mixer inputs. The detector output can be used to provide closed-loop control of the RF input variable attenuator through an external op-amp error integrator circuit.

The ADMV1014 downconverter comes in a compact, thermally enhanced, 5 mm × 5 mm flip chip CSP package. The ADMV1014 operates over the −40°C to +85°C case temperature range.

The ADMV1014-EVALZ evaluation board incorporates the ADMV1014 with a microcontroller, low dropout (LDO) regulators, and nanoDAC^® to allow quick and easy evaluation of the ADMV1014. The microcontroller allows the user to configure the ADMV1014 register map through the Analysis, Control, Evaluation (ACE) software. The LDO regulators allow the ADMV1014 to be powered on by a single supply and offer optimal power supply ripple rejection. The nanoDAC allows the user to attenuate the RF power going into the mixer of ADMV1014 without using an external power supply.

For full details on the ADMV1014, see the ADMV1014 data sheet, which must be consulted in conjunction with this user guide when using the ADMV1014-EVALZ evaluation board.
