Overview

Features and Benefits

  • RF 2 × 2 transceiver with integrated 12-bit DACs and ADCs
  • TX band: 47 MHz to 6.0 GHz
  • RX band: 70 MHz to 6.0 GHz
  • Supports TDD and FDD operation
  • Tunable channel bandwidth: <200 kHz to 56 MHz
  • Dual receivers: 6 differential or 12 single-ended inputs
  • Superior receiver sensitivity with a noise figure of 2 dB at 800 MHz LO
  • RX gain control
    • Real-time monitor and control signals for manual gain
    • Independent automatic gain control
  • Dual transmitters: 4 differential outputs
  • Highly linear broadband transmitter
    • TX EVM: ≤−40 dB
    • TX noise: ≤−157 dBm/Hz noise floor
    • TX monitor: ≥66 dB dynamic range with 1 dB accuracy
  • Integrated fractional-N synthesizers
  • 2.4 Hz maximum local oscillator (LO) step size
  • Multichip synchronization
  • CMOS/LVDS digital interface

Product Details

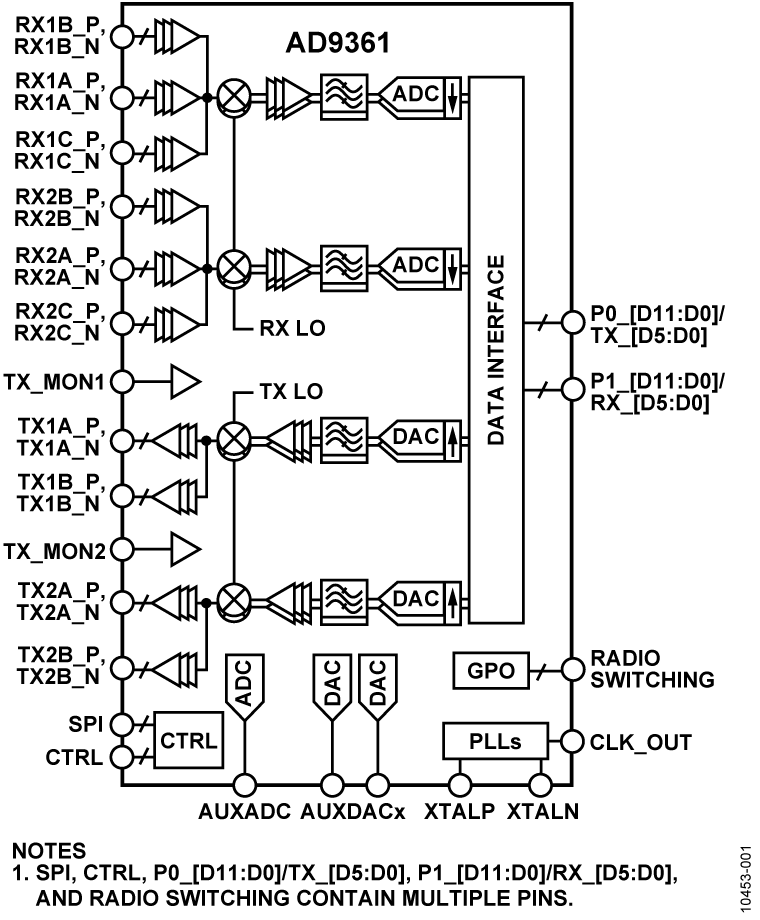

The AD9361 is a high performance, highly integrated radio frequency (RF) Agile Transceiver™ designed for use in 3G and 4G base station applications. Its programmability and wideband capability make it ideal for a broad range of transceiver applications. The device combines a RF front end with a flexible mixed-signal baseband section and integrated frequency synthesizers, simplifying design-in by providing a configurable digital interface to a processor. The AD9361 receiver LO operates from 70 MHz to 6.0 GHz and the transmitter LO operates from 47 MHz to 6.0 GHz range, covering most licensed and unlicensed bands. Channel bandwidths from less than 200 kHz to 56 MHz are supported.

The two independent direct conversion receivers have state-of-the-art noise figure and linearity. Each receive (RX) subsystem includes independent automatic gain control (AGC), dc offset correction, quadrature correction, and digital filtering, thereby eliminating the need for these functions in the digital baseband. The AD9361 also has flexible manual gain modes that can be externally controlled. Two high dynamic range analog-to-digital converters (ADCs) per channel digitize the received I and Q signals and pass them through configurable decimation filters and 128-tap finite impulse response (FIR) filters to produce a 12-bit output signal at the appropriate sample rate.

The transmitters use a direct conversion architecture that achieves high modulation accuracy with ultralow noise. This transmitter design produces a best in class TX error vector magnitude (EVM) of <−40 dB, allowing significant system margin for the external power amplifier (PA) selection. The on-board transmit (TX) power monitor can be used as a power detector, enabling highly accurate TX power measurements.

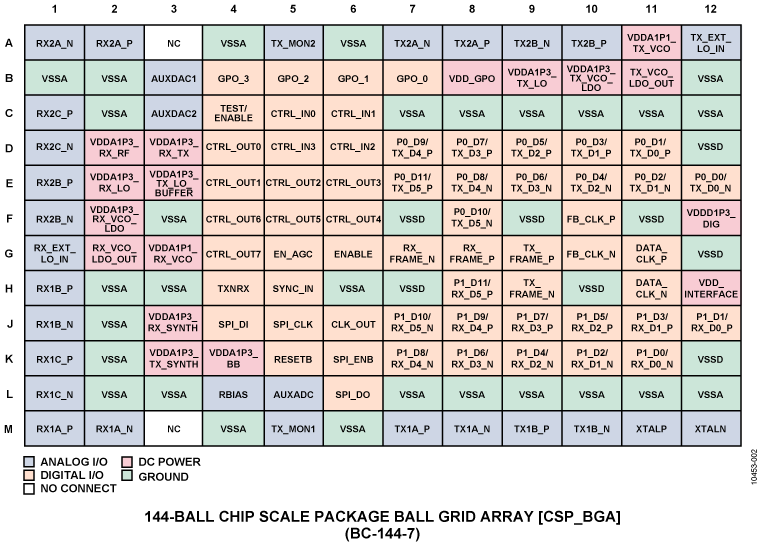

The fully integrated phase-locked loops (PLLs) provide low power fractional-N frequency synthesis for all receive and transmit channels. Channel isolation, demanded by frequency division duplex (FDD) systems, is integrated into the design. All VCO and loop filter components are integrated. The core of the AD9361 can be powered directly from a 1.3 V regulator. The IC is controlled via a standard 4-wire serial port and four real-time input/output control pins. Comprehensive power-down modes are included to minimize power consumption during normal use. The AD9361 is packaged in a 10 mm × 10 mm, 144-ball chip scale package ball grid array (CSP_BGA).

Applications

  • Point to point communication systems
  • Femtocell/picocell/microcell base stations
  • General-purpose radio systems

Product Lifecycle icon-recommended Recommended for New Designs

This product has been released to the market. The data sheet contains all final specifications and operating conditions. For new designs, ADI recommends utilization of these products.

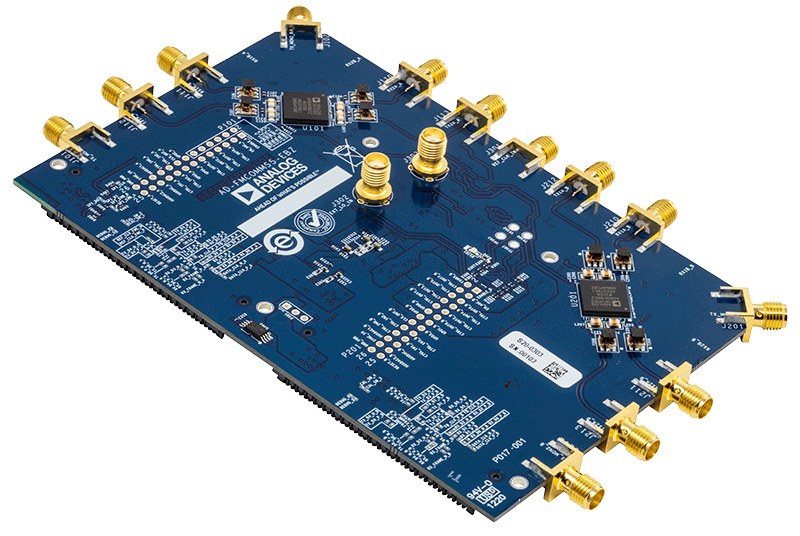

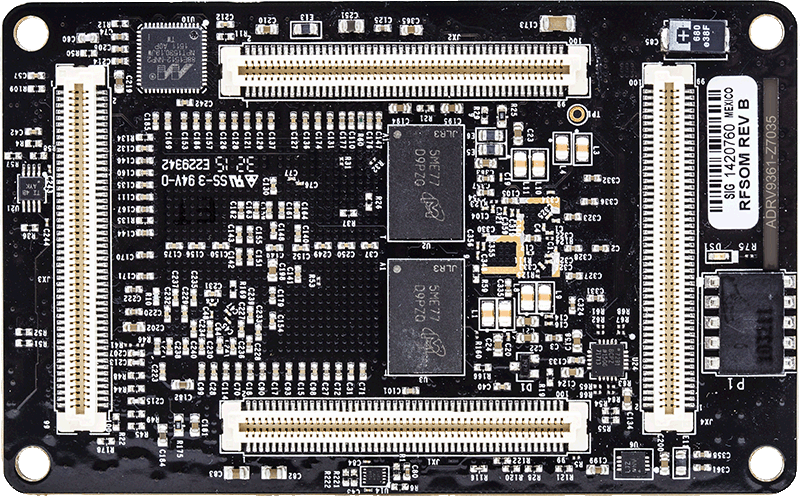

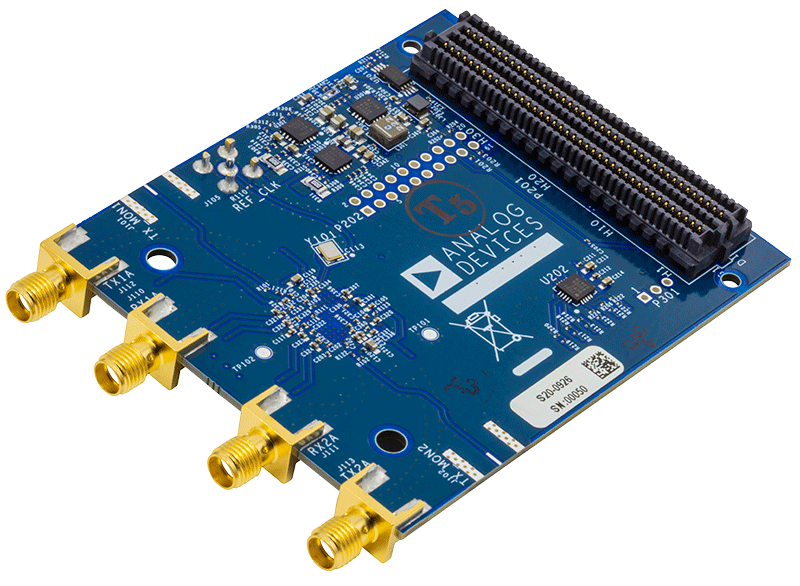

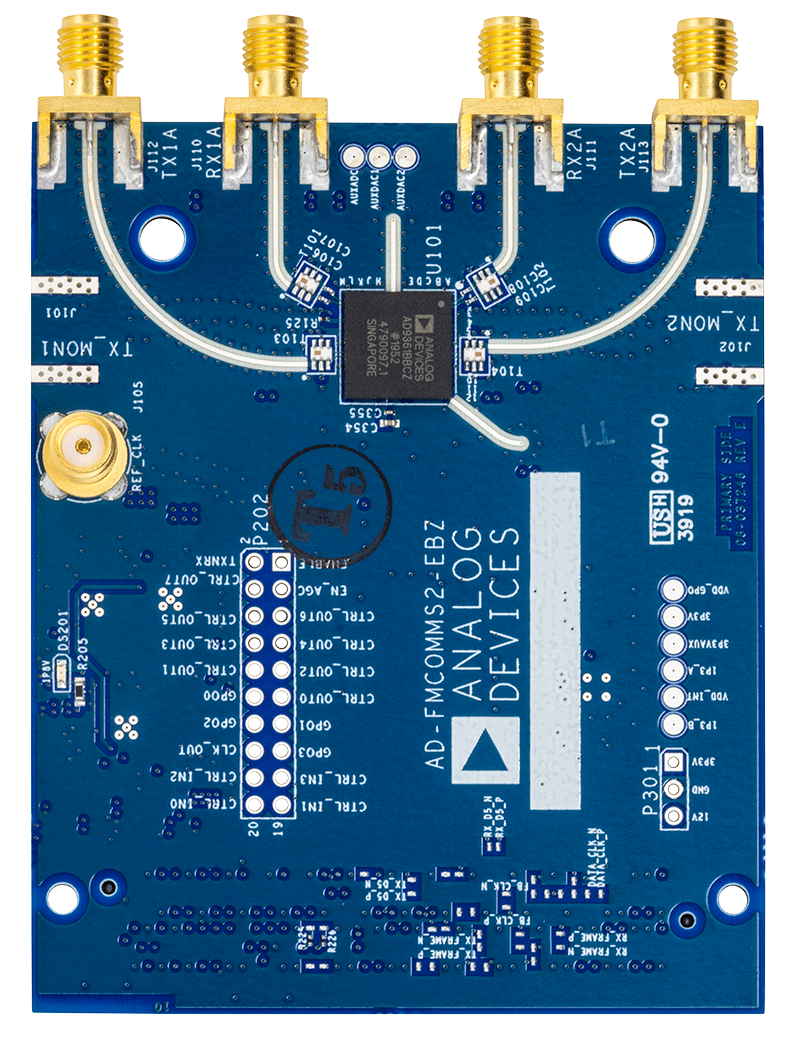

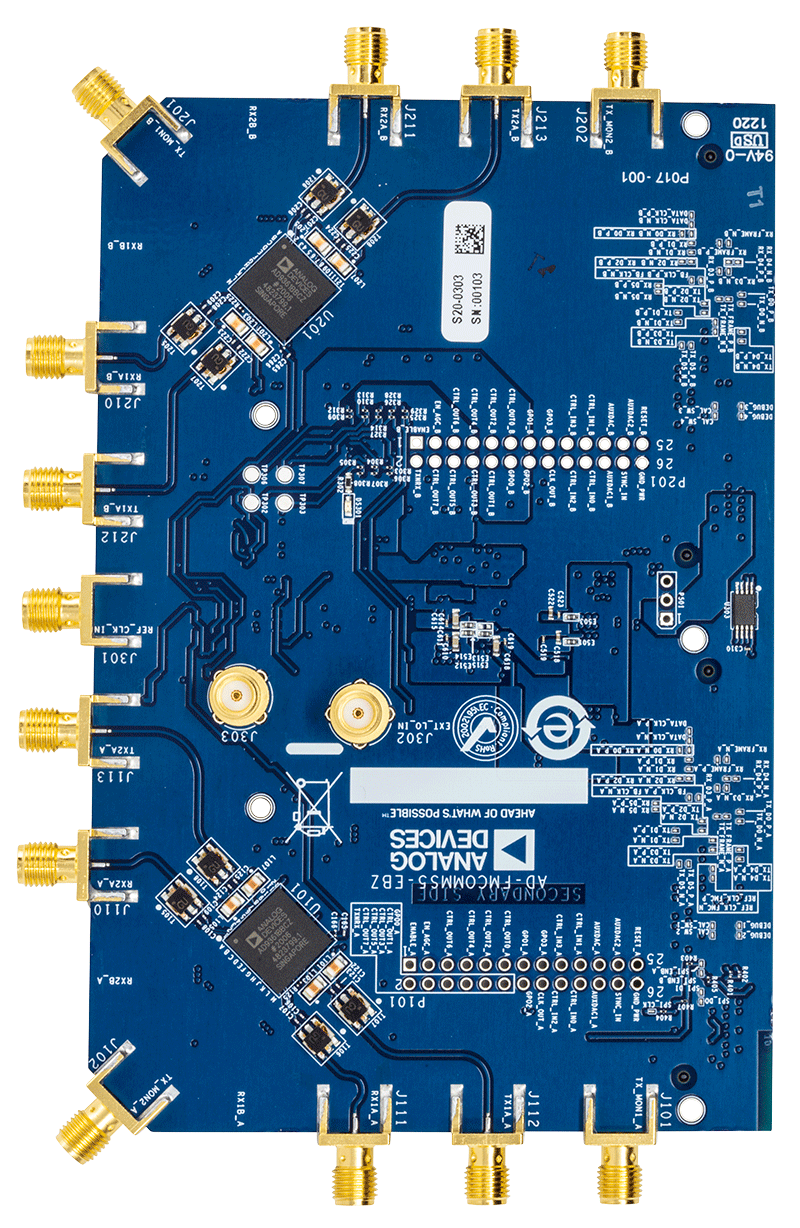

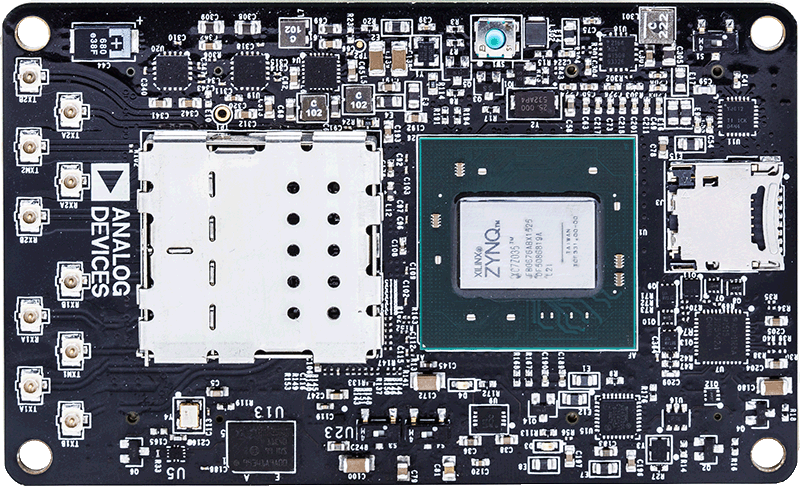

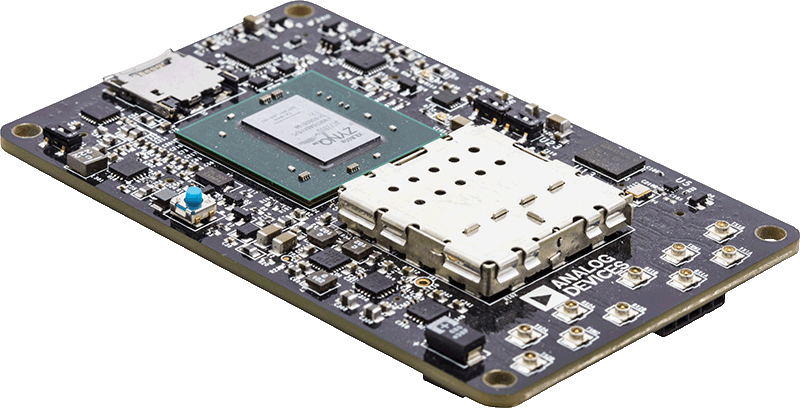

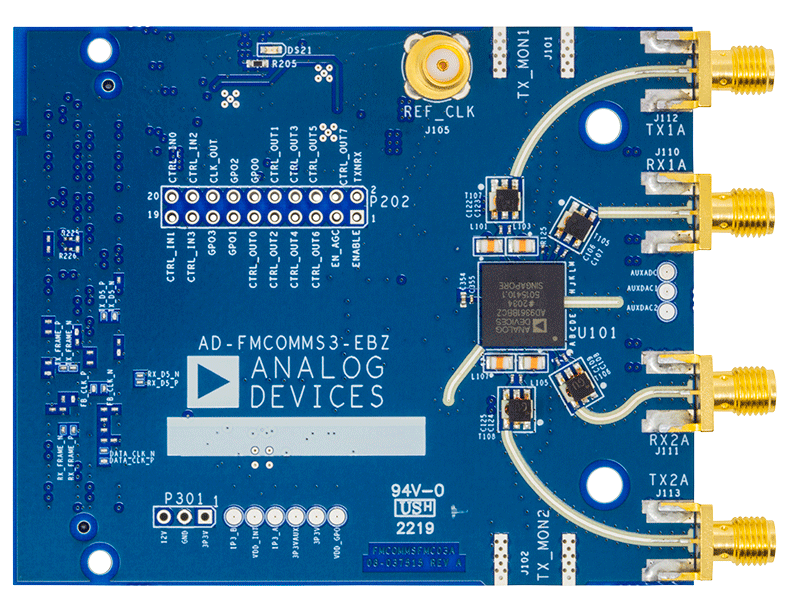

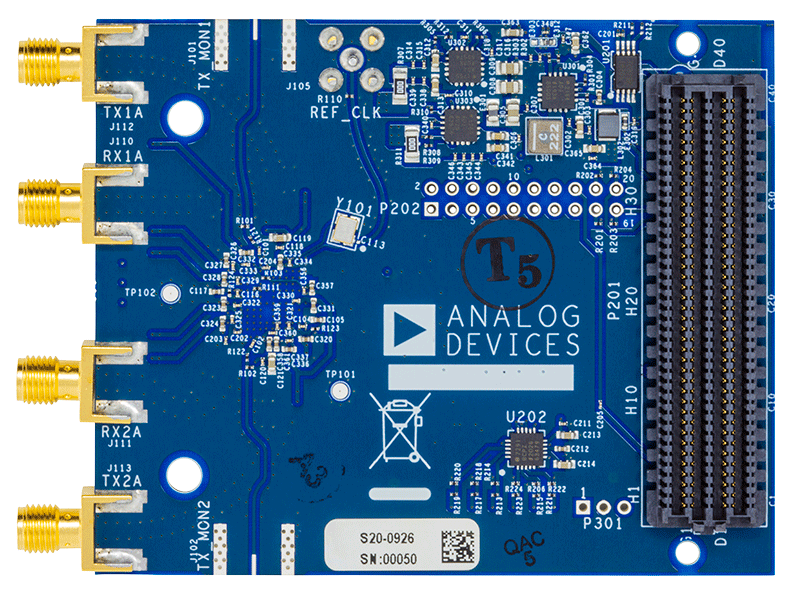

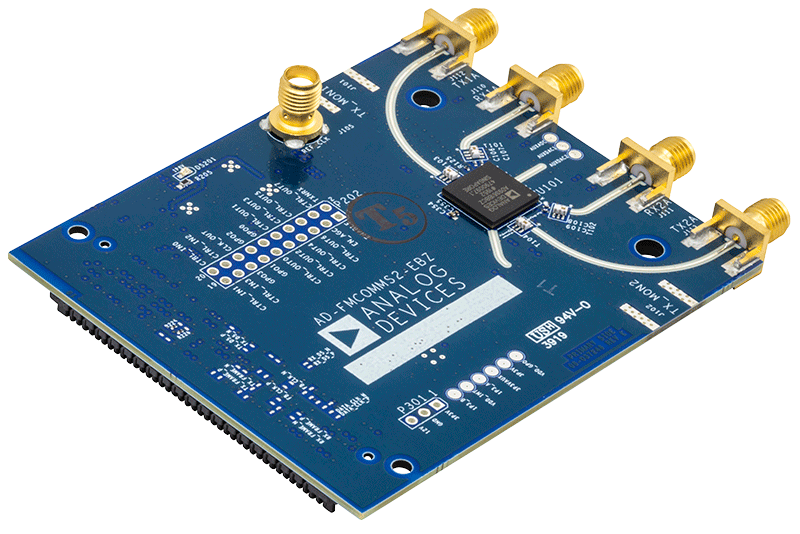

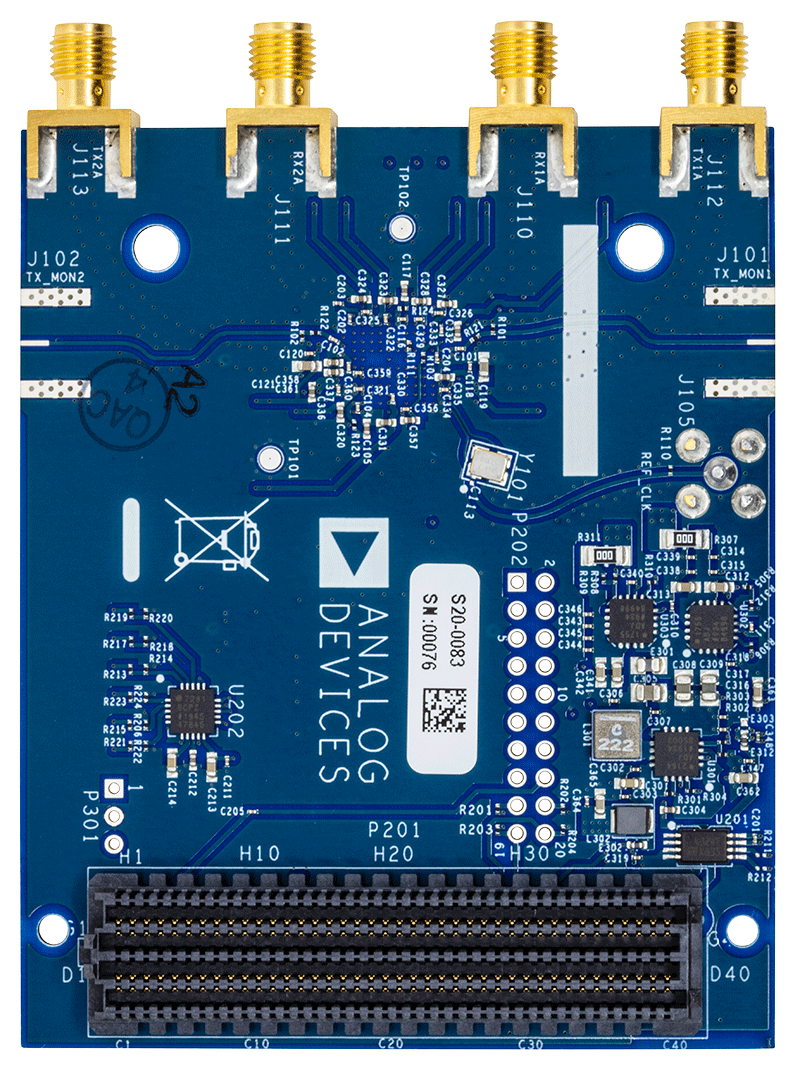

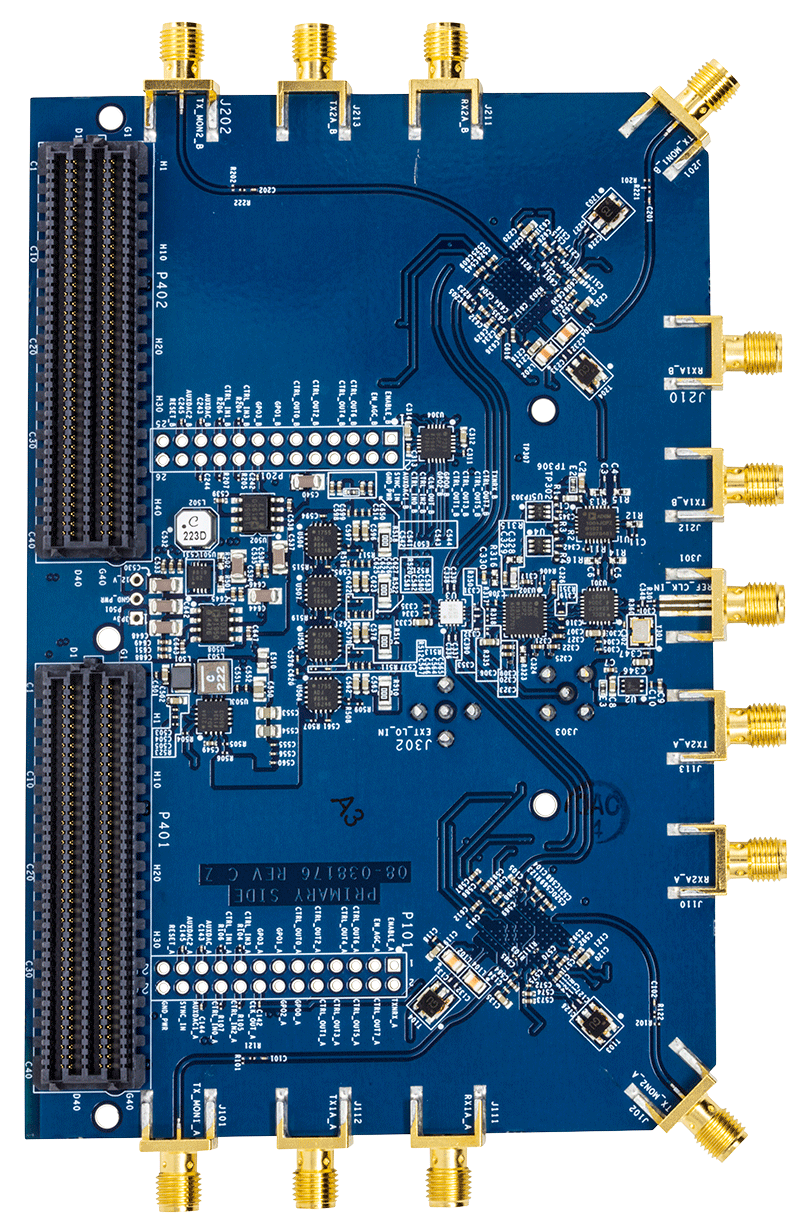

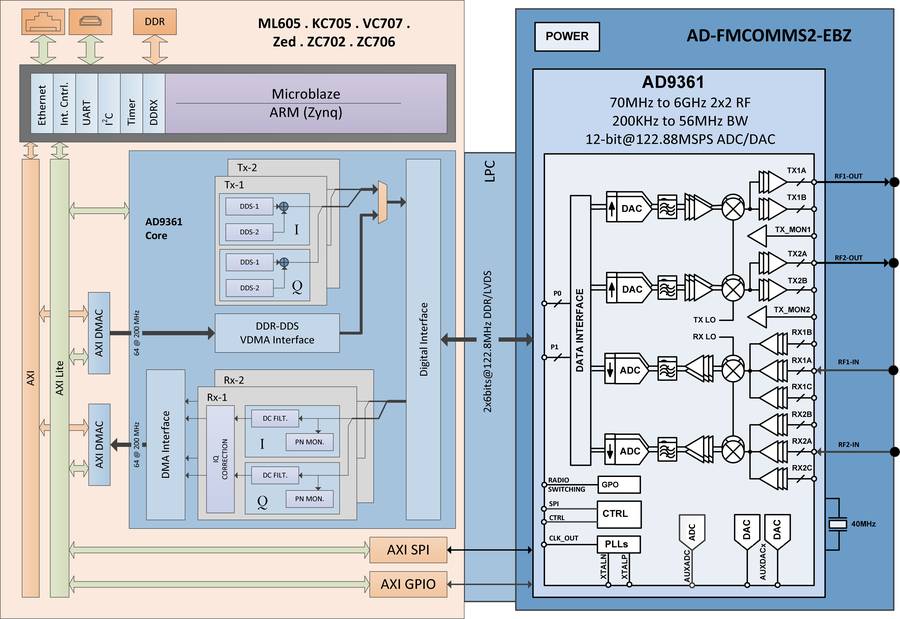

Evaluation Kits (4)

Documentation & Resources

  • View All (54)
  • 3rd Party Solutions (1)
  • Data Sheets (1)
  • User Guides (1)
  • Webcasts (3)
  • Informational (1)
  • Solutions Bulletins & Brochures (2)
  • Technical Articles (21)
  • Videos (18)
  • Application Notes (1)
  • Press Releases (5)
  • Technical Articles

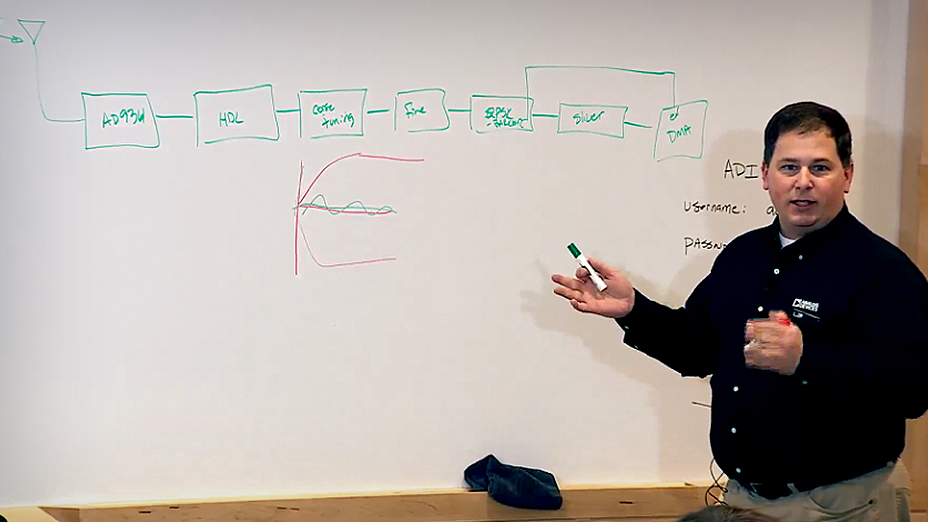

    Videos
    Press Releases

    Tools & Simulations

    Design Tools

    SDR Integrated Transceiver Design Resources

    This site contains the device documentation packages for the SDR Integrated Transceivers including user guides, IBIS models, and PCB files.

    ADIsimRF

    ADIsimRF is an easy-to-use RF signal chain calculator. Cascaded gain, noise, distortion and power consumption can be calculated, plotted and exported for signal chains with up to 50 stages. ADIsimRF also includes an extensive data base of device models for ADI’s RF and mixed signal components.

    Reference Designs (1)

    Product Recommendations

    AD9361 Companion Parts

    Recommended Voltage Regulators

    • For high performance LDO regulators: ADP1755, ADP5040.
    • For a high efficiency, step down, dc-to-dc regulator: ADP2164.

    Recommended Clock Driver

    • For a Quad/Octal network clock driver: AD9548.

    Recommended Low Noise Amplifiers (LNA's)

    Recommended PLL's

    • For a versatile, wideband PLL with integrated VCO: ADF4351.

    Recommended RF Driver Amplifiers

    Recommended RF/IF Gain Block Amplifier

    • For a broadband 20dB linear amplifier: ADL5602.
