ADL5320

400 MHz TO 2700 MHz ¼ Watt RF Driver Amplifier

Show More showmore-icon

Info : RECOMMENDED FOR NEW DESIGNS tooltip
Info : RECOMMENDED FOR NEW DESIGNS tooltip
Part Details
Part Models 1
1ku List Price Starting From $3.04
Features
  • Operation from 400 MHz to 2700 MHz
  • Gain of 16.9 dB at 880 MHz
  • OIP3 of 45 dBm at 880 MHz
  • P1dB of 25.4 dBm at 880 MHz
  • Noise figure: 4.1 dB at 880 MHz
  • Power supply voltage: 3.3 V to 5 V
  • Power supply current: 44 mA to 104 mA

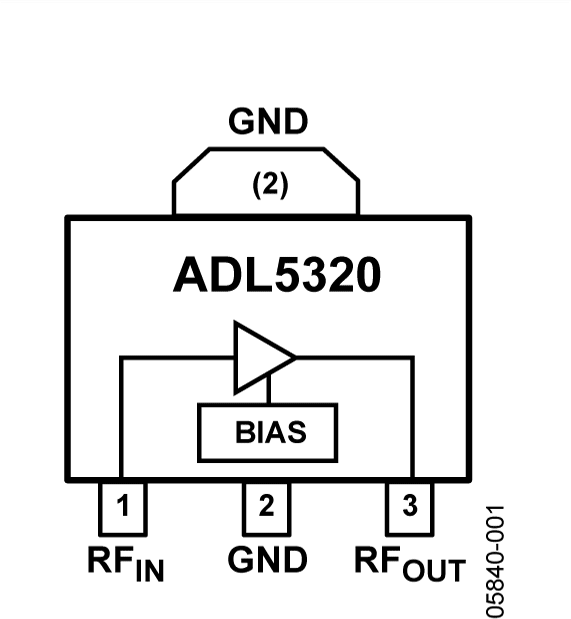

  • Dynamically adjustable bias
  • No bias resistor required
  • Thermally efficient, MSL-1 rated

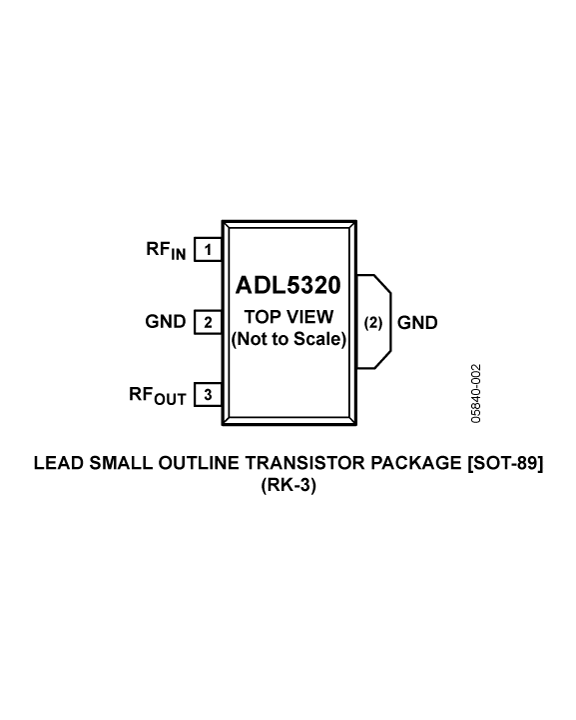

    SOT-89 package
  • Operating temperature range:
    −40°C to +105°C
  • ESD rating of ±4 kV (Class 3A)
Additional Details
show more Icon

The ADL5320 incorporates a dynamically adjustable biasing circuit that allows for the customization of OIP3 and P1dB performance from 3.3 V to 5 V without the need for an external bias resistor. This feature gives the designer the ability to tailor driver amplifier performance to the specific needs of the design. This feature also creates the opportunity for dynamic biasing of the driver amplifier, where a variable supply is used to allow for full 5 V biasing under large signal conditions and then can reduce the supply voltage when signal levels are smaller and lower power consumption is desirable. This scalability reduces the need to evaluate and inventory multiple driver amplifiers for different output power requirements from 22 dBm to 26 dBm output power levels.

The ADL5320 is also rated to operate across the wide temperature range of −40°C to +105°C for reliable performance in designs that experience higher temperatures, such as power amplifiers. The 1∕4 watt driver amplifier also covers the 400 MHz to 2700 MHz wide frequency range and only requires a few external components to be tuned to a specific band within that wide range. This high performance, broadband RF driver amplifier is well suited for a variety of wired and wireless applications including cellular infrastructure, ISM band power amplifiers, defense equipment, and instrumentation equipment. A fully populated evaluation board is available.

The ADL5320 also delivers excellent adjacent channel power ratio (ACPR) vs. output power and bias voltage. The driver can deliver greater than 17 dBm of output power at 2140 MHz while achieving an ACPR of −55 dBc at 5 V. If the bias is reduced to 3.3 V, the −55 dBc ACPR output power reduces to 9 dBm.

Applications

  • Wireless infrastructure
  • Automated test equipment
  • ISM/AMR applications
Part Models 1
1ku List Price Starting From $3.04

close icon
Documentation

Documentation

Part Model Pin/Package Drawing Documentation CAD Symbols, Footprints, and 3D Models
ADL5320ARKZ-R7
  • HTML
  • HTML

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Apr 1, 2009

- 09_0050

Assembly Site Transfer of SOT89 Package to Cirtek Electronics Corporation, Philippines and Change of Molding Compound

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Apr 1, 2009

- 09_0050

arrow down

Assembly Site Transfer of SOT89 Package to Cirtek Electronics Corporation, Philippines and Change of Molding Compound

Software & Part Ecosystem

Software & Part Ecosystem

Evaluation Kit

Evaluation Kits 1

EVAL-ADL5320

ADL5320 Evaluation Board

zoom

EVAL-ADL5320

ADL5320 Evaluation Board

ADL5320 Evaluation Board

Product Detail

ADL5320-EVALZ is a fully populated, 4-layer, FR4-based evaluation board. For normal operation, it requires a single 5 V/300 mA supply. The 5 V supply should be connected to the test loops labeled VSUP and GND. The RF input is applied to the SMA connector labeled RFIN. The RF output is available at the SMA connector labeled RFOUT. To facilitate tuning for different frequencies the RF input and RF output traces are free of solder mask and have index markings for ease of component placement. The evaluation board ships with tuning components that are optimized for operation from 1805 MHz to 2140 MHz. The ADL5320 data sheet provides recommended tuning components for other frequencies.

Resources

Tools & Simulations

Tools & Simulations 4

Reference Designs

Reference Designs 2

Circuit Schematic for IQ Modulator with Output Power Gain

Providing Fixed Power Gain at the Output of an IQ Modulator

Simplified Circuit Schematic for I/Q Modulator

Broadband Low Distortion Transmitter for 3G, 4G, and LTE Communication System
