ADP2386

PRODUCTION

20 V, 6 A, Synchronous Step-Down DC-to-DC Regulator

Data Sheet (Rev. C) Product Selection Table

Part Models: 1
1ku List Price: Starting From $2.40

Viewing:

Overview

Input voltage: 4.5 V to 20 V
Integrated MOSFET: 44 mΩ/11 mΩ
Reference voltage: 0.6 V ± 1%
Continuous output current: 6 A
Programmable switching frequency: 200 kHz to 1.4 MHz
Synchronizes to external clock: 200 kHz to 1.4 MHz

180° out of phase clock synchronization
Precision enable and power good
External compensation
Internal soft start with external adjustable option
Startup into a precharged output

The ADP2386 is a synchronous step-down, dc-to-dc regulator with an integrated 44 mΩ, high-side power MOSFET and an 11 mΩ, synchronous rectifier MOSFET to provide a high efficiency solution in a compact 4 mm × 4 mm LFCSP package. This device uses a peak current mode, constant frequency pulse-width modulation (PWM) control scheme for excellent stability and transient response. The switching frequency of the ADP2386 can be programmed between 200 kHz to 1.4 MHz. To minimize system noise, the synchronization function allows the switching frequency to be synchronized to an external clock.

The ADP2386 requires minimal external components and operates from an input voltage of 4.5 V to 20 V. The output voltage can be adjusted from 0.6 V to 90% of the input voltage and delivers up to 6 A of continuous current. Each IC draws less than 110 μA current from the input source when it is disabled.

This regulator targets high performance applications that require high efficiency and design flexibility. External compensation and an adjustable soft start function provide design flexibility. The power-good output and precision enable input provide simple and reliable power sequencing.

Other key features include undervoltage lockout (UVLO), overvoltage protection (OVP), overcurrent protection (OCP), short-circuit protection (SCP) and thermal shutdown (TSD).

The ADP2386 operates over the −40°C to +125°C junction temperature range and is available in a 24-lead, 4 mm × 4 mm LFCSP package.

Applications

Communications infrastructure
Networking and servers
Industrial and instrumentation
Healthcare and medical
Intermediate power rail conversion
DC-to-dc point-of-load applications

Part Models: 1
1ku List Price: Starting From $2.40

Documentation

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
ADP2386ACPZN-R7	24-Lead LFCSP (4mm x 4mm w/ EP)	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys

Part Models	Product Lifecycle	PCN

Oct 18, 2016 - 16_0036 Assembly Relocation to Stats ChipPAC Jiangyin and Test Transfer to Stats ChipPAC Singapore of Select LFCSP Products
		PCN16_0036_Form Material_Report Qualification Results Summary Qualification Results Summary Qualification Results Summary Test Correlation Report
ADP2386ACPZN-R7	PRODUCTION
Jun 25, 2014 - 13_0246 Assembly and Test Transfer of Select 3x3, 4x4, 5x5 and 7x7 mm LFCSP Pre-plated Leadframe Products to STATS ChipPAC China
		PCN13_0246_Form Material_Report Detailed Change Description Qualification Results Summary Test Correlation Report
ADP2386ACPZN-R7	PRODUCTION

This is the most up-to-date revision of the Data Sheet.

Software Resources

Can't find the software or driver you need?

Request a Driver/Software

Tools & Simulations

LTspice

Models for the following parts are available in LTspice:

ADP2386

ADP238x Buck Regulator Design Tool

Microsoft Excel download tool from ADIsimPower to generate a power supply design complete with a schematic, bill of materials, and performance specifications.

Open Tool

ADP238x Inverting Buck-Boost Regulator Design Tool

Microsoft Excel download tool from ADIsimPower to generate a power supply design complete with a schematic, bill of materials, and performance specifications.

Open Tool

SIMPLIS Models 1

ADP2386 SIMPLIS Schematics

LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.

Evaluation Kits

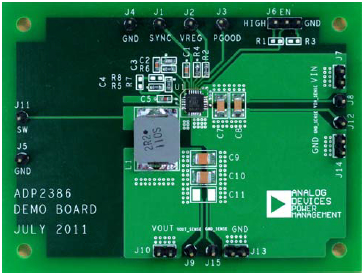

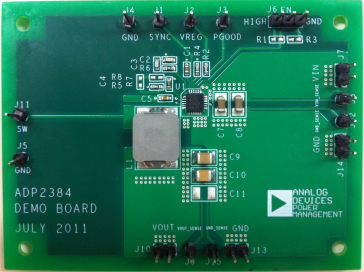

ADP2384/ADP2386 Evaluation Board

Buy Now View Details

Product Details

The ADP2384/ADP2386 evaluation board is a complete, 4 A/6 A, 20 V, step-down regulator solution that allows users to evaluate the performance of the ADP2384/ADP2386 with a near ideal printed circuit board (PCB) layout.

The switching frequency can be programmed between 200 kHz and 1.4 MHz, or it can be synchronized to an external clock with a 180° phase shift, which provides the possibility for a stackable multiphase power solution.

The output of the ADP2384/ADP2386 evaluation board is preset to 3.3 V and the switching frequency is set to 600 kHz. Different output voltage settings can be achieved by changing appropriate passive components. The ambient temperature operating range is −40°C to +85°C.

Full details on the ADP2384 and ADP2386 regulators are provided in the ADP2384 and ADP2386 data sheets, available from Analog Devices, Inc., which should be consulted in conjunction with this user guide.

Resources

UG-466: Evaluation Board for the ADP2384/ADP2386, 20 V, 4 A/6 A Synchronous Step-Down DC-to-DC Regulators
11/19/2014

UG-525: Inverting Buck-Boost Evaluation Board for the ADP2386, 20 V, 6 A Synchronous Step-Down DC-to-DC Regulator
4/10/2013
