LTC4269-1

IEEE 802.3at High Power PD and No-Opto Flyback Controller with AUX Support

Show More showmore-icon

Info : RECOMMENDED FOR NEW DESIGNS tooltip
Info : RECOMMENDED FOR NEW DESIGNS tooltip
Viewing: Part Details
arrow-icon
Part Details

Not the part you were looking for?

viewall Go to Product Selection Table
file View Data Sheet
Documentation View All Documentation
LTspice LTC4269-1 - Power-over-Ethernet (PoE) Interface Controllers Download 6.72 KB
Part Models 4
1ku List Price Starting From $2.47

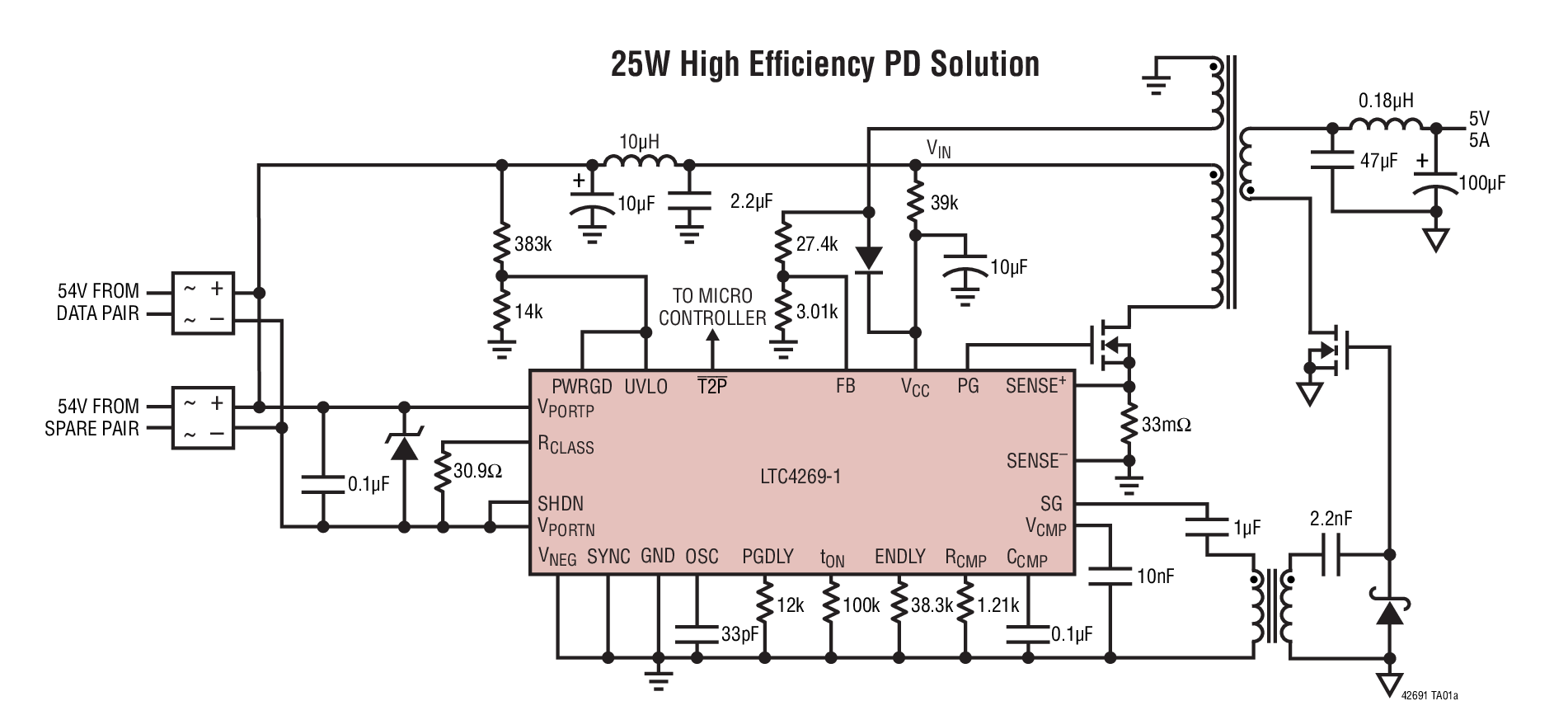

Features
  • 25.5W IEEE 802.3at Compliant (Type 2) PD
  • Integrated State-of-the-Art Synchronous Flyback
    Controller
    •  Isolated Power Supply Efficiency >92%
    • 88% Efficiency Including Diode Bridge and Hot Swap™ FET
  • Flexible Integrated Auxiliary Power Support
  • Superior EMI Performance
  • Robust 100V 0.7Ω (Typ) Integrated Hot Swap MOSFET
  • IEEE 802.3at High Power Available Indicator
  • Integrated Signature Resistor and Programmable Class Current
  • Undervoltage, Overvoltage and Thermal Protection
  • Short-Circuit Protection with Auto-Restart
  • Programmable Soft-Start and Switching Frequency
  • Complementary Power Good Indicators
  • Thermally Enhanced 7mm × 4mm DFN Package
Additional Details
show more Icon

The LTC4269-1 is an integrated Powered Device (PD) controller and switching regulator intended for high power IEEE 802.3at and 802.3af applications. The LTC4269-1 is targeted for high efficiency, single and multioutput applications from 10W to 25W. By supporting both 1-event and 2-event classifications, as defined by the IEEE, the LTC4269-1 can be used in a wide range of product configurations.

The LTC4269-1 synchronous, current mode, flyback controller generates multiple supply rails in a single conversion step providing for the highest system efficiency while maintaining tight regulation across all outputs. The LTC4269-1 includes patented No-Opto feedback topology to provide full IEEE 802.3 isolation without the need of an opto-isolator circuit. A true soft-start function allows graceful ramp-up of all output voltages.

All PD solutions from ADI include a shutdown pin to provide flexible auxiliary power options. The LTC4269-1 can accommodate adaptor voltages from 18V to 60V and supports both PoE or aux dominance options. The LTC4269-1 is available in a space saving 32-pin DFN package.

Applications

  • VoIP Phones with Advanced Display Options
  • Dual-Radio Wireless Access Points
  • PTZ Security Cameras
  • RFID Readers
  • Industrial Controls
Show More Arrow image
file View Data Sheet
Documentation View All Documentation
LTspice LTC4269-1 - Power-over-Ethernet (PoE) Interface Controllers Download 6.72 KB
Part Models 4
1ku List Price Starting From $2.47
modal bookmark icon

{{modalTitle}}

modal close icon

{{modalDescription}}

{{dropdownTitle}}

input down arrow
  • {{defaultSelectedText}}
    • {{#each projectNames}}
  • {{name}}
    • {{/each}} {{#if newProjectText}}
  • plus icon {{newProjectText}}
    • {{/if}}
{{#if toggleButtonDescription}}
{{toggleButtonDescription}}
{{/if}} {{#if newProjectTitle}}

{{newProjectTitle}}

{{projectNameErrorText}}

{{/if}}

LTC4269-1

Documentation

5
overlayclose

Filters

1 Applied

mobileoverlaydownarrow
  • All
    TickIcon
  • Reliability Data
  • Data Sheet
  • User Guide
  • All
    TickIcon
  • English
  • Japanese
resetfilter

Reset Filters

Data Sheet

2

PDF Vector

PDF

UPDATED 08/28/2012
English

LTC4269-1: IEEE 802.3at High Power PD and No-Opto Flyback Controller with AUX Support Data Sheet

Open PDF File

redirect
378.00K
download

Download PDF

PDF Vector

PDF

UPDATED 11/06/2012
Japanese

LTC4269-1: 同期整流式No-Opto フライバック・コントローラ付きIEEE 802.3at PD データシート

Open PDF File

redirect
939.00K
download

Download PDF

Reliability Data

1

PDF Vector

PDF

UPDATED 03/26/2018
English
R535 Reliability Data redirect icon

36.41 K

download

Download PDF

User Guide

2

PDF Vector

PDF

UPDATED 07/26/2011
English
DC1335B-B Demo Manual redirect icon

620.00K

download

Download PDF

PDF Vector

PDF

UPDATED 05/24/2013
English
DC1335B-C - Demo Manual redirect icon

1.00M

download

Download PDF

There are no results matching this criteria. Try resetting your filters or searching for a different term

close icon
Documentation

Documentation

Product Selector Card 3

PoE PD Controllers
PoE+ for the Power Hungry
Power over Ethernet Solutions

Video

1

Thumbnail Image

Video

2018-08-20

02:51

Next Generation Power Over Ethernet

Learn More
Show More Arrow image

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

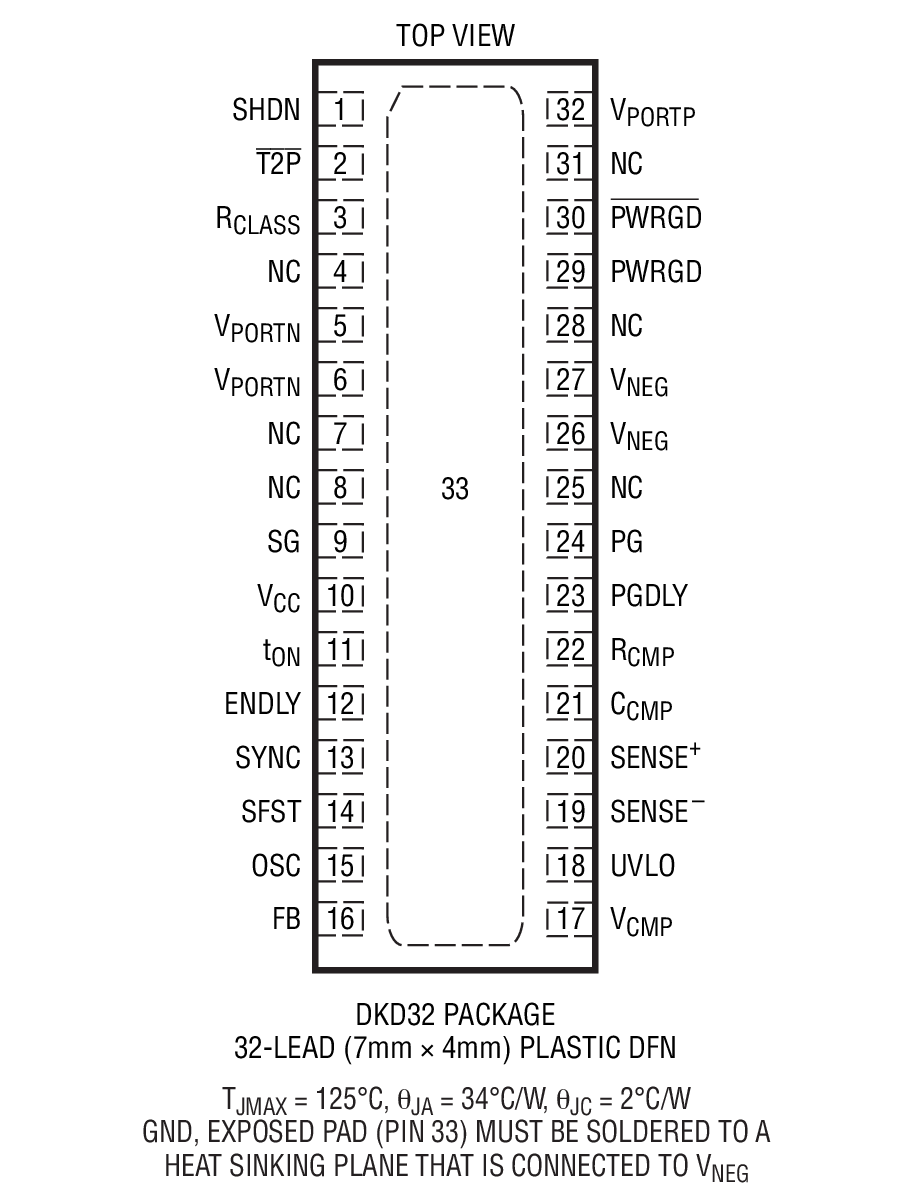

Part Model Pin/Package Drawing Documentation CAD Symbols, Footprints, and 3D Models
LTC4269CDKD-1#PBF 32-Lead DFN (7mm x 4mm w/ EP) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LTC4269CDKD-1#TRPBF 32-Lead DFN (7mm x 4mm w/ EP) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LTC4269IDKD-1#PBF 32-Lead DFN (7mm x 4mm w/ EP) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LTC4269IDKD-1#TRPBF 32-Lead DFN (7mm x 4mm w/ EP) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
Software & Part Ecosystem

Software & Part Ecosystem

Parts Product Life Cycle Description

Digital Temperature Sensors1
LTC2991
popup image
Cart

RECOMMENDED FOR NEW DESIGNS

Octal I2C Voltage, Current, and Temperature Monitor

PoE Powered Device (PD)1
LT4275
popup image
Cart

RECOMMENDED FOR NEW DESIGNS

LTPoE++/PoE+/PoE PD Controller

Power Monitors1
LT2940
popup image
Cart

PRODUCTION

Power and Current Monitor

Evaluation Kit

Evaluation Kits 2

reference details image

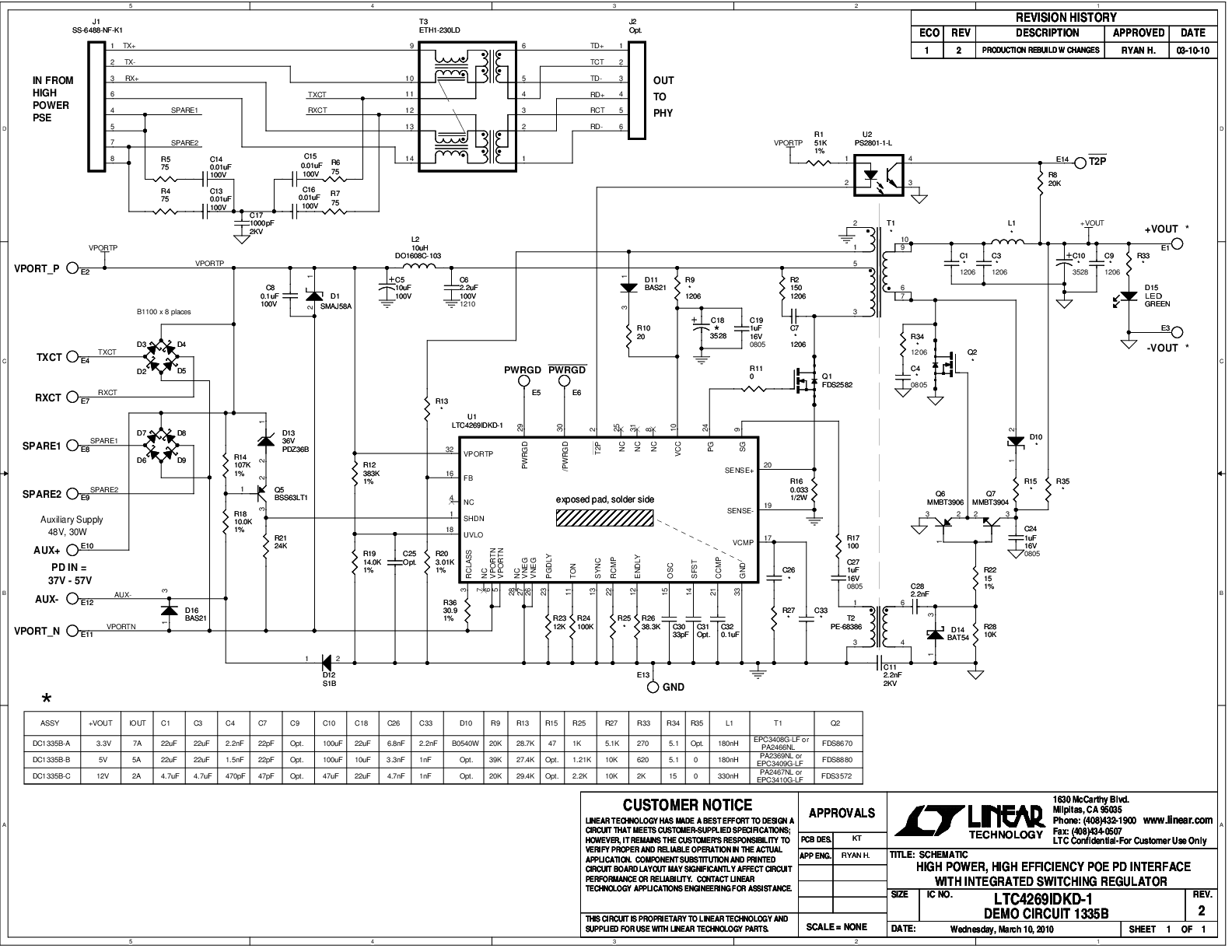

DC1335B-C

LTC4269-1 | PoE Powered Device w/48V Isolated Auxiliary, VOUT = 12V, IOUT = 2A

reference details image

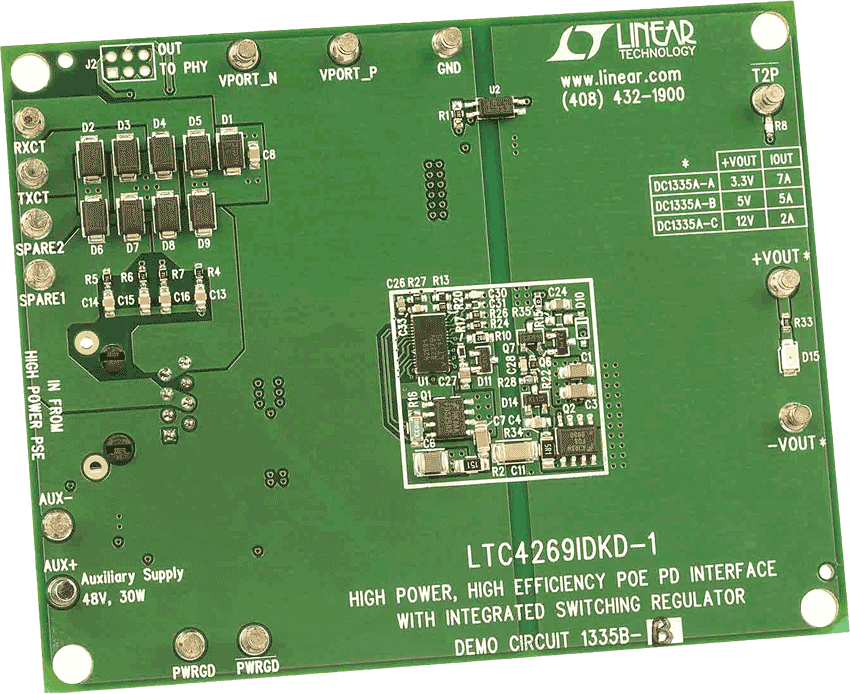

DC1335B-B

LTC4269-1 | PoE Powered Device w/48V Isolated Auxiliary, VOUT = 5V, IOUT = 5A

Evaluation Kits2

evaluation kit item images

DC1335B-C

LTC4269-1 | PoE Powered Device w/48V Isolated Auxiliary, VOUT = 12V, IOUT = 2A
evaluation kit item images

DC1335B-B

LTC4269-1 | PoE Powered Device w/48V Isolated Auxiliary, VOUT = 5V, IOUT = 5A
