ADP5040

Micro PMU with 1.2 A Buck Regulator and Two 300 mA LDOs

Show More showmore-icon

Info : RECOMMENDED FOR NEW DESIGNS tooltip
Info : RECOMMENDED FOR NEW DESIGNS tooltip
Part Models 1
1ku List Price Starting From $1.79
Features
  • Input voltage range: 2.3 V to 5.5 V
  • One 1.2 A buck regulator
  • Two 300 mA LDOs

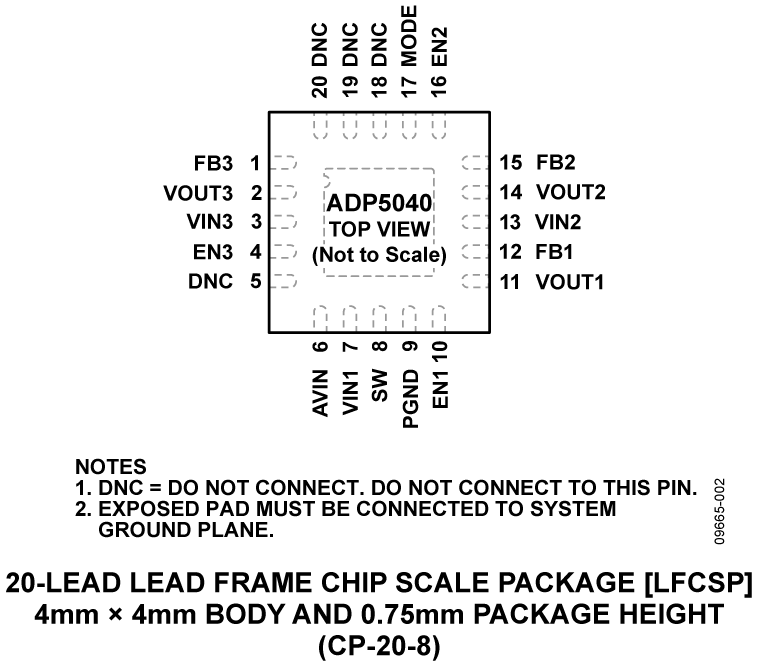

  • 20-lead, 4 mm × 4 mm LFCSP package
  • Overcurrent and thermal protection
  • Soft start
  • Undervoltage lockout
  • Buck key specifications
    • Output voltage range: 0.8 V to 3.8 V
    • Current mode topology for excellent transient response
    • 3 MHz operating frequency
    • Peak efficiency up to 96%
    • Uses tiny multilayer inductors and capacitors
    • Mode pin selects forced PWM or auto PWM/PSM modes
    • 100% duty cycle low dropout mode
  • LDOs key specifications
    • Output voltage range: 0.8 V to 5.2 V
    • Low VIN from 1.7 V to 5.5 V
    • Stable with 2.2 μF ceramic output capacitors
    • High PSRR
    • Low output noise
    • Low dropout voltage
    • −40°C to +125°C junction temperature range
Additional Details
show more Icon

The ADP5040 combines one high performance buck regulator and two low dropout regulators (LDO) in a small 20-lead LFCSP to meet demanding performance and board space requirements.

The high switching frequency of the buck regulator enables the use of tiny multilayer external components and minimizes board space.

When the MODE pin is set to logic high, the buck regulator operates in forced pulse width modulation (PWM) mode. When the MODE pin is set to logic low, the buck regulator operates in PWM mode when the load is around the nominal value. When the load current falls below a predefined threshold the regulator operates in power save mode (PSM) improving the light-load efficiency. The low quiescent current, low dropout voltage, and wide input voltage range of the ADP5040 LDOs extend the battery life of portable devices. The ADP5040 LDOs maintain a power supply rejection greater than 60 dB for frequencies as high as 10 kHz while operating with a low headroom voltage.

Each regulator in the ADP5040 is activated by a high level on the respective enable pin. The output voltages of the regulators are programmed though external resistor dividers to address a variety of applications.

Part Models 1
1ku List Price Starting From $1.79

close icon

Documentation

Part Model Pin/Package Drawing Documentation CAD Symbols, Footprints, and 3D Models
ADP5040ACPZ-1-R7
  • HTML
  • HTML

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Feb 6, 2017

- 16_0234

Assembly Transfer to ASE Korea and Test Transfer to STATS ChipPAC Singapore of Select LFCSP Parts.

Aug 6, 2014

- 13_0230

Assembly and Test Transfer of Select 3.5x3.5, 4x3, 4x4, and 5x5mm LFCSP Products to STATS ChipPAC China

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Feb 6, 2017

- 16_0234

arrow down

Assembly Transfer to ASE Korea and Test Transfer to STATS ChipPAC Singapore of Select LFCSP Parts.

Aug 6, 2014

- 13_0230

arrow down

Assembly and Test Transfer of Select 3.5x3.5, 4x3, 4x4, and 5x5mm LFCSP Products to STATS ChipPAC China

Software & Part Ecosystem

Evaluation Kits 1

reference details image

EVAL-ADP5040

Evaluating the ADP5040 Micropower Management Units (PMUs)

zoom

EVAL-ADP5040

Evaluating the ADP5040 Micropower Management Units (PMUs)

Evaluating the ADP5040 Micropower Management Units (PMUs)

Features and Benefits

  • Full featured evaluation board for the ADP5040 or ADP5041
  • Simple device measurements, including line and load regulation demonstrable with
    • A single voltage supply
    • A voltage meter
    • A current meter
    • Load resistors
  • Easy access to external components
  • Cascading options to supply LDO regulators from the buck
  • Dedicated enable option for each channel
  • Mode option to change bucks from PFM to PWM operation
  • Voltage monitoring and watchdog for ADP5041

Product Detail

The evaluation board shown in Figure 1 in the user guide is configured for the ADP5040 (the assembly for the ADP5041 is not included), but the board can be used for evaluation of the ADP5041. The ADP5040 and ADP5041 have one step-down regulator and two low dropout (LDO) regulators (LDO1 and LDO2).

The evaluation board also allows the evaluation of supervisory functions for the ADP5041. The evaluation board is available in standard voltage options and it can be reconfigured to user specific voltage options by replacing the assembled resistor networks (R2/R3, R4/R5, and R9/R10) as shown in Figure 11 and Figure 12 in the user guide. Voltage monitoring can also be performed in the ADP5041, as shown in Figure 4 in the user guide.

Full details on the ADP5040 and ADP5041 are provided in the ADP5040 and ADP5041 data sheets available from Analog Devices, Inc., which must be consulted in conjunction with this evaluation board user guide.
