AD4008
16-Bit, 2 MSPS/1 MSPS/500 kSPS, Precision, Pseudo Differential, SAR ADCs
Show More
Not the part you were looking for?
3
Ask a Question
Submit your question below and we will return the best answer from ADI’s knowledge database:
Search
Other places you can find help
Support
Analog Devices Support Portal is a one-stop shop to answer all your ADI questions.
Visit the ADI Support Page
Features
- Easy Drive expands signal chain flexibility
- High-Z mode significantly reduces signal chain settling requirements
- Fast conversion phase extends the ADC acquisition time
- Input overvoltage protection clamp sinks up to 50 mA
- High performance
- First conversion accurate, no latency or pipeline delay
- Guaranteed 16-bit, no missing codes
- Throughput: 2 MSPS/1 MSPS/500 kSPS options
- INL: ±1.0 LSB maximum
- SNR: 93 dB at fIN = 1 kHz, VREF = 5 V
- THD: −115 dB at fIN = 1 kHz; −95 dB at fIN = 100 kHz
- Pseudo differential input range
- Flexible external reference voltage range (2.4 V to 5.1 V)
- Low power
- Single 1.8 V supply operation with 1.71 V to 5.5 V logic interface
- 2.5 mW at 500 kSPS (VDD only)
- 70 μW at 10 kSPS, 14 mW typical at 2 MSPS (total power)
- SPI-/QSPI-/MICROWIRE-/DSP-compatible serial interface
- 10-lead packages: 3 mm × 3 mm LFCSP, 3 mm × 4.90 mm MSOP
- Guaranteed operation: −40°C to +125°C
.svg?rev=fd385c90e2cf4716ae9a8c8d20e6b8e3&la=en&h=24&w=24&hash=A302DF48F94BAAA11877AF223F27157A){kind=icon}
The AD4000/AD4004/AD4008 are high accuracy, high speed, low power, 16-bit, precision successive approximation register (SAR) analog-to-digital converters (ADCs). These ADCs incorporate Easy Drive features, such as high-Z mode and an extended acquisition phase, which provide signal chain architectural flexibility by expanding the range of companion circuitry that can be paired with these ADCs.
Operating from a single power supply, VDD, these ADCs allow the reference voltage, VREF, to be applied externally and set independently of the supply voltage. With fast device throughput up to 2 MSPS, the AD4000/AD4004/AD4008 can accurately capture high-frequency signals and implement oversampling techniques to alleviate the challenges associated with antialias filter designs. Additionally, the power consumption of these ADCs scales linearly with throughput.
The AD4000/AD4004/AD4008 eliminate the need for a negative supply to the ADC driver amplifier by employing input span compression, while preserving access to the full ADC code range. Furthermore, the input overvoltage clamp protects the ADC inputs against overvoltage events, minimizing disturbances on the reference pin and eliminating the need for external protection diodes.
By reducing the serial peripheral interface (SPI) clock rate requirements, the AD4000/AD4004/AD4008 reduce digital input and output power consumption, broaden digital host options, and simplify the task of sending data across digital isolation. The SPI-compatible serial user interface supports 1.8 V, 2.5 V, 3.3 V, and 5 V logic by using the separate VIO logic supply.
APPLICATIONS
- Automated test equipment
- Machine automation
- Medical equipment
- Battery-powered equipment
- Precision data acquisition systems
- Instrumentation and control systems
3
Ask a Question
Submit your question below and we will return the best answer from ADI’s knowledge database:
Search
Other places you can find help
Support
Analog Devices Support Portal is a one-stop shop to answer all your ADI questions.
Visit the ADI Support Page
{{modalTitle}}
{{modalDescription}}
{{dropdownTitle}}
- {{defaultSelectedText}} {{#each projectNames}}
- {{name}} {{/each}} {{#if newProjectText}}
-
{{newProjectText}}
{{/if}}
{{newProjectTitle}}
{{projectNameErrorText}}
AD4008
Documentation
Filters
1 Applied
-
All
-
User Guide
-
Data Sheet
-
All
-
English
-
Japanese
Data Sheet
2
User Guide
2
Documentation
Device Drivers 2
Analog Dialogue 1
Webcast 2
Video
1
ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.
| Part Model | Pin/Package Drawing | Documentation | CAD Symbols, Footprints, and 3D Models |
|---|---|---|---|
| AD4008BCPZ-RL7 |
10-Lead LFCSP (3mm x 3mm)
|
|
|
| AD4008BRMZ |
10-Lead MSOP
|
|
|
| AD4008BRMZ-RL7 |
10-Lead MSOP
|
|
- AD4008BCPZ-RL7
- Pin/Package Drawing
-
10-Lead LFCSP (3mm x 3mm)
- Documentation
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD Symbols, Footprints, and 3D Models
-
Ultra Librarian
-
SamacSys
- AD4008BRMZ
- Pin/Package Drawing
-
10-Lead MSOP
- Documentation
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD Symbols, Footprints, and 3D Models
-
Ultra Librarian
-
SamacSys
- AD4008BRMZ-RL7
- Pin/Package Drawing
-
10-Lead MSOP
- Documentation
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD Symbols, Footprints, and 3D Models
-
Ultra Librarian
-
SamacSys
Software & Part Ecosystem
Device Drivers
FPGA/HDL
Looking for Evaluation Software? You can find it here
| Parts | Product Life Cycle | Description | ||
|---|---|---|---|---|
|
Accelerometers1 |
||||
|
RECOMMENDED FOR NEW DESIGNS |
Low-Noise, Low-Drift, Low-Power, 3-Axis MEMS Accelerometers |
|||
|
General Purpose Op Amps1 |
||||
|
PRODUCTION |
Low Power, 3.6 MHz, Low Noise, Rail-to-Rail Output, Operational Amplifiers |
|||
|
High Speed Op Amps (Bandwidth ≥ 50MHz)1 |
||||
|
RECOMMENDED FOR NEW DESIGNS |
3.1 nV/√Hz, 1 mA, 180 MHz, Rail-to-Rail Input/Output Amplifier |
|||
|
High Voltage Op Amps ≥12V2 |
||||
|
RECOMMENDED FOR NEW DESIGNS |
Low Noise, Precision, Rail-to-Rail Output, JFET Single Op Amp |
|||
|
RECOMMENDED FOR NEW DESIGNS |
4 MHz, 7 nV/√Hz, Low Offset and Drift, High Precision Single Amplifier |
|||
|
Internal Power Switch Buck Regulators1 |
||||
|
PRODUCTION |
50 mA/500 mA, High Efficiency, Ultralow Power Step-Down Regulator |
|||
|
Low Noise Op Amps (≤ 10nV/√Hz)1 |
||||
|
RECOMMENDED FOR NEW DESIGNS |
1 nV/√Hz, Low Power, Rail-to-Rail Output Amplifiers |
|||
|
Low Power Op Amps (≤ 1mA/amp) 2 |
||||
|
PRODUCTION |
2.7 V, 800 µA, 80 MHz Rail-to-Rail I/O Single Amplifier |
|||
|
RECOMMENDED FOR NEW DESIGNS |
30 V, Low Noise, Rail-to-Rail Input/Output, Low Power Operational Single Amplifier |
|||
|
Positive Linear Regulators (LDO)2 |
||||
|
RECOMMENDED FOR NEW DESIGNS |
20 V, 200 mA, Low Noise, CMOS LDO Linear Regulator |
|||
|
RECOMMENDED FOR NEW DESIGNS |
5.5V Input, 500 mA, Low Quiescent Current, CMOS Linear Regulator with 31 Fixed-output Voltages |
|||
|
Precision Op Amps (Vos ≤1mV & TCVos ≤2uV/C)1 |
||||
|
RECOMMENDED FOR NEW DESIGNS |
30 V, Micropower, Overvoltage Protection, Rail-to-Rail Input/Output Dual Op Amplifier |
|||
|
Series Voltage References11 |
||||
|
PRODUCTION |
Ultra-Low-Noise, High-Accuracy 5.0V Voltage Reference |
|||
|
PRODUCTION |
Ultra-Low-Noise, High-Accuracy 4.096V Voltage Reference |
|||
|
PRODUCTION |
Ultra-Low-Noise, High-Accuracy 3.3V Voltage Reference |
|||
|
PRODUCTION |
Ultra-Low-Noise, High-Accuracy 2.5V Voltage Reference |
|||
|
PRODUCTION |
Ultralow Noise, LDO XFET® 4.096V Voltage Reference w/Current Sink and Source |
|||
|
PRODUCTION |
Ultralow Noise, LDO XFET® 5.0V Voltage Reference w/Current Sink and Source |
|||
|
PRODUCTION |
Ultralow Noise, LDO XFET® 2.5V Voltage Reference w/Current Sink and Source |
|||
|
PRODUCTION |
Micro-Power, High-Accuracy 5.0V Voltage Reference |
|||
|
PRODUCTION |
Micro-Power, High-Accuracy 4.096V Voltage Reference |
|||
|
RECOMMENDED FOR NEW DESIGNS |
Micropower, Precision, Auto Qualified 3.3V Voltage Reference |
|||
|
RECOMMENDED FOR NEW DESIGNS |
Micropower, Precision, Auto Qualified 2.5V Voltage Reference |
|||
|
Single-Ended to Differential Amplifiers1 |
||||
|
RECOMMENDED FOR NEW DESIGNS |
Low Power Differential ADC Driver |
|||
|
Standard Digital Isolators2 |
||||
|
RECOMMENDED FOR NEW DESIGNS |
Robust, Quad Channel Isolator W/ Input Disable & 1 Reverse Channel |
|||
|
RECOMMENDED FOR NEW DESIGNS |
Robust, Quad Channel Isolator W/ Output Enable & 1 Reverse Channel |
|||
Can't find the software or driver you need?
Request a Driver/SoftwareEvaluation Kits 1

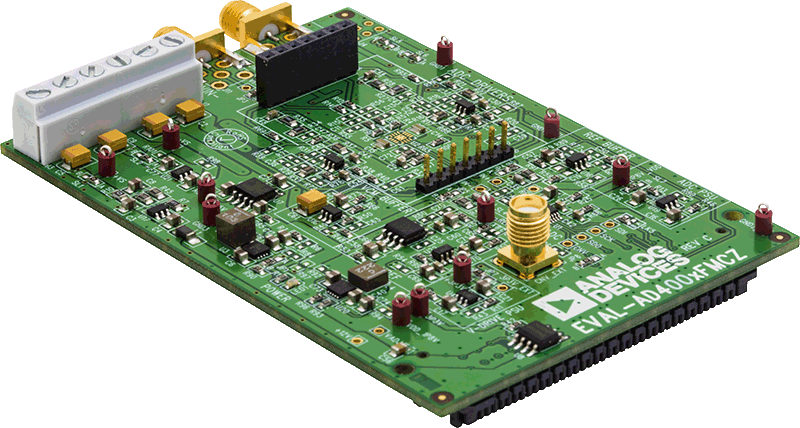

EVAL-AD400x-FMCZ
