MAX77727

预发布

22V, 3A Synchronous Buck Converter with Ultrasonic Mode

数据手册 (Rev. 0) 产品选型表
产品技术资料帮助

ADI公司所提供的资料均视为准确、可靠。但本公司不为用户在应用过程中侵犯任何专利权或第三方权利承担任何责任。技术指标的修改不再另行通知。本公司既没有含蓄的允许，也不允许借用ADI公司的专利或专利权的名义。本文出现的商标和注册商标所有权分别属于相应的公司。
Viewing:

概述

  • 3.6V to 22V Input Voltage Range
  • 1.8V to 15V Output Voltage Range
  • Low Current Consumption and High Efficiency
    • 100nA Shutdown Current
    • 800nA Quiescent Current in Low Power Mode
    • 96% Peak Efficiency
  • Integrated 50mΩ and 45mΩ Power MOSFETs
  • Up to 4.6A Inductor Peak Current Limit
  • MAX77726 Provides 3.3V, 5V, 9V, and 15V Regulation Target Voltage Selection using Two VSEL Pins
  • MAX77727 Provides Output Voltage Programmable from 1.8V to 15V Through I2C (with 100mV Resolution in the Range from 1.8V to 4.9V, and 250mV Resolution in the Range from 5V to 15V
  • MAX77726 Provides Pin Selectable Ultrasonic Mode
  • MAX77727 Provides I2C Selectable for Forced PWM Mode
  • Output Active Discharge Feature
  • Ease of Use and Small Solution Size
    • Cycle-by-Cycle Inductor Peak Current Limit, UVLO, Output Short Circuit, Over-Temperature Protection Features
    • 12-Pin, 0.4mm Pitch, 0.65mm Height Wafer- Level Package (WLP)
    • Use of Chip Type Inductors and Ceramic Capacitors
  • 1.32mm x 1.77mm, 12-WLP, 0.4mm Pitch Package

The MAX77726/MAX77727 provide power supply solutions for nano-power applications where size and efficiency are critical. They feature 4.6A inductor peak current protection and can deliver up to 3A output current.

The MAX77726's output voltages can be logically set through the VSEL pins for four specific output voltages. Physical enable pin and mode pin settings provide intuitive control.

The MAX77727's output voltages are programmable through I2C. It also allows MODE and enables selection through the I2C interface and status reading.

APPLICATIONS

  • USB Sourced Devices
  • Portable Electronics
  • 12V Distributed Power Bus Applications
MAX77727
22V, 3A Synchronous Buck Converter with Ultrasonic Mode
MAX77726-27 Simplified Application Diagram MAX77726-27 Functional Block Diagram MAX77726-27 Pin Configuration MAX77727 Chip Illustration
添加至 myAnalog

将产品添加到myAnalog 的现有项目或新项目中（接收通知）。

创建新项目
提问

参考资料

数据手册 1

用户手册 1

了解更多
添加至 myAnalog

Add media to the Resources section of myAnalog, to an existing project or to a new project.

创建新项目

软件资源

找不到您所需的软件或驱动?

申请驱动/软件

评估套件

eval board
schematic 1
schematic 2
schematic 3
MAX77727EVKIT

Evaluates: MAX77727

立即购买 更多内容

特性和优点

  • Proven PCB Design and Layout Benefit
  • Fully Assembled and Tested
  • Sense Points Provided for High-Accuracy Measurements
  • MAXUSB_INTERFACE# Enables Easy Communication with a Windows PC
  • ACE Software Supports the I2C Serial Interface for Optional Software Control
  • I2C Interface Controls Enable (EN) Function, Ultrasonic Mode (USM), and Output Voltage

产品详情

The MAX77727 evaluation kit (EV kit) is a fully assembled and tested printed circuit board (PCB) that demonstrates the MAX77727 synchronous buck converter with ultrasonic mode.

The EV kit is a step-down voltage regulator circuit based on the MAX77727. It supports an input voltage range from 3.6V to 22V and delivers up to 3A of continuous load current. The output voltage is adjustable through I2C, ranging from 1.8V to 4.9V with 100mV resolution and from 5V to 15V with 250mV resolution. F
MAX77727EVKIT
Evaluates: MAX77727

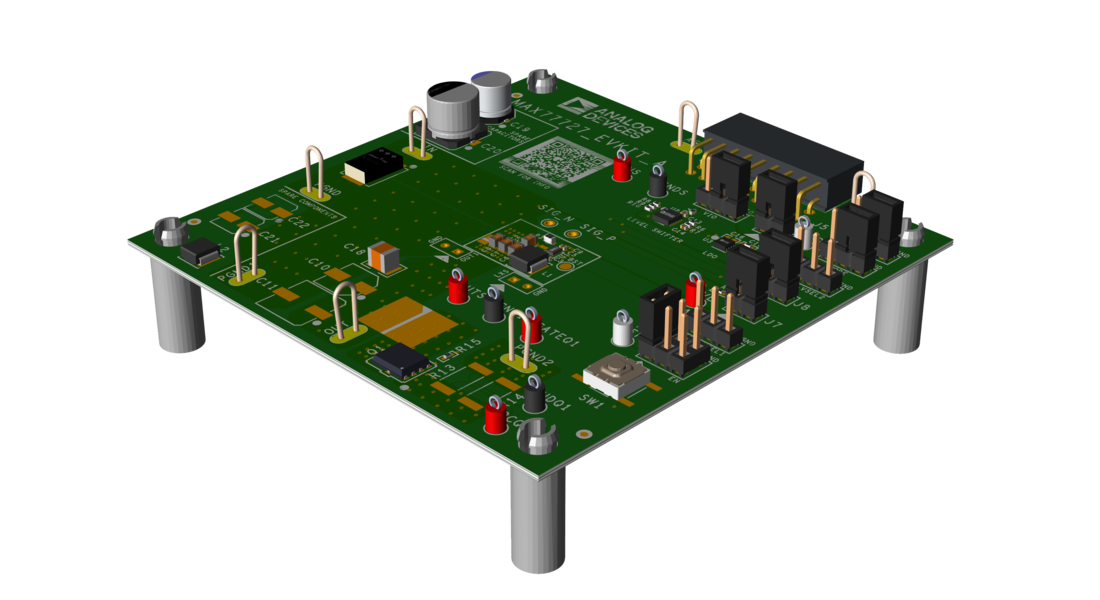

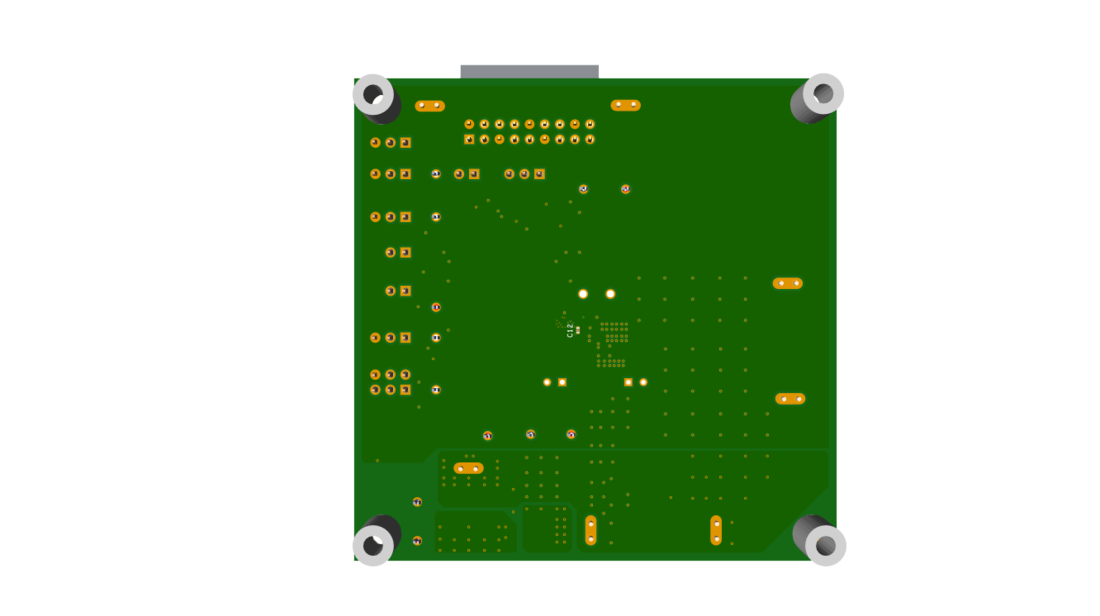

MAX77727EVKIT Evaluation Board Angle View MAX77727 Evaluation Board Top View MAX77727EVKIT Evaluation Board Bottom View
