概览
优势和特点
- 宽 VIN 范围:1.6V (2.5V 启动) 至 40V
- 利用单个反馈引脚来设置正或负输出电压
- PGOOD 输出电压状态报告
- 内部 6A/40V 电源开关
- 可编程软起动
- 可利用一个外部电阻器来设置工作频率 (100kHz 至 1MHz)
- 可同步至一个外部时钟
- 低停机电流:<1μA
- INTVCC 稳压器从 VIN 或 DRIVE 供电
- 具迟滞的可编程输入欠压闭锁

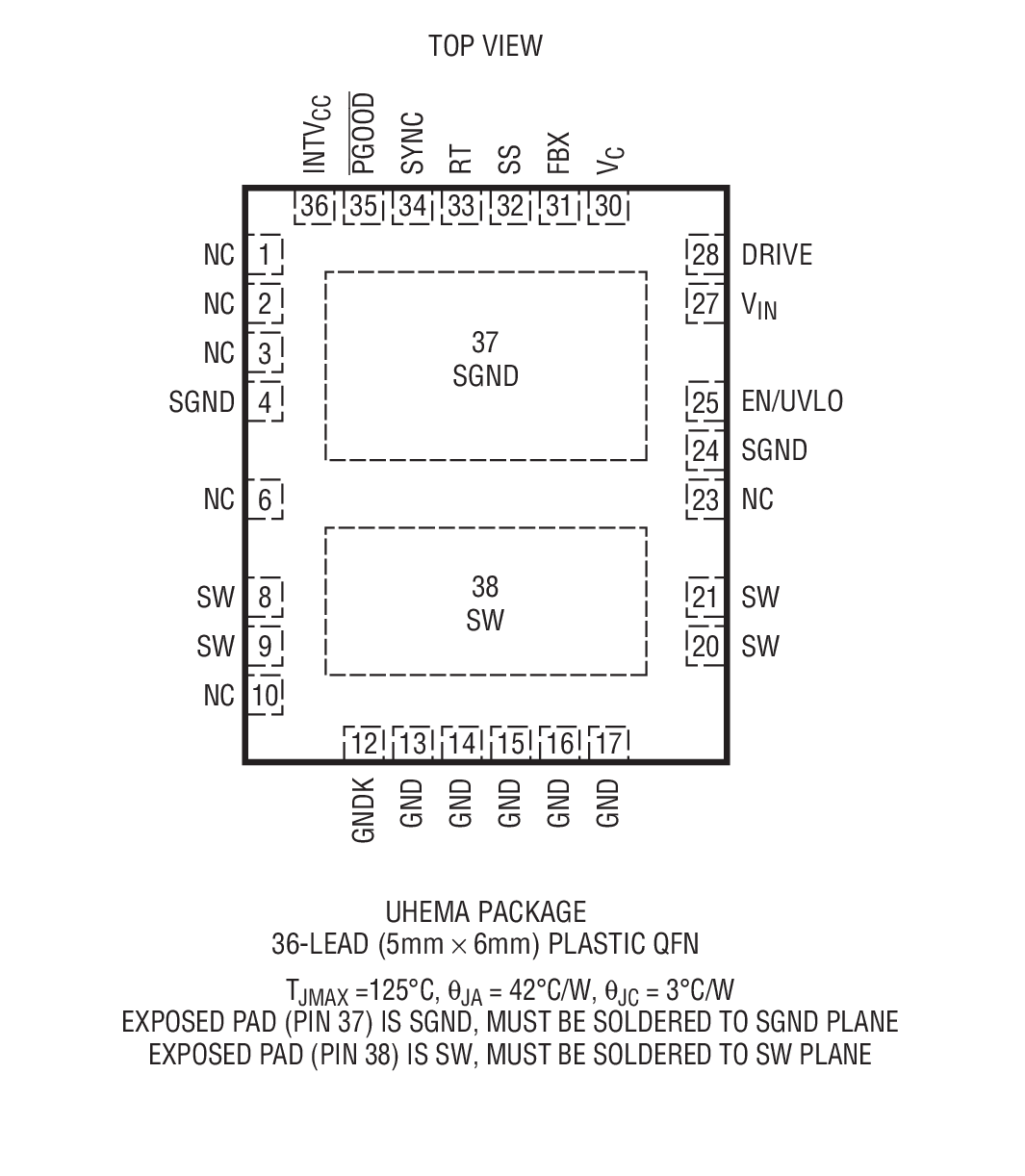

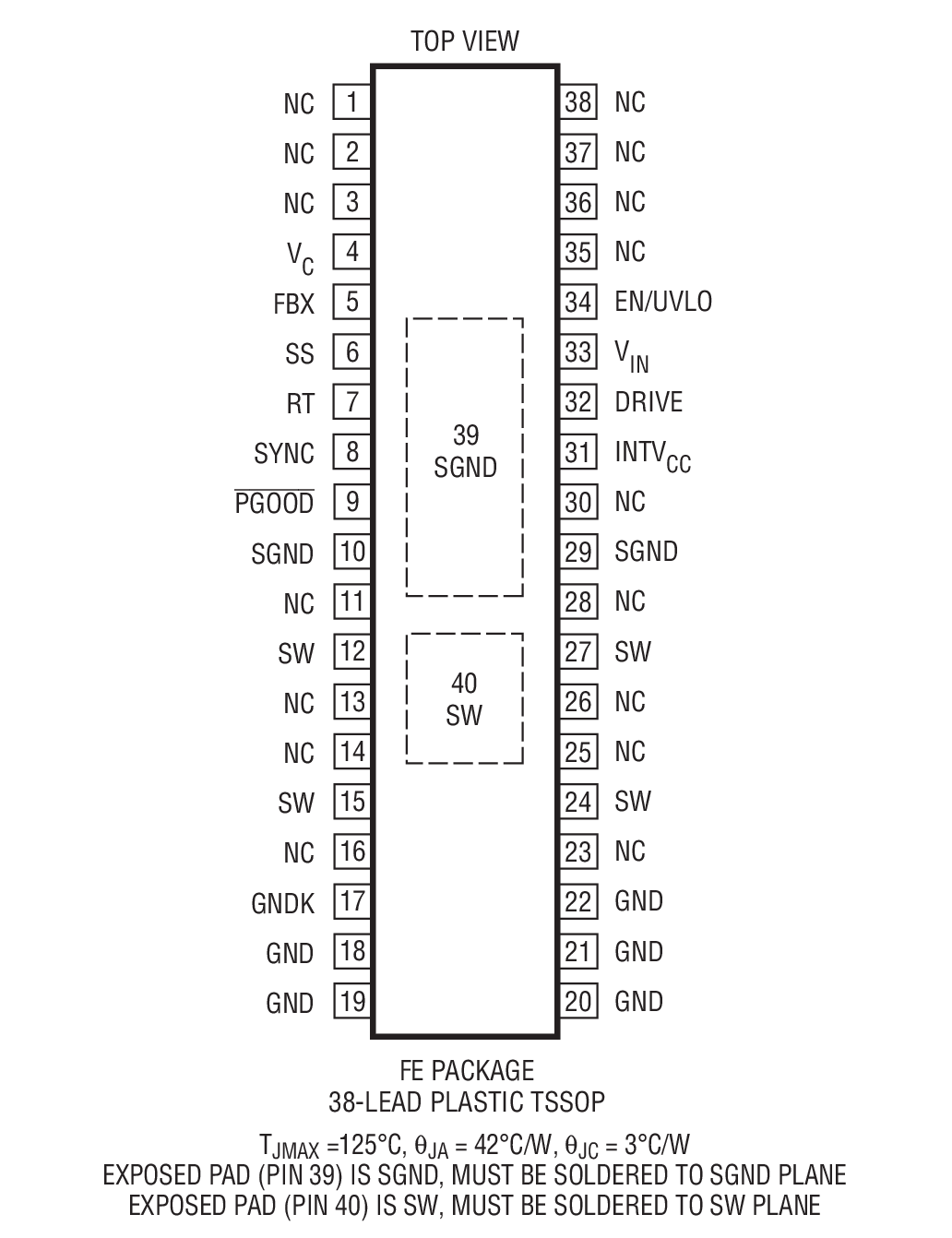

- 耐热性能增强型 QFN (5mm x 6mm) 封装
产品详情

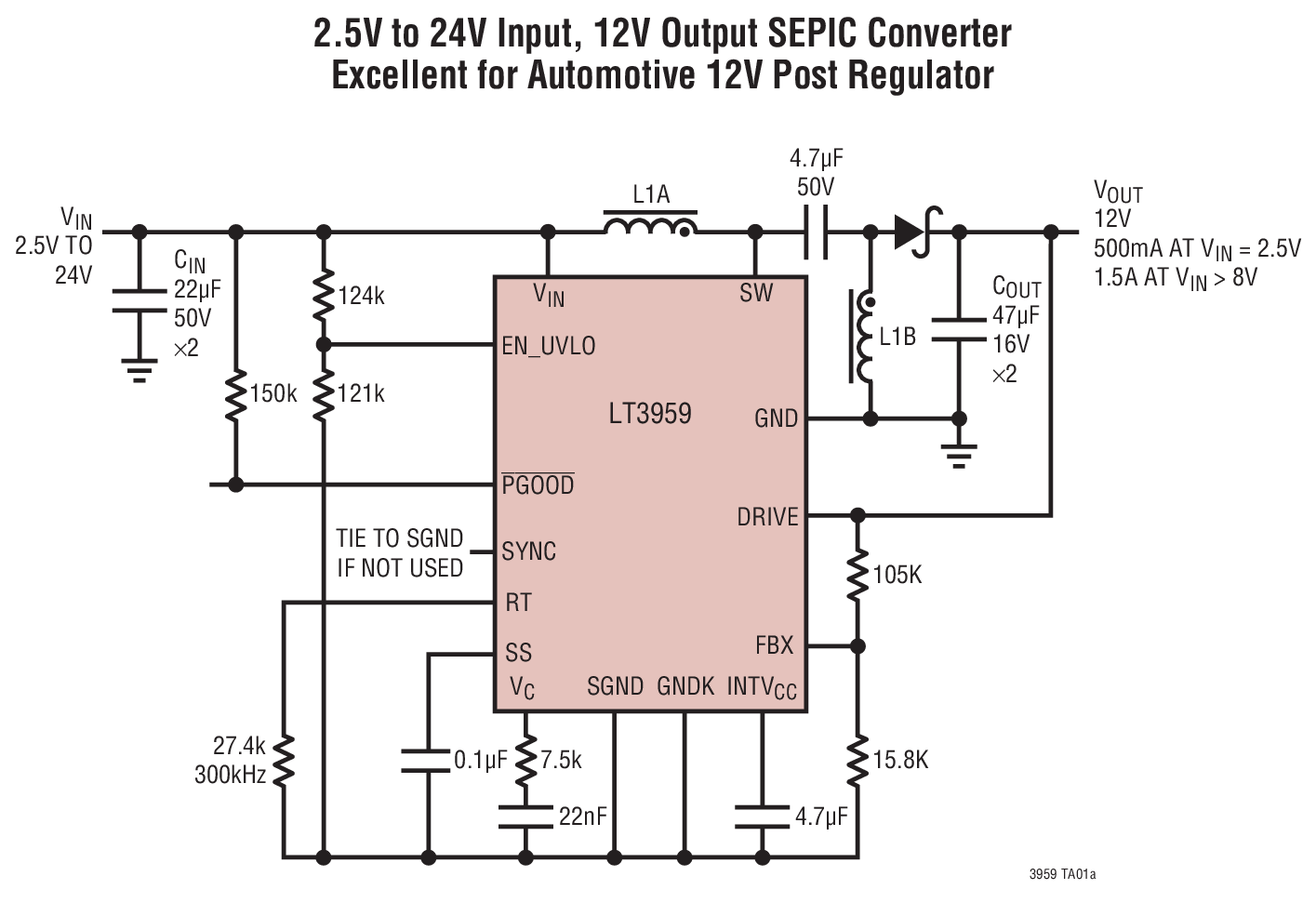

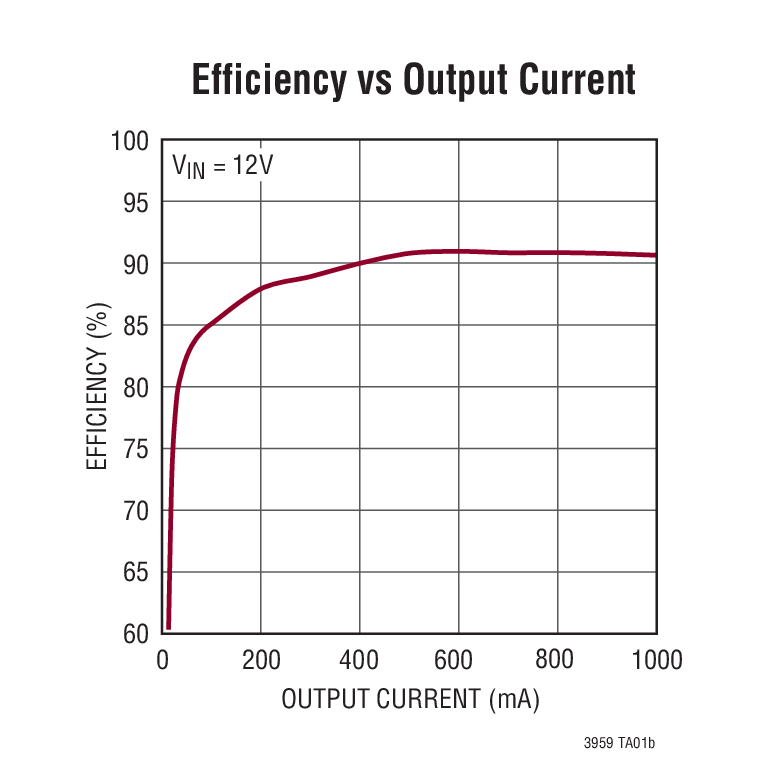

LT®3959 是一款宽输入范围、电流模式、DC/DC 控制器,该器件能够利用单个反馈引脚调节正输出电压或负输出电压。它可以被配置为一个升压、SEPIC 或负输出转换器。
LT3959 具有一个内部低端 N 沟道功率 MOSFET (额定在 6A 和40V),并采用一个由 VIN 或 DRIVE 提供的内部稳定电源来驱动。固定频率、电流模式架构在一个很宽的电源电压和输出电压范围内实现了稳定的操作。LT3959 的工作频率可利用一个外部电阻器来设定 (可设置范围为 100kHz 至 1MHz),或者采用 SYNC 引脚以使其同步至一个外部时钟。
LT3959 具有软起动和频率折返功能,用于在启动和输出短路期间限制电感器电流。FBX 引脚上的一个窗口比较器负责通过 PGOOD 引脚进行报告,以提供输出电压状态指示。
应用
- 汽车
- 电信
- 工业
产品生命周期
量产
该产品系列中至少有一个型号已量产并可供采购。该产品适合用于新设计,但也可能有更新的替代产品。

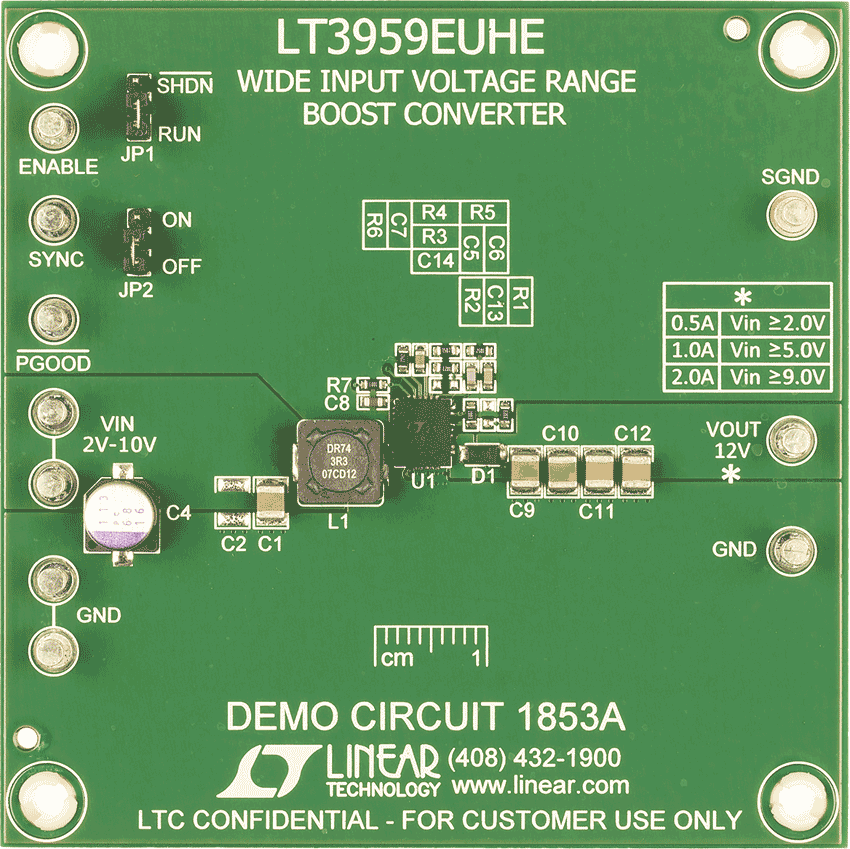

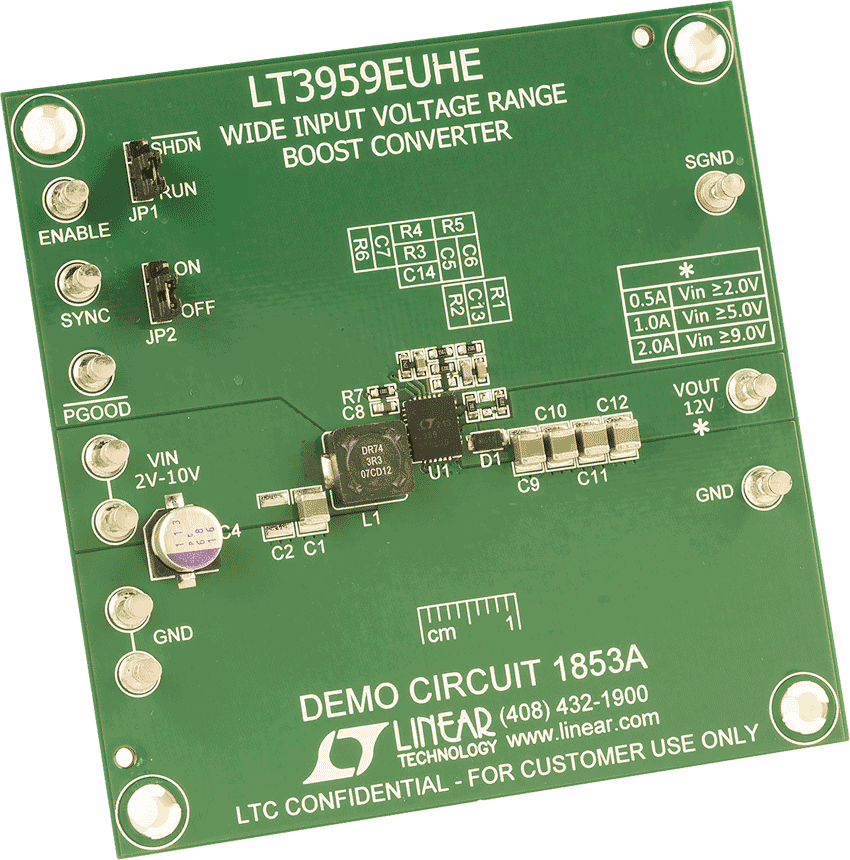

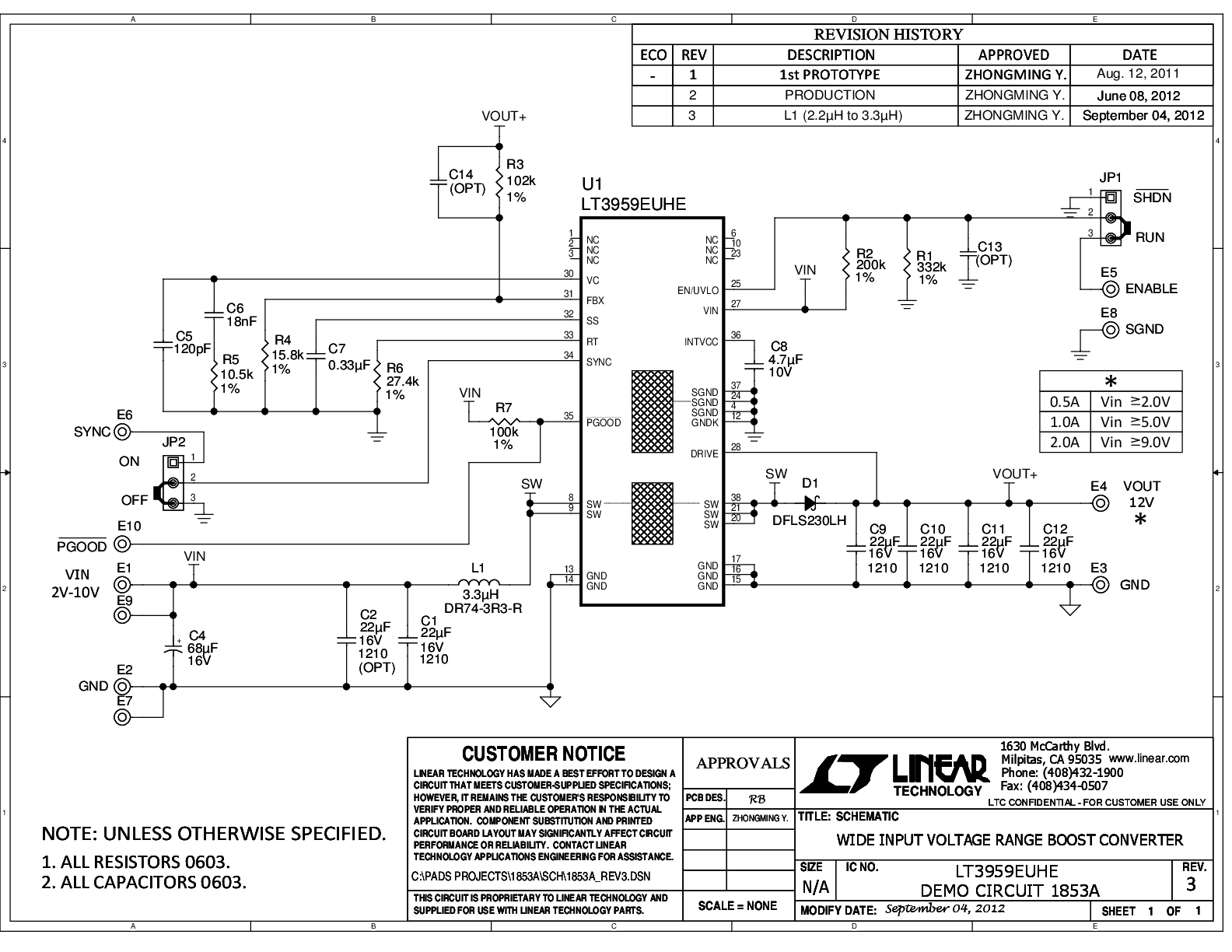

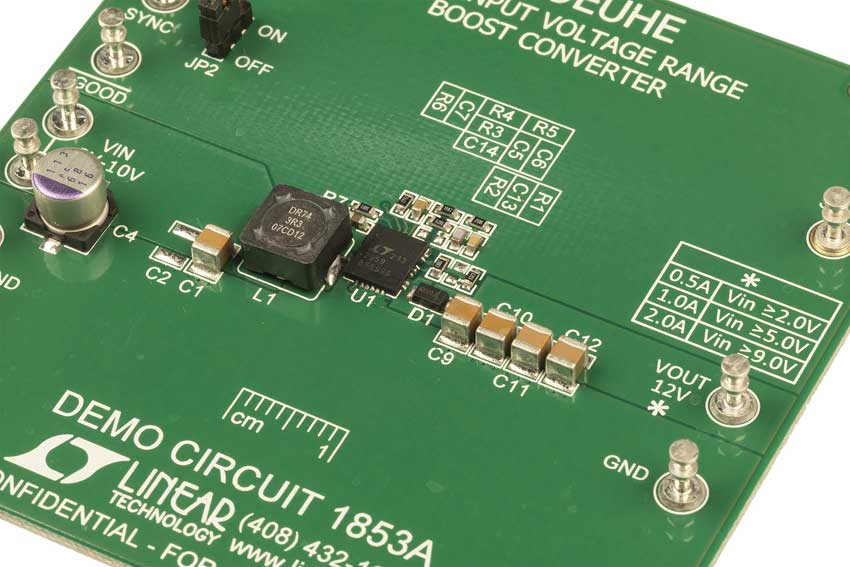

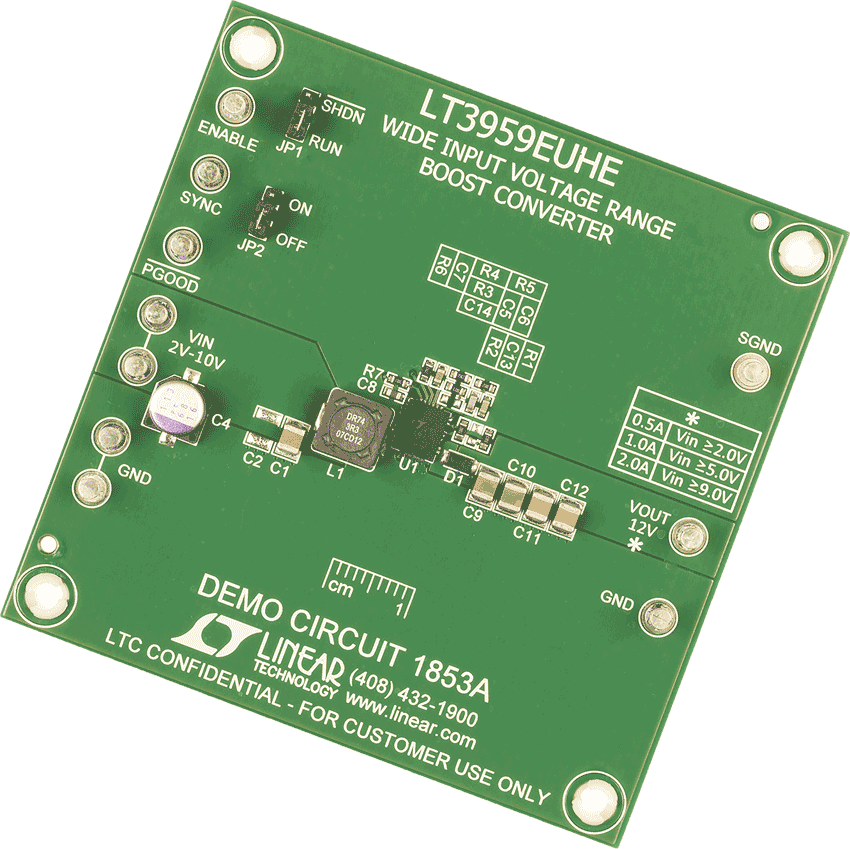

评估套件 (1)
文档
Reliability Data (1)
评估板套件使用手册 (1)
工具及仿真模型
LTspice
LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.
To launch ready-to-run LTspice demonstration circuits for this part:
Step 1: Download and install LTspice on your computer.
Step 2: Click on the link in the section below to download a demonstration circuit.
Step 3: If LTspice does not automatically open after clicking the link below, you can instead run the simulation by right clicking on the link and selecting “Save Target As.” After saving the file to your computer, start LTspice and open the demonstration circuit by selecting ‘Open’ from the ‘File’ menu.

Models for the following parts are available in LTspice:
LTpowerCAD
LTpowerCAD® is a power supply design program which selects power stage components, provides detailed power efficiency, shows quick loop Bode plot stability and load transient analysis, and can export to LTspice for simulation.

Design tools for the following parts are available in LTpowerCAD:
