1.1A Step-Up DC/DC Converter with Integrated Soft-Start

数据手册 (Rev. 0) 产品选型表
产品技术资料帮助

ADI公司所提供的资料均视为准确、可靠。但本公司不为用户在应用过程中侵犯任何专利权或第三方权利承担任何责任。技术指标的修改不再另行通知。本公司既没有含蓄的允许，也不允许借用ADI公司的专利或专利权的名义。本文出现的商标和注册商标所有权分别属于相应的公司。
Viewing:

概述

  • 1.3MHz Switching Frequency
  • Low VCESAT Switch: 330mV at 1.1A
  • High Output Voltage: Up to 40V
  • Wide Input Range: 2.7V to 16V
  • Dedicated Soft-Start Pin
  • Uses Small Surface Mount Components
  • Low Shutdown Current: <1μA
  • Low Profile (1mm) ThinSOT™ Package
  • Low Profile (0.75mm) 8-Lead (3mm × 2mm) Dual Flat No Lead (DFN) Package

The ADPL21610 switching regulators combine a 42V, 1.1A switch with a soft-start function. The ADPL21610 switches at 1.3MHz, allowing the use of tiny, low-cost and low-height inductors and capacitors. High inrush current at start-up is eliminated using the programmable soft-start function. A single external capacitor sets the current ramp rate. A constant-frequency current mode pulse-width modulator (PWM) architecture results in low, predictable output noise that is easy to filter.

The high-voltage switch on the ADPL21610 is rated at 42V, making the devices ideal for boost converters up to 40V, as well as SEPIC and flyback designs. The ADPL21610 is available in a low-profile (1mm) 6-lead Small outline transistor (SOT)‑23 package and tiny 3mm × 2mm DFN package.

APPLICATIONS

  • Digital Cameras
  • White LED Power Supplies
  • Cellular Phones
  • Medical Diagnostic Equipment
  • Local 5V or 12V Supplies
  • Thin Film Transistor (TFT)- Liquid Crystal Display (LCD) Bias Supplies
  • x Digital Subscriber Line (xDSL) Power Supplies
ADPL21610
1.1A Step-Up DC/DC Converter with Integrated Soft-Start
ADPL21610 Typical Application ADPL21610 Efficiency ADPL21610 Pin Configuration ADPL21610 Pin Configuration ADPL21610 Chip Illustration
添加至 myAnalog

将产品添加到myAnalog 的现有项目或新项目中（接收通知）。

创建新项目
提问

参考资料

数据手册 1

用户手册 1

了解更多
添加至 myAnalog

Add media to the Resources section of myAnalog, to an existing project or to a new project.

创建新项目

软件资源

找不到您所需的软件或驱动?

申请驱动/软件

评估套件

eval board
schematic 1
schematic 2
schematic 3
EVAL-ADPL21610-AZ

ADPL21610 | 1.2MHz, SOT-23 DC/DC Converter

立即购买 更多内容

产品详情

Evaluation circuit EVAL-ADPL21610-AZ is a 1.2MHz, SOT-23 DC/DC converter featuring the ADPL21610. The Boost Circuit is designed to convert a 5V input to a 12V output at 300mA maximum load. The EVALADPL21610- AZ is designed to demonstrate the soft-start feature, advantages of the 1.2MHz switching frequency, the internal 42V/1.1A switch, wide input voltage range and small circuit size. The EVAL-ADPL21610-AZ is intended for space-conscious applications such as digital cameras, cellular phones, palmtop computers, and liquid crystal display (LCD) displays. The 1.2MHz switching frequency, 1.1A integrated switch, small circuit size, and All registered trademarks and trademarks are the property of their respective owners. low component count make the ADPL21610 suitable for use in many other applications, such as PC cards, miniature disk drives, variable digital subscriber line (xDSL) power supplies, flash memory products, and local 5V or 12V supplies.

Read the ADPL21610 data sheet before using or making any hardware changes to the EVAL-ADPL21610-AZ evaluation board.

Design files for this circuit board are available.
EVAL-ADPL21610-AZ
ADPL21610 | 1.2MHz, SOT-23 DC/DC Converter

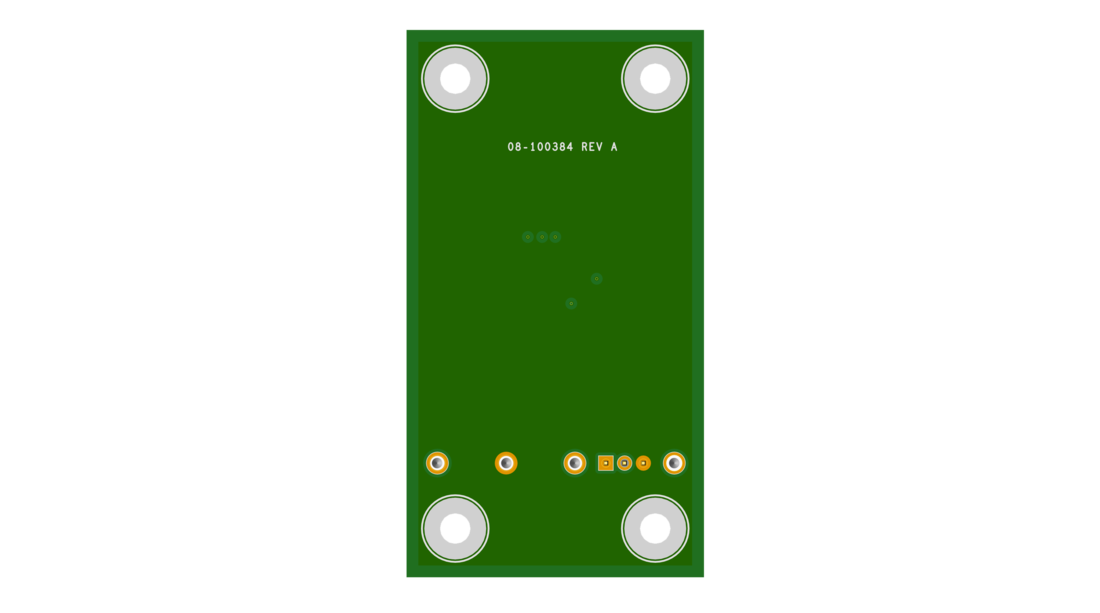

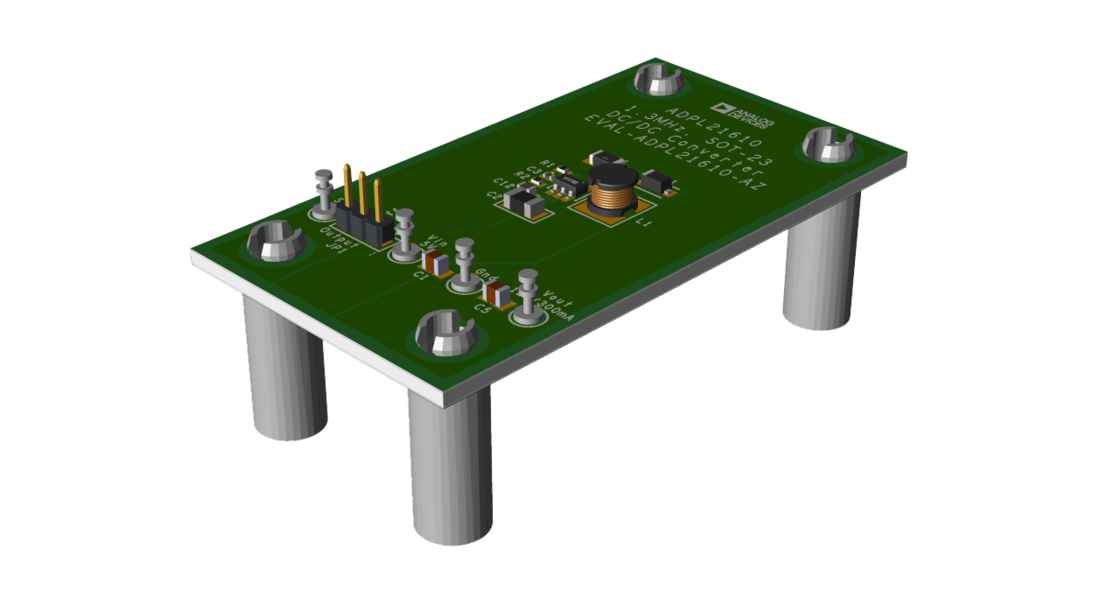

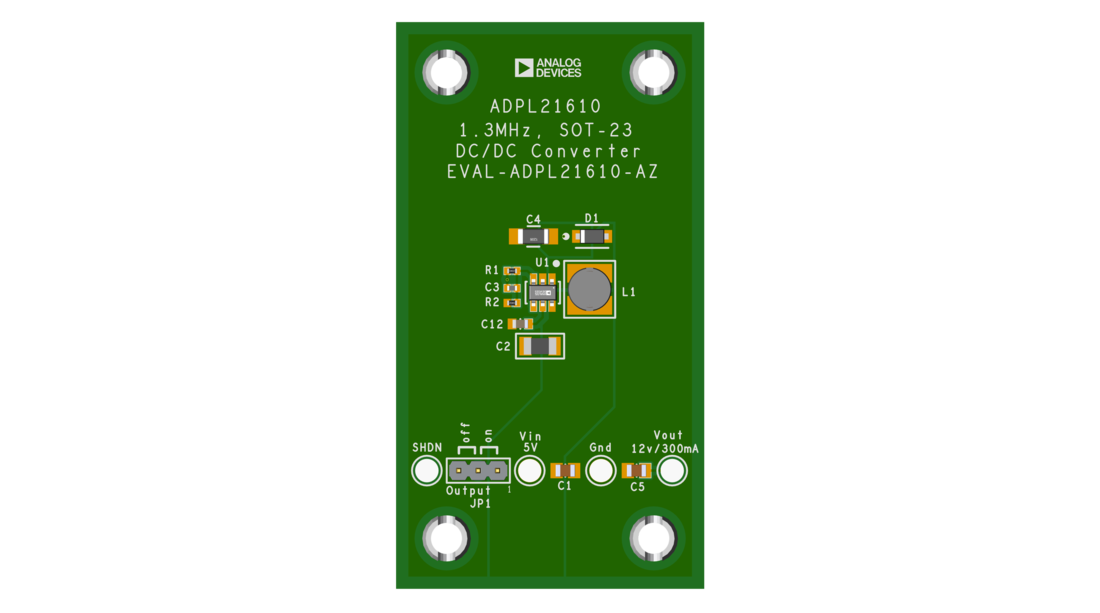

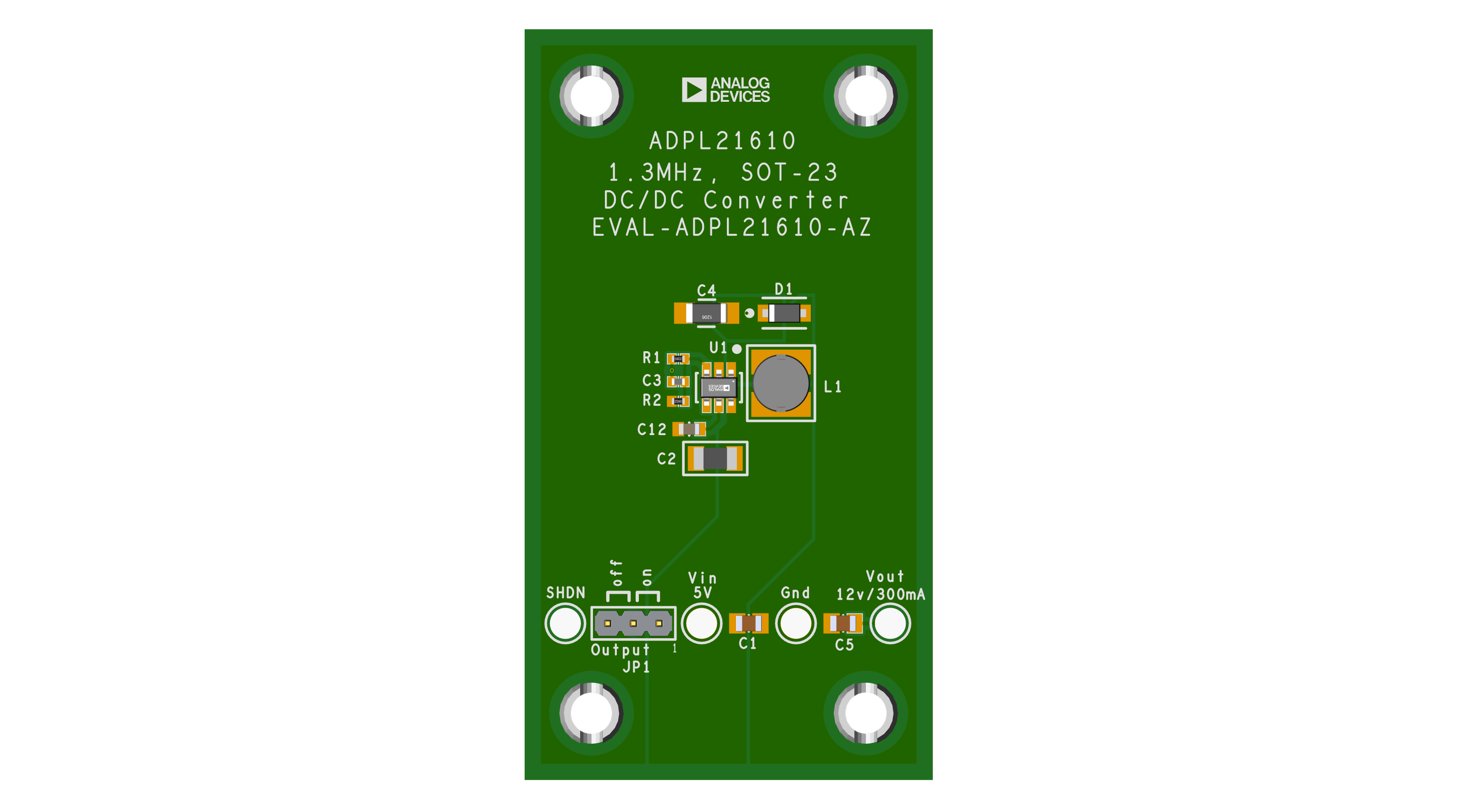

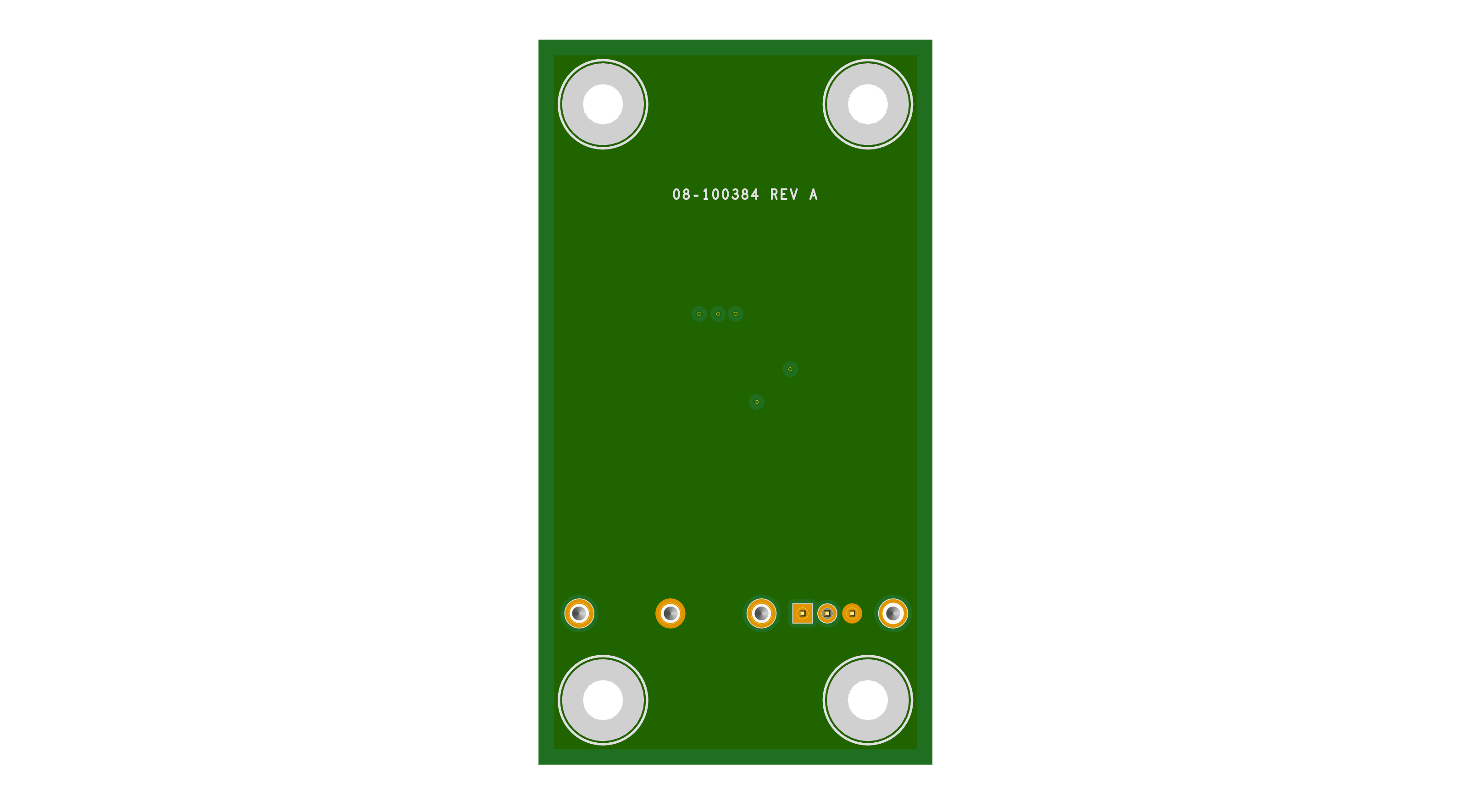

EVAL-ADPL21610 Evaluation Board Angle View EVAL-ADPL21610 Evaluation Board Top View EVAL-ADPL21610 Evaluation Board Bottom View
