LT7176P-1

Name: LT7176P-1
Brand: Analog Devices
Availability: InStock

推荐用于新设计

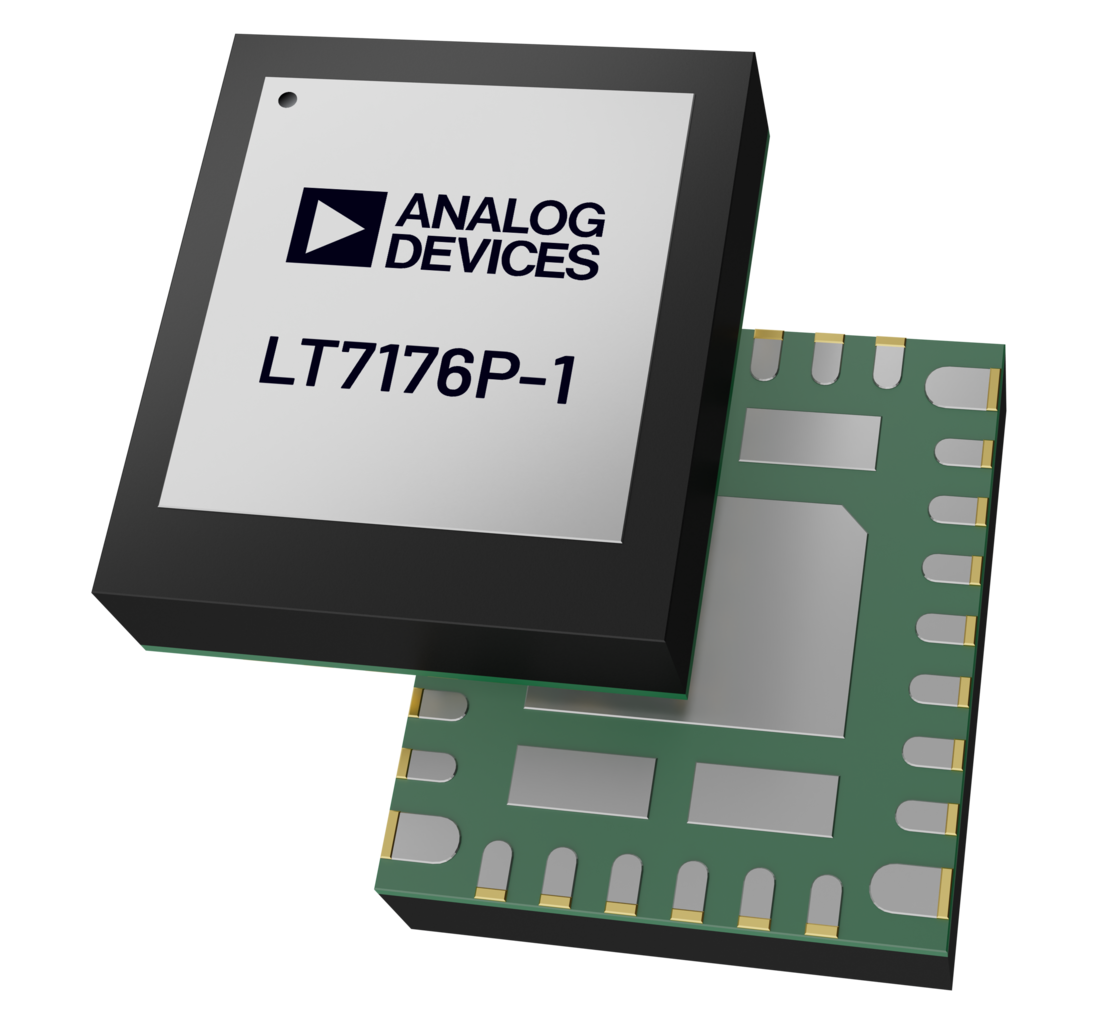

24A, 4V, Single-Phase or Dual-Phase, Silent Switcher Step-Down Regulators with Digital Power System Management

数据手册 (Rev. A) 产品选型表

产品模型: 1

Viewing:

概述

Silent Switcher^® Architecture: Enables a Compact, Efficient, Low EMI Solution
PMBus/I²C Serial Interface

Telemetry Read Back Includes V_OUT, I_OUT, V_IN, Die Temperature, and Faults
Programmable Voltage, Current Limit, Sequencing, Soft Start and Stop, Undervoltage and Overvoltage, Phase, Frequency (up to 3MHz), and Loop Compensation
Integrated Thrice Programmable NVM

Key Parameters Selectable by Resistor
V_OUT Set Point Range: 0.3V to 3.4V

V_OUT Accuracy: ±0.25%, 0.6V ≤ V_OUT ≤ 1.375V
PolyPhase Load Sharing up to Four Devices
Optional Pulse-Skipping Mode Enables Low Quiescent Current
Differential Remote V_OUT Sense
Fast Transient Response
Wide V_IN Supply Range: Down to 2.7V or 1.5V with EXTV_CC
Programmable and Synchronizable: 1MHz to 3MHz

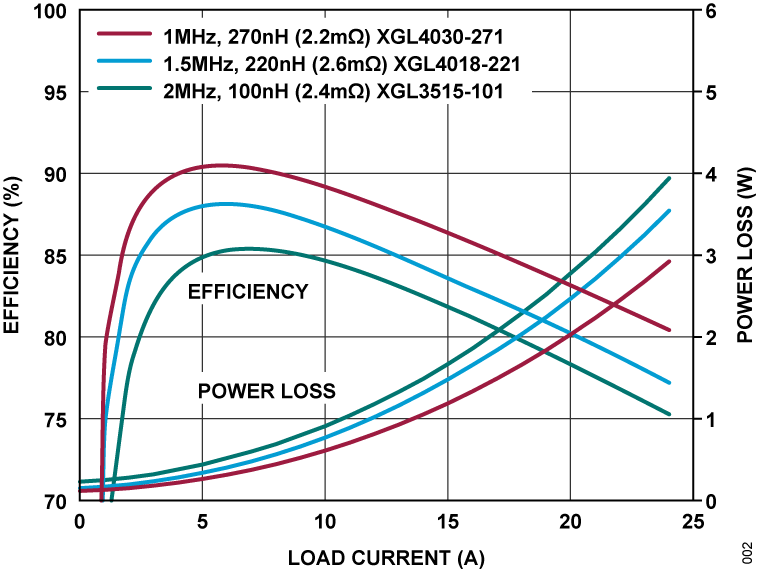

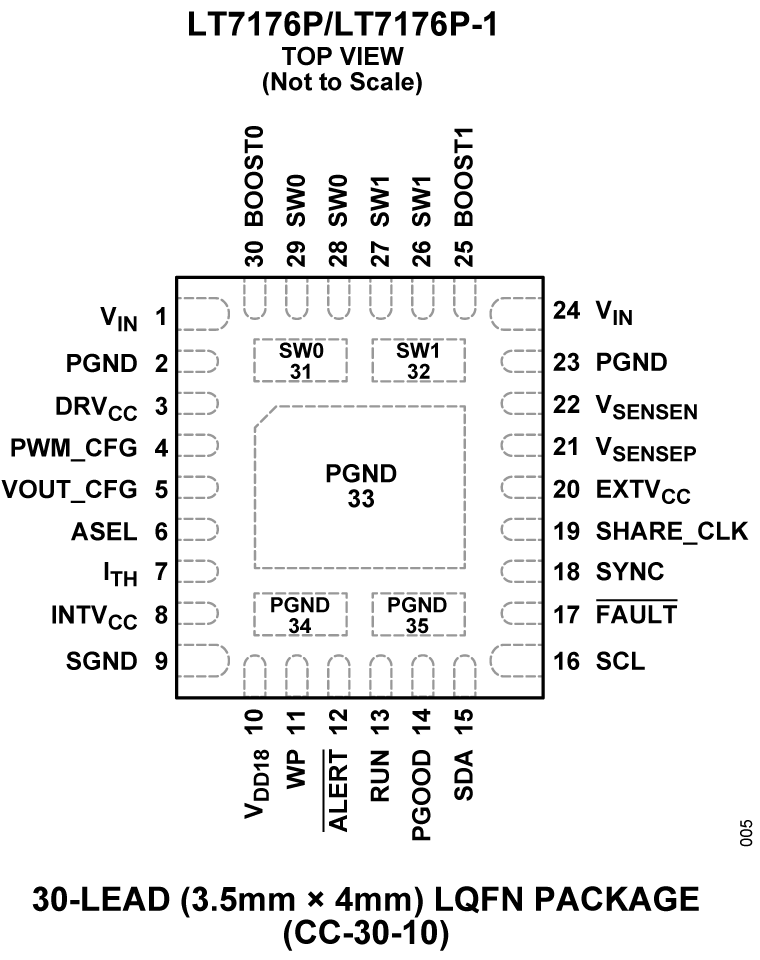

30-Lead (3.5mm × 4mm) LQFN

产品模型: 1

参考资料

数据手册 1

LT7176P/LT7176P-1: 24A, 4V, Single-Phase or Dual-Phase, Silent Switcher Step-Down Regulators with Digital Power System Management Data Sheet (Rev.A) 08/27/2026

用户手册 1

EVAL-LT7176P-1-AZ User Guide: 4V, PolyPhase Silent Switcher Step-Down Regulator with Digital Power System Management 2xLT7176-1, 48A (Rev.0) 08/27/2026

ADI 始终高度重视提供符合最高质量和可靠性水平的产品。我们通过将质量和可靠性检查纳入产品和工艺设计的各个范围以及制造过程来实现这一目标。出货产品的“零缺陷”始终是我们的目标。查看我们的质量和可靠性计划和认证以了解更多信息。

产品型号	引脚/封装图-中文版	文档	CAD 符号，脚注和 3D模型
LT7176PRV-1#TRPBF	30-Lead LCC (3.50 mm x 4.00 mm x 0.95 mm)	Material Declaration Reliability Report 资料包	Ultra Librarian SamacSys

这是最新版本的数据手册

软件资源

找不到您所需的软件或驱动?

申请驱动/软件

工具及仿真模型

LTspice

LTspice中提供以下器件型号：

LT7176
LT7176-1
LT7176P-1

LTpowerCAD

LTpowerCAD中提供以下器件的设计工具：

LT7176
LT7176-1
LT7176P-1

LTspice^®是一款强大高效的免费仿真软件、原理图采集和波形观测器，为改善模拟电路的仿真提供增强功能和模型。

评估套件

4V, PolyPhase Silent Switcher Step-Down Regulator with Digital Power System Management 2xLT7176-1, 48A

立即购买更多内容

产品详情

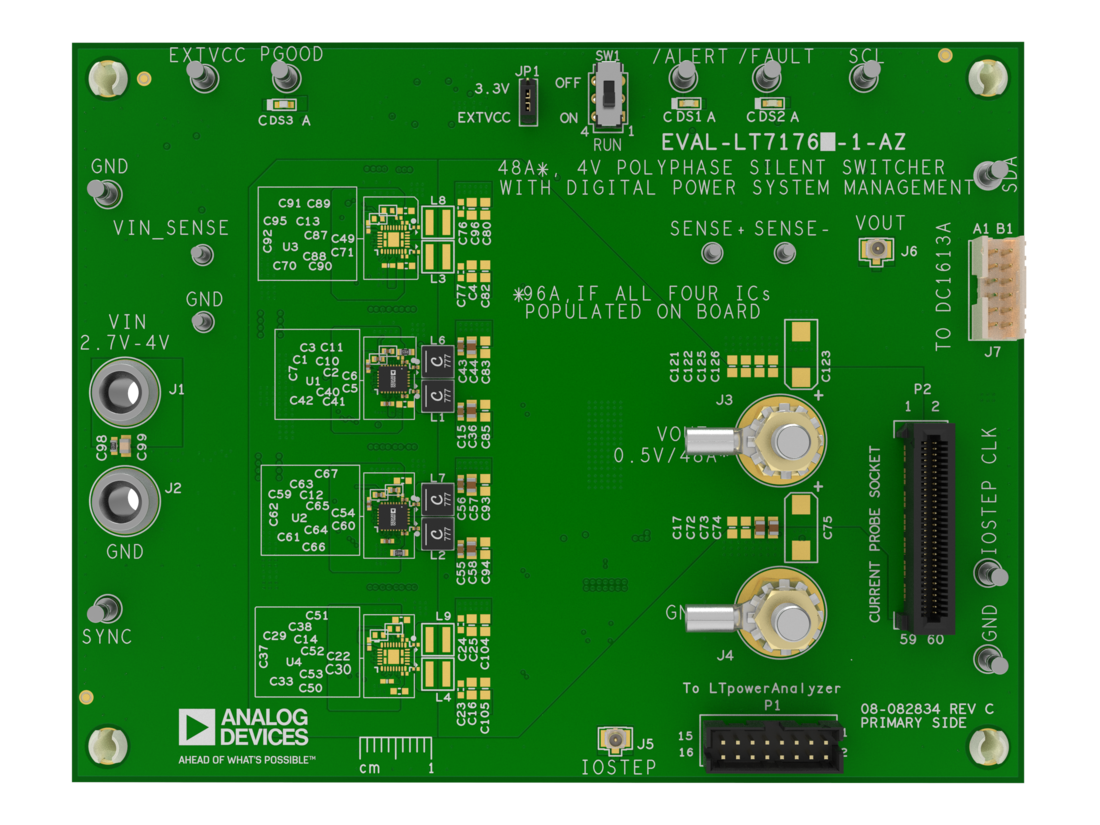

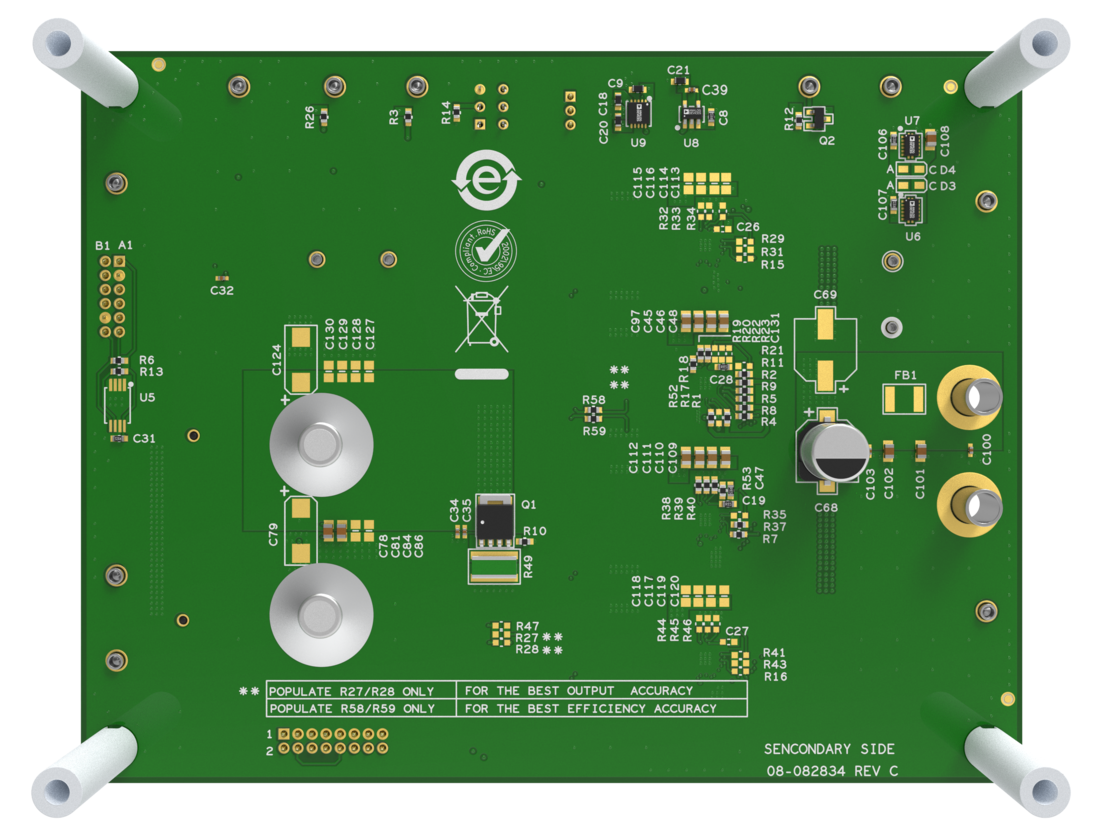

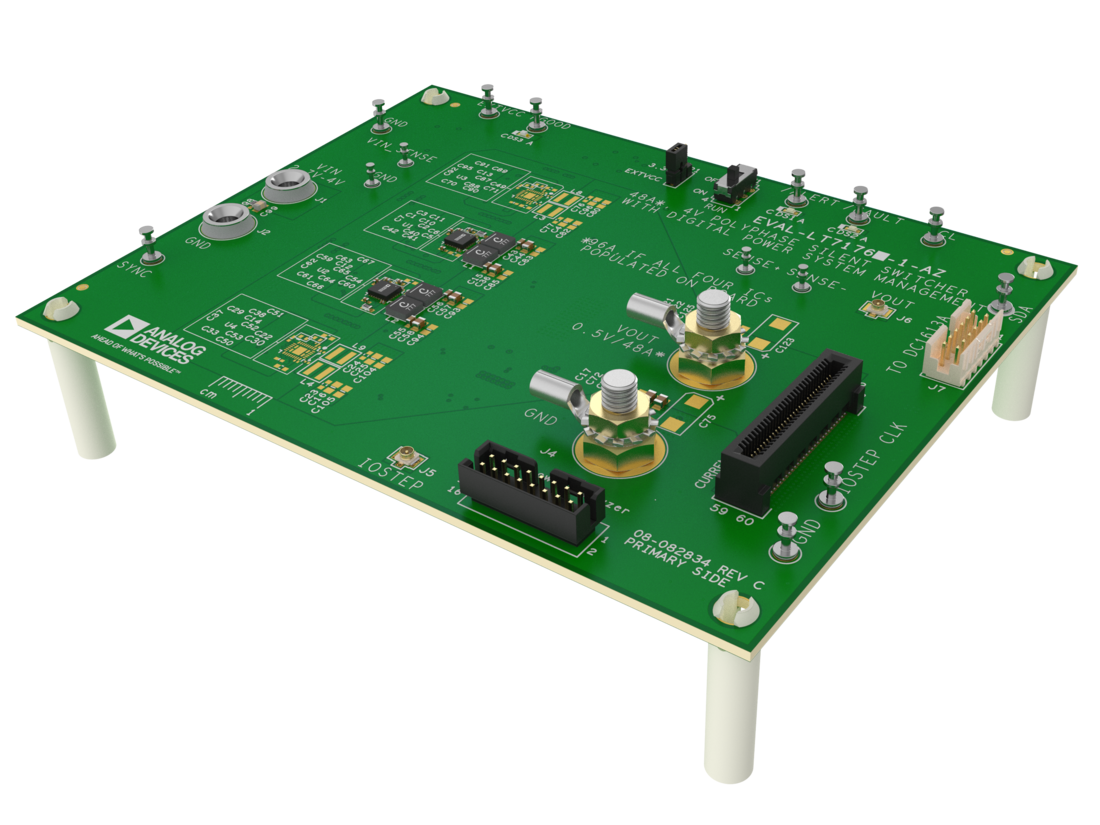

The EVAL-LT7176P-1-AZ evaluation kit is a dual-phase single-output monolithic DC/DC synchronous step-down regulator with a 2.7V to 4V input range featuring the LT7176P-1. With 3V to 12V EXTV_CC provided, the input voltage can be as low as 1.5V. The output can supply 48A continuous load current. The Silent Switcher^® regulator structure is incorporated into the LT7176P-1 to minimize EMI and reduce PCB layout sensitivity. It also integrates digital power system management functionality, allowing for programmability and telemetry with a PMBus/I²C- compliant serial interface. Refer to the LT7176P-1 data sheet for more information.

The EVAL-LT7176P-1-AZ evaluation board is designed for 0.5V output with a switching frequency set at 1.5MHz. The controlled on-time valley current-mode control with 25ns typical minimum on-time enables a high switching frequency at a low output voltage with excellent transient response in a small overall solution size.

The EVAL-LT7176P-1-AZ powers up to default settings and produces power based on the NVM configuration without the need for any serial bus communication. This allows easy evaluation of the DC/DC converter. To fully explore the power system management features of the part, download the GUI software LTpowerPlay^® onto the PC and use ADI’s I²C/SMBus/PMBus dongle DC1613A to connect to the board. LTpowerPlay allows the user to reconfigure the part on the fly, store the configuration in NVM, and view telemetry of voltage, current, temperature, and fault status. The NVM can be programmed up to three times.

GUI Download

The software can be downloaded from LTpowerPlay.

The LT7176P-1 data sheet describes the part, operation, and application information. Read the data sheet in conjunction with this EVAL-LT7176P-1-AZ demo manual.

For more details and instructions of the LTpowerPlay, see the LTpowerPlay Quick Start Procedure section in the user guide.
