LTC4222
PRODUCTIONDual Hot Swap Controller with I2C Compatible Monitoring
- Part Models
- 8
- 1ku List Price
- Starting From $8.80
Overview
- Allows Safe Insertion Into a Live Backplane
- 10-Bit ADC Monitors Currents and Voltages
- I2C/SMBus Interface
- Wide Operating Voltage Range: 2.9V to 29V
- dI/dt Controlled Soft-Start
- High Side Drive for External N-Channel MOSFETs
- No External Gate Capacitors Required
- Input Overvoltage/Undervoltage Protection
- Optional Latchoff or Auto-Retry After Faults
- Alert Host After Faults
- Inrush Current Limit with Foldback
- Available in 32-Pin (5mm × 5mm) QFN and 36-Pin SSOP Packages
The LTC4222 Hot Swap™ controller allows two power paths to be safely inserted and removed from a live backplane. Using external N-channel pass transistors, board supply voltages and inrush currents are ramped up at an adjustable rate. An I2C interface and on-board ADC allows for monitoring of current, voltage and fault status for each channel.
The device features adjustable, analog, foldback current limit circuits and a Soft-Start circuit that sets the dI/dt of the inrush currents. An I2C interface may configure the part to latch off or automatically restart after the LTC4222 detects a fault on either channel.
The controller has additional features to interrupt the host when a fault has occurred, notify when output power is good, detect insertion of a load card and power-up either automatically upon insertion or wait for an I2C command to turn on.
Applications
- Live Board Insertion
- Electronic Circuit Breakers
- Computers, Servers
- Platform Management
Documentation
Data Sheet 1
User Guide 1
Technical Articles 1
Product Selector Card 2
ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.
| Part Model | Pin/Package Drawing | Documentation | CAD Symbols, Footprints, and 3D Models |
|---|---|---|---|
| LTC4222CG#PBF | 36-Lead SSOP | ||
| LTC4222CG#TRPBF | 36-Lead SSOP | ||
| LTC4222CUH#PBF | 32-Lead QFN (5mm x 5mm x 0.75mm w/ EP) | ||
| LTC4222CUH#TRPBF | 32-Lead QFN (5mm x 5mm x 0.75mm w/ EP) | ||
| LTC4222IG#PBF | 36-Lead SSOP | ||
| LTC4222IG#TRPBF | 36-Lead SSOP | ||
| LTC4222IUH#PBF | 32-Lead QFN (5mm x 5mm x 0.75mm w/ EP) | ||
| LTC4222IUH#TRPBF | 32-Lead QFN (5mm x 5mm x 0.75mm w/ EP) |
| Part Models | Product Lifecycle | PCN |
|---|---|---|
|
Nov 18, 2019 - 19_0266 Laser Top Mark for SSOP36/44/48 Packages assembled in ADPG and UTAC |
||
| LTC4222CG#PBF | PRODUCTION | |
| LTC4222CG#TRPBF | PRODUCTION | |
| LTC4222IG#PBF | PRODUCTION | |
| LTC4222IG#TRPBF | PRODUCTION | |
|
Jan 20, 2022 - 21_0269 Addition of Alternate Assembly Site ASE Taiwan for Select LFCSP Products |
||
| LTC4222CUH#PBF | PRODUCTION | |
| LTC4222CUH#TRPBF | PRODUCTION | |
| LTC4222IUH#PBF | PRODUCTION | |
| LTC4222IUH#TRPBF | PRODUCTION | |
This is the most up-to-date revision of the Data Sheet.
Software Resources
Can't find the software or driver you need?
Request a Driver/SoftwareHardware Ecosystem
Tools & Simulations
LTspice
Models for the following parts are available in LTspice:
- LTC4222
LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.

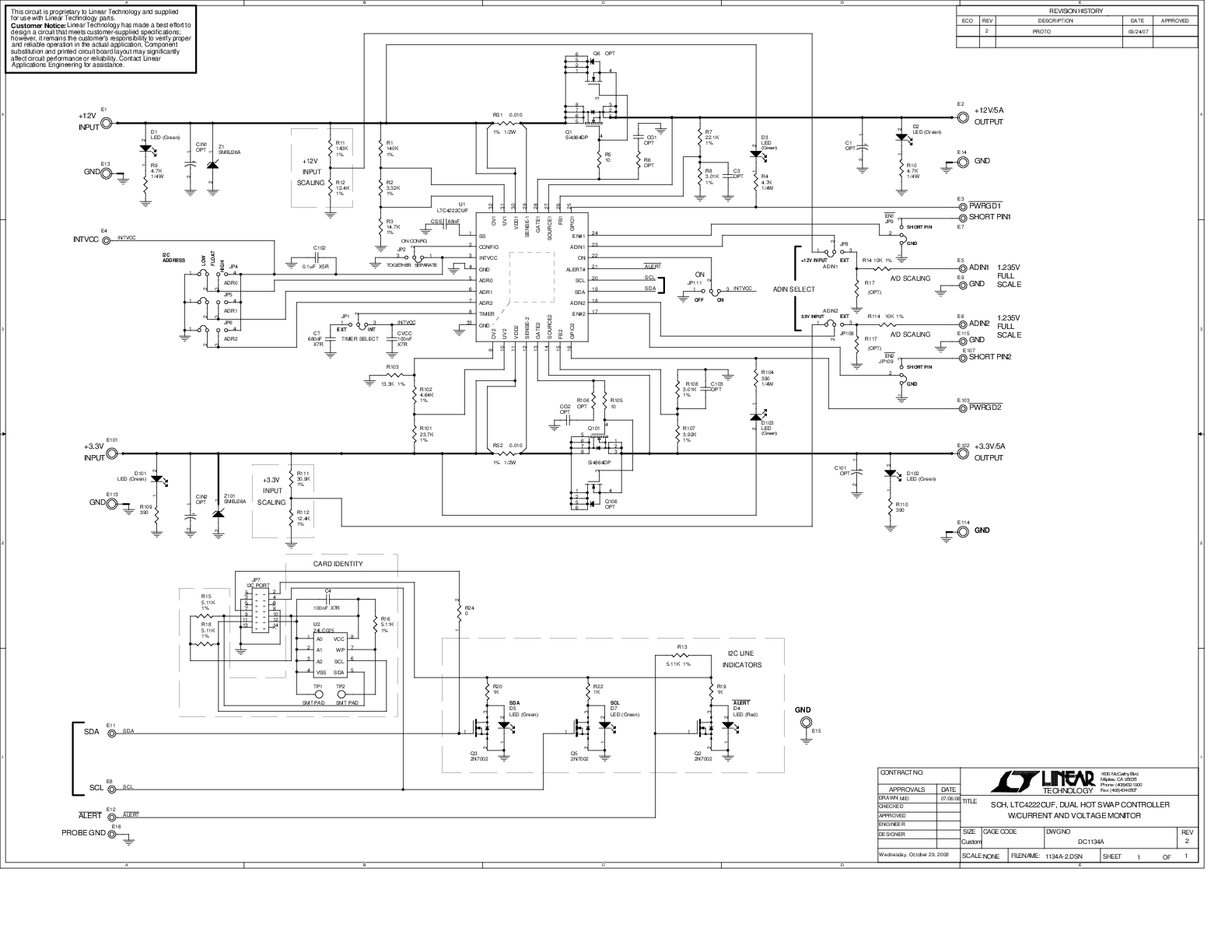

Evaluation Kits
Reference Designs
