概述

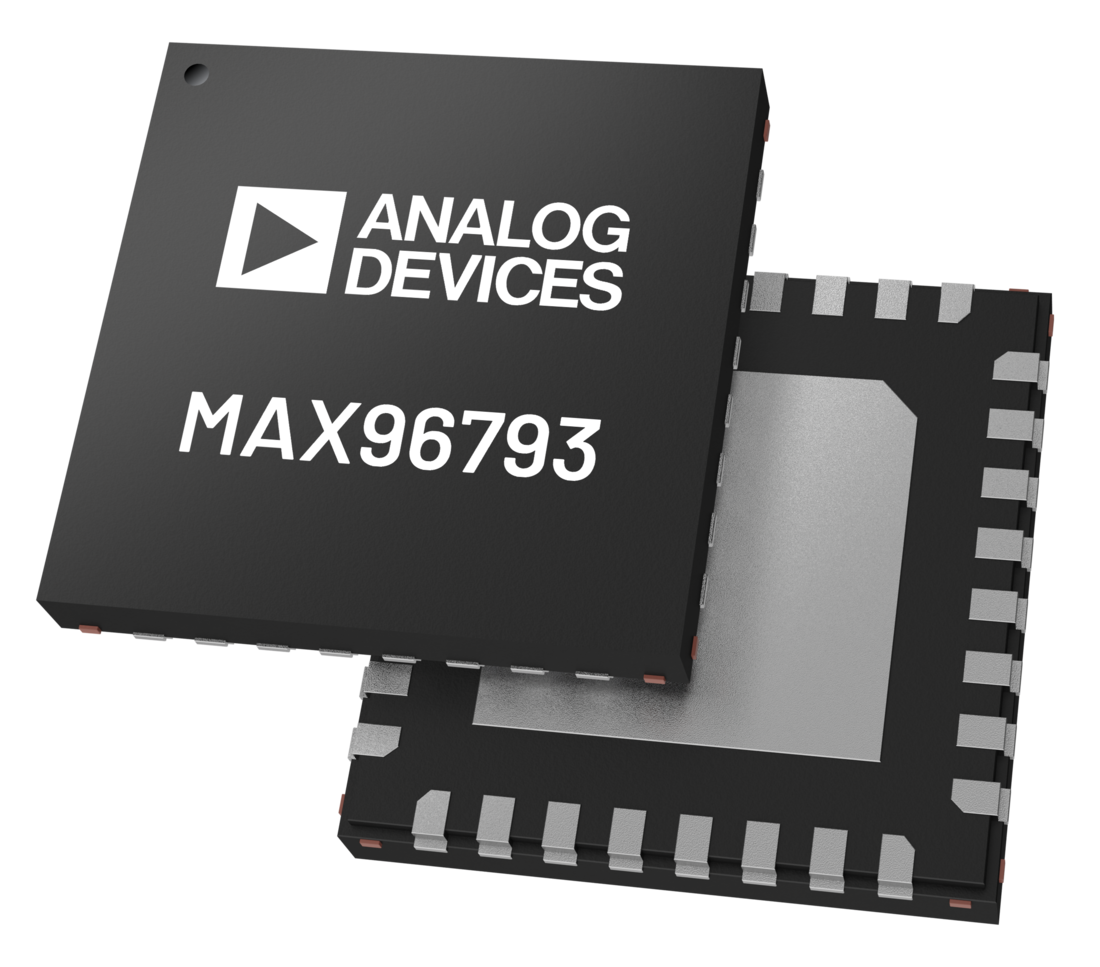

MAX96793
MAX96793 Chip Illustration
添加至 myAnalog

将产品添加到myAnalog 的现有项目或新项目中（接收通知）。

创建新项目
提问

参考资料

数据手册 1

用户手册 3

应用笔记 1

了解更多
添加至 myAnalog

Add media to the Resources section of myAnalog, to an existing project or to a new project.

创建新项目

软件资源

器件驱动器 1

硬件生态系统

部分模型 产品周期 描述
开关稳压器和控制器 2
MAX20019
量产 3.2MHz、500mA、双通道、降压型转换器，适合汽车摄像机应用
MAX16922
量产 2.2MHz、双通道、降压型DC-DC转换器，带有两路LDO和/RESET功能
Modal heading
添加至 myAnalog

将产品添加到myAnalog 的现有项目或新项目中（接收通知）。

创建新项目

工具及仿真模型

软件开发 2

IBIS 模型 1

评估套件

eval board
schematic 1
schematic 2
schematic 3
schematic 4
MAX96717/F/R and MAX96793 EVKit

MAX96717、MAX96717F和MAX96717R评估套件

立即购买 更多内容

特性和优点

  • 串行器能够将GMSL数据发送到解串器，将其转换为MIPI CSI-2
  • Windows 10或更高版本兼容软件支持
  • USB控制接口（随附电缆）
  • 功能强大、易于使用的GUI，支持全方位器件特性评估
  • 评估板由USB、12V壁式适配器或外部电源供电
  • 经过验证的PCB布局
  • 装配完成且经过测试

产品详情

MAX96717 DPHY评估套件（EV套件）设计可靠，可使用标准FAKRA同轴(Coax)或HMTD电缆评估具有扩频和全双工控制通道的高带宽千兆多媒体串行链路(GMSL)串行器MAX96717。该评估套件还包括Windows® 7和Windows® 10软件，提供了简单的图形用户界面(GUI)来测试器件的特性。该评估套件已安装MAX96717、MAX96717F或MAX96717R IC。

若要利用标准FAKRA同轴电缆或HMTD电缆进行完整的GMSL评估，请订购MAX96717同轴电缆评估套件和配套的解串器板（数据手册中提到的MAX96716同轴电缆评估套件）。

eval board
schematic 5
schematic 6
schematic 7
schematic 8
AD-GMSL793MIPI-EVK

GMSL3/GMSL2 Serializer Board for MIPI CSI-2 Cameras

立即购买 更多内容

特性和优点

  • MAX96793-based MIPI CSI-2 to GMSL3/GMSL2 serializer
  • 12Gbps GMSL3 forward link, backward compatible with 6Gbps / 3Gbps GMSL2
  • Single MIPI CSI-2 input with support for up to 4 D-PHY lanes at 2.5Gbps per lane
  • Single GMSL output over 50Ω coax
  • 187.5Mbps bidirectional control channel with I²C and GPIO support
  • Compact camera-side EVK form factor based on the AD-GMSL717MIPI-EVK concept

产品详情

The AD-GMSL793MIPI-EVK is a compact evaluation board that bridges a MIPI CSI-2 camera interface to a single GMSL3 or GMSL2 serial link using the MAX96793 serializer. It is the next-generation counterpart to the AD-GMSL717MIPI-EVK concept, extending the serializer side from GMSL2 to GMSL3 at up to 12Gbps forward-link rate, while retaining backward compatibility with GMSL2 at 6Gbps or 3Gbps for broader ecosystem support.

The board is intended for rapid evaluation of MIPI camera modules in systems that use GMSL transport to connect remote cameras to centralized processing platforms. Like the AD-GMSL717MIPI-EVK, the board is designed around a compact mechanical format for easy integration into robotics, machine vision, automotive prototyping, and embedded imaging systems.

When paired with a compatible deserializer platform such as the AD-GMSL792MIPI-EVK board, the AD-GMSL793MIPI-EVK can be used as the serializer-side endpoint in a complete MIPI-to-GMSL3/GMSL2-to-MIPI evaluation chain.

APPLICATIONS

  • Advanced driver assistance systems (ADAS) camera prototyping
  • Embedded vision and robotics
  • Industrial automation and machine vision
  • High-resolution remote cameras and distributed sensing nodes
  • Development of next-generation GMSL3 camera links with fallback to GMSL2
MAX96717/F/R and MAX96793 EVKit
MAX96717、MAX96717F和MAX96717R评估套件
MAX96717EVKIT Board Photo Angle View MAX96717EVKIT Board Photo Top View MAX96717EVKIT Board Photo Bottom View MAX96717 DPHY EV Kit Block Diagram
AD-GMSL793MIPI-EVK
GMSL3/GMSL2 Serializer Board for MIPI CSI-2 Cameras

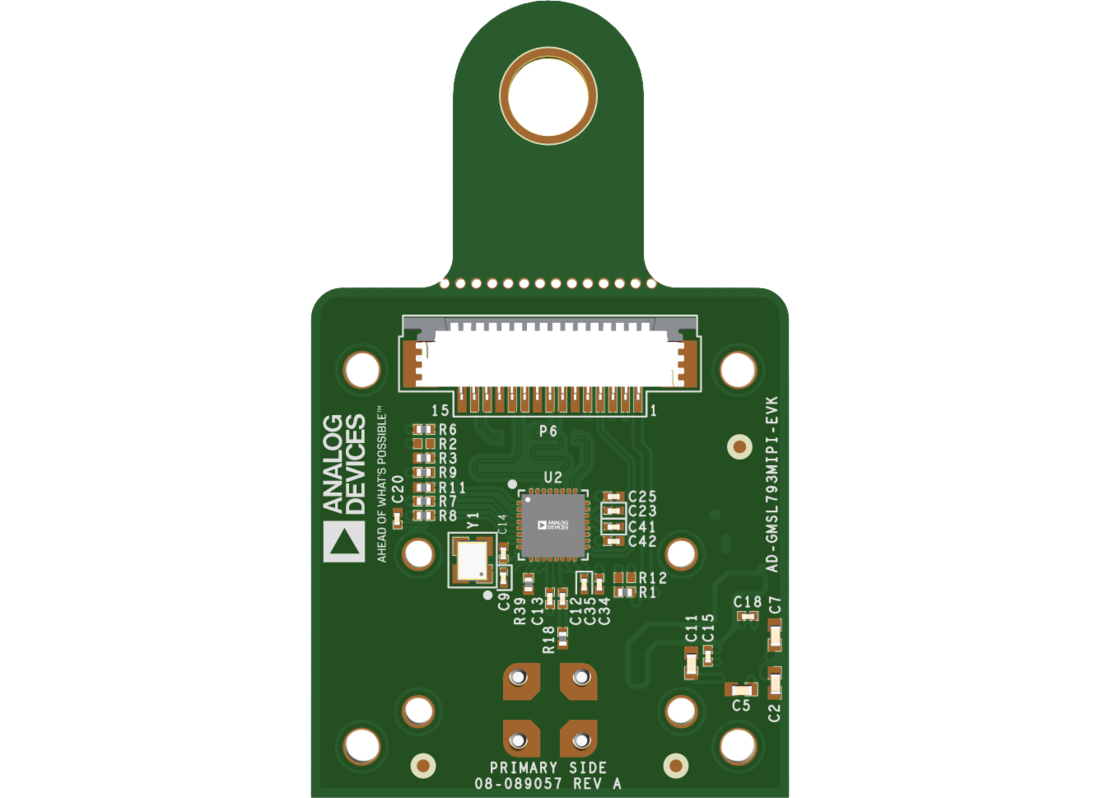

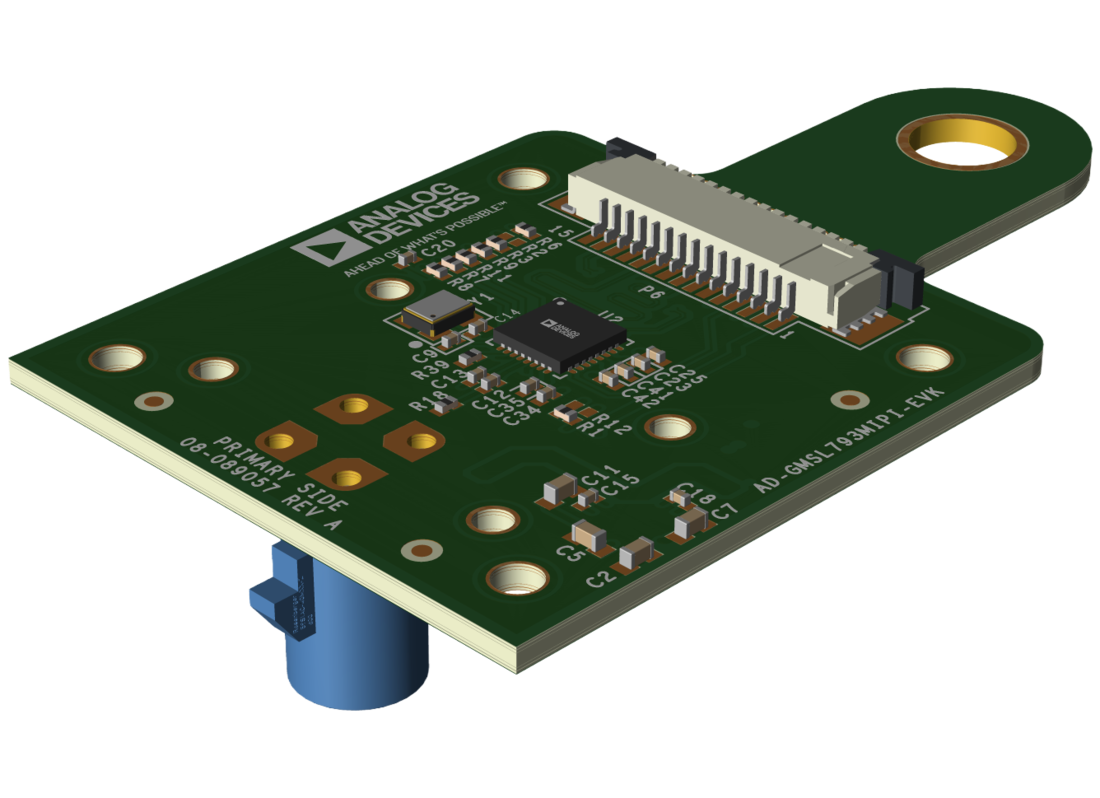

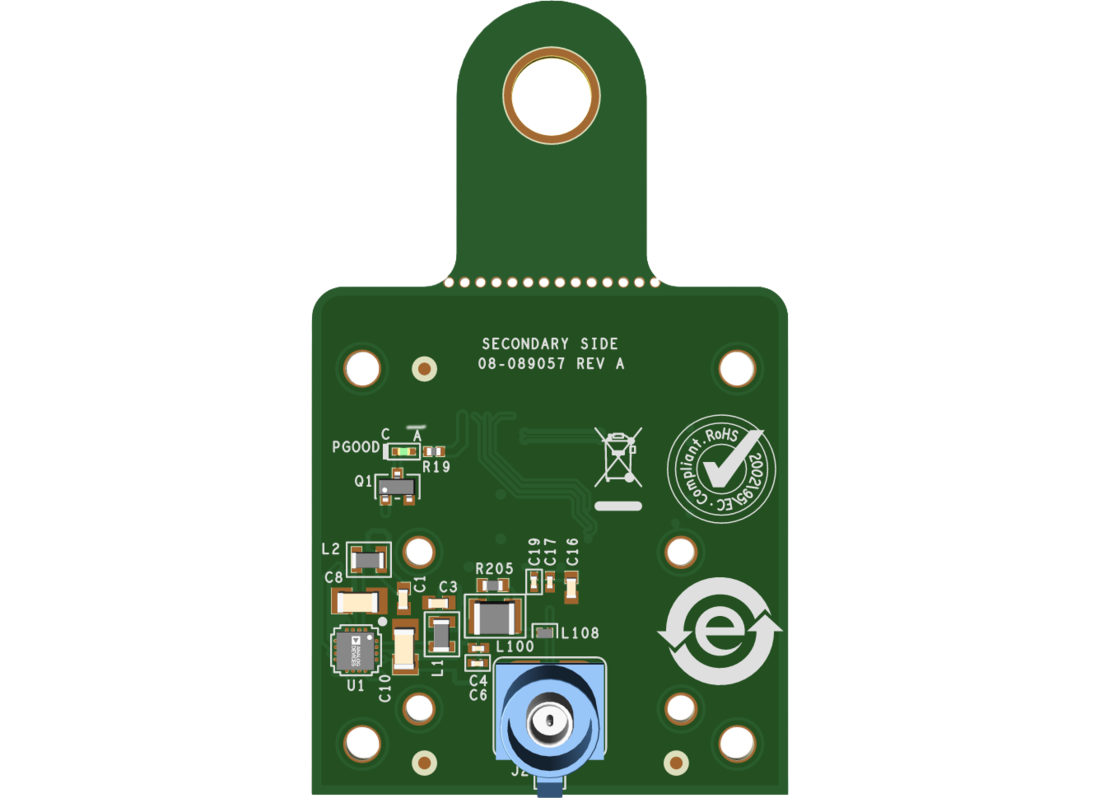

AD-GMSL793MIPI-EVK Evaluation Board Angle View AD-GMSL793MIPI-EVK Evaluation Board Top View AD-GMSL793MIPI-EVK Evaluation Board Bottom View AD-GMSL793MIPI-EVK Block Diagram
