MAX26406

量产

36V, 4A/5A/6A, Fully-Integrated Synchronous Silent Switcher Buck

数据手册 (Rev. 0) 产品选型表
产品模型
1
产品技术资料帮助

ADI公司所提供的资料均视为准确、可靠。但本公司不为用户在应用过程中侵犯任何专利权或第三方权利承担任何责任。技术指标的修改不再另行通知。本公司既没有含蓄的允许，也不允许借用ADI公司的专利或专利权的名义。本文出现的商标和注册商标所有权分别属于相应的公司。
Viewing:

产品详情

  • Silent Switcher Converter
    • Enables Compact, Efficient, Low-EMI Solution
    • Spread-Spectrum Frequency Modulation
    • Symmetrical Package Offers Superior EMI Performance
  • Multiple Functions for Small Size
    • Operating VIN Range of 3V to 36V
    • 10μA Quiescent Current in Skip Mode
    • Synchronous DC-DC Converter with IntegratedFETs
    • 400kHz and 2.1MHz Fixed-Frequency Options
    • Fixed 2.5ms Internal Soft-Start
    • Programmable 0.8V to 10V Output, or Fixed-Output Voltages of 3.3V and 5.0V
    • Other Fixed-Output Options Available between2.9V to 6V in 100mV Steps
    • 3.5mm x 3.75mm, 17-Pin FC2QFN
  • Dual-Phase Capability
    • Can Be Used in Dual-Phase Configuration forHigh-Power Design
    • Dynamic Current Sharing through Shared VEA Pin
    • Low-IQ Operation Capability in Dual Phase
  • High Precision
    • ±1% Output-Voltage Accuracy in FPWM Mode at No Load
    • Precise Output Voltage Monitoring with PGOOD
  • Robust for the Environment
    • Forced-PWM and Skip-Mode Operation
    • 99% Duty-Cycle Operation with Low Dropout
    • Overtemperature and Short-Circuit Protection
    • -40°C to +125°C Operating Temperature Range
MAX26406
36V, 4A/5A/6A, Fully-Integrated Synchronous Silent Switcher Buck

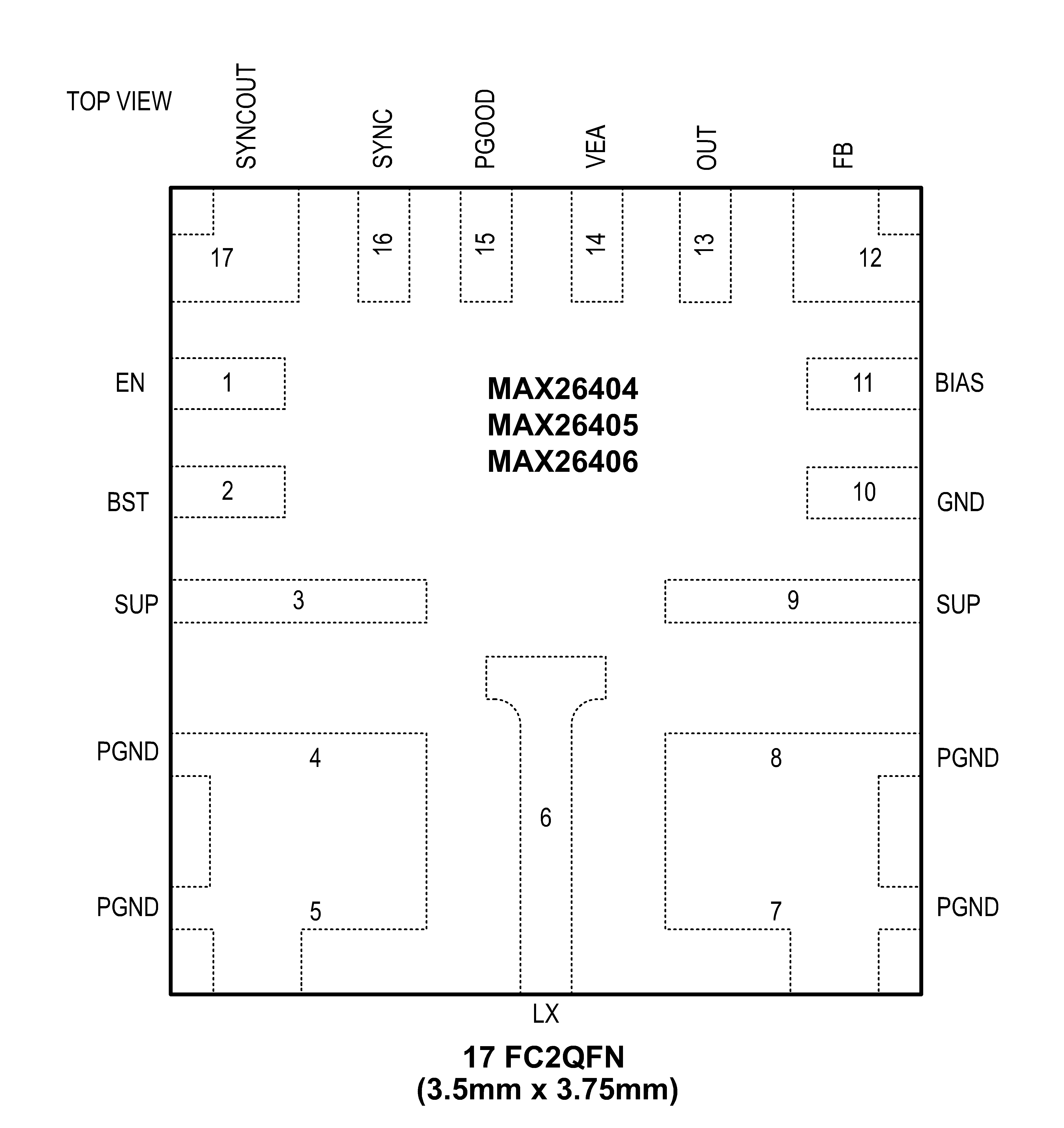

MAX26404/MAX26405/MAX26406 Simplified Block Diagram MAX26404/MAX26405/MAX26406 Pin Configuration
添加至 myAnalog

将产品添加到myAnalog 的现有项目或新项目中（接收通知）。

创建新项目
提问

参考资料

数据手册 1

用户手册 1

了解更多
添加至 myAnalog

将产品添加到myAnalog 的现有项目或新项目中（接收通知）。

创建新项目

评估套件

eval board
schematic 1
schematic 2
schematic 3
MAX26406EVKIT

Evaluates MAX26404/MAX26405/MAX26406

立即购买 更多内容

特性和优点

  • 3V to 36V Input Supply Range
  • 5V or 3.3V Fixed Output Voltage, or Adjustable Between 0.8V and 10V
  • Delivers up to 6A Output Current (up to 5A for MAX26405, up to 4A for MAX26404)
  • Frequency Synchronization Input
  • 99% Duty-Cycle Operation with Low Dropout
  • Spread Spectrum Frequency Modulation
  • Voltage-Monitoring PGOOD Output
  • Proven PCB Layout
  • Fully Assembled and Tested

产品详情

The MAX26406 evaluation kit (EV kit) provides a proven design to evaluate the MAX26406, 2.1MHz synchronous Silent Switcher® buck converter in a 17-pin, side-wettable FC2QFN package. The various test points and jumpers are included for the evaluation.

The MAX26406 EV kit comes with the MAX26406AFOBY+ installed (2.1MHz, 3.3V). The MAX26406 EV kit output voltage is fixed and is easily configured with minimum component changes. Use this EV kit to evaluate all variants of the MAX26404/MAX26405/MAX26406 with minimal component changes.
MAX26406EVKIT
Evaluates MAX26404/MAX26405/MAX26406
MAX26406EVKIT Board Photo Angle View MAX26406EVKIT Board Photo Top View MAX26406EVKIT Board Photo Bottom View
