MAX20433

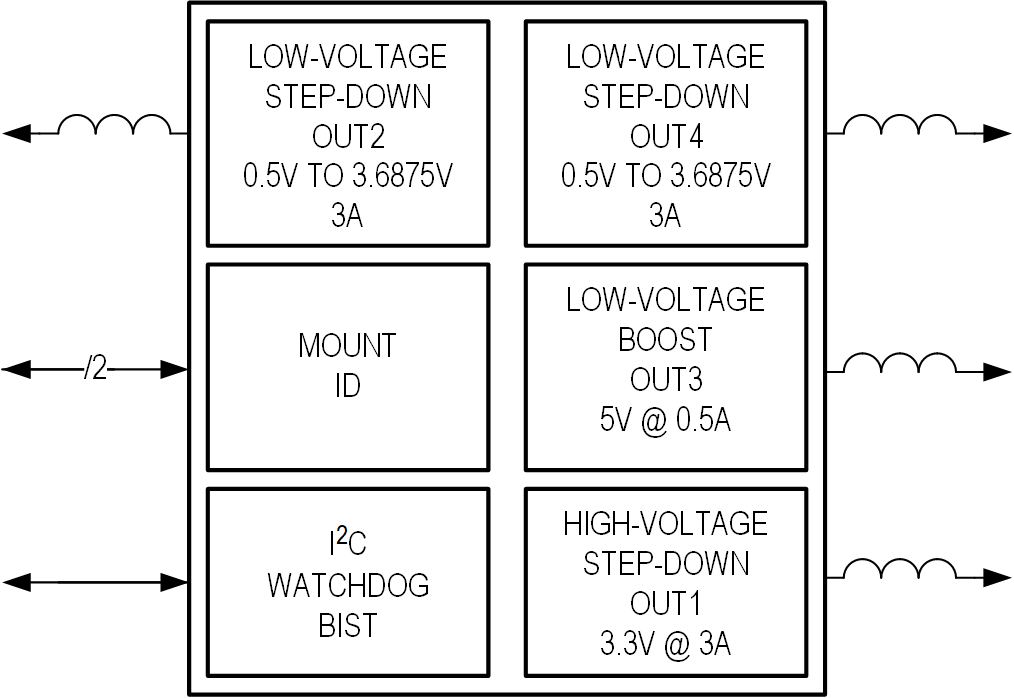

The MAX20433 is a high-efficiency, four-output DC-DC converter with a windowed watchdog. The OUT1 is a synchronous step-down converter that converts vehicle battery voltage to 3.3V at up to 3A. The OUT3 boosts the OUT1 to 5V at up to 0.5A, while the OUT2/4 lownoise, low-voltage, synchronous step-down converters operate from OUT1 and provide a 0.5V to 3.6875V output voltage range at up to 3.2A. The low-noise performance eliminates the need for external LDOs and allows the use of a ferrite bead (LC) filter instead. All outputs achieve ±1.5% output error.

The device features a 2.1MHz fixed-frequency PWM mode for all DC-DC outputs for better noise immunity and load-transient response. The 2.1MHz frequency operation allows for the use of all ceramic capacitors and minimizes the external components. The programmable spread-spectrum frequency modulation minimizes the radiated electromagnetic emissions. Integrated low-R_DSON switches improve efficiency at heavy loads and make the layout much simpler with respect to discrete solutions.

The MAX20433 features the MAXQTM power architecture, which provides precision transient performance and phase margin. This allows to obtain the maximum power, performance, and precision while minimizing system cost for any specific application.

The devices are offered with factory-preset output voltages. Other features include soft-start, overcurrent, and overtemperature protection.

Applications

• Advanced Driver-Assistance Systems (ADAS)

Complete documentation is available upon completion of a Non-Disclosure Agreement (NDA). To request an NDA, click here.
