LT8615

推荐新设计使用

42V, 3.5A Synchronous Step-down Regulator with 2.5μA Quiescent Current

产品模型
4
产品技术资料帮助

ADI公司所提供的资料均视为准确、可靠。但本公司不为用户在应用过程中侵犯任何专利权或第三方权利承担任何责任。技术指标的修改不再另行通知。本公司既没有含蓄的允许,也不允许借用ADI公司的专利或专利权的名义。本文出现的商标和注册商标所有权分别属于相应的公司。

Viewing:

产品详情

  • Wide Input Voltage Range: 3V to 42V
  • Wide Output Voltage Range: 0.787V to (VIN – 0.4V)
  • Ultralow Quiescent Current Burst Mode®
  • Operation:
    • <2.5μA IQ Regulating 12VIN to 3.3VOUT
    • Output Ripple <10mVP-P
  • Silent Switcher® Powertrain for Ultralow EMI Emissions
  • High Efficiency 2MHz Synchronous Operation:
    • Up to 93% Efficiency at 2MHz, 12VIN to 5VOUT
  • Fast Minimum Switch-On Time: 40ns
  • Very Low Dropout: 125mV at 1A
  • Adjustable and Synchronizable: 400kHz to 2.5MHz
  • Optional Spread-Spectrum Frequency Modulation
  • Fixed Frequency Peak Current-Mode Operation
  • Accurate 1V Enable Pin Threshold
  • Output Soft-Start and Tracking
  • Small 3mm × 3mm Side Wettable QFN Package
    • Clearance Between High Voltage and Low Voltage Pins
    • Excellent Solder Joint Reliability
  • AEC-Q100 Qualified for Automotive Applications
  • Temperature Grade 0: −40°C to +150°C, TA
LT8615
42V, 3.5A Synchronous Step-down Regulator with 2.5μA Quiescent Current

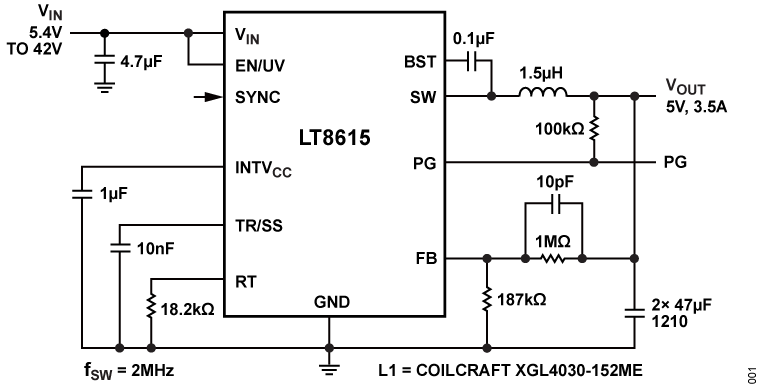

LT8615 Application Circuit LT8615 Typical Application Efficiency LT8615 Pin Configuration LT8615 Functional Block Diagram
添加至 myAnalog

将产品添加到myAnalog 的现有项目或新项目中(接收通知)。

创建新项目
提问

参考资料

了解更多
添加至 myAnalog

将产品添加到myAnalog 的现有项目或新项目中(接收通知)。

创建新项目

评估套件

eval board
EVAL-LT8615-AZ

产品详情

The evaluation board EVAL-LT8615-AZ is a 42V, 3.5A micropower synchronous step-down regulator with Silent Switcher® powertrain featuring the LT®8615.

The evaluation board is designed for a 5V output from a 5.5V to 42V input. The wide input range allows a variety of input sources, such as automotive batteries and industrial supplies. The LT8615 is a compact, high efficiency, high speed synchronous monolithic step-down switching regulator that consumes only 2.5μA of quiescent current when the output is regulated at 5V. Top and bottom power switches, compensation components, and other necessary circuits inside the LT8615 minimize external components and simplify design.

The SYNC pin on the evaluation board is grounded by default for low ripple burst mode operation. Moving JP1 to pulse skipping/sync position can change the operation mode to pulse skipping operation. To synchronize to an external clock, move JP1 to pulse skipping/sync and apply the external clock to the SYNC turret. Once JP1 is on the spread-spectrum position, VCC is applied to the SYNC pin for low EMI spread spectrum operation. Figure 1on user guide shows the efficiency of the circuit.

The evaluation board has an EMI filter installed. Under spread-spectrum operation, the radiated and conducted EMI performances of the board (with EMI filter) are shown in Figure 2 and Figure 3 on user guide. The red lines in the figures are CISPR25 Class 5 peak limit. To use the EMI filter, the input should be tied to VEMI, not VIN. An inductor L2, which is a 0Ω jumper on the board by default now, can be added in the EMI filter to further reduce the conducted emission.

This board is suitable for a wide range of automotive, telecom, industrial, and other general-purpose applications. The LT8615 data sheet gives a complete description of the part, operation, and application information. Read the data sheet in conjunction with this user guide for the EVAL-LT8615-AZ.

EVAL-LT8615-AZ

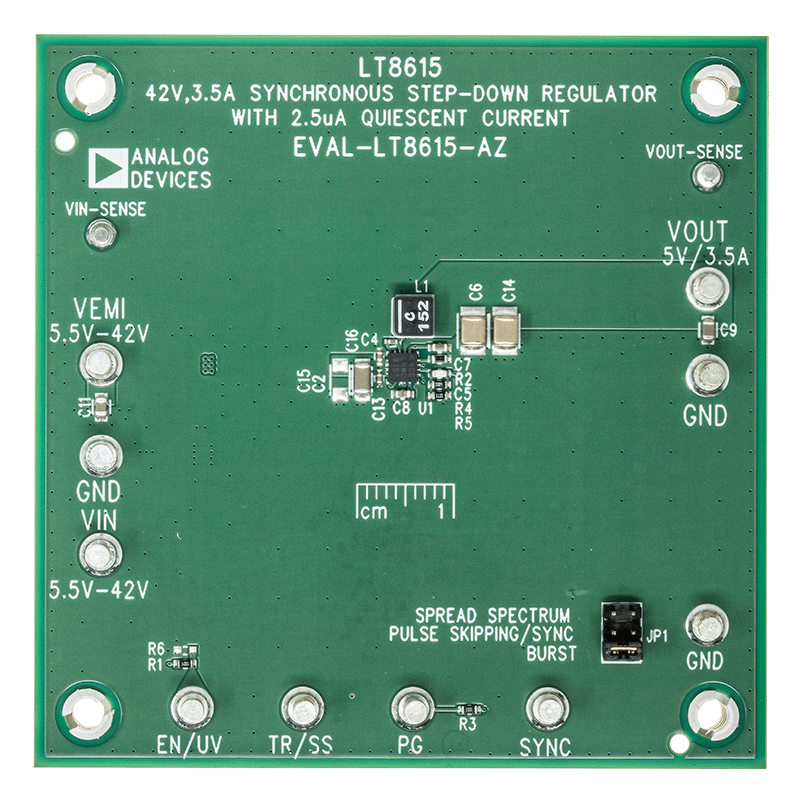

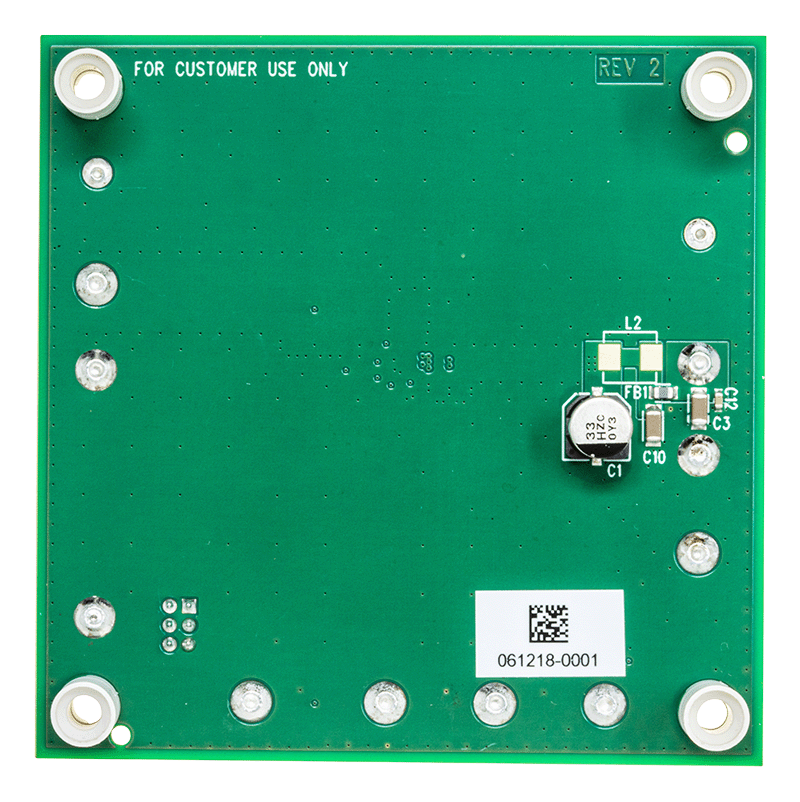

EVAL-LT8615-AZ Board Photo Angle View EVAL-LT8615-AZ Board Photo Top View EVAL-LT8615-AZ Board Photo Bottom View
