LT8210-1
100V VIN and VOUT Synchronous 4-Switch Multiphase Buck-Boost DC/DC Controller
更多
不是您想寻找的产品？
提问
在下面提交您的问题，我们将从 ADI 的知识库中给出最佳答案:
搜索
您可以在其他地方找到帮助
特性
- Built-In Multiphase Current Sharing
- 18μA Pass-Thru Mode IQ with 99.9% Efficiency
- Pass-Thru or Fixed Output CCM, DCM Operation
- Programmable Non-Switching Pass-Thru Window
- VIN Range: 2.8V to 100V (4.5V for Start-Up)
- VOUT Range: 1V to 100V
- Reverse Input Protection to -40V
- ±2% Output Voltage Accuracy (–40°C to 125°C)
- Programmable Current Limit
- 10V Quad N-Channel MOSFET Gate Drivers
- ±20% Cycle-by-Cycle Inductor Current Limit
- No Top MOSFET Refresh Noise in Buck or Boost
- Fixed/Phase-Lockable Frequency: 80kHz to 400kHz
- Spread-Spectrum Frequency Modulation for Low EMI
- Power Good Output Voltage/Overcurrent Monitor

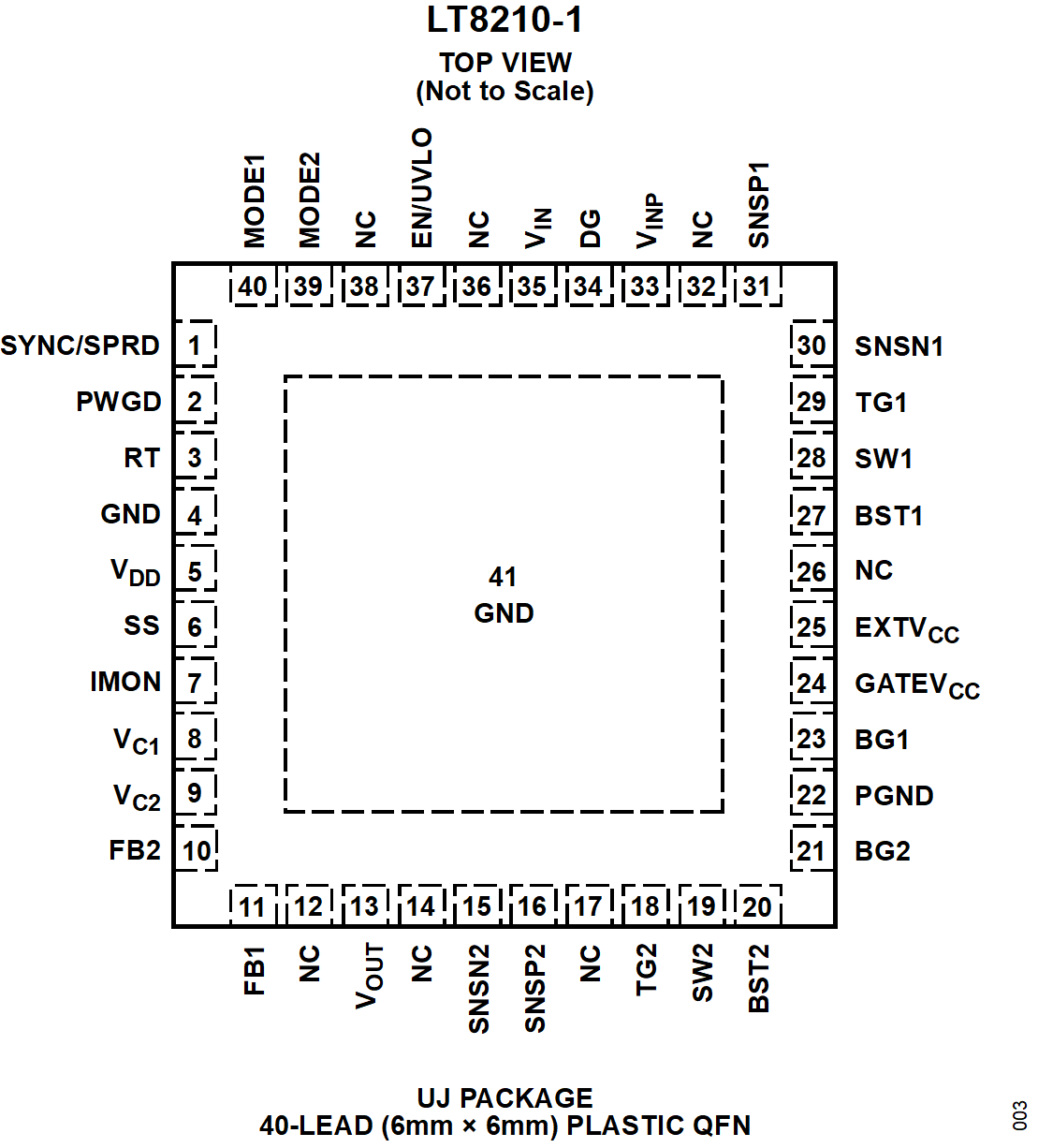

- Available in a 40-Lead (6mm x 6mm) QFN Package
.svg?rev=fd385c90e2cf4716ae9a8c8d20e6b8e3&la=zh&h=24&w=24&hash=7CDDC996281D9E966D391D97E93C6727){kind=icon}

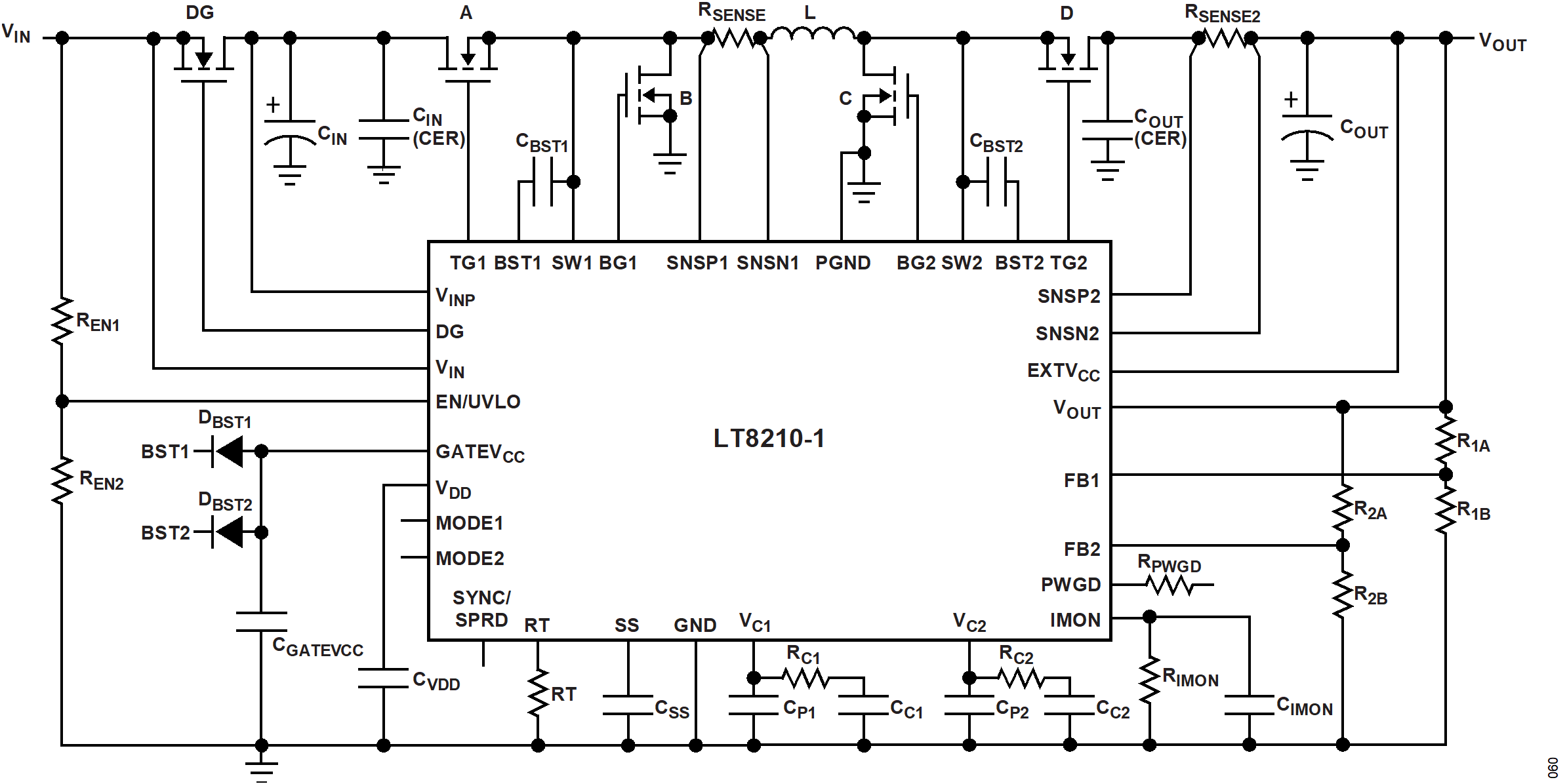

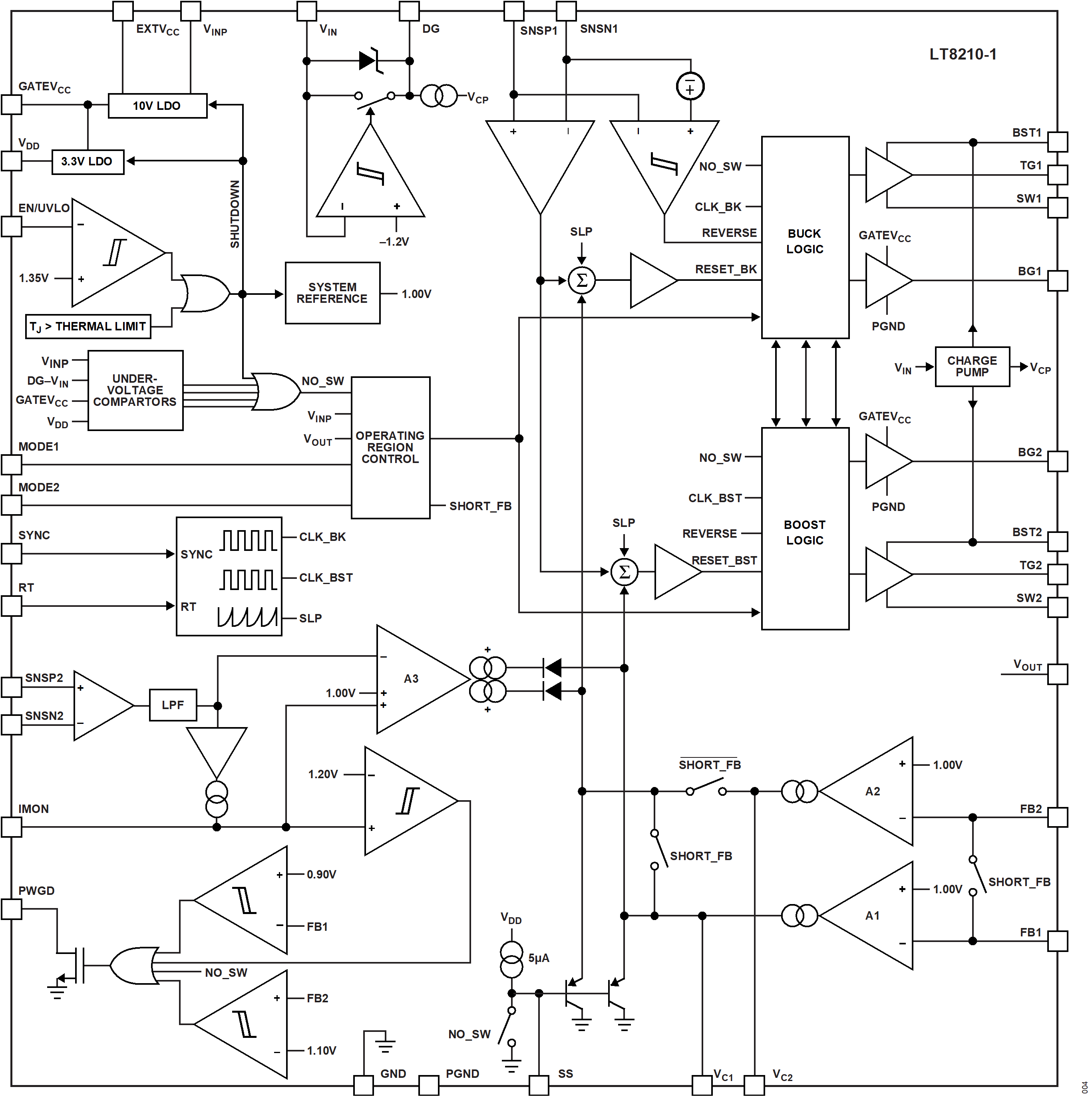

The LT®8210-1 is a 4-switch synchronous buck-boost DC/DC controller that can operate in pass-thru mode, forced continuous conduction, or pulse-skipping mode. Pass-Thru is a feature that passes the input directly to the output when the input is within a user programmable window. Pass-Thru mode eliminates switching losses and EMI while maximizing efficiency. For input voltages above or below the pass-thru window, the buck or boost regulation loops maintain the output at the set maximum or minimum values, respectively. The LT8210-1 is pin compatible with the LT8210. The IMON pin on the LT8210-1 has an ISHARE function, which allows for masterless current sharing.

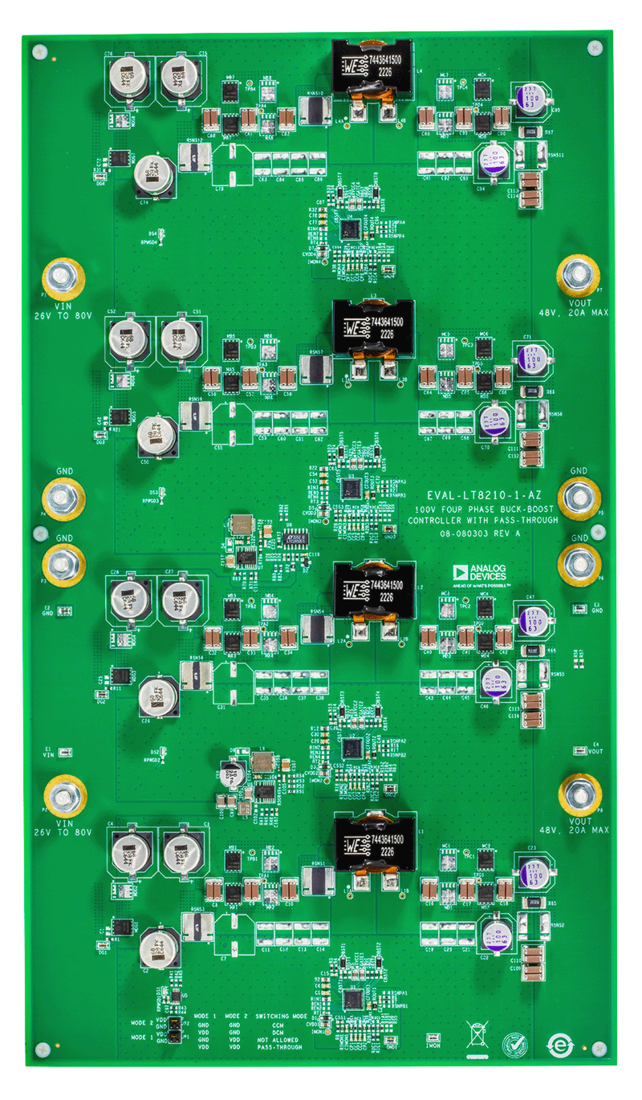

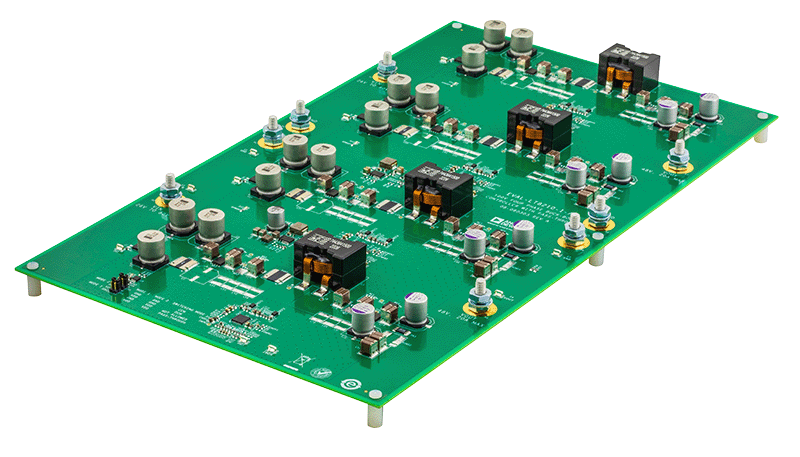

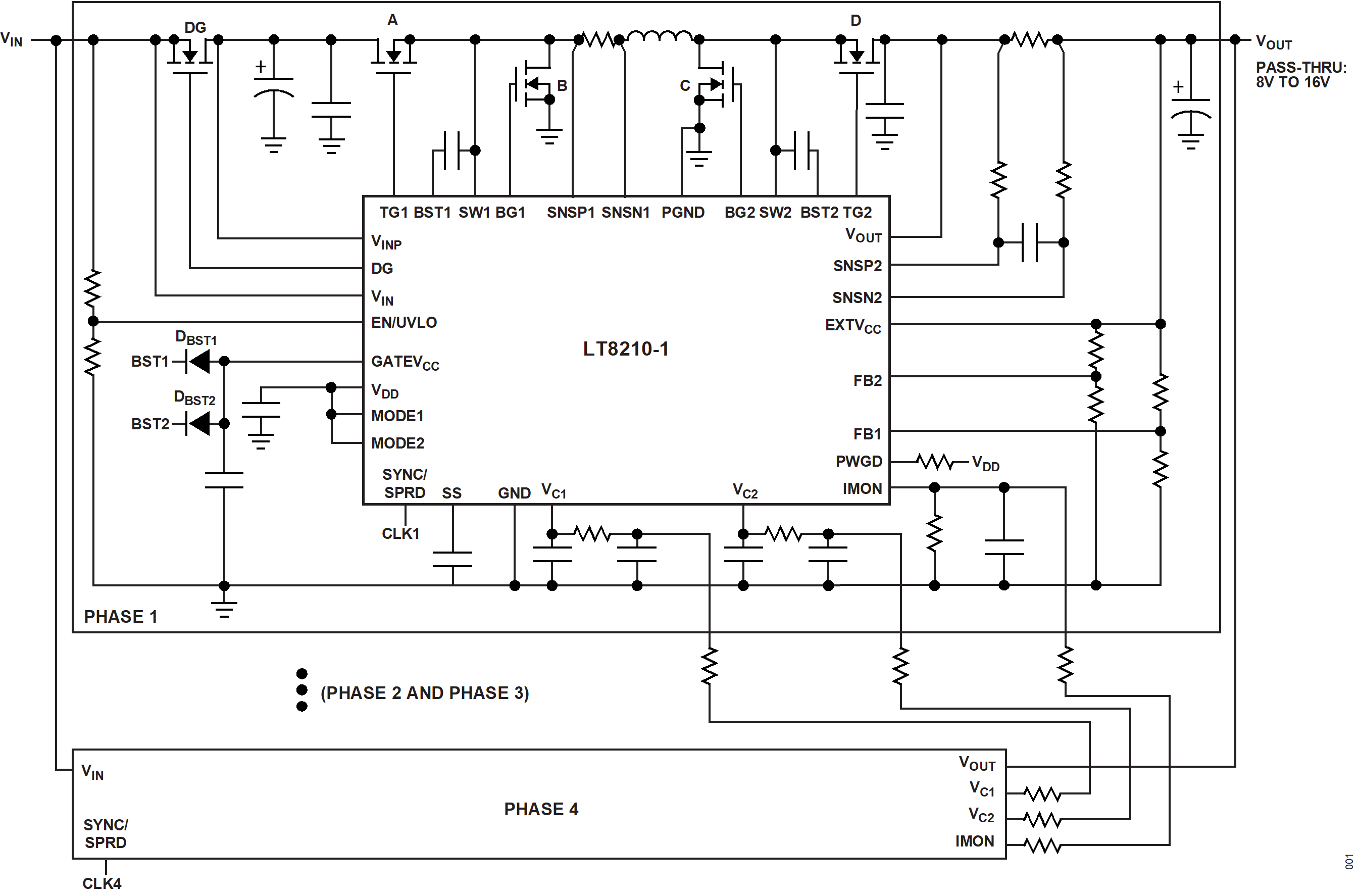

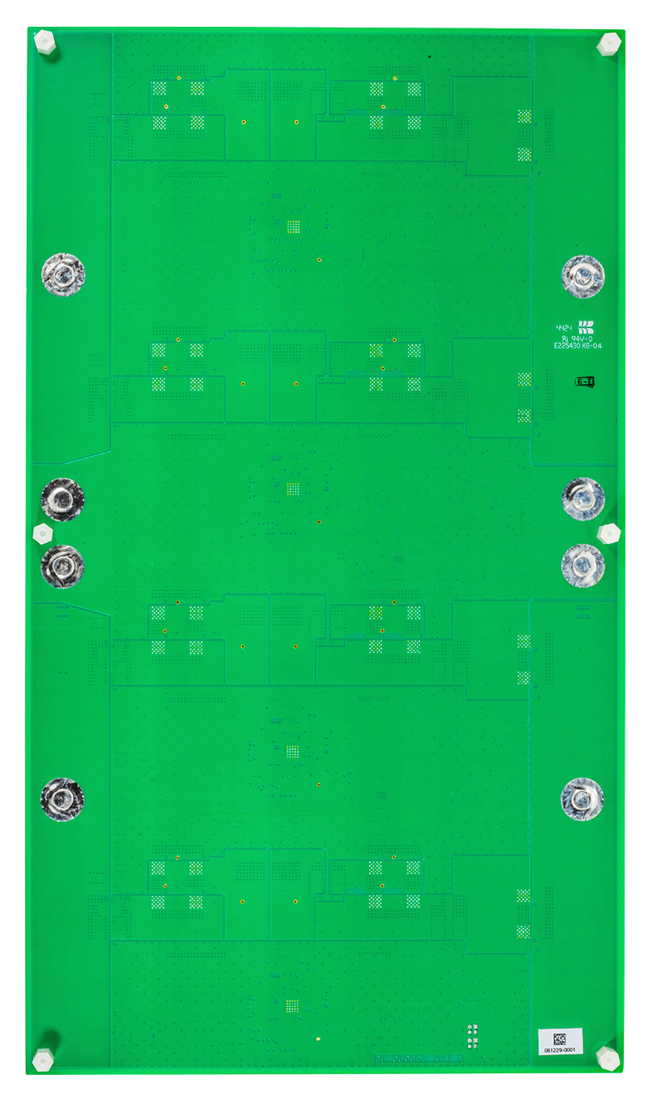

Multiple LT8210-1 can be connected in parallel for higher output current and reduced voltage ripple. A masterless closed loop current sharing loop balances the current per phase and allows phase shedding. Optional reverse input protection down to -40V can be implemented with the addition of a single N-channel MOSFET. The LT8210-1 includes a precision current sense amplifier that can accurately monitor and limit output or input average current.
APPLICATIONS
- Industrial, Telecom,
- Avionics Systems
- Automotive
- Qualification in Progress
提问
在下面提交您的问题，我们将从 ADI 的知识库中给出最佳答案:
搜索
您可以在其他地方找到帮助
{{modalTitle}}
{{modalDescription}}
{{dropdownTitle}}
- {{defaultSelectedText}} {{#each projectNames}}
- {{name}} {{/each}} {{#if newProjectText}}
-
{{newProjectText}}
{{/if}}
{{newProjectTitle}}
{{projectNameErrorText}}
产品技术资料帮助
ADI公司所提供的资料均视为准确、可靠。但本公司不为用户在应用过程中侵犯任何专利权或第三方权利承担任何责任。技术指标的修改不再另行通知。本公司既没有含蓄的允许，也不允许借用ADI公司的专利或专利权的名义。本文出现的商标和注册商标所有权分别属于相应的公司。
参考资料
ADI 始终高度重视提供符合最高质量和可靠性水平的产品。我们通过将质量和可靠性检查纳入产品和工艺设计的各个范围以及制造过程来实现这一目标。出货产品的“零缺陷”始终是我们的目标。查看我们的质量和可靠性计划和认证以了解更多信息。
| 产品型号 | 引脚/封装图-中文版 | 文档 | CAD 符号，脚注和 3D模型 |
|---|---|---|---|
| LT8210AUJ-1#PBF |
40-Lead QFN (6mm x 6mm x 0.75mm w/ EP)
|
|
|
| LT8210AUJ-1#TRPBF |
40-Lead QFN (6mm x 6mm x 0.75mm w/ EP)
|
|
- LT8210AUJ-1#PBF
- 引脚/封装图-中文版
-
40-Lead QFN (6mm x 6mm x 0.75mm w/ EP)
- 文档
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD 符号，脚注和 3D模型
-
Ultra Librarian
-
SamacSys
- LT8210AUJ-1#TRPBF
- 引脚/封装图-中文版
-
40-Lead QFN (6mm x 6mm x 0.75mm w/ EP)
- 文档
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD 符号，脚注和 3D模型
-
Ultra Librarian
-
SamacSys
