LT7176-1

预发布

24A, 4V, Single- or Dual-Phase, Silent Switcher Step-Down Regulators with Digital Power System Management

数据手册 (Rev. 0) 产品选型表
产品技术资料帮助

ADI公司所提供的资料均视为准确、可靠。但本公司不为用户在应用过程中侵犯任何专利权或第三方权利承担任何责任。技术指标的修改不再另行通知。本公司既没有含蓄的允许，也不允许借用ADI公司的专利或专利权的名义。本文出现的商标和注册商标所有权分别属于相应的公司。
Viewing:

概述

  • Silent Switcher® Architecture: Enables a Compact, Efficient, Low EMI Solution
  • PMBus/I2C Serial Interface
    • Telemetry Read Back includes VOUT, IOUT, VIN, Die Temperature, and Faults
    • Programmable Voltage, Current Limit, Sequencing, Soft Start and Stop, Undervoltage and Overvoltage, Phase, Frequency (up to 3MHz), and Loop Compensation
    • Integrated Three Times Programmable NVM
  • Key Parameters Selectable by Resistor
  • VOUT Set Point Range: 0.3V to 3.4V
  • VOUT Accuracy: ±0.25%, 0.6V ≤ VOUT ≤ 1.375V
  • PolyPhase Load Sharing up to Four Devices
  • Optional Pulse-Skipping Mode Enables Low Quiescent Current
  • Differential Remote VOUT Sense
  • Fast Transient Response
  • Wide VIN Supply Range: Down to 2.7V or 1.5V with EXTVCC
  • Programmable and Synchronizable: 1MHz to 3MHz
  • 30-lead (3.5mm × 4mm) LQFN

The LT7176/LT7176-1 are monolithic PolyPhase DC/DC synchronous step-down regulators that deliver up to 24A of continuous output current. The LT7176-1 option has two switching phases that are connected to two inductors to drive a single-regulated output supply. The quick, clean, low-overshoot switching edges deliver high efficiency while minimizing electromagnetic interference (EMI) emissions. The I2C-based PMBus 1.3- compliant serial interface enables control of device functions while providing telemetry information for system monitoring. The LT7176/LT7176-1 are supported by the LTpowerPlay® graphical user interface (GUI) tool.

The controlled on-time valley current-mode control with 25ns typical minimum on-time enables a high switching frequency (fSW) at a low output voltage (VOUT) with excellent transient response in a small overall solution size.

VOUT, fSW, and phase are selectable using external configuration resistors. Settings can also be set via the PMBus interface or stored in the on-chip, three times programmable nonvolatile memory (NVM).

APPLICATIONS

  • Communications, Storage, and Industrial Systems
  • Data Center and Solid-State Drives

    •
    LT7176-1
    24A, 4V, Single- or Dual-Phase, Silent Switcher Step-Down Regulators with Digital Power System Management

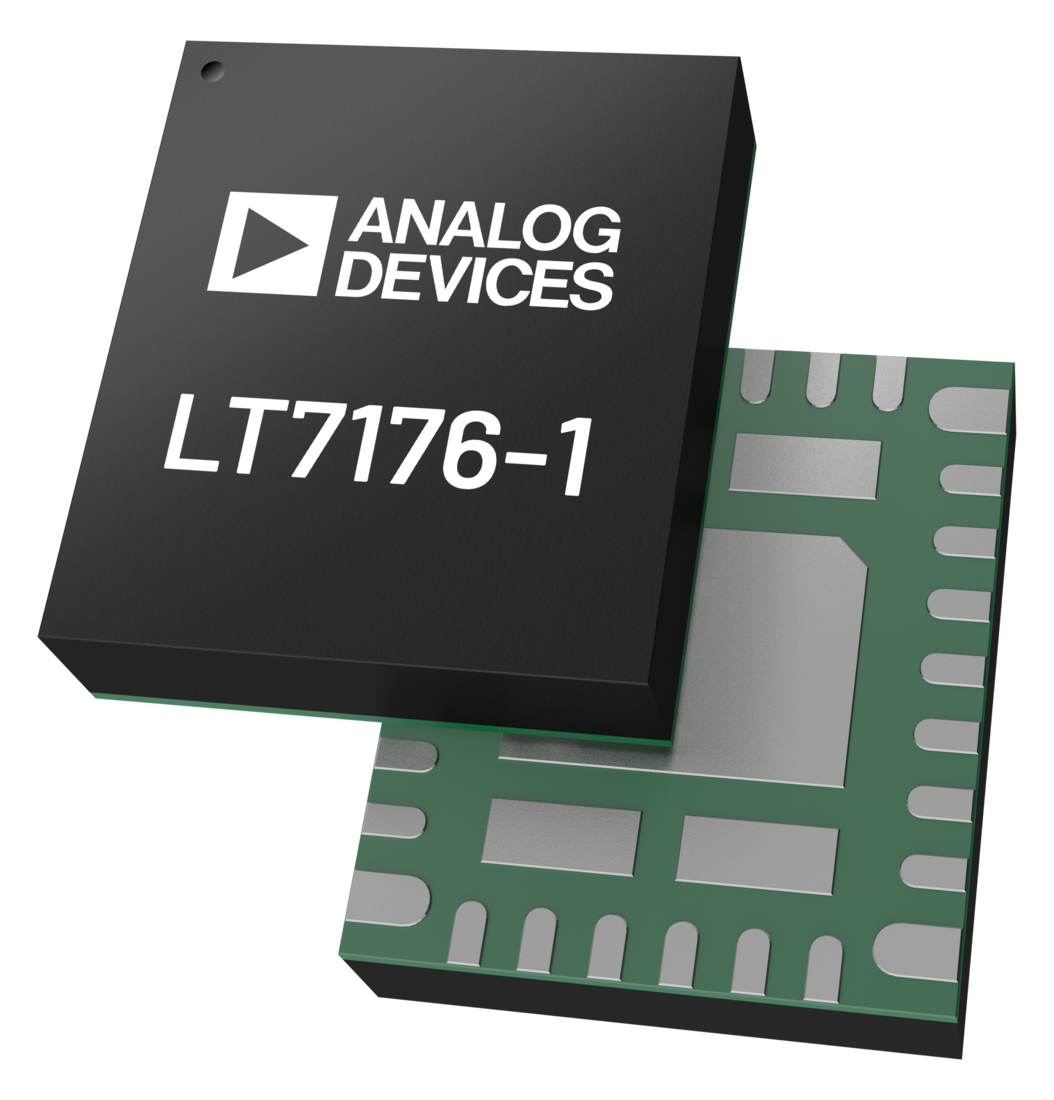

    LT7176-LT7176-1 Typical Application LT7176-LT7176-1 View Efficiency LT7176-LT7176-1 Pin Configuration LT7176-1 Chip Illustration
    添加至 myAnalog

    将产品添加到myAnalog 的现有项目或新项目中（接收通知）。

    创建新项目
    提问

    参考资料

    数据手册 2

    用户手册 1

    了解更多
    添加至 myAnalog

    Add media to the Resources section of myAnalog, to an existing project or to a new project.

    创建新项目

    软件资源

    找不到您所需的软件或驱动?

    申请驱动/软件

    工具及仿真模型

    LTpowerCAD

    LTpowerCAD中提供以下器件的设计工具：

    • LT7176
    • LT7176-1
    LTspice

    LTspice®是一款强大高效的免费仿真软件、原理图采集和波形观测器，为改善模拟电路的仿真提供增强功能和模型。

    评估套件

    eval board
    schematic 1
    schematic 2
    schematic 3
    EVAL-LT7176-1-AZ

    4V, PolyPhase Silent Switcher Step-Down Regulator with Digital Power System Management 2xLT7176-1, 48A

    立即购买 更多内容

    产品详情

    The evaluation kit EVAL-LT7176-1-AZ is a dual-phase single-output monolithic DC/DC synchronous step-down regulator with a 2.7V to 4V input range featuring LT®7176-1. With 3V to 12V EXTVCC provided, the input voltage can be as low as 1.5V. The output can supply 48A continuous load current. The Silent Switcher® regulator structure is incorporated into the LT7176-1 to minimize EMI and reduce PCB layout sensitivity. It also integrates digital power system management functionality, allowing for programmability and telemetry with a PMBus/I2C compliant serial interface. Refer to the LT7176-1 data sheet for more detailed information.

    The EVAL-LT7176-1-AZ evaluation board is designed for 0.5V output with a switching frequency set at 1.5MHz. The controlled on-time valley current-mode control with 25ns typical minimum on-time enables a high switching frequency at a low output voltage with excellent transient response in a small overall solution size.

    The EVAL-LT7176-1-AZ powers up to default settings and produces power based on the NVM configuration without the need for any serial bus communication. This allows easy evaluation of the DC/DC converter. To fully explore the power system management features of the part, download the GUI software LTpowerPlay® onto the PC and use ADI’s I2C/SMBus/PMBus dongle DC1613A to connect to the board. LTpowerPlay allows the user to reconfigure the part on the fly, and store the configuration in NVM, view telemetry of voltage, current, temperature, and fault status. The NVM can be programmed up to three times.

    GUI Download

    The software can be downloaded from LTpowerPlay.

    The LT7176-1 data sheet gives a complete description of the part, operation, and application information. The data sheet must be read in conjunction with this demo manual for EVAL-LT7176-1-AZ.

    For more details and instructions of the LTpowerPlay, refer to LTpowerPlay GUI for the LT7176-1 Quick Start Guide.
    EVAL-LT7176-1-AZ
    4V, PolyPhase Silent Switcher Step-Down Regulator with Digital Power System Management 2xLT7176-1, 48A

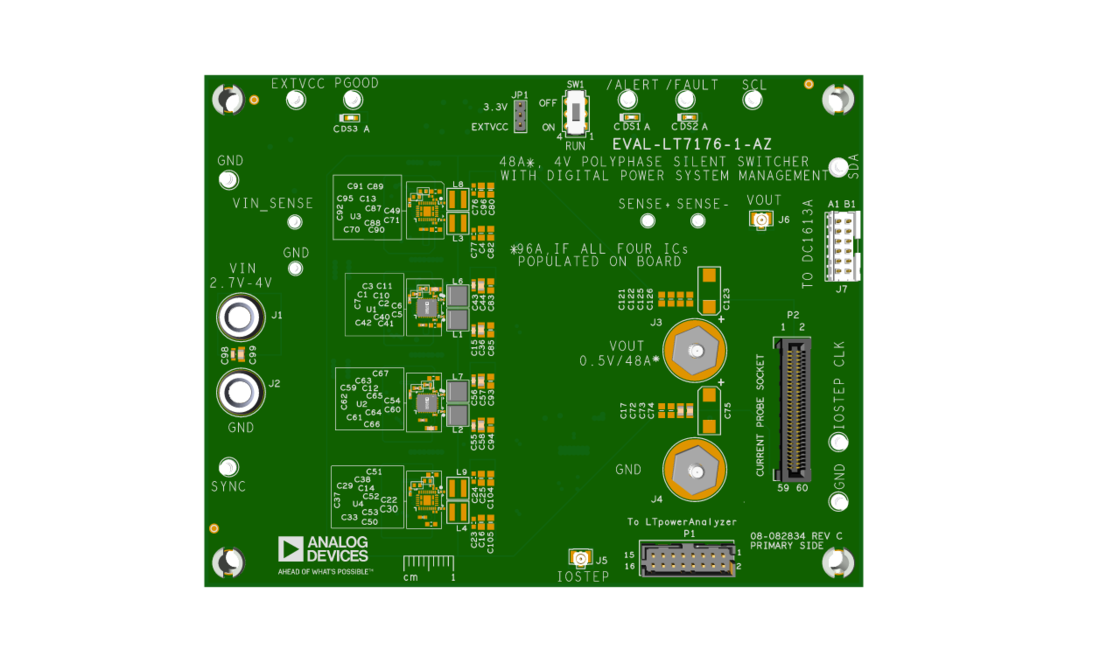

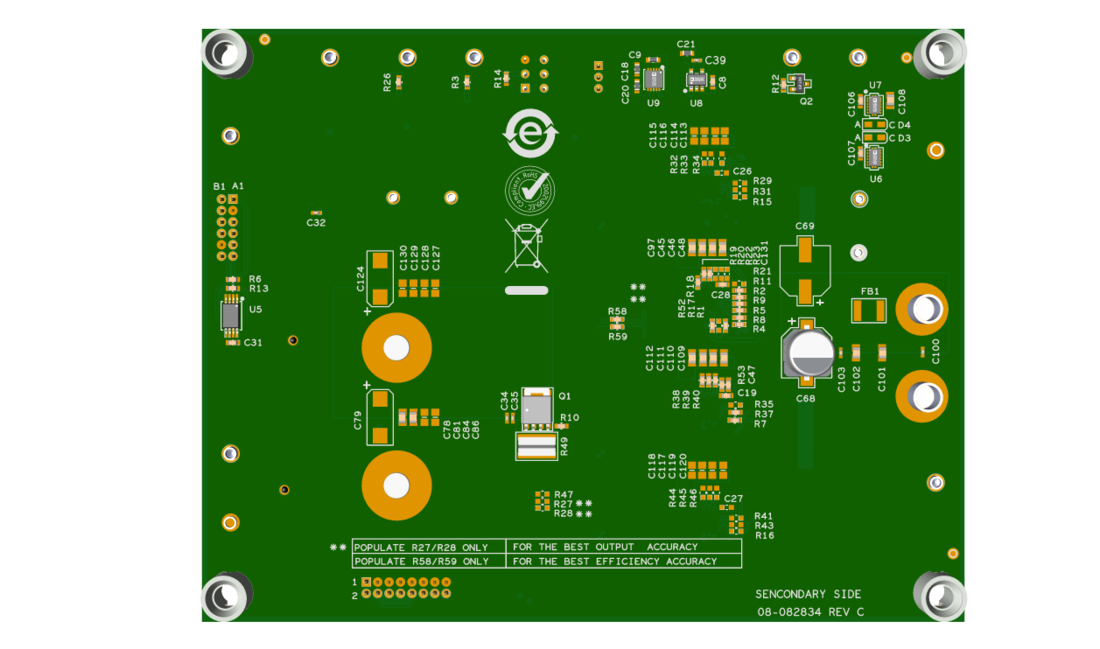

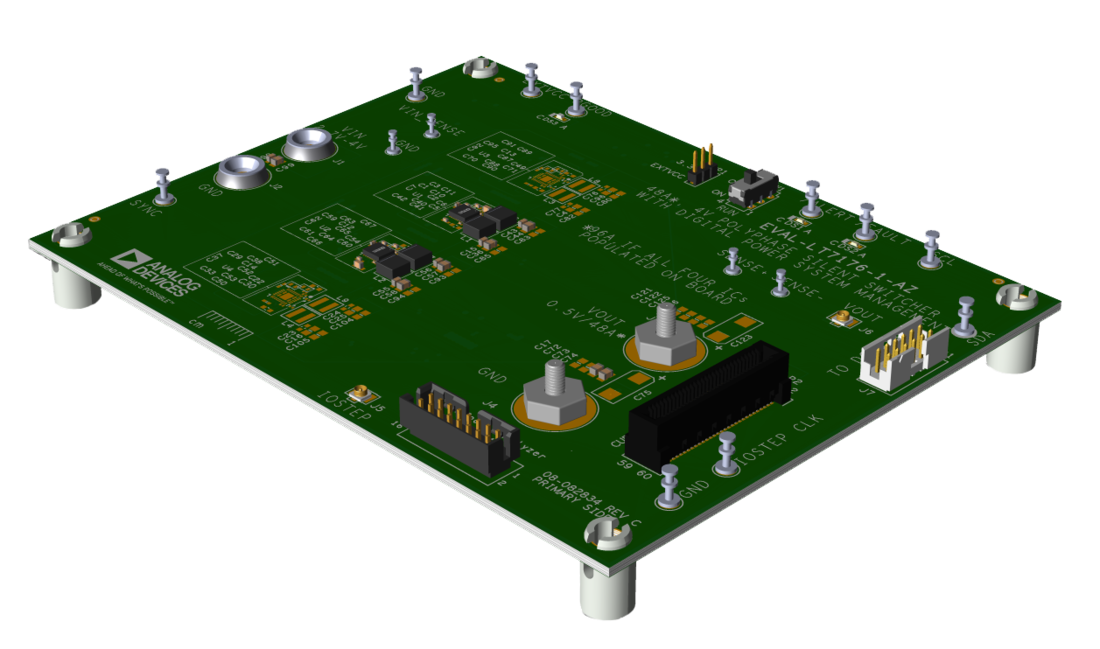

    EVAL-LT7176-1-AZ Evaluation Board Angle View EVAL-LT7176-1-AZ Evaluation Board Top View EVAL-LT7176-1-AZ Evaluation Board Bottom View
