20A, 16V, Single- or Dual Phase, Silent Switcher Step-Down Regulators with Digital Power System Management
更多
Info :
推荐新设计使用
Info :
推荐新设计使用
产品详情
产品详情
不是您想寻找的产品？
提问
在下面提交您的问题，我们将从 ADI 的知识库中给出最佳答案:
搜索
您可以在其他地方找到帮助
产品模型
4
特性
- Silent Switcher® Architecture: Enables a Compact, Efficient, Low EMI Solution
- PMBus/I2C Serial Interface
- Telemetry Read Back includes VOUT, IOUT, VIN, Die Temperature, and Faults
- Programmable Voltage, Current Limit, Sequencing, Soft Start and Stop, Undervoltage and Overvoltage, Phase, Frequency (up to 4MHz), and Loop Compensation
- Integrated Three Times Programmable NVM
- Key Parameters Selectable by Resistor
- VOUT Set Point Range: 0.4V to 5.5V
- VOUT Accuracy: ±0.25%, 0.6V ≤ VOUT ≤ 1.375V
- PolyPhase Load Sharing up to Four Devices
- Differential Remote VOUT Sense
- Fast Transient Response
- Wide VIN Supply Range: Down to 2.9V or 1.5V with EXTVCC
- Programmable and Synchronizable: 400kHz to 4MHz

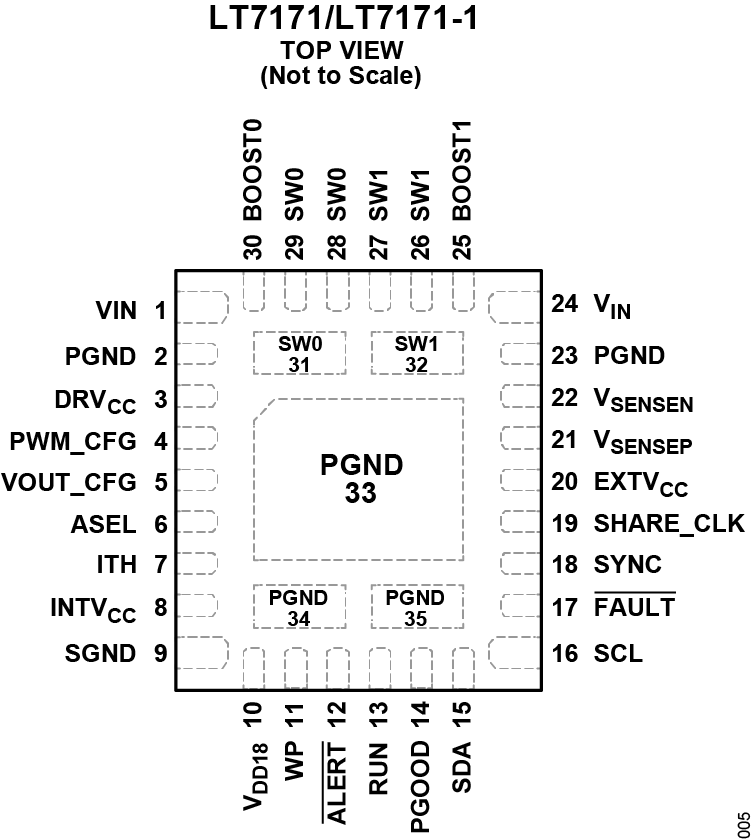

- 30-lead (3.5mm × 4mm) LQFN
更多细节
.svg?rev=fd385c90e2cf4716ae9a8c8d20e6b8e3&la=zh&h=24&w=24&hash=7CDDC996281D9E966D391D97E93C6727){kind=icon}

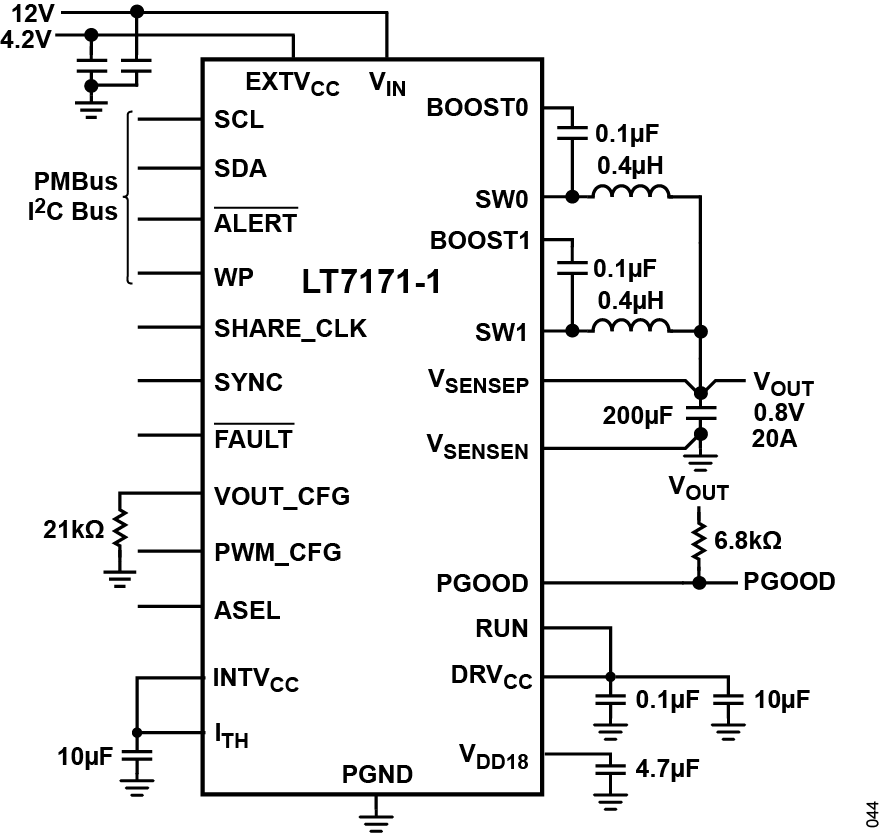

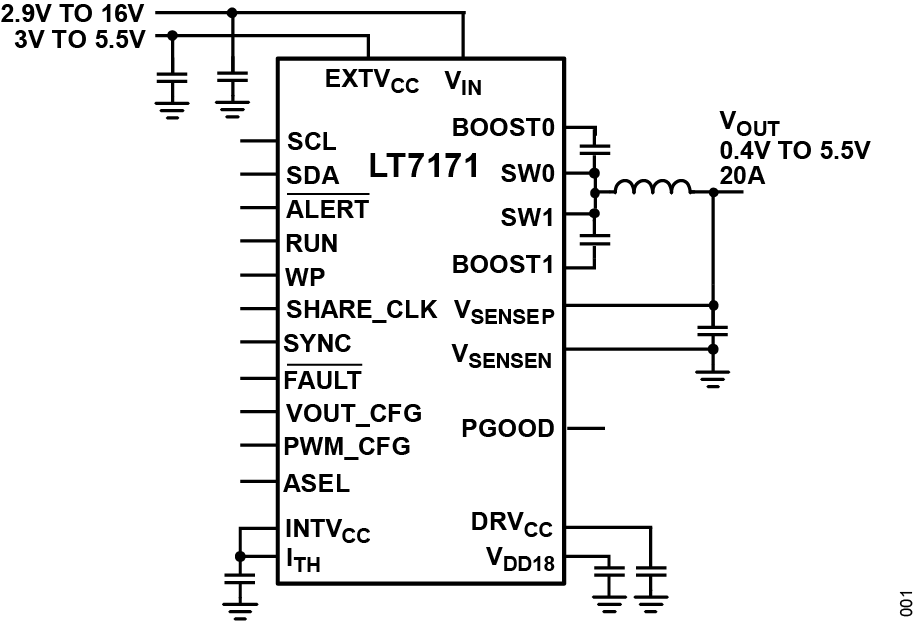

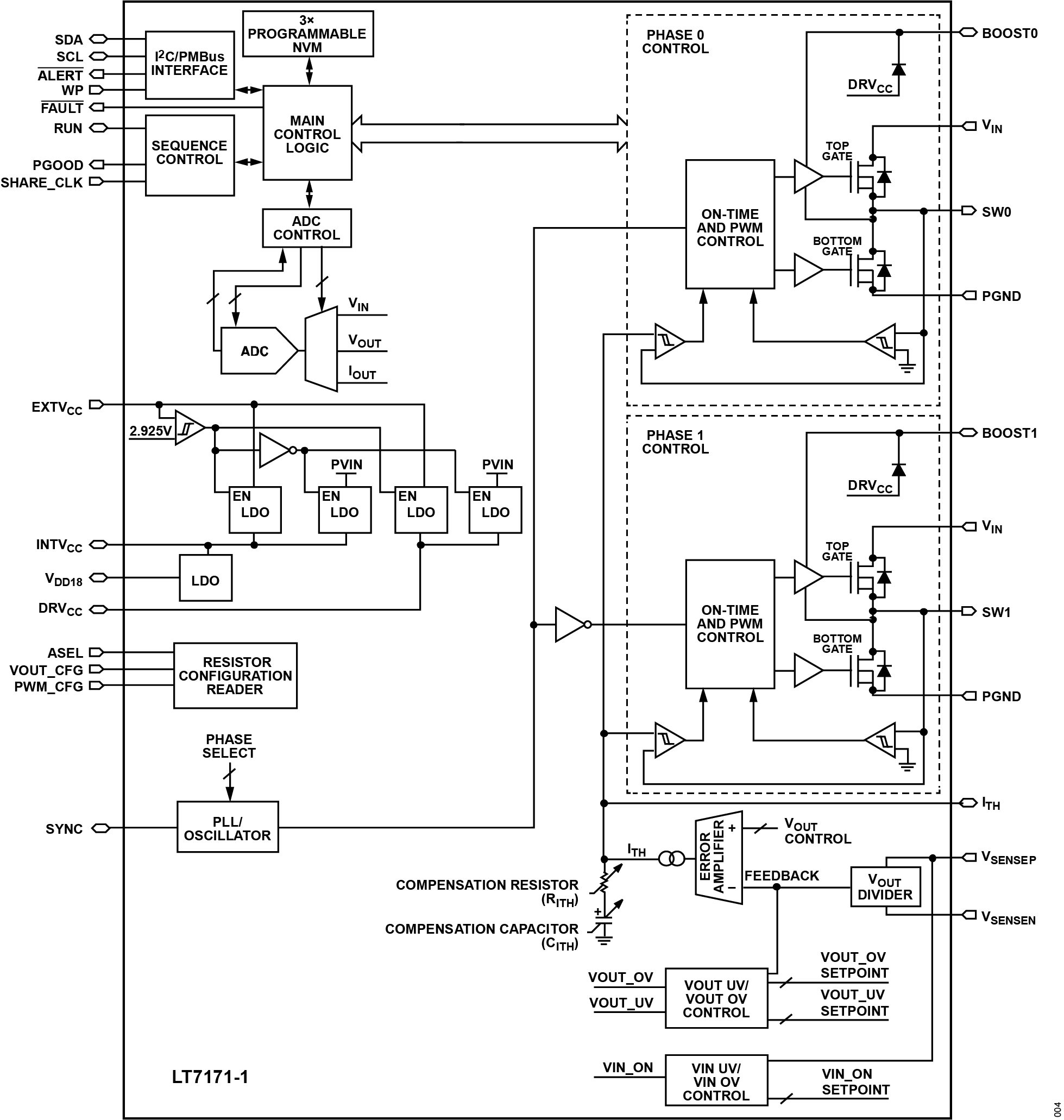

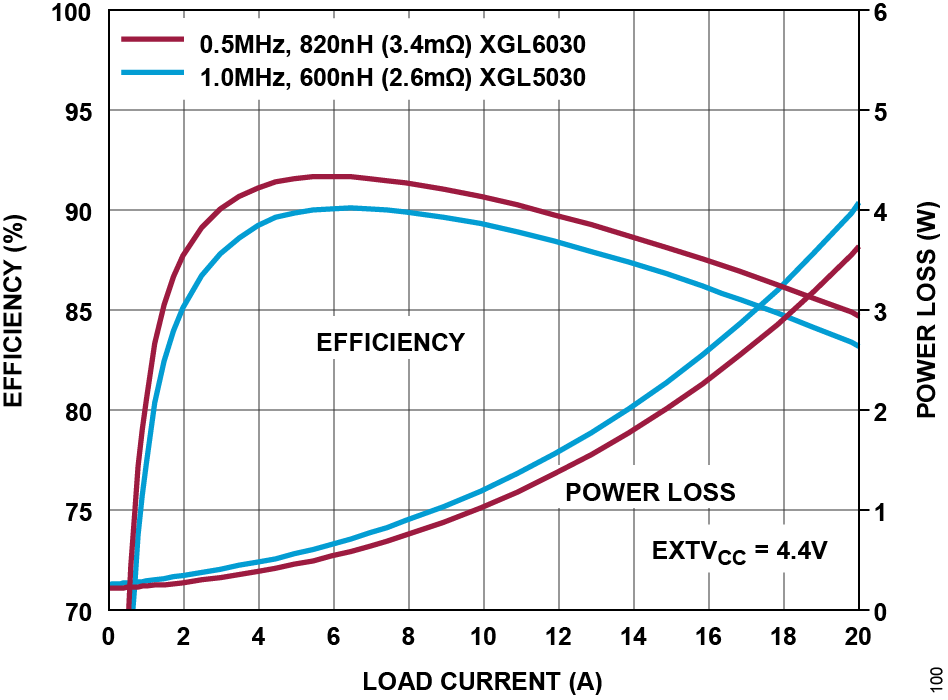

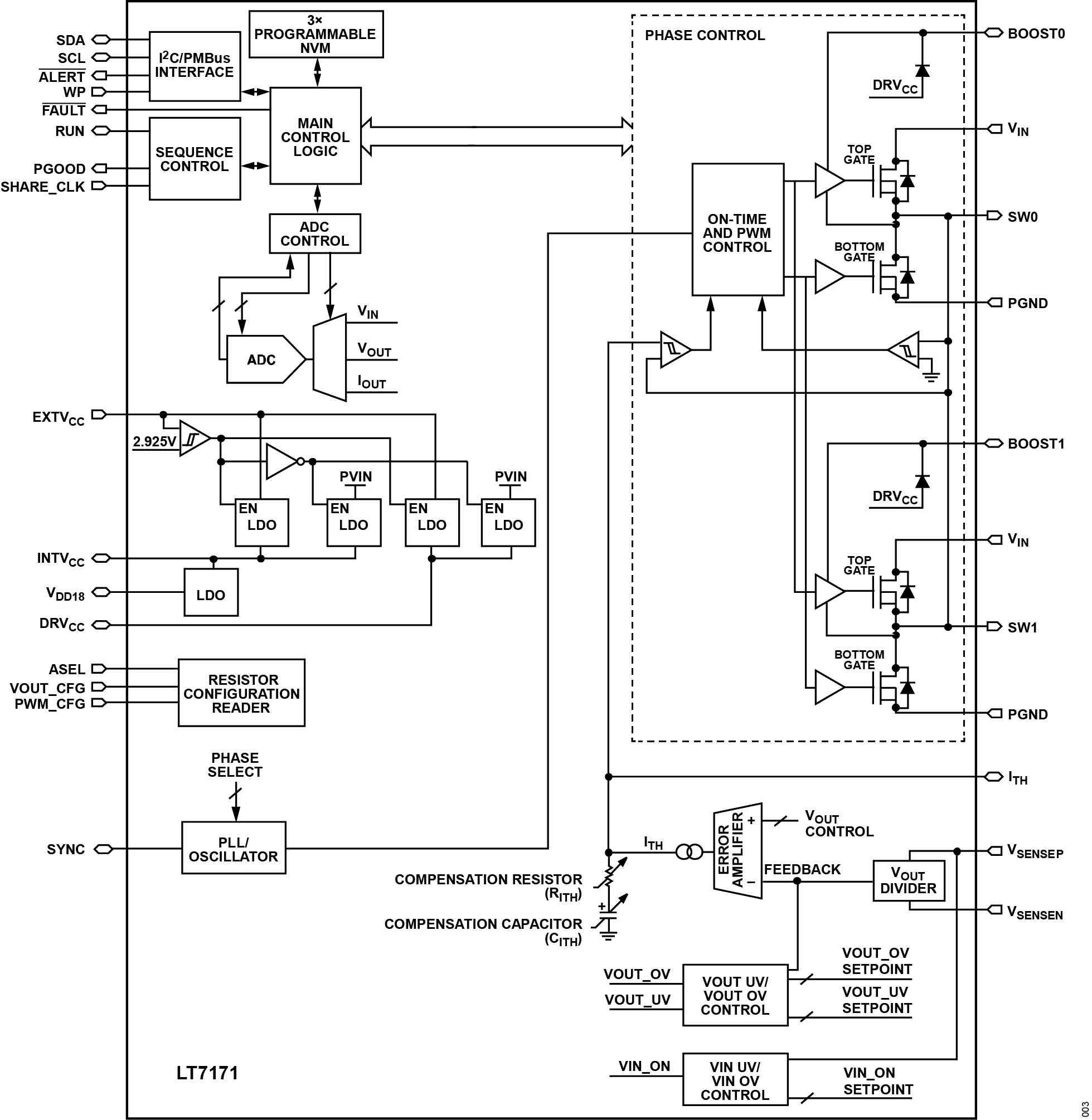

The LT7171/LT7171-1 are monolithic PolyPhase DC/DC synchronous step-down regulators that deliver up to 20A of continuous output current. The LT7171-1 option has two switching phases that are connected to two inductors to drive a single-regulated output supply. The quick, clean, low-overshoot switching edges deliver high efficiency while minimizing electromagnetic interference (EMI) emissions. The I2C-based PMBus 1.3-compliant serial interface enables control of device functions while providing telemetry information for system monitoring. The LT7171/LT7171-1 are supported by the LTpowerPlay® graphical user interface (GUI) tool.
The controlled on-time valley current-mode control with 25ns typical minimum on-time enables a high switching frequency (fSW) at a low output voltage (VOUT) with excellent transient response in a small overall solution size.
VOUT, fSW, and phase are selectable using external configuration resistors. Settings can also be set via the PMBus interface or stored in the on-chip, three times programmable nonvolatile memory (NVM).
The LT7171/LT7171-1 use forced-continuous switching operation.
APPLICATIONS
- Communications, Storage, and Industrial Systems
- Data Center and Solid-State Drives
提问
在下面提交您的问题，我们将从 ADI 的知识库中给出最佳答案:
搜索
您可以在其他地方找到帮助
产品模型
4
{{modalTitle}}
{{modalDescription}}
{{dropdownTitle}}
- {{defaultSelectedText}} {{#each projectNames}}
- {{name}} {{/each}} {{#if newProjectText}}
-
{{newProjectText}}
{{/if}}
{{newProjectTitle}}
{{projectNameErrorText}}
LT7171/
LT7171-1
文档
2
筛查
1 应用
全部
-
全部
-
用户手册
-
数据手册
全部
-
全部
-
英文
数据手册
1
用户手册
1
更新 05/13/2024
英文
没有符合要求的搜索结果。请尝试重置您的筛选或搜索一个不同的术语
产品技术资料帮助
ADI公司所提供的资料均视为准确、可靠。但本公司不为用户在应用过程中侵犯任何专利权或第三方权利承担任何责任。技术指标的修改不再另行通知。本公司既没有含蓄的允许，也不允许借用ADI公司的专利或专利权的名义。本文出现的商标和注册商标所有权分别属于相应的公司。
参考资料
参考资料
设计资源 4
ADI 始终高度重视提供符合最高质量和可靠性水平的产品。我们通过将质量和可靠性检查纳入产品和工艺设计的各个范围以及制造过程来实现这一目标。出货产品的“零缺陷”始终是我们的目标。查看我们的质量和可靠性计划和认证以了解更多信息。
| 产品型号 | 引脚/封装图-中文版 | 文档 | CAD 符号，脚注和 3D模型 |
|---|---|---|---|
| LT7171RV#TRMPBF |
30-Lead LCC (3.50 mm x 4.00 mm x 0.95 mm)
|
|
|
| LT7171RV#TRPBF |
30-Lead LCC (3.50 mm x 4.00 mm x 0.95 mm)
|
|
|
| LT7171RV-1#TRMPBF |
30-Lead LCC (3.50 mm x 4.00 mm x 0.95 mm)
|
|
|
| LT7171RV-1#TRPBF |
30-Lead LCC (3.50 mm x 4.00 mm x 0.95 mm)
|
|
- LT7171RV#TRMPBF
- 引脚/封装图-中文版
-
30-Lead LCC (3.50 mm x 4.00 mm x 0.95 mm)
- 文档
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD 符号，脚注和 3D模型
-
Ultra Librarian
-
SamacSys
- LT7171RV#TRPBF
- 引脚/封装图-中文版
-
30-Lead LCC (3.50 mm x 4.00 mm x 0.95 mm)
- 文档
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD 符号，脚注和 3D模型
-
Ultra Librarian
-
SamacSys
- LT7171RV-1#TRMPBF
- 引脚/封装图-中文版
-
30-Lead LCC (3.50 mm x 4.00 mm x 0.95 mm)
- 文档
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD 符号，脚注和 3D模型
-
Ultra Librarian
-
SamacSys
- LT7171RV-1#TRPBF
- 引脚/封装图-中文版
-
30-Lead LCC (3.50 mm x 4.00 mm x 0.95 mm)
- 文档
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD 符号，脚注和 3D模型
-
Ultra Librarian
-
SamacSys
软件和型号相关生态系统
软件和型号相关生态系统
评估套件
评估套件 2
EVAL-LT7171-AZ
LT7171 16V PolyPhase Silent Switcher Step-Down Regulator with Digital Power System Management 2xLT7171, 40A
LT7171 16V PolyPhase Silent Switcher Step-Down Regulator with Digital Power System Management 2xLT7171, 40A
产品详情

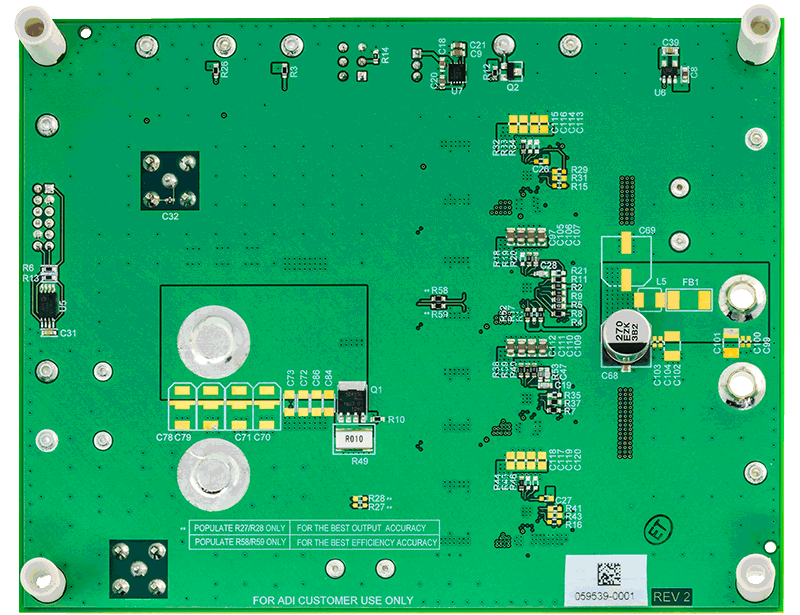

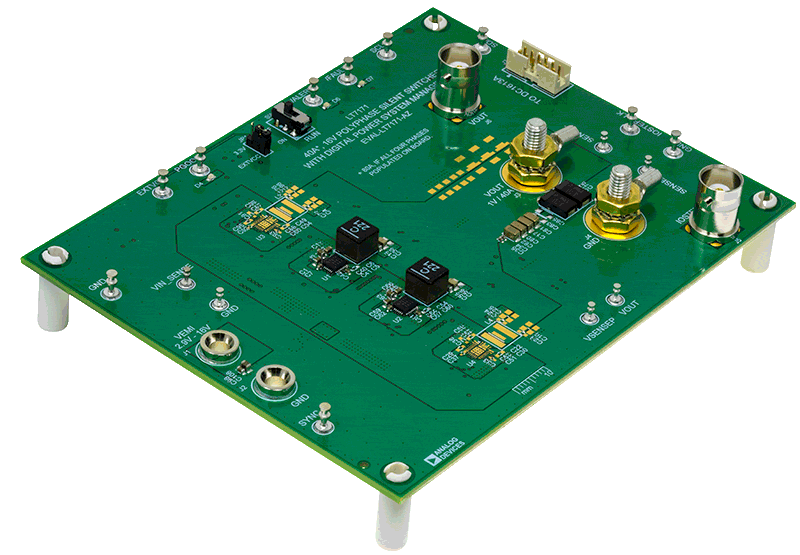

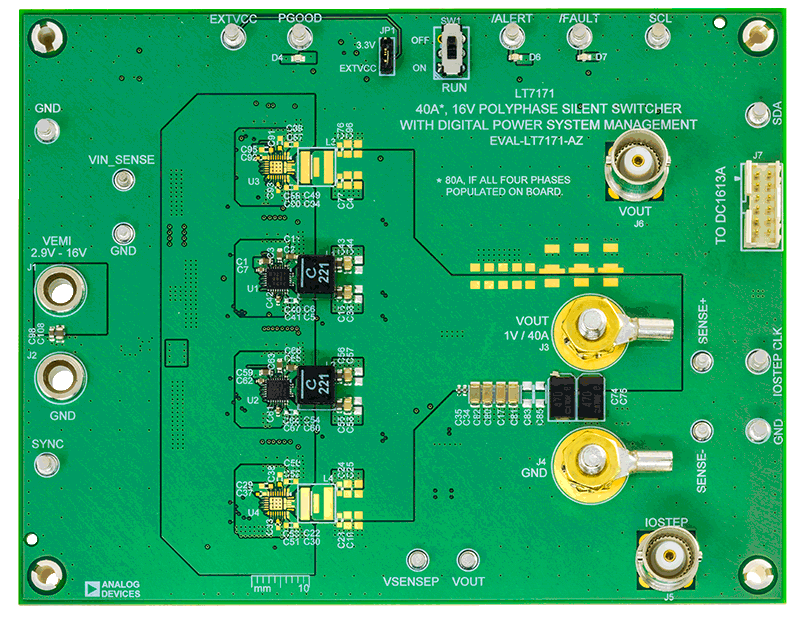

Evaluation kit EVAL-LT7171-AZ has two single-phase monolithic DC/DC synchronous step-down regulators with a 2.9V to 16V input range featuring LT®7171. The output can supply up to 40A continuous load current. The Silent Switcher® structure is incorporated into the LT7171 to minimize EMI and reduce PCB layout sensitivity. It also integrates digital power system management functionality, allowing for programmability and telemetry with a PMBus/I2C compliant serial interface. Refer to the LT7171 data sheet for more detailed information.
The EVAL-LT7171-AZ evaluation board is designed for 1.0V output with a switching frequency set at 1MHz. The controlled on-time valley current-mode control with 25ns typical minimum on-time enables a high switching frequency at a low output voltage with excellent transient response in a small overall solution size.
The EVAL-LT7171-AZ powers up to default settings and produces power based on the NVM configuration without the need for any serial bus communication. This allows easy evaluation of the DC/DC converter. To fully explore the power system management features of the part, download the GUI software LTpowerPlay® onto the PC and use ADI’s I2C/SMBus/PMBus dongle DC1613A to connect to the board. LTpowerPlay allows the user to reconfigure the part on the fly, and store the configuration in NVM, view telemetry of voltage, current, temperature, and fault status. The NVM can be programmed up to three times.
The EVAL-LT7171-AZ reserves two locations for evaluations, up to a total of four LT7171 IC parallel operations. For a detailed parallel configuration, refer to the LT7171 data sheet.
GUI Download
The software can be downloaded from LTpowerPlay.
The LT7171 data sheet gives a complete description of the part, operation, and application information. The data sheet must be read in conjunction with this demo manual for EVAL-LT7171-AZ.
For more details and instructions of the LTpowerPlay, refer to LTpowerPlay GUI for the LT7171 Quick Start Guide.
EVAL-LT7171-1-AZ
LT7171-1 16V PolyPhase Silent Switcher Step-Down Regulator with Digital Power System Management 2xLT7171-1, 40A
LT7171-1 16V PolyPhase Silent Switcher Step-Down Regulator with Digital Power System Management 2xLT7171-1, 40A
产品详情

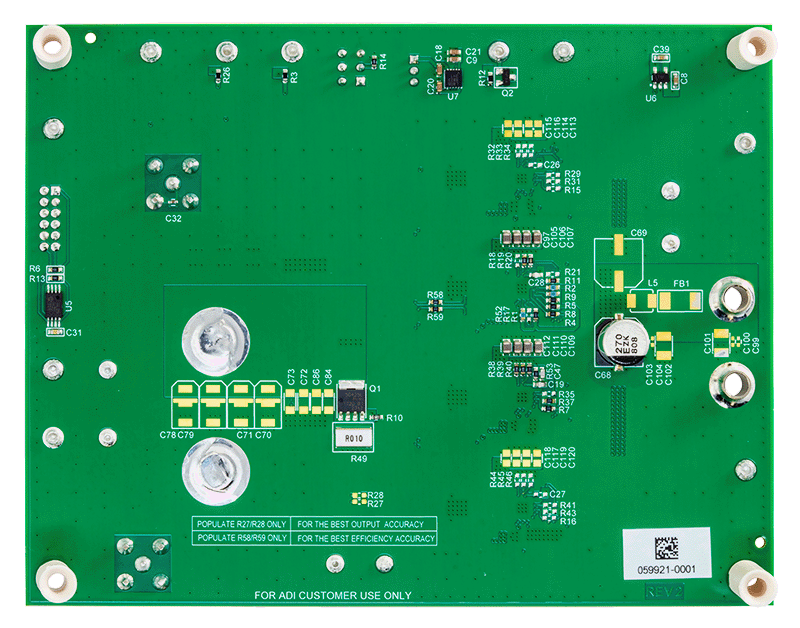

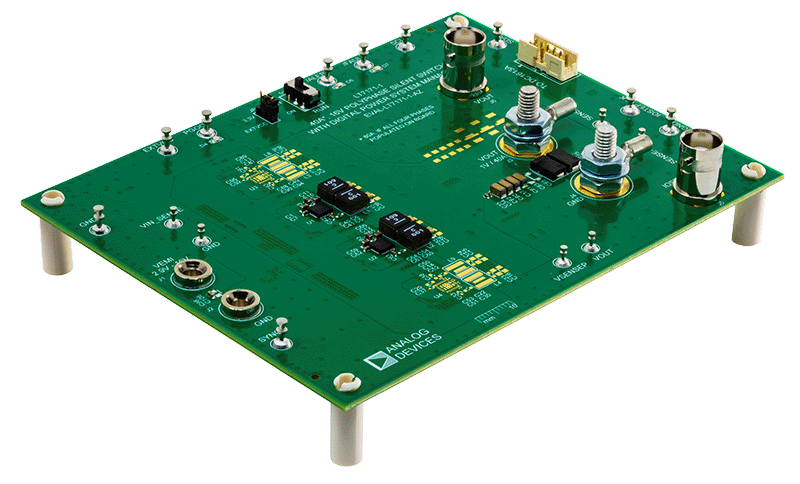

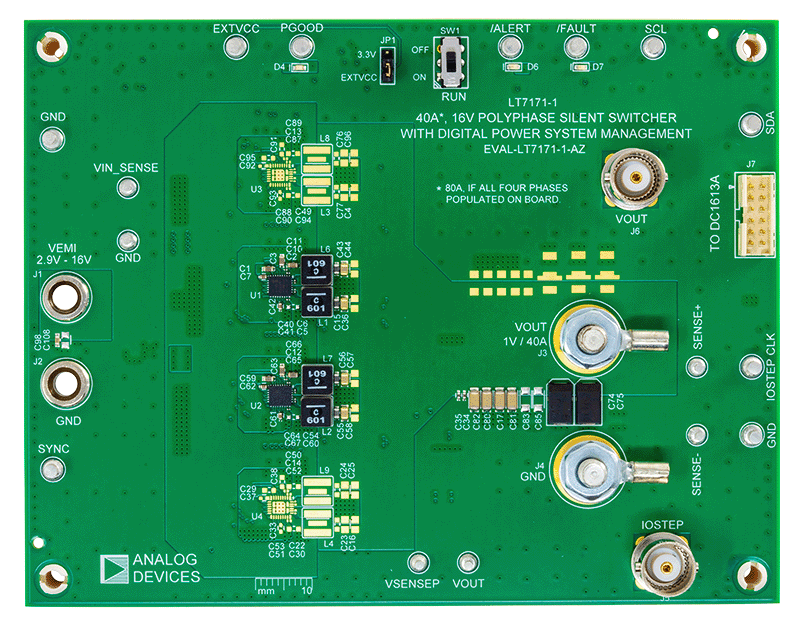

Evaluation kit EVAL-LT7171-1-AZ has two dual-phase monolithic DC/DC synchronous step-down regulators with a 2.9V to 16V input range featuring LT®7171-1. The output can supply up to 40A continuous load current. The Silent Switcher® structure is incorporated into the LT7171-1 to minimize EMI and reduce PCB layout sensitivity. It also integrates digital power system management functionality, allowing for programmability and telemetry with a PMBus/I2C compliant serial interface. Refer to the LT7171-1 data sheet for more detailed information.
