LT4320

推荐用于新设计

理想二极管桥控制器

数据手册产品选型表

产品模型: 24

Viewing:

概述

较大限度地提高电源效率
消除了热设计问题
DC 至 600Hz
9V 至 72V 工作电压范围
I_Q = 1.5mA (典型值)
实现了可用电压的较大化

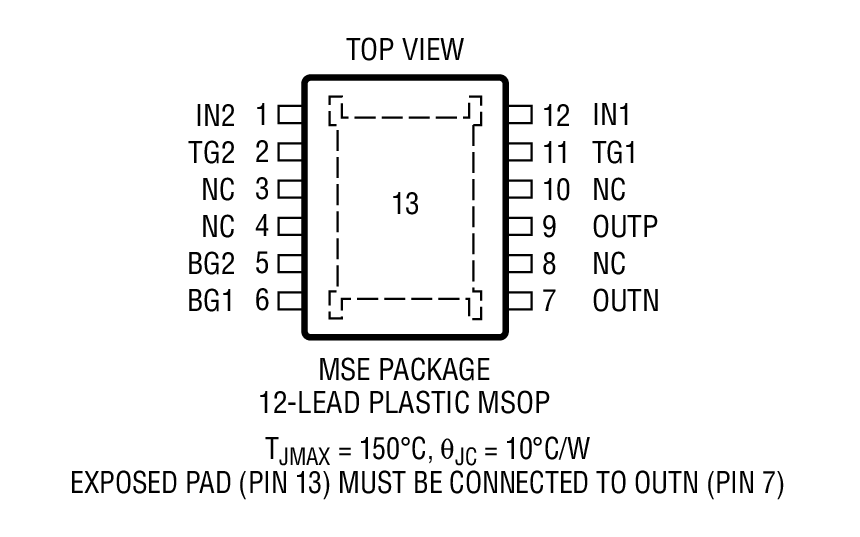

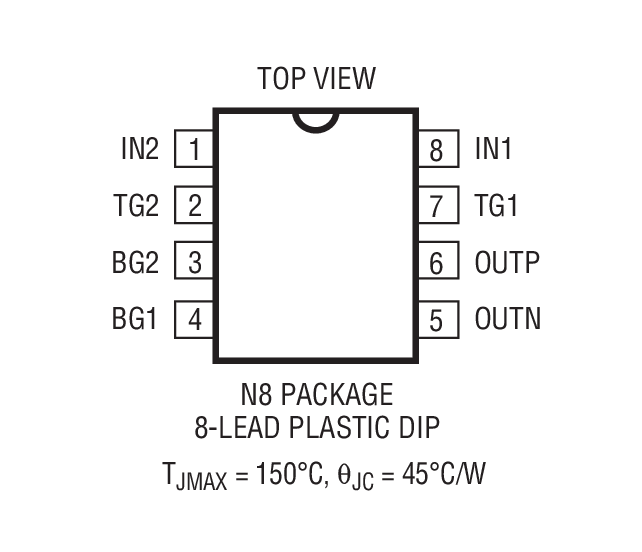

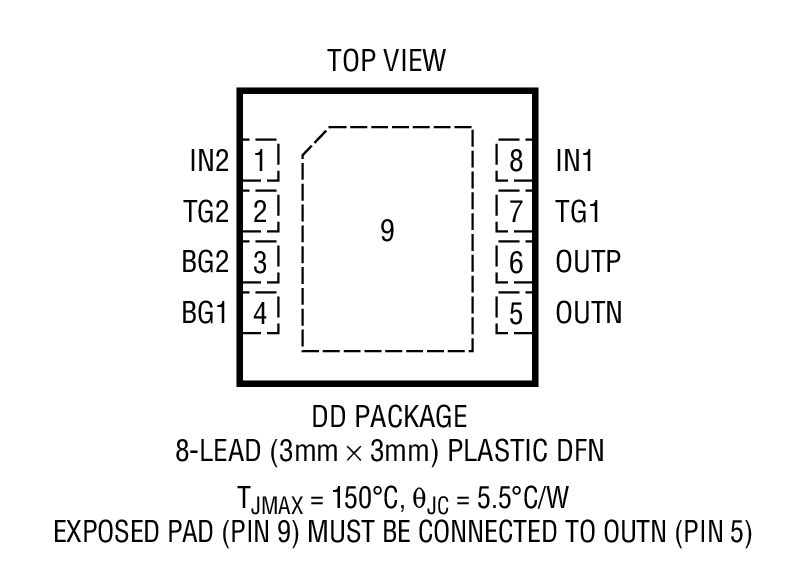

采用 8 引脚 (3mm x 3mm) DFN 、12 引脚 MSOP 和 8 引脚 PDIP 封装

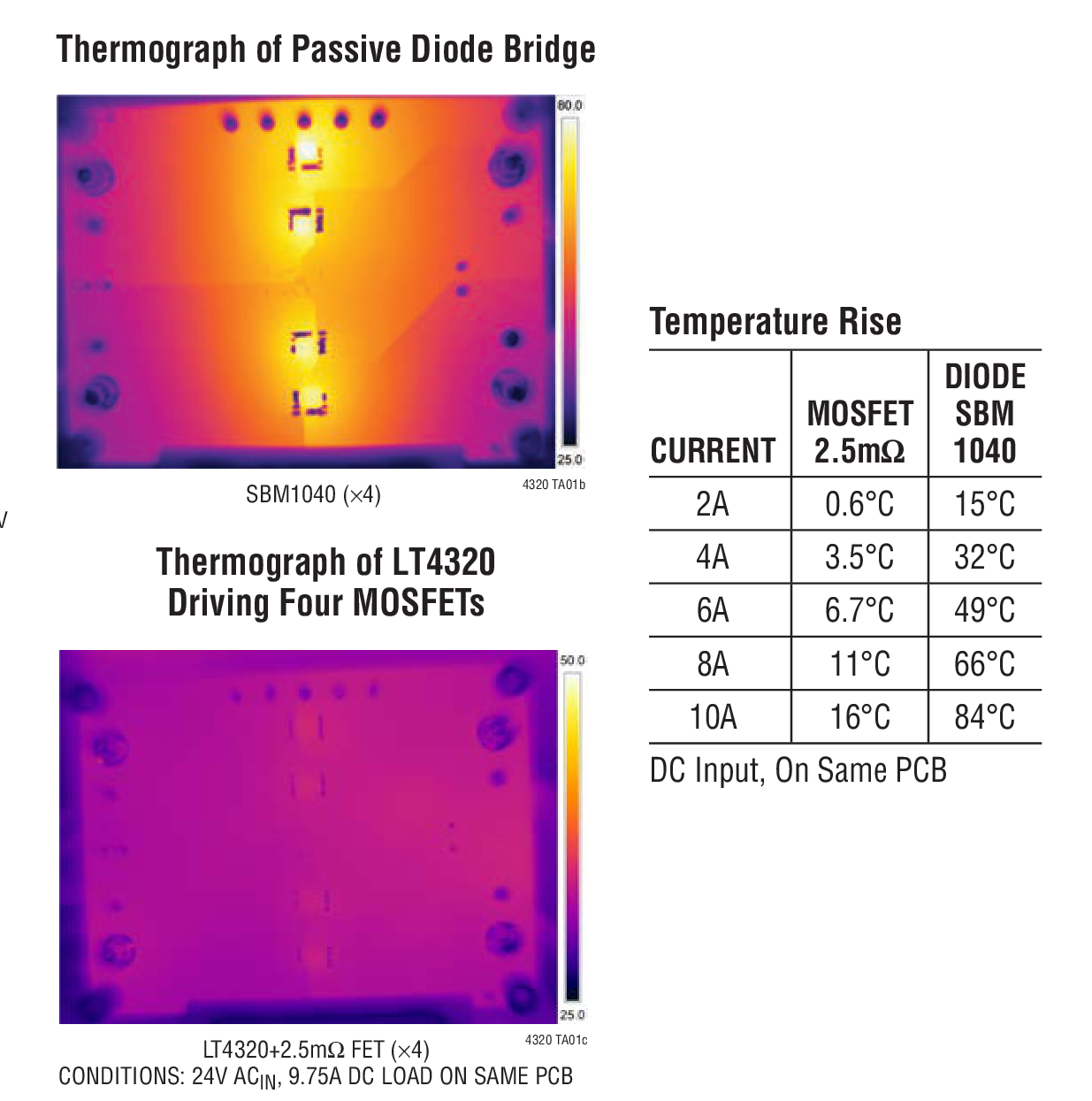

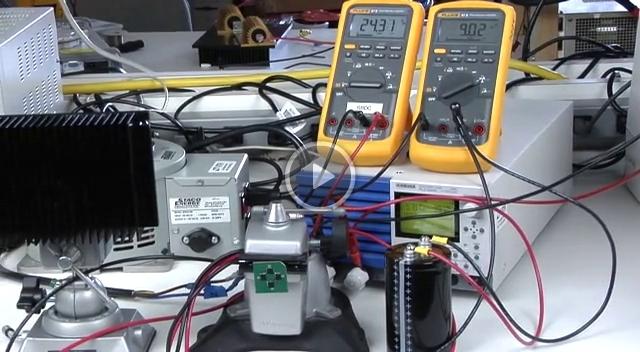

LT4320 / LT4320-1 是理想二极管桥控制器，可驱动 4 个 N 沟道 MOSFET，支持从 DC 至 600Hz (典型值) 的电压整流。通过较大限度地增加可用电压并降低功耗 (见热录像仪比较)，该理想二极管桥控制器简化了电源设计并降低了电源成本，尤其是在低电压应用中。

另外，理想二极管桥还消除了热设计问题和昂贵的散热器，并极大地缩减了 PC 板面积。LT4320 的内部充电泵支持一种全 NMOS 设计，从而免除了体积更大且更加昂贵的 PMOS 开关。如果电源发生故障或短路，则快速关断以较大限度地抑制反向电流瞬变。

LT4320 设计用于 DC 至 60Hz (典型值) 电压整流，而 LT4320-1 则专为 DC 至 600Hz (典型值) 电压整流而设计。视 MOSFET 尺寸和工作负载电流的不同，可以执行更高频率的运作。

应用

安保摄像机
地面或机载功率分配系统
具有一个辅助输入的以太网供电设备
极性无关的电源输入
替代二极管电桥

产品模型: 24

参考资料

ADI 始终高度重视提供符合最高质量和可靠性水平的产品。我们通过将质量和可靠性检查纳入产品和工艺设计的各个范围以及制造过程来实现这一目标。出货产品的“零缺陷”始终是我们的目标。查看我们的质量和可靠性计划和认证以了解更多信息。

产品型号	引脚/封装图-中文版	文档	CAD 符号，脚注和 3D模型
LT4320HDD#PBF	8-Lead DFN (3mm x 3mm x 0.75mm w/ EP)	Material Declaration Reliablity Data 资料包	Ultra Librarian SamacSys
LT4320HDD#TRPBF	8-Lead DFN (3mm x 3mm x 0.75mm w/ EP)	Material Declaration Reliablity Data 资料包	Ultra Librarian SamacSys
LT4320HDD-1#PBF	8-Lead DFN (3mm x 3mm x 0.75mm w/ EP)	Material Declaration Reliablity Data 资料包	Ultra Librarian SamacSys
LT4320HDD-1#TRPBF	8-Lead DFN (3mm x 3mm x 0.75mm w/ EP)	Material Declaration Reliablity Data 资料包	Ultra Librarian SamacSys
LT4320HMSE#PBF	12-Lead MSOP w/ EP	Material Declaration Reliablity Data 资料包	Ultra Librarian SamacSys
LT4320HMSE#TRPBF	12-Lead MSOP w/ EP	Material Declaration Reliablity Data 资料包	Ultra Librarian SamacSys
LT4320HMSE-1#PBF	12-Lead MSOP w/ EP	Material Declaration Reliablity Data 资料包	Ultra Librarian SamacSys
LT4320HMSE-1#TRPBF	12-Lead MSOP w/ EP	Material Declaration Reliablity Data 资料包	Ultra Librarian SamacSys
LT4320HN8#PBF	8-Lead PDIP (Narrow 0.3 Inch)	Material Declaration Reliablity Data 资料包	Ultra Librarian SamacSys
LT4320HN8-1#PBF	8-Lead PDIP (Narrow 0.3 Inch)	Material Declaration Reliablity Data 资料包	Ultra Librarian SamacSys
LT4320IDD#PBF	8-Lead DFN (3mm x 3mm x 0.75mm w/ EP)	Material Declaration Reliablity Data 资料包	Ultra Librarian SamacSys
LT4320IDD#TRPBF	8-Lead DFN (3mm x 3mm x 0.75mm w/ EP)	Material Declaration Reliablity Data 资料包	Ultra Librarian SamacSys
LT4320IDD-1#PBF	8-Lead DFN (3mm x 3mm x 0.75mm w/ EP)	Material Declaration Reliablity Data 资料包	Ultra Librarian SamacSys
LT4320IDD-1#TRPBF	8-Lead DFN (3mm x 3mm x 0.75mm w/ EP)	Material Declaration Reliablity Data 资料包	Ultra Librarian SamacSys
LT4320IMSE#PBF	12-Lead MSOP w/ EP	Material Declaration Reliablity Data 资料包	Ultra Librarian SamacSys
LT4320IMSE#TRPBF	12-Lead MSOP w/ EP	Material Declaration Reliablity Data 资料包	Ultra Librarian SamacSys
LT4320IMSE-1#PBF	12-Lead MSOP w/ EP	Material Declaration Reliablity Data 资料包	Ultra Librarian SamacSys
LT4320IMSE-1#TRPBF	12-Lead MSOP w/ EP	Material Declaration Reliablity Data 资料包	Ultra Librarian SamacSys
LT4320IN8#PBF	8-Lead PDIP (Narrow 0.3 Inch)	Material Declaration Reliablity Data 资料包	Ultra Librarian SamacSys
LT4320IN8-1#PBF	8-Lead PDIP (Narrow 0.3 Inch)	Material Declaration Reliablity Data 资料包	Ultra Librarian SamacSys
LT4320MPMSE#PBF	12-Lead MSOP w/ EP	Material Declaration Reliablity Data 资料包	Ultra Librarian SamacSys
LT4320MPMSE#TRPBF	12-Lead MSOP w/ EP	Material Declaration Reliablity Data 资料包	Ultra Librarian SamacSys
LT4320MPMSE-1#PBF	12-Lead MSOP w/ EP	Material Declaration Reliablity Data 资料包	Ultra Librarian SamacSys
LT4320MPMSE-1#TRPBF	12-Lead MSOP w/ EP	Material Declaration Reliablity Data 资料包	Ultra Librarian SamacSys

产品型号	产品生命周期	PCN

2月 14, 2025 - 25_0017 Bond Wire Change from Gold to Copper
		PCN25_0017_Form Material_Report Qualification Results Summary
LT4320HDD#PBF	量产
LT4320HDD#TRPBF	量产
LT4320HDD-1#PBF	量产
LT4320HDD-1#TRPBF	量产
LT4320HMSE#PBF	量产
LT4320HMSE#TRPBF	量产
LT4320HMSE-1#PBF	量产
LT4320HMSE-1#TRPBF	量产
LT4320HN8-1#PBF	量产
LT4320IDD#PBF	量产
LT4320IDD#TRPBF	量产
LT4320IDD-1#PBF	量产
LT4320IDD-1#TRPBF	量产
LT4320IMSE#PBF	量产
LT4320IMSE#TRPBF	量产
LT4320IMSE-1#PBF	量产
LT4320IMSE-1#TRPBF	量产
10月 11, 2022 - 22_0244 Epoxy Change from Henkel 8290 to 8290A for MSOP Package
		PCN22_0244_Form Material_Report Qualification Results Summary Delta Qualification Matrix
LT4320HMSE#PBF	量产
LT4320HMSE#TRPBF	量产
LT4320HMSE-1#PBF	量产
LT4320HMSE-1#TRPBF	量产
LT4320IMSE#PBF	量产
LT4320IMSE#TRPBF	量产
LT4320IMSE-1#PBF	量产
LT4320IMSE-1#TRPBF	量产
LT4320MPMSE#PBF	量产
LT4320MPMSE#TRPBF	量产
LT4320MPMSE-1#PBF	量产
LT4320MPMSE-1#TRPBF	量产
2月 4, 2020 - 20_0129 Laser Mark Conversion for 12-Lead MSOP Packages Assembled in ADPG and UTAC
		PCN20_0129_Form Material_Report
LT4320HMSE#PBF	量产
LT4320HMSE#TRPBF	量产
LT4320HMSE-1#PBF	量产
LT4320HMSE-1#TRPBF	量产
LT4320IMSE#PBF	量产
LT4320IMSE#TRPBF	量产
LT4320IMSE-1#PBF	量产
LT4320IMSE-1#TRPBF	量产
LT4320MPMSE#PBF	量产
LT4320MPMSE#TRPBF	量产
LT4320MPMSE-1#PBF	量产
LT4320MPMSE-1#TRPBF	量产
10月 8, 2024 - 24_0234 Migrating Bottom Trace Code Marking to Top Side Laser Marking for PDIP Package
		PCN24_0234_Form Material_Report Marking Comparison
LT4320HN8#PBF	量产
LT4320HN8-1#PBF	量产
LT4320IN8#PBF	量产
LT4320IN8-1#PBF	量产
10月 11, 2022 - 22_0241 Epoxy Change from Henkel 8290 to 8290A for PDIP Package
		PCN22_0241_Form Material_Report Qualification Results Summary
LT4320HN8#PBF	量产
LT4320HN8-1#PBF	量产
LT4320IN8#PBF	量产
LT4320IN8-1#PBF	量产
8月 6, 2022 - 22_0172 Laser Top Mark Conversion for PDIP Packages Assembled in ADPG [PNG]
		PCN22_0172_Form Material_Report Delta Qualification Matrix
LT4320HN8#PBF	量产
LT4320HN8-1#PBF	量产
LT4320IN8#PBF	量产
LT4320IN8-1#PBF	量产

这是最新版本的数据手册

软件资源

找不到您所需的软件或驱动?

申请驱动/软件

硬件生态系统

部分模型	产品周期	描述
以太网供电(PoE)接口控制器 1
LT4321	推荐用于新设计	PoE 理想二极管桥控制器

工具及仿真模型

LTspice 1

LT4320-1 Demo Circuit - Highly Efficient 3-Phase Bridge Rectifier (5-28VAC RMS to 70V @ 25A Max)

LTspice中提供以下器件型号：

LT4320
LT4320-1

LTspice^®是一款强大高效的免费仿真软件、原理图采集和波形观测器，为改善模拟电路的仿真提供增强功能和模型。

评估套件

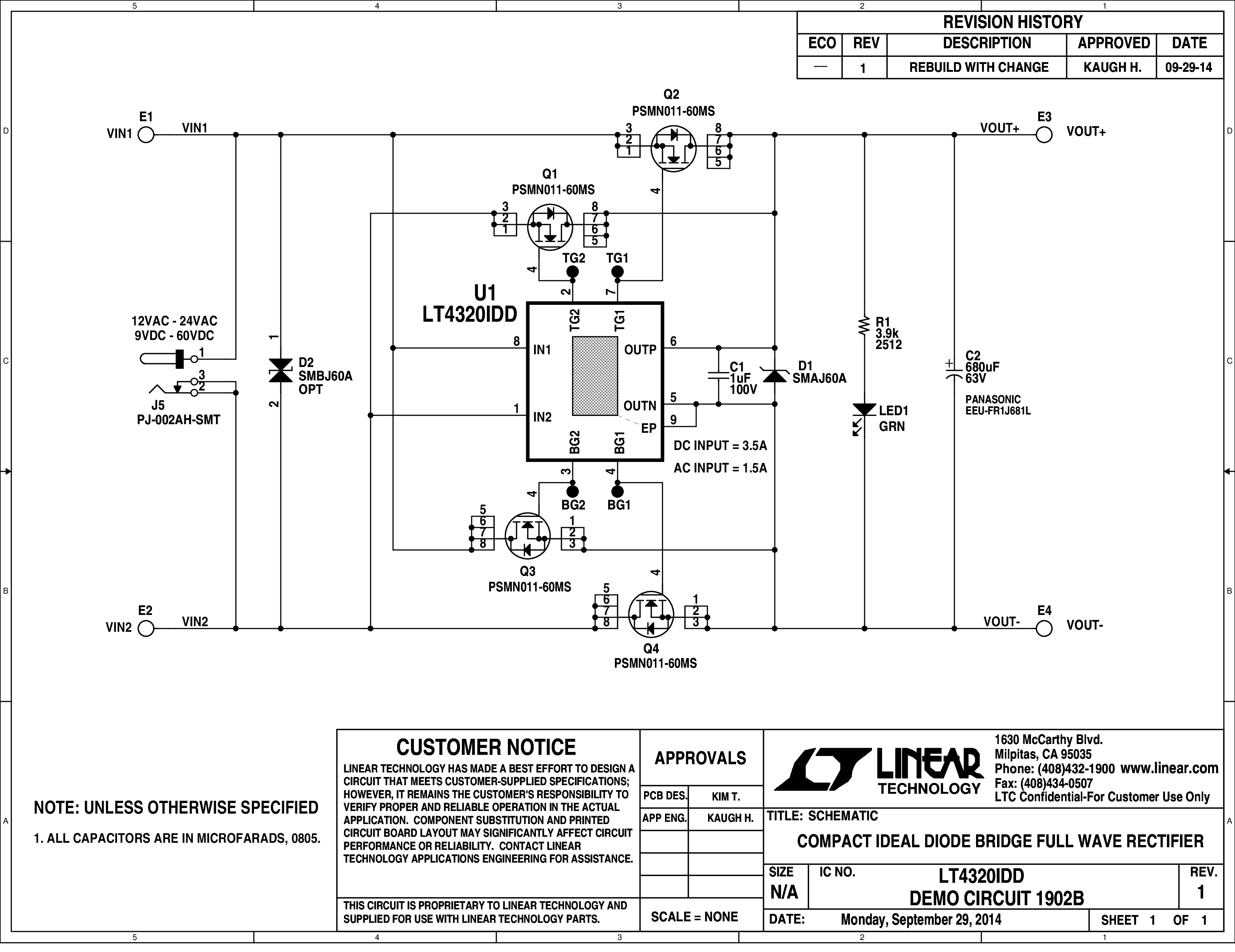

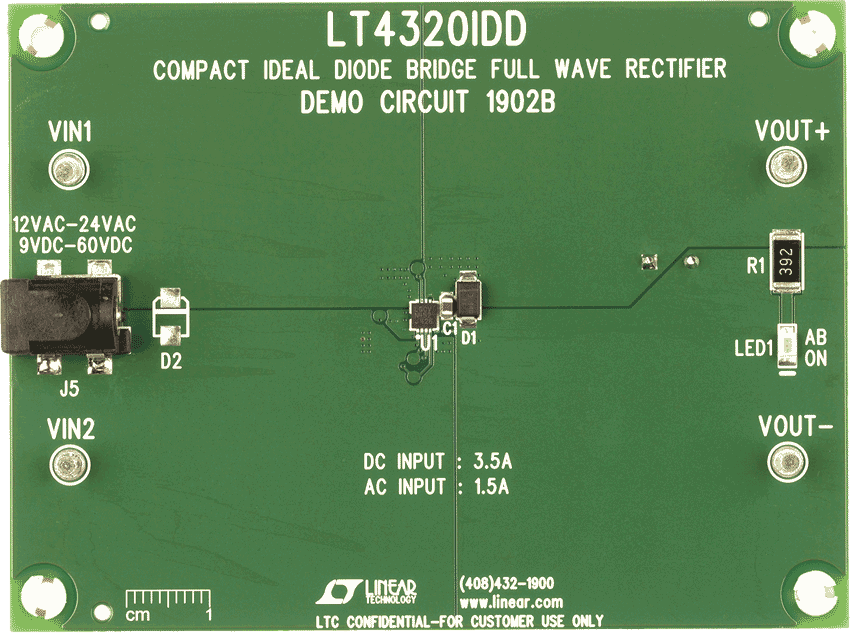

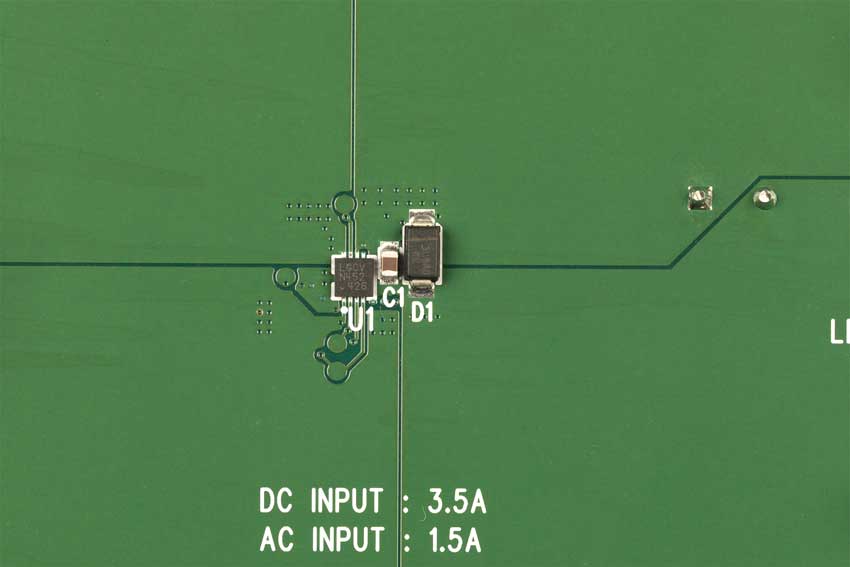

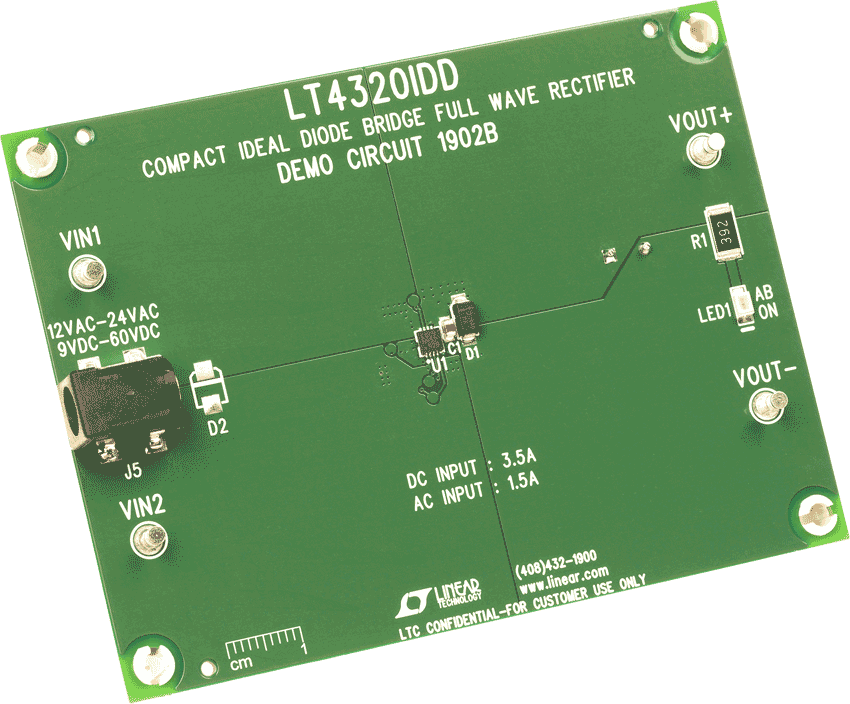

LT4320IDD Demo Board | 200W Ideal Diode Bridge Full-Wave Rectifier (9V to 60V, 3.5A)

立即购买更多内容

产品详情

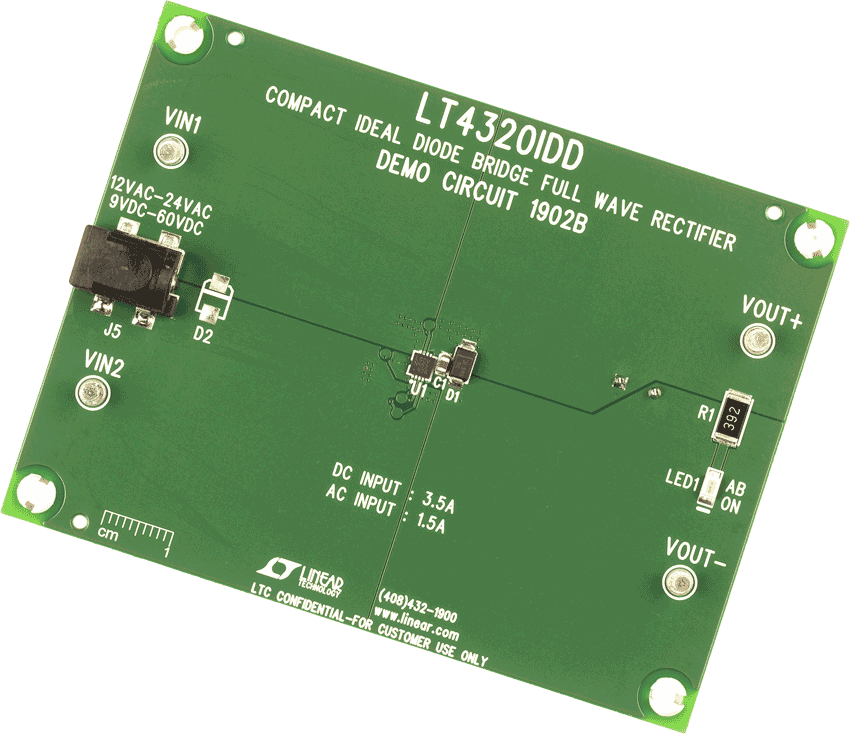

DC1902B: Demo Board for the LT4320/LT4320-1 Ideal Diode Bridge Controller.

资料

DC1902B - Demo Manual
2015/5/12

DC1902B - Schematic
2015/5/4

DC1902B - Design Files
2015/5/4

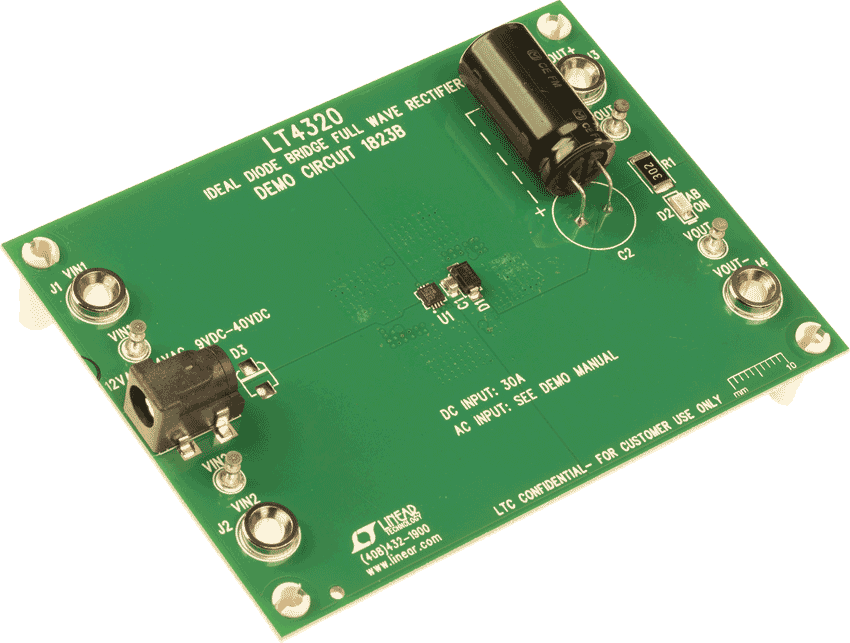

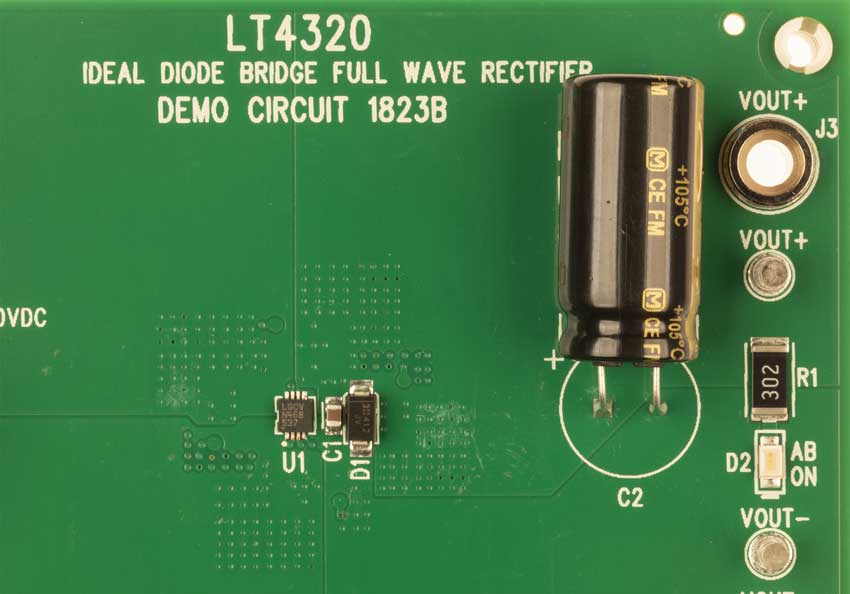

LT4320IDD Demo Board | 1.2kW Ideal Diode Bridge Full-Wave Rectifier [9V to 40V, 30A]

立即购买更多内容

产品详情

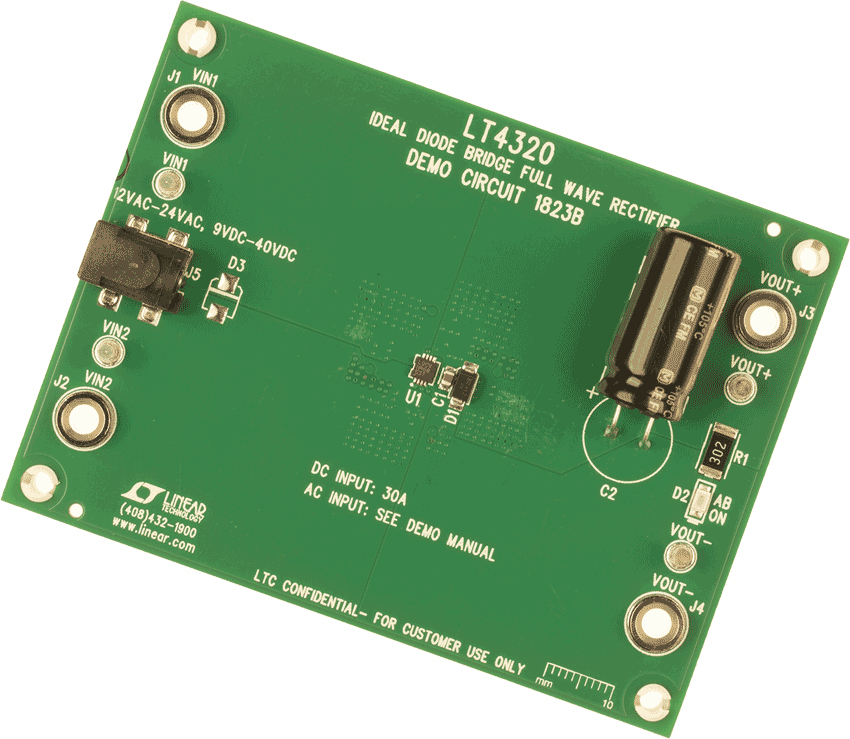

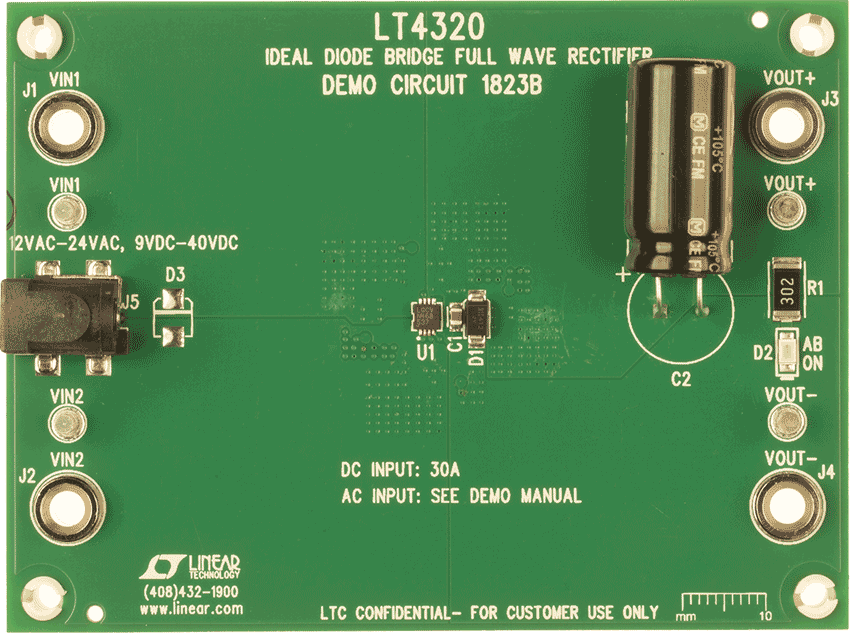

Demonstration circuit 1823B features the LT4320, an ideal diode bridge controller suitable for applications that require high current AC to DC full-wave rectification or DC polarity correction. With an AC input, the input voltage range is 12VAC to 24VAC, the output voltage can be as high as 70V, and the output current can be as high as 1.5A. The AC current is limited by the capacitance provided on the demo board and can be increased up to 17A with additional load capacitance. The DC input voltage range is 9V up to 40V, and the maximum DC output current is 30A.

The LT4320 drives four N-channel MOSFETs to perform full-wave rectification functionally similar to a discrete diode bridge but with much lower power dissipation. This topology eases thermal design, and increases usable output voltage. In addition, an all N-channel topology has benefits over a P-channel topology such as a wider selection of MOSFETs, lower cost, lower R_DS(ON), and smaller footprint.

资料

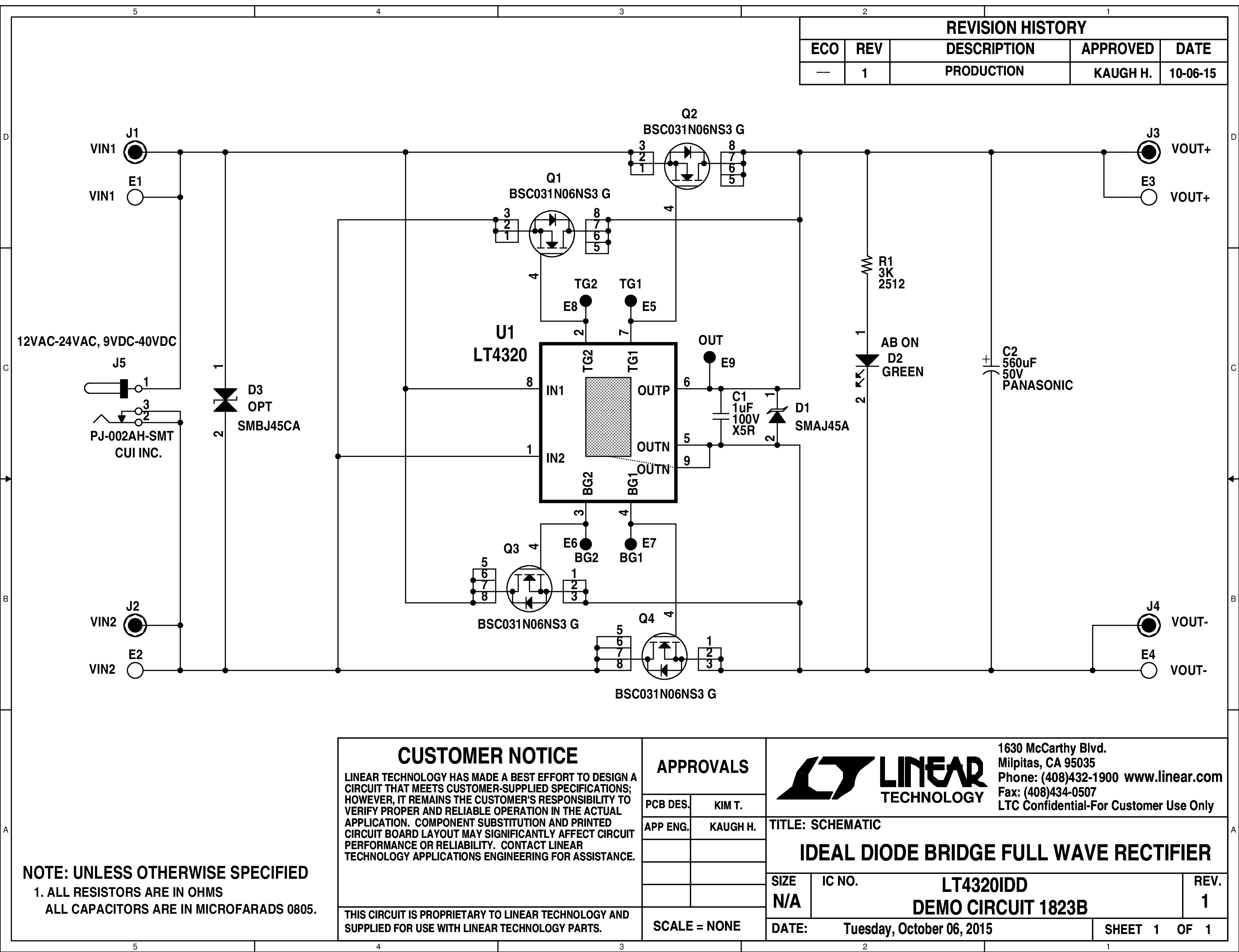

DC1823B - Schematic
2016/2/10

DC1823B - Demo Manual
2016/2/10

DC1823B - Design Files
2016/2/10

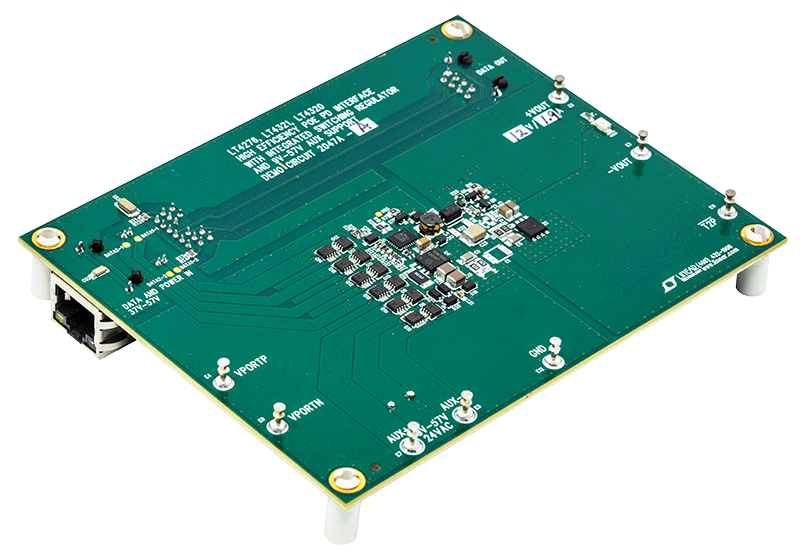

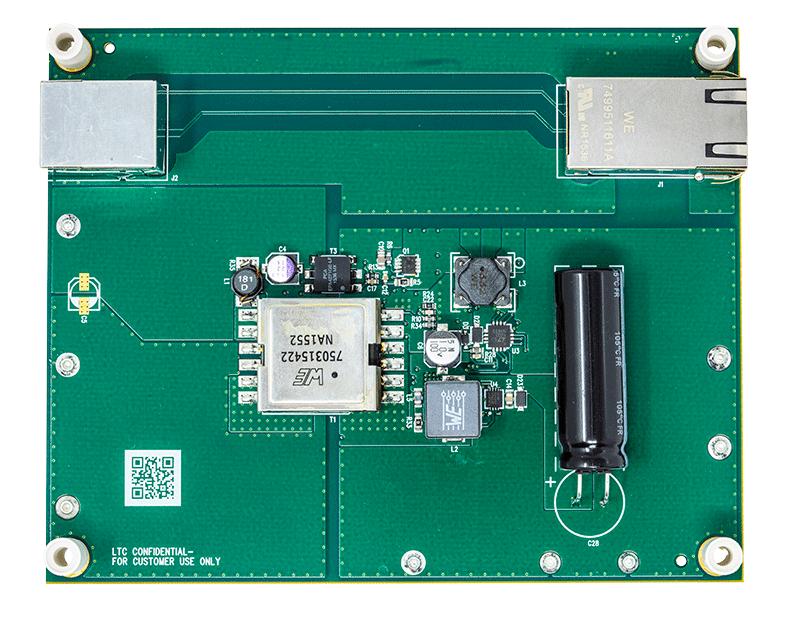

LT4276B/LT4321演示板 | 集成DC/DC、理想二极管电桥和9V-57V AUX的PoE+（25W、12V/1.9A）PD

立即购买更多内容

产品详情

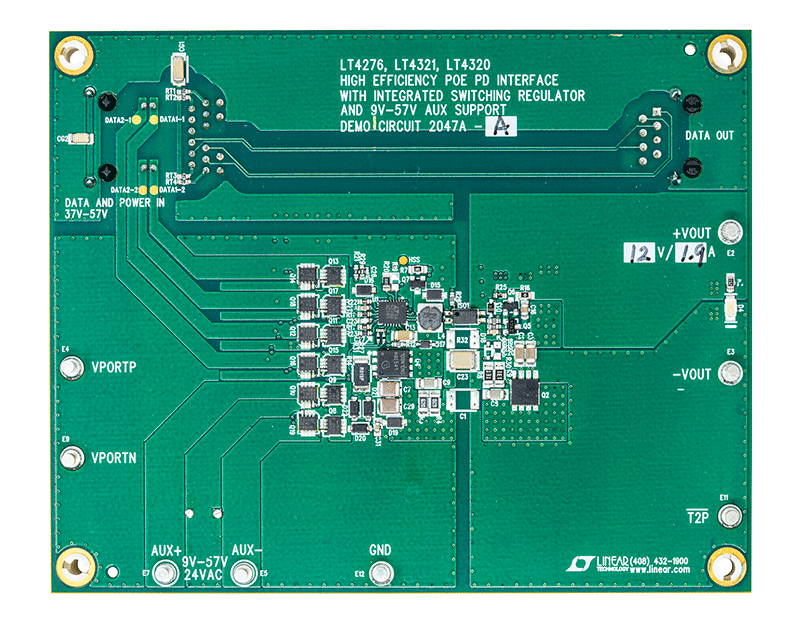

演示电路2047A-A是一款兼容IEEE802.3at的以太网供电(PoE)受电设备(PD)，支持9-57VDC和24VAC辅助电源输入。它内置LT4276 PD接口和开关稳压器控制器、LT4321 PoE理想二极管电桥控制器和LT4320理想二极管电桥控制器。

资料

DC2047A-A - Demo Manual
2016/12/13

DC2047A-A - Schematic
2016/12/13

DC2047A-A - Design Files
2016/12/13

LT4320IDD-1 3-Phase Ideal Diode Bridge Rectifier [9VAC to 48VAC L-L, 25A]

立即购买更多内容

产品详情

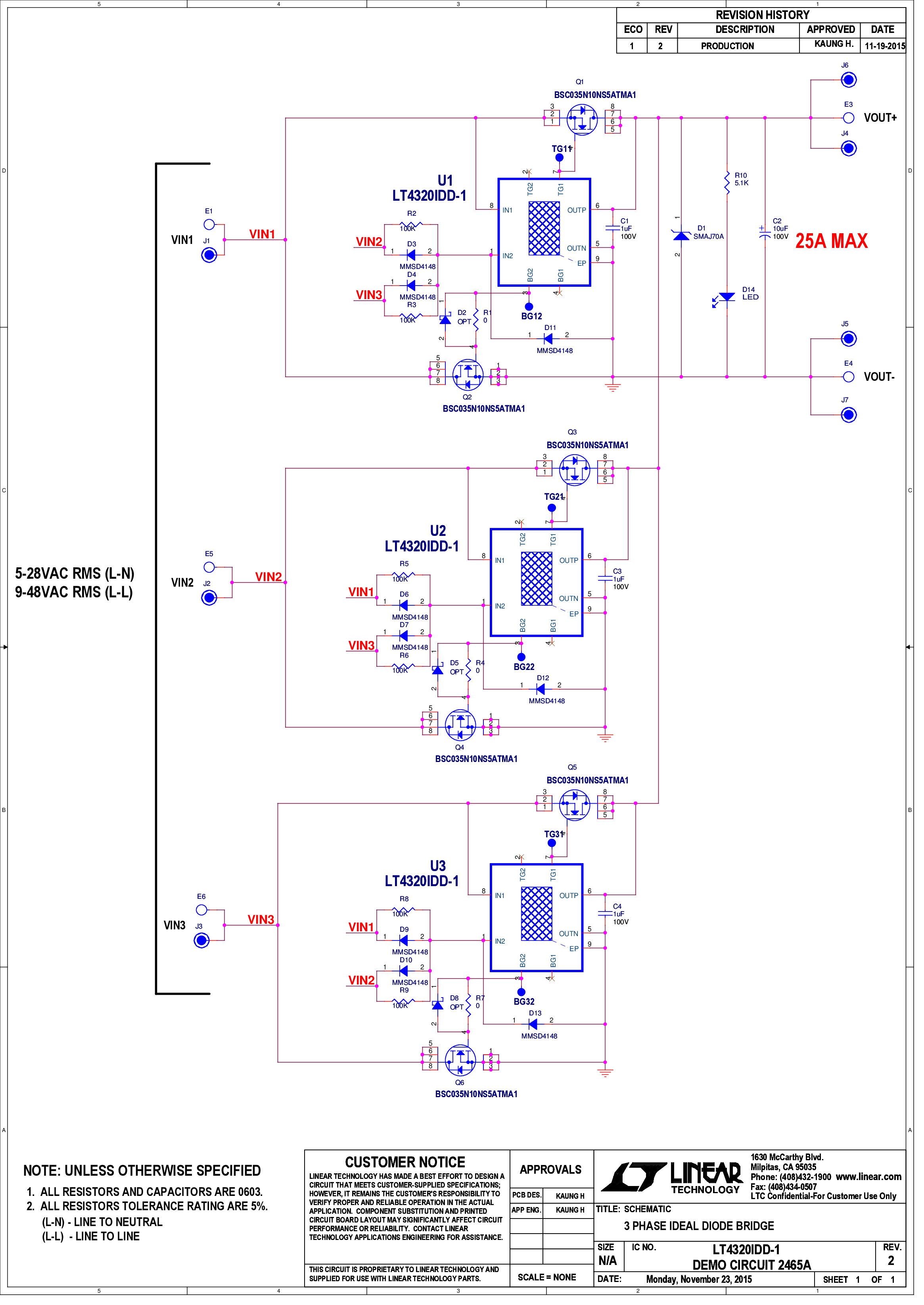

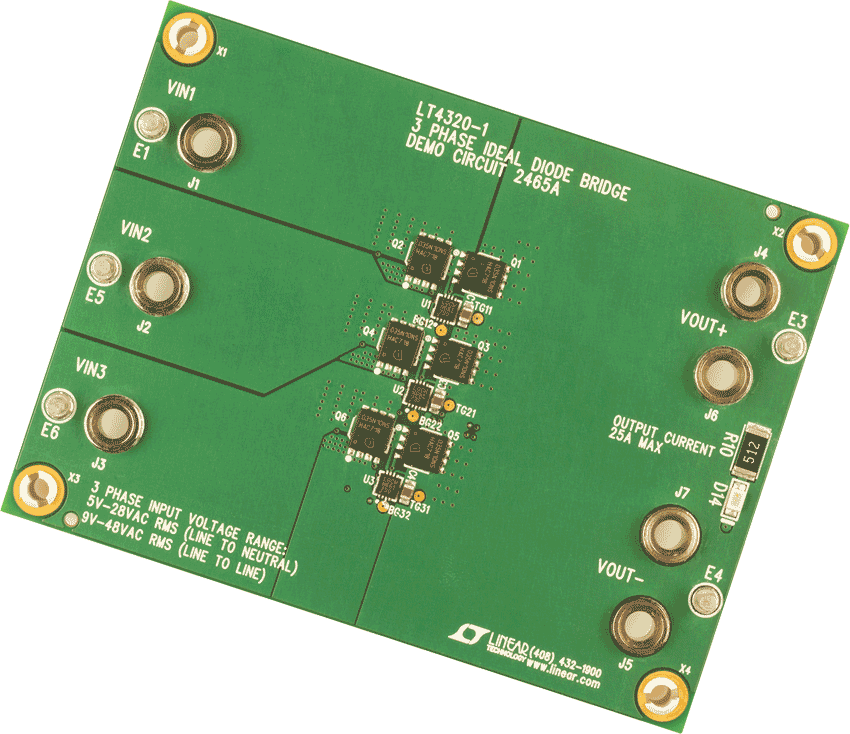

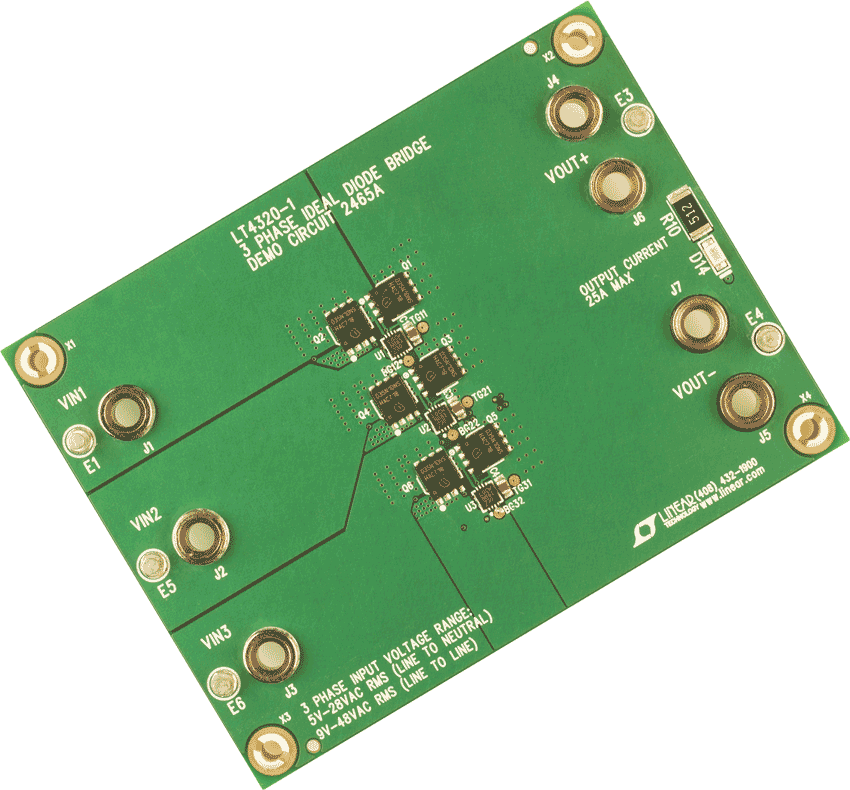

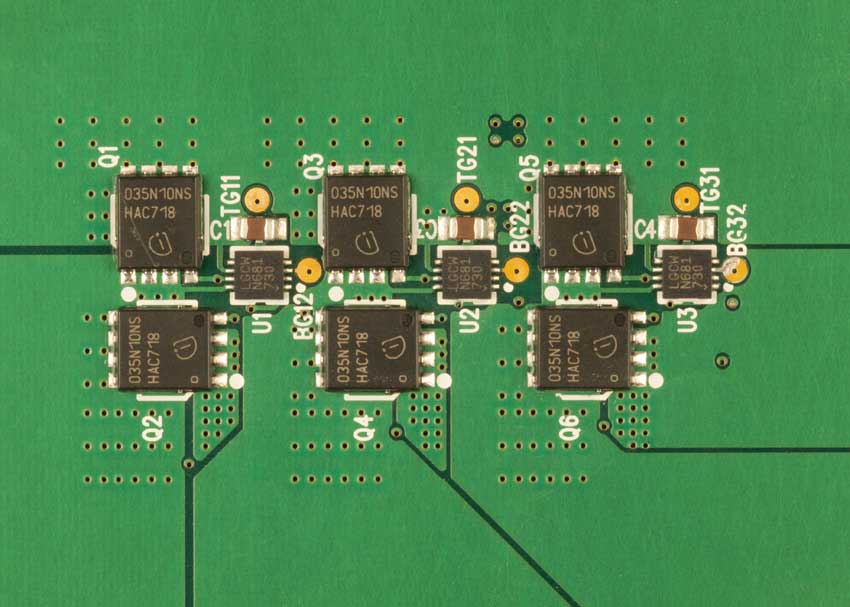

Demonstration circuit 2465A is a 3-phase ideal diode bridge using three LT4320 controllers and six N-channel FETs. This demo board provides highly efficient 3-phase rectification with an input voltage range from 5VAC to 28VAC RMS (line to neutral) and maximum load current of 25A.

资料

DC2465A - Schematic
2016/4/8

DC2465A - Demo Manual
2016/4/8

DC2465A - Design Files
2016/4/8
