ADPM12200

推荐用于新设计

2000W, Nonisolated Quarter-Brick DC-DC Power Module

数据手册 (Rev. 0) 产品选型表
产品技术资料帮助

ADI公司所提供的资料均视为准确、可靠。但本公司不为用户在应用过程中侵犯任何专利权或第三方权利承担任何责任。技术指标的修改不再另行通知。本公司既没有含蓄的允许，也不允许借用ADI公司的专利或专利权的名义。本文出现的商标和注册商标所有权分别属于相应的公司。
Viewing:

概述

  • Electrical
    • 40V to 60V Input Voltage Range
    • 12V Fully Regulated Output Voltage
    • Thermal Design Power up to 2000W
    • Peak Power up to 3000W
    • Peak Efficiency up to 98% at Half Load
    • Fully Protected: Input UVLO and OVLO, InputOCP, Output OVP, Output OCP and SCP, OTP
    • No Minimum Load Required
    • Fast Load-Transient Response with CoupledInductor
    • Optional Logic for Remote ON/OFF (REM)
    • PMBus™ Configuration
    • Event Data Recorder (Black Box)
    • Parallel Operation with Active Current Sharing
    • Nonisolated
  • Mechanical
    • Industry-Standard Quarter-Brick Footprint:58.4mm × 36.8mm × 15.1mm (2.30in × 1.45in ×0.59in)
    • Optional Pin Length: 2.79mm, 3.70mm, or4.32mm
  • Safety and Certification
    • IEC/UL/EN/CSA 62368-1
    • Compliance with RoHS EU Directive 2011/65/EUand (EU) 2015/863
    • Certified Manufacturing Facility: ISO 9001,TL 9000, ISO 14001, ISO 45001

The ADPM12200 is a high-power, quarter-brick DC-DC converter that provides up to 98% efficiency at half load.

The ADPM12200 is a nonisolated converter that delivers a fully regulated 12V output with a continuous power level of 2000W and a peak power capability of up to 3000W for limited time.

APPLICATIONS

  • Distributed Power Architectures
  • Wireless Networks
  • Access and Optical Network Equipment
  • Enterprise Networks
  • Latest-Generation ICs (DSP, FPGA, and ASIC)and Microprocessor-Powered Applications
ADPM12200
2000W, Nonisolated Quarter-Brick DC-DC Power Module
ADPM12200 Module Photo
添加至 myAnalog

将产品添加到myAnalog 的现有项目或新项目中（接收通知）。

创建新项目
提问

参考资料

数据手册 1

用户手册 1

了解更多
添加至 myAnalog

Add media to the Resources section of myAnalog, to an existing project or to a new project.

创建新项目

软件资源

找不到您所需的软件或驱动?

申请驱动/软件

评估套件

eval board
schematic 1
schematic 2
schematic 3
EVAL-ADPM12200

Evaluating the ADPM12200 Nonisolated Quarter-Brick DC-DC Power Module

立即购买 更多内容

特性和优点

  • 40V to 60V Input Voltage Range
  • 12V Output Voltage
  • ADPM12200CMLZCH Installed by Default
  • Active-High Logic
  • Supports One Module or Two, Three, or Four Modulesin Parallel Operation
  • -40°C to +85°C Temperature Range
  • High-Current PCB Lugs for Input and Output Voltage Connection
  • Current-Sense Resistors for Input and Output Current Monitoring
  • PMBus Interface
  • Fully Assembled and Tested

产品详情

The EVAL-ADPM12200 evaluation (EV) board is a proven design that evaluates the ADPM12200 2000W, nonisolated quarter-brick DC-DC power module with a PMBus digital interface. The EV board comes with the ADPM12200CMLZCH installed as the default.

The EV board is designed to evaluate the performance of an ADPM12200 module or two, three, or four ADPM12200 modules in parallel operation.

The EV board operates over a 40V to 60V input voltage range and supports a 12V output voltage.

The MAX34451 16-channel V/I monitor is used as the PMBus controller for voltage and current telemetry in the ADPM12200 module. The MAX34451 EV kit and its Windows®-based graphical user interface (GUI) software are used for the communication between the EVAL-ADPM12200 board and PC.
EVAL-ADPM12200
Evaluating the ADPM12200 Nonisolated Quarter-Brick DC-DC Power Module

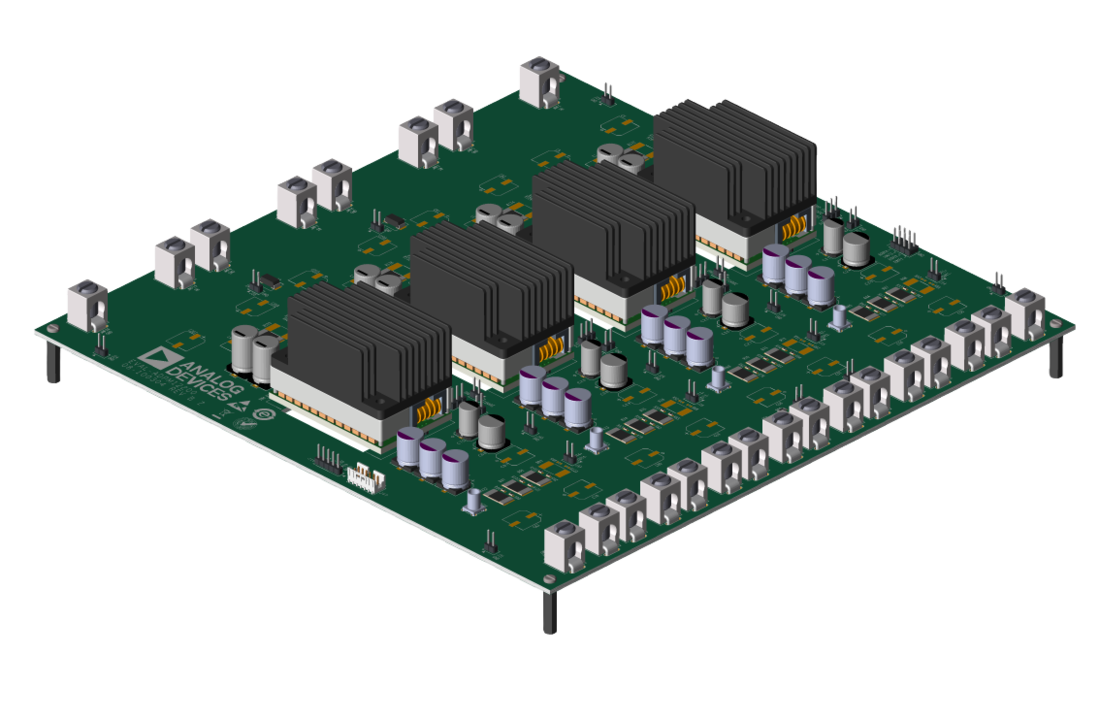

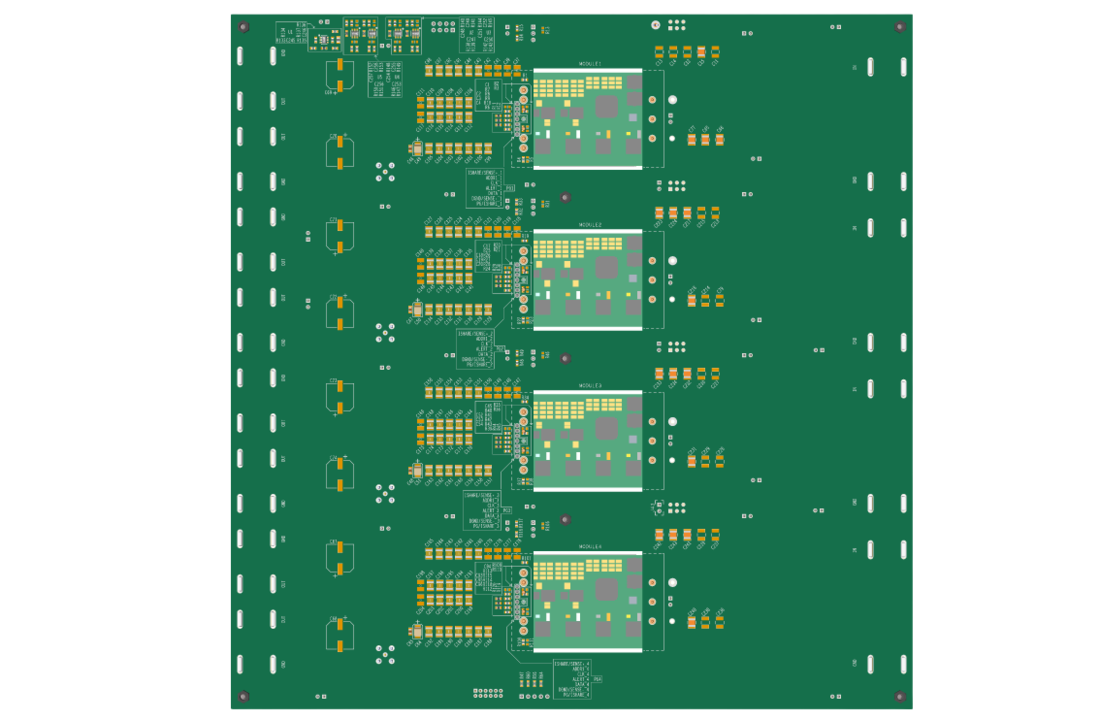

EVAL ADPM12200 Evaluation Board Angle View EVAL ADPM12200 Evaluation Board Top View EVAL ADPM12200 Evaluation Board Bottom View
