1.2MHz/2.2MHz Inverting DC/DC Converters in ThinSOT

数据手册 (Rev. 1) 产品选型表
产品技术资料帮助

ADI公司所提供的资料均视为准确、可靠。但本公司不为用户在应用过程中侵犯任何专利权或第三方权利承担任何责任。技术指标的修改不再另行通知。本公司既没有含蓄的允许，也不允许借用ADI公司的专利或专利权的名义。本文出现的商标和注册商标所有权分别属于相应的公司。
Viewing:

概述

  • Fixed Frequency 1.2MHz/2.2MHz Operation
  • Very Low Noise: 1mVP-P Output Ripple
  • –5V at 350mA from 5V Input
  • –12V at 150mA from 5V Input
  • Uses Small Surface Mount Components
  • Wide Input Range: 2.6V to 16V
  • Low Shutdown Current: 2μA (max)
  • Low VCESAT Switch: 400mV at 1A
  • Low Profile (1mm) ThinSOTTM Package

The ADPL31610A/ADPL31610B are the industry’s highest power inverting SOT-23 current mode DC/DC converters. Both parts include a 1A integrated switch allowing high current outputs to be generated in a small footprint. The ADPL31610A switches at 1.2MHz, while the ADPL31610B switches at 2.2MHz. These high speeds enable the use of tiny, low-cost capacitors and inductors. The ADPL31610A is capable of generating –5V at 350mA or –12V at 150mA from a 5V supply, while the ADPL31610B can generate –5V at 300mA using significantly smaller inductors.

The ADPL31610A/ADPL31610B operate in a dual inductor inverting topology that filters both the input side and output side current. Very low output voltage ripple approaching 1mVP-P can be achieved when ceramic output capacitors are used. Fixed frequency switching ensures a clean output free from low frequency noise typically present with charge pump solutions. The low impedance output remains within 1% of nominal during large load steps. The 34V switch allows VIN to VOUT differential of up to 32V.

The ADPL31610A/ADPL31610B are available in the 5- lead ThinSOT package.

APPLICATIONS

  • Disk Drive MR Head Bias
  • Digital Camera CCD Bias
  • LCD Bias
  • GaAs FET Bias
  • Local Low Noise/Low Impedance Negative Supply
ADPL31610
1.2MHz/2.2MHz Inverting DC/DC Converters in ThinSOT
ADPL31610A Typical Application ADPL31610A-B Efficiency ADPL31610A-B Pin Configuration ADPL31610 Chip Illustration
添加至 myAnalog

将产品添加到myAnalog 的现有项目或新项目中（接收通知）。

创建新项目
提问

参考资料

数据手册 1

用户手册 1

了解更多
添加至 myAnalog

Add media to the Resources section of myAnalog, to an existing project or to a new project.

创建新项目

软件资源

找不到您所需的软件或驱动?

申请驱动/软件

评估套件

eval board
schematic 1
schematic 2
schematic 3
EVAL-ADPL31610-AZ

Evaluates: ADPL31610A and ADPL31610B in a -12V Output Voltage Application

立即购买 更多内容

特性和优点

  • ADPL31610A: VOUT = -12V, IOUT = 150mA at VIN = 5V
  • ADPL31610B: VOUT = -12V, IOUT = 120mA at VIN = 5V
  • Resistor Programmable Output Voltage
  • Features a Current-Limited, Fixed Off-Time Control Scheme
  • Internal Compensation and Soft-Start
  • Proven PCB Layout
  • Fully Assembled and Tested

产品详情

The EVAL-ADPL31610-AZ evaluation board provides proven designs to evaluate the performance of the ADPL31610A and ADPL31610B, inverting DC/DC converters in ThinSOT.

The ADPL31610A/B include a 1A integrated switch allowing high current outputs to be generated in a small footprint. The ADPL31610A switches at 1.2MHz while the ADPL31610B switches at 2.2MHz. These high switching frequencies enable the use of small, low-cost capacitors and inductors.

The EVAL-ADPL31610-AZ evaluation board features two application circuits with ADPL31610A and ADPL31610B. Both are configured to a -12V output voltage, operating within a nominal input voltage of 5V. The ADPL31610A application circuit can deliver up to 150mA at VIN = 5V and ADPL31610B application circuit can deliver up to 120mA at VIN = 5V.

The ADPL31610 data sheet must be read in conjunction with this user guide to properly use or modify the evaluation board.
EVAL-ADPL31610-AZ
Evaluates: ADPL31610A and ADPL31610B in a -12V Output Voltage Application

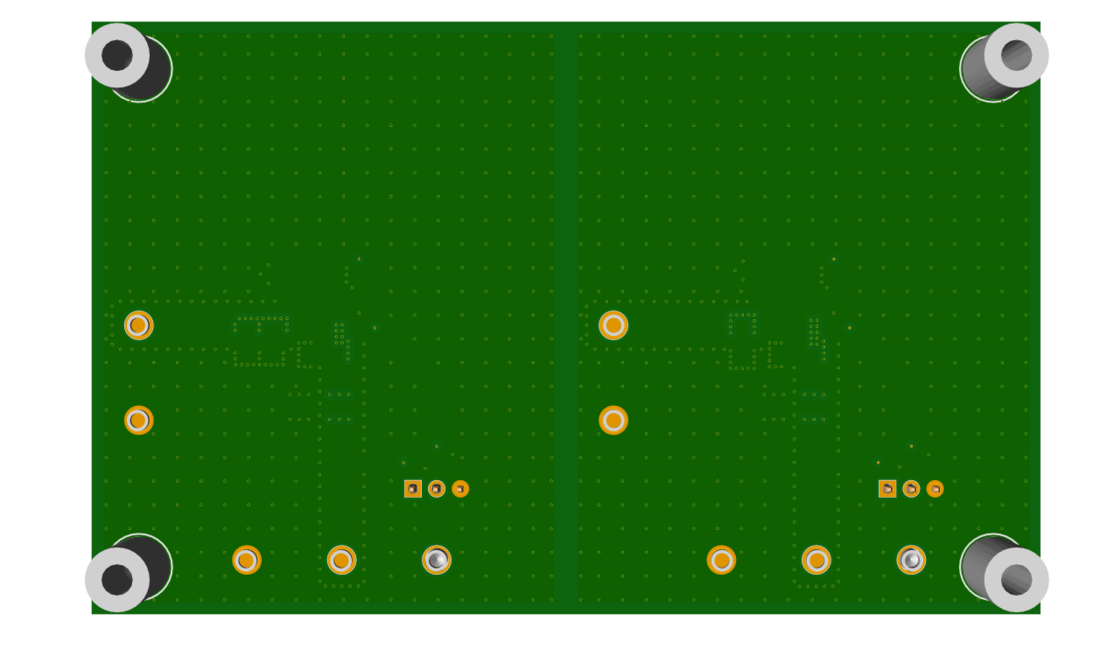

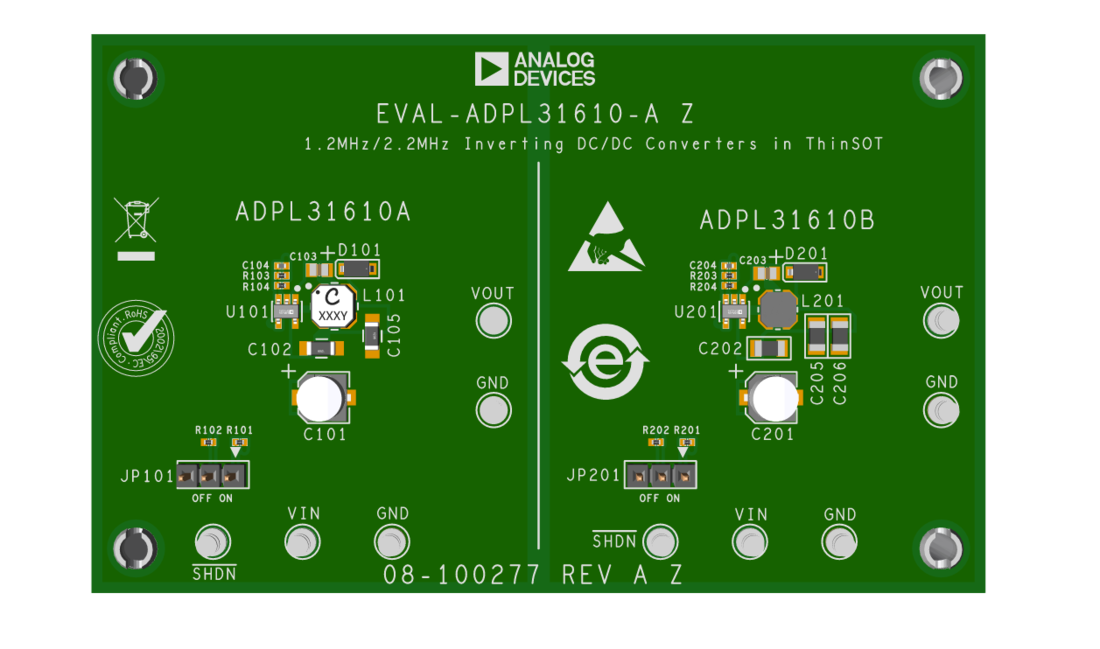

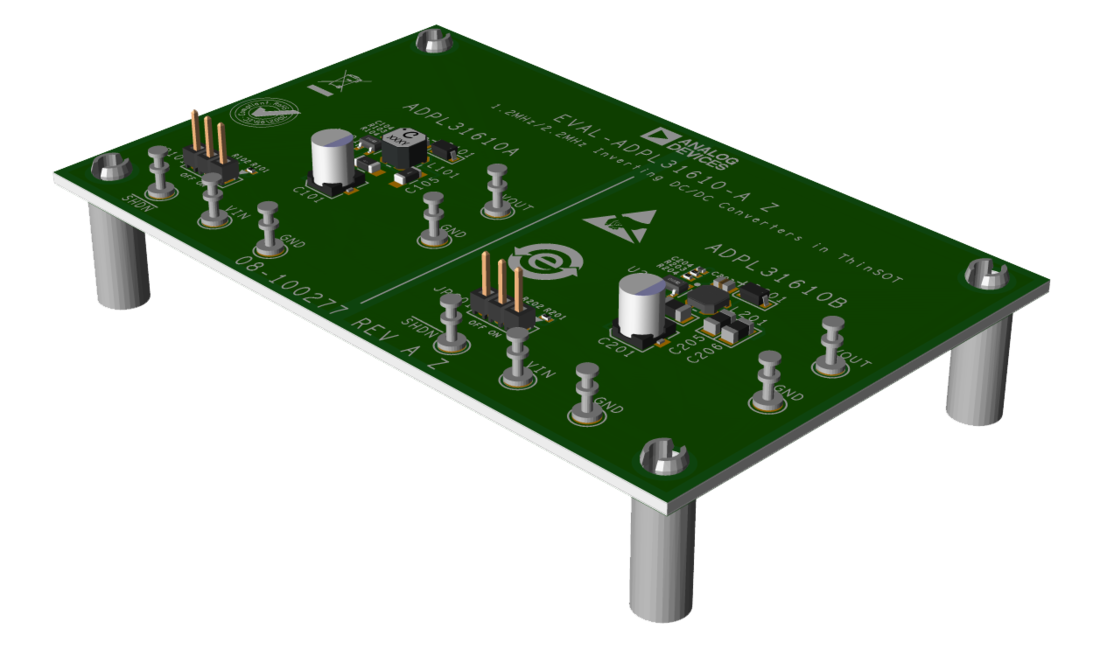

EVAL-ADPL31610-AZ Evaluation Board Angle View EVAL-ADPL31610-AZ Evaluation Board Top View EVAL-ADPL31610-AZ Evaluation Board Bottom View
