ADIN6310

推荐新设计使用

6-port Industrial Ethernet Time Sensitive Networking Switch

数据手册 (Rev. 0) 产品选型表
产品模型
4
产品技术资料帮助

ADI公司所提供的资料均视为准确、可靠。但本公司不为用户在应用过程中侵犯任何专利权或第三方权利承担任何责任。技术指标的修改不再另行通知。本公司既没有含蓄的允许，也不允许借用ADI公司的专利或专利权的名义。本文出现的商标和注册商标所有权分别属于相应的公司。
Viewing:

产品详情

  • Ethernet MAC interfaces: 10 Mb, 100 Mb or 1 Gb per port
    • 6-port: 4x RMII/RGMII/SGMII and 2x RMII/RGMII
    • SGMII, 1000BASE-SX/1000BASE-LX/1000BASE-KX, and 100BASE-FX
  • Low Latency Layer 2 Ethernet switch
    • Deterministic latency from port to port
    • Cut-through or store and forward operation
    • Traffic types and bridge delay per IEEE/IEC 60802
    • Standard bridging per IEEE 802.1Q-2018 (tailored)
    • Each port is nonblocking and Independent
    • 32 kB frame buffer per transmit port
    • 4096 VLANs
  • Time synchronization
    • IEEE 802.1AS-2020
    • IEEE 1588-2019 default profile
    • IEEE C37.238-2017 energy profile
    • 8 ns timestamp resolution
    • Frames timestamped on ingress or egress
  • IEEE 802.1Q time sensitive networking bridging
    • Qbv: enhancements for scheduled traffic
    • Qci: per stream filtering and policing
    • Qbu: frame preemption
    • Qch: cyclic queuing and forwarding
    • Qav: forwarding and queuing enhancements
    • Qcc: stream reservation protocol enhancements
    • Number of streams
      • 16000 TSN Layer 2 streams
      • 256 extended lookup streams (IPV4, IPV6, PCP, and so on)
  • SendList control
  • High availability and redundancy
    • IEEE 802.1CB Frame Replication and Elimination for Reliability
    • IEC62439-3:2016-03 HSR-/PRP-Compliant Protocol for Seamless Failover
    • IEC62439-3-2021-12 Media Redundancy Protocol
  • Custom Layer 2 on two ports for PROFINET IRT, EtherNet/IP beacon-based DLR, POWERLINK (100 Mbps)
  • Packet assist engine offloads host and manages TSN and switch features
  • Portable C drivers for TSN and industrial Ethernet protocols
  • NETCONF support (driver to Sysrepo translation layer)
  • Hardware root of trust based security features
    • Secure boot, secure update with antirollback
    • Hardware-based cryptography
    • Secure host pairing Protocol
    • Cryptographic authenticity checking
  • Interfaces to external host processor
    • RMII, RGMII, or SGMII
    • SPI, dual SPI, or Quad SPI
  • Power
    • 3 external power supplies: 1.1 V, 3.3 V, and VDDIO_x (1.8 V, 2.5 V, or 3.3 V)
    • Total chip power 60 mW per port at 1 Gbps, full utilization with VDDIO_B = 1.8 V
  • Package and temperature range
    • 256-ball CSP_BGA, 14 mm × 14 mm, 0.8 mm pitch
    • Fully specified for −40°C to +85 and −40°C to 105°C ambient operation
ADIN6310

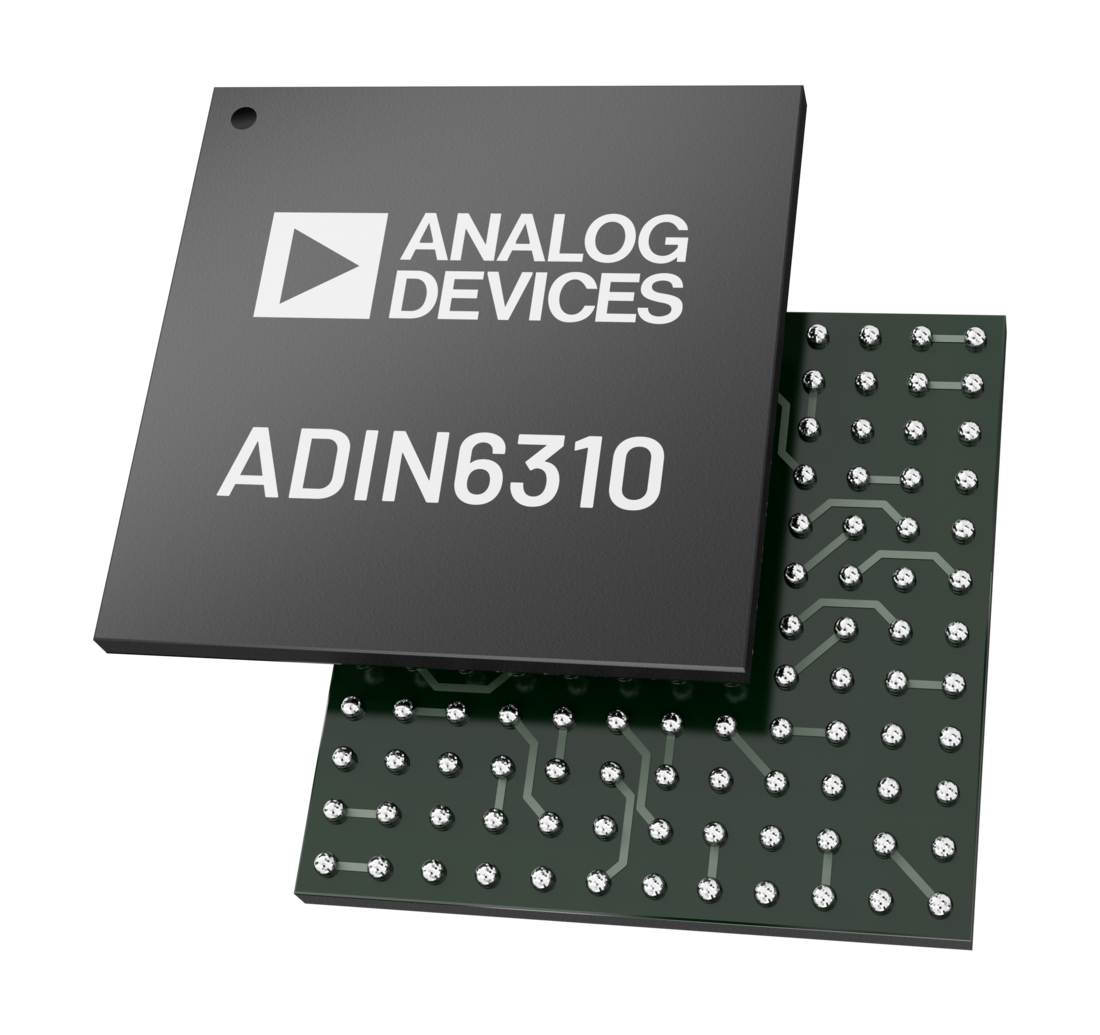

ADIN6310 Chip ADIN6310 Functional Block Diagram ADIN6310 Pin Configuration
添加至 myAnalog

将产品添加到myAnalog 的现有项目或新项目中（接收通知）。

创建新项目
提问

参考资料

数据手册 1

用户手册 3

常见问题 1

了解更多
添加至 myAnalog

将产品添加到myAnalog 的现有项目或新项目中（接收通知）。

创建新项目

软件资源

Evaluation Software 2

硬件生态系统

部分模型 产品周期 描述
µModule降压稳压器 2
LTM4668A
推荐新设计使用 具有可配置 1.2A 输出阵列的四通道 DC/DC µModule 稳压器
LTM4668
推荐新设计使用 具有可配置1.2A输出阵列的四通道DC/DC µModule稳压器
按钮控制器 1
MAX6818
量产 ±15kV ESD保护、单/双/八通道、CMOS开关去抖器
工业以太网物理层设备 3
ADIN1100
推荐新设计使用 稳健型、低功耗10BASE-T1L工业以太网PHY
ADIN1200
推荐新设计使用 可靠的工业低功耗 10 Mbps 和 100 Mbps 以太网 PHY
ADIN1300
推荐新设计使用 鲁棒的工业、低延迟和低功耗10 Mbps、100 Mbps和1 Gbps以太网PHY
内部电源开关降压稳压器 2
MAX20075
量产 36V、600mA/1.2A、微型Buck转换器，3.5µA IQ
MAX20029
量产 汽车应用、4/3/4通道、低压、降压型DC-DC转换器
正线性稳压器(LDO) 1
ADP7102
推荐新设计使用 20 V、300 mA低噪声CMOS LDO
Modal heading
添加至 myAnalog

将产品添加到myAnalog 的现有项目或新项目中（接收通知）。

创建新项目

工具及仿真模型

BSDL 模型文件 1

IBIS 模型 2

评估套件

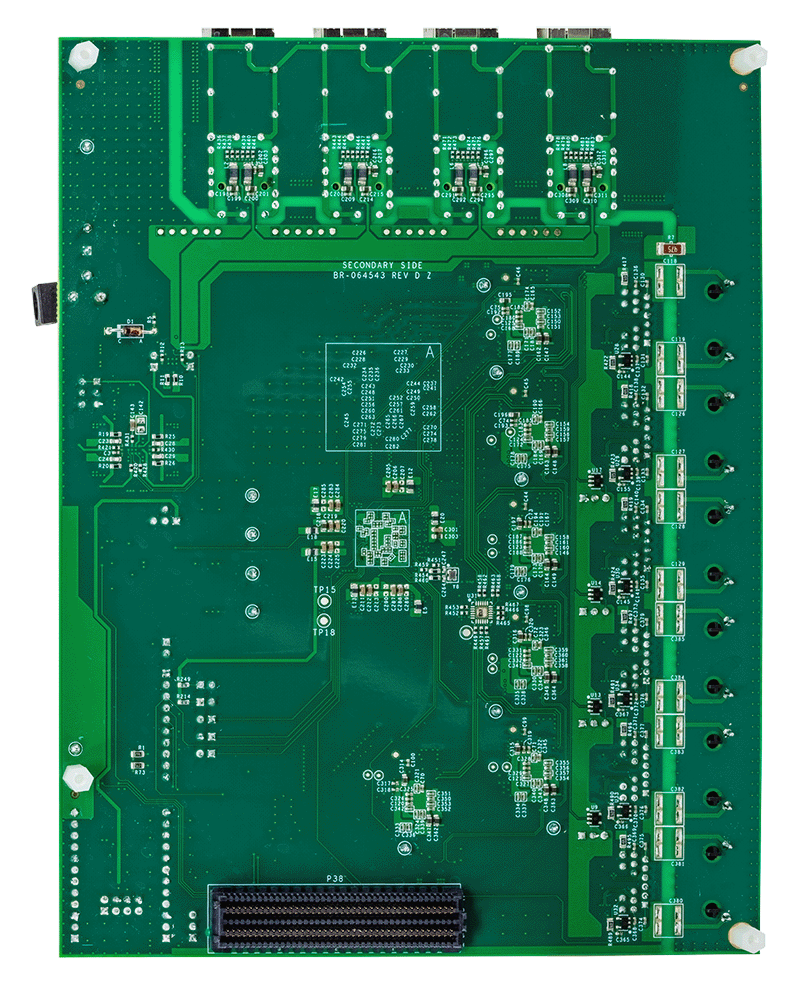

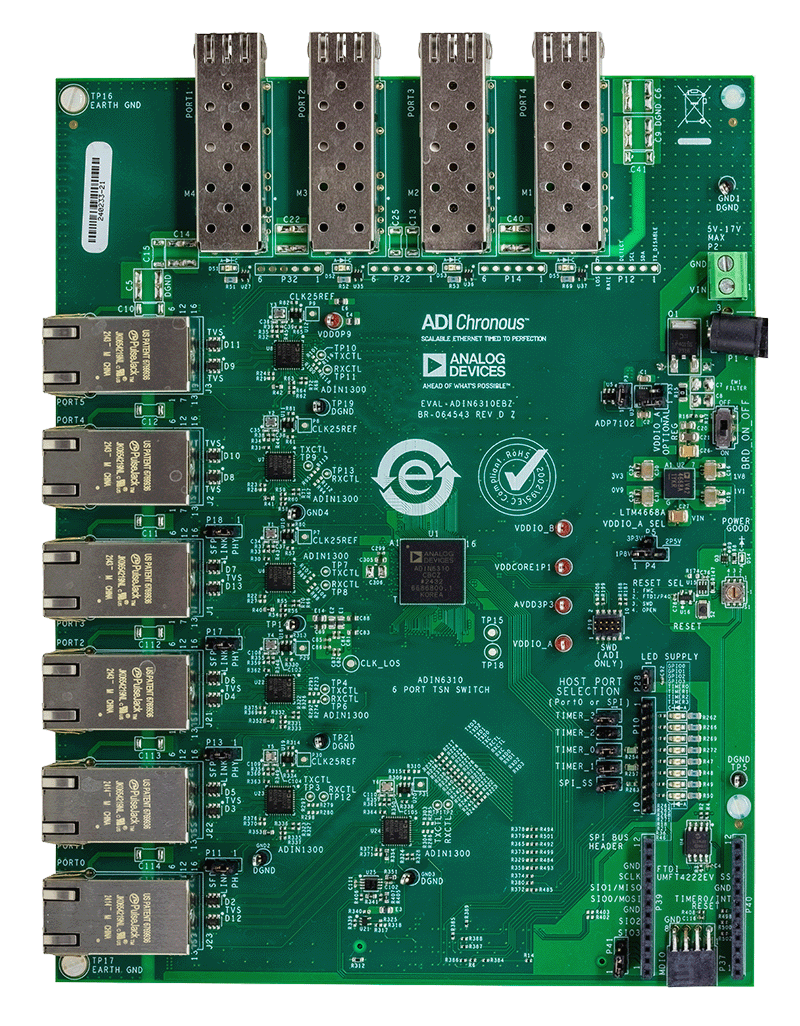

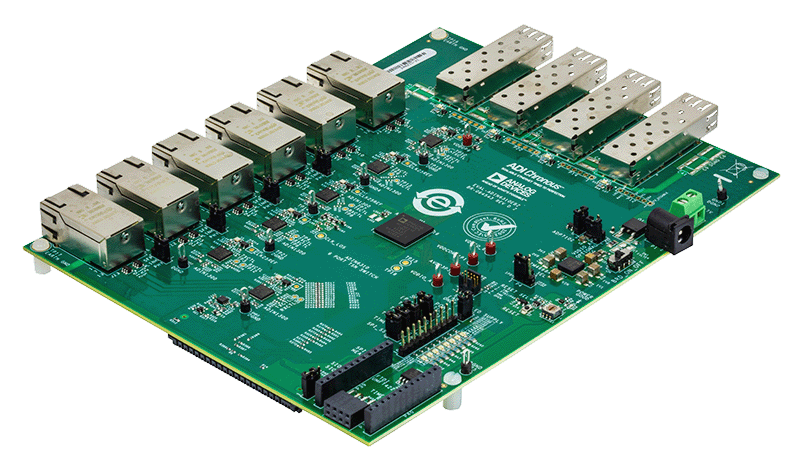

eval board
schematic 1
schematic 2
schematic 3
EVAL-ADIN6310

ADIN6310 Hardware and TSN Switch Evaluation User Guide

立即购买 更多内容

特性和优点

  • 6 port TSN switch with RGMII or SGMII interface
    • 6 RGMII ports to 10 Mbps/100 Mbps/1000 Mbps ADIN1300 PHYs
    • RJ45 with integrated magnetics
    • 4 SGMII ports connected to on board SFP cages
  • Host interface hardware strapping with jumpers, choice of
    • S/D/Q SPI interface
    • Ethernet port through RJ45 (Port 0)
  • FMC (LPC) connector
    • Host port access through S/D/Q SPI interface or Port 0
  • PHY Strapping through surface-mount configuration resistors
    • Default state is software power down from Port 1 to Port 5
    • Switch firmware manages PHY operation over MDIO
  • Operates from a single, external 9 V to 17 V supply
  • LED indicators on GPIO pins
  • IEEE 802.1AS Time Synchronization
  • Scheduled traffic (IEEE 802.1Qbv)
  • Frame preemption (IEEE 802.1Qbu)
  • Frame replication and elimination for reliability (IEEE 802.1CB)
  • Per stream filtering and policing (IEEE 802.1Qci)
    • HSR - High availability seamless redundancy
    • PRP - Parallel redundancy protocol
    • MRP - Media Redundancy protocol
  • VLAN table control (remapping, reprioritization)
  • IGMP snooping
  • GPIO/Timer control

产品详情

The EVAL-ADIN6310EBZ is a flexible platform, which enables an efficient evaluation of the ADIN6310 industrial Ethernet Switch with time sensitive networking (TSN) capability. This user guide describes the hardware kit and software evaluation package (TSN Switch Evaluation application). It discusses how to use the kit to interface to one or more Switches to configure the Switch, TSN, or redundancy features to meet the requirements of an industrial network.

The TSN Switch Evaluation application enables the initial evaluation of the Switch and its functionality, which further enables the users to familiarize themselves with the Switch capability in advance of migrating to the driver library. Simply connect a PC through Ethernet port to Port 0 on the evaluation board and run the application. The TSN Switch Evaluation application can identify and allow configuration of a chain of up to 10 ADIN6310 devices. The application launches a PC-based web server and NETCONF server for each Switch device it finds. A user can interact with the web server to configure the Switch functionality or load YANG configurations from a NETCONF client. Once configuration completes, the user applications can communicate with other devices over the TSN network.

Figure 1 shows an overview of the evaluation board. Full specifications on the ADIN6310 are available in the ADIN6310 data sheet available from Analog Devices, Inc., and must be consulted with this user guide and hardware reference manual when using the EVAL-ADIN6310EBZ evaluation board.

eval board
schematic 4
schematic 5
schematic 6
EVAL-ADIN6310T1LEBZ

ADIN6310 Field Switch Reference Design User Guide

立即购买 更多内容

特性和优点

  • 6 port Ethernet switch ADIN6310
    • 2Gb trunk ports; SGMII by SMA or ADIN1300 by RGMII
    • 4 spur 10BASE-T1L ports, ADIN1100 by RGMII
  • IEEE 802.3cg-compliant SPoE PSE controller, LTC4296-1
    • Power Class 12
    • Power classification by SCCP (not enabled)
  • Arm® Cortex®-M4 microcontroller, MAX32690
    • External flash and RAM
  • Zephyr open source software project
  • Unmanaged mode with basic switch and PSE power
    • VLAN IDs 1-10 enabled on all ports
    • Power coupled to 10BASE-T1L cable for all spur ports
    • DIP switch options to enable other features (Time Sync, LLDP, IGMP Snooping)
  • Managed mode using switch evaluation package TSN/Redundancy evaluations
  • Time sensitive networking (TSN) capable
    • Scheduled traffic (IEEE 802.1Qbv)
    • Frame preemption (IEEE 802.1Qbu)
    • Per stream filtering and policing (IEEE 802.1Qci)
    • Frame replication and elimination for reliability (IEEE 802.1CB)
  • IEEE 802.1AS 2020 time synchronization
  • Redundancy capabilities
    • High availability seamless redundancy (HSR)
    • Parallel redundancy protocol (PRP)
    • Media redundancy protocol (MRP)
  • Host interface hardware strapping with jumpers, choice of
    • Single/Dual/Quad SPI interface
    • 10Mbps/100Mbps/1000Mbps Ethernet port (Port 2/Port 3)
    • SGMII/100BASE-FX/1000BASE-KX
    • Header for direct SPI access (Single/Dual/Quad)
  • Scale port count by cascading by RJ45 or SGMII/1000BASE-KX/ 100BASE-FX
  • PHY strapping by surface-mount configuration resistors
    • Default state is software power down for spur Ports
  • Switch firmware manages PHY operation over MDIO
  • Operates from a single, external 9V to 30V supply
  • LED indicators on GPIO, TIMER pins

产品详情

This user guide describes the ADIN6310 Field switch evaluation board with support for four 10BASE-T1L spur ports and two standard Gigabit capable Ethernet trunk ports. The hardware includes single-pair power over Ethernet (SPoE) LTC4296-1 circuit with optional serial communication classification protocol (SCCP) support. The default operation of the hardware is an unmanaged mode where the MAX32690 Arm Cortex-M4 microcontroller configures the switch into a basic switching mode and the PSE configured for Class 12 operation. Enhance the unmanaged switch operation by the DIP switch (S4), which provides ability to enable features such as time synchronization, LLDP, or IGMP snooping by default. Disable the PSE by using the DIP switch, default is enabled.

For more extensive switch evaluation, refer to the TSN switch evaluation package available from the ADIN6310 product page. This evaluation package provides ability to exercise the TSN functionality in addition to Redundancy features.
EVAL-ADIN6310
ADIN6310 Hardware and TSN Switch Evaluation User Guide
EVAL-ADIN6310T1LEBZ Board Photo Angle View EVAL-ADIN6310T1LEBZ Board Photo Top View EVAL-ADIN6310T1LEBZ Board Photo Bottom View
EVAL-ADIN6310T1LEBZ
ADIN6310 Field Switch Reference Design User Guide
EVAL-ADIN6310T1LEBZ Evaluation Board Photo Angle View EVAL-ADIN6310T1LEBZ Evaluation Board Photo Top View EVAL-ADIN6310T1LEBZ Evaluation Board Photo Bottom View
