ADIN1300

鲁棒的工业、低延迟和低功耗10 Mbps、100 Mbps和1 Gbps以太网PHY

更多 showmore-icon

Info : 推荐新设计使用 tooltip
Info : 推荐新设计使用 tooltip
产品详情
特性
  • 10BASE-Te/100BASE-TX/1000BASE-T IEEE 802.3兼容
  • MII、RMII和RGMII MAC接口
  • 1000BASE-T RGMII延迟发射<68 ns,接收<226 ns
  • 100BASE-TX MII延迟发射<52 ns,接收<248 ns
  • 可编程RGMII时序延迟和驱动电流
  • 支持TSN
  • EMC测试标准
    • IEC 61000-4-5浪涌(±4 kV)
    • IEC 61000-4-4电快速瞬变(EFT) (±4 kV)
    • IEC 61000-4-2 ESD(±6 kV接触放电)
    • IEC 61000-4-6传导抗扰度(10 V)
    • EN55032电磁辐射骚扰(A类)
    • EN55032传导发射(A类)
  • 使用多电平引脚绑定的非托管配置
  • MDIO/MDC管理接口和中断引脚
  • EEE符合IEEE 802.3az标准
  • 支持IEEE 1588时间戳数据包起始检测
  • 增强型链路检测
  • 电压模式MDI驱动器,无需端接电阻
  • RJ45 MDI翻转能力
  • 自动极性和线对交换校正
  • 电缆诊断(TDR和信号分析)
  • 帧生成器和检查器,多种环回模式
  • 可配置LED
  • 晶振频率/25 MHz时钟输入频率(RMII为50 MHz)
  • 25 MHz/125 MHz同步时钟输出
  • 支持最高16 kB的超长帧
  • 小型封装和宽温度范围
    • 40引脚、6 mm x 6 mm LFCSP封装
    • 额定工作温度范围:-40°C至+105℃
  • 低功耗
    • 330 mW(对于1000BASE-T)
    • 140 mW(对于100BASE-TX)
    • MAC接口VDDIO电源电压:3.3 V/2.5 V/1.8 V
    • 集成电源监控和POR
更多细节
show more Icon

ADIN1300是一款具有低延迟特性的低功耗、单端口、千兆以太网收发器,主要设计用于工业以太网应用。

此设计集成了高能效以太网(EEE)物理层器件(PHY)内核以及所有相关的通用模拟电路、输入和输出时钟缓冲、管理接口和子系统寄存器以及MAC接口和控制逻辑,以便管理复位和时钟控制以及引脚配置。

ADIN1300采用紧凑型6 mm × 6 mm、40引脚架构芯片级(LFCSP)封装。如果使用3.3 V MAC接口电源,该器件至少可使用2个电源(0.9 V和3.3 V)供电。为实现最大的系统级设计灵活性,可通过单独的VDDIO电源配置数据输入/输出(MDIO)管理和MAC接口电源电压,不用考虑ADIN1300上的另一个电路,允许在1.8 V、2.5 V或3.3 V下工作。上电时,ADIN1300保持在硬件复位状态,直至每个电源已超过其最小上升阈值。通过监视电源以检测一个或多个电源电压是否低于最小下降阈值(参见数据手册中的表19),并将器件保持在硬件复位状态直到电源恢复并满足上电复位(POR)电路要求,从而提供掉电保护。

MII管理接口(也称为MDIO接口)在主机处理器或MAC(也称为管理站(STA))和ADIN1300之间提供双线式串行接口,以便访问PHY内核管理寄存器中的控制和状态信息。该接口兼容IEEE 802.3标准第22条和第45条管理框架结构。

ADIN1300在千兆速度下支持150米电缆,在100 Mbps或10 Mbps速率下工作时支持180米电缆。

应用

  • 工业自动化
  • 过程控制
  • 工厂自动化
  • 机器人/运动控制
  • 时间敏感型网络(TSN)
  • 楼宇自动化
  • 测试与测量
  • 工业物联网(IoT)

产品技术资料帮助

close icon

ADI公司所提供的资料均视为准确、可靠。但本公司不为用户在应用过程中侵犯任何专利权或第三方权利承担任何责任。技术指标的修改不再另行通知。本公司既没有含蓄的允许,也不允许借用ADI公司的专利或专利权的名义。本文出现的商标和注册商标所有权分别属于相应的公司。

参考资料

参考资料

视频

产品型号 引脚/封装图-中文版 文档 CAD 符号,脚注和 3D模型
ADIN1300BCPZ
  • HTML
  • HTML
ADIN1300BCPZ-R7
  • HTML
  • HTML
ADIN1300CCPZ
  • HTML
  • HTML
ADIN1300CCPZ-R7
  • HTML
  • HTML

根据型号筛选

reset

重置过滤器

产品型号

产品生命周期

PCN

11月 10, 2022

- 22_0277

Qualification of an Alternate Adhesive Material and Molding Compound for Select LFCSP Packages

根据型号筛选

reset

重置过滤器

产品型号

产品生命周期

PCN

11月 10, 2022

- 22_0277

arrow down

Qualification of an Alternate Adhesive Material and Molding Compound for Select LFCSP Packages

评估套件

评估套件 3

reference details image

ADMV96S-WGBE-EK1

60 GHz Wireless Connector

zoom

ADMV96S-WGBE-EK1

60 GHz Wireless Connector

60 GHz Wireless Connector

特性和优点

  • Allows evaluation and prototyping of 60 GHz wireless data links to replace traditional mechanical connectors in moving joints
  • 1 Gbps Ethernet interface on both sides of the wireless data link
  • Fully programmable system allowing ultimate flexibility for custom developments
  • Open-source software stack for firmware development
  • Open-source GUI for system configuration, monitoring, and control

产品详情

The ADMV96S-WGBE-EK1 is a complete evaluation and prototyping system for 60 GHz wireless data links. It consists of a pair of receiver and transmitter boards with a 1Gbp Ethernet interface on each side of the wireless link.

The 60 GHz wireless link is implemented by the ADMV9615 and ADMV9525 modules. These are coupled with a SerDes device which translates the modules’ SGMII interface to RGMII so that it can be connected to an ADIN1300 industrial low latency and low power 1 Gbps Ethernet PHY. This enables each side of the wireless link to act as an Ethernet port and essentially create a seamless wire-like connection between two ends of an Ethernet cable.

The on-board MAX32650 ultralow power ARM® Cortex®-M4 microcontroller controls the system’s operation and implements the algorithms to configure the wireless link in real time so that optimal link quality is constantly maintained over temperature and various operating conditions. An open-source software stack is provided for firmware development as well as reference applications. The MAX32650 can be programmed through a programming port which can also be used for firmware debugging.

The two sides of the wireless link are mounted on an adjustable rail so that the system can be configured and tested for various distances between the links. Each side of the link is powered from an external 12 V power supply.

An open-source GUI is provided for system configuration, monitoring, and control from a host PC.

APPLICATIONS

  • 60 GHz wireless data links for industrial and medical high data rate applications
  • High speed data for rotating applications, such as slip rings and magnetic resonance imaging systems
  • Autonomous guided vehicles
  • Mechanical Connector replacement
reference details image

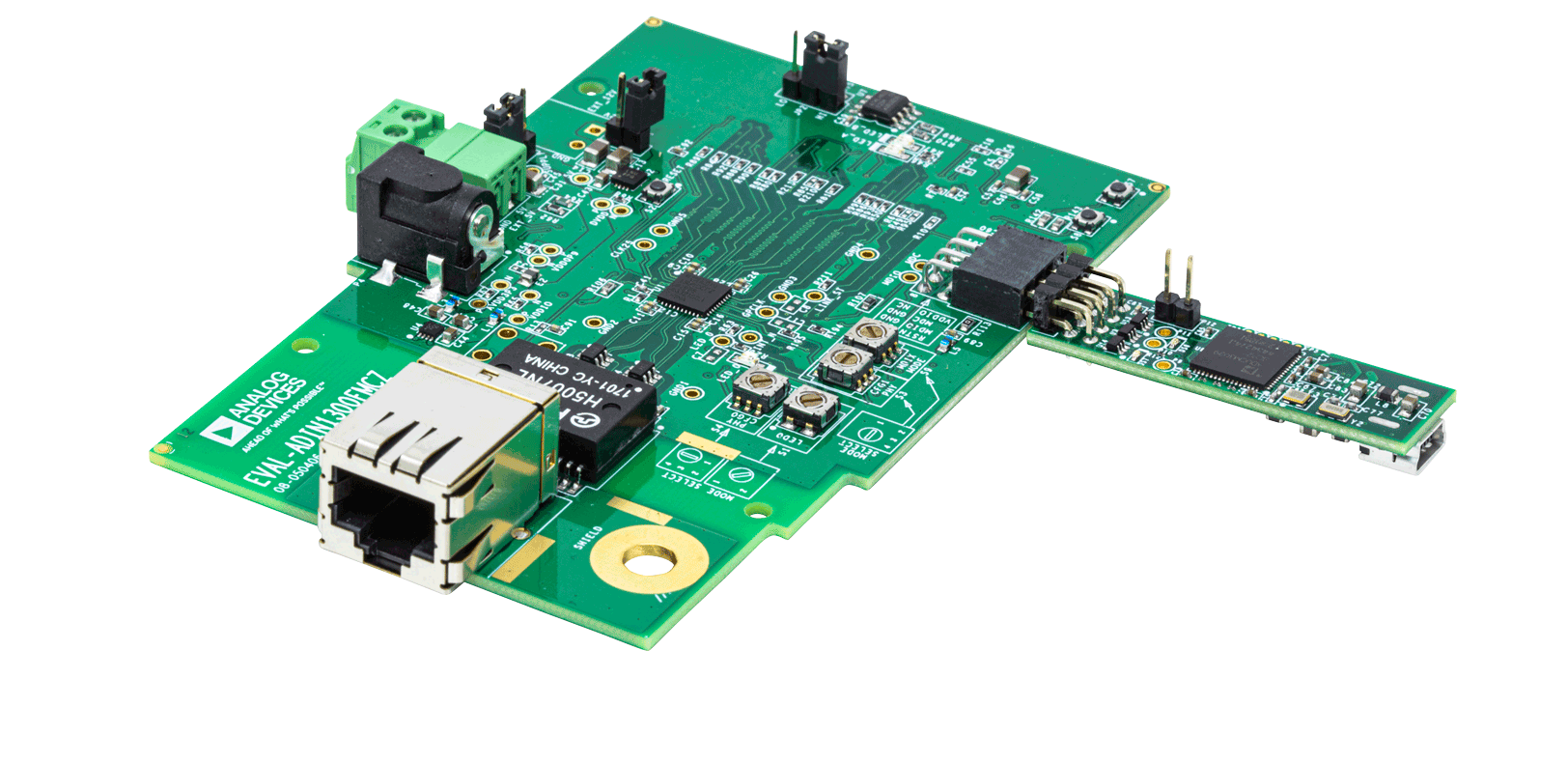

EVAL-ADIN1300

ADIN1300 评估板

zoom

EVAL-ADIN1300

ADIN1300 评估板

ADIN1300 评估板

特性和优点

  • 用于MII接口、MDIO信号和状态信号的FMC连接器
  • 可操作、表贴配置电阻和拨号盘式开关
  • 采用单个外部5 V电源供电

产品详情

EVAL-ADIN1300FMCZ允许对ADIN1200鲁棒、工业、低延迟10 Mbps100 Mbps1 Gbps以太网物理层(PHY)的关键特性进行简化评估。评估板通过单个外部5 V电源供电。所有芯片的电源都从这个5 V供电轨调节,为器件提供AVDD3P3VDD0P9VDDIO供电轨。

提供P3现场可编程门阵列(FPGA)夹层连接器(FMC)用于连接主FPGA系统,进行媒体访问控制(MAC)接口和管理数据输入/输出(MDIO)控制。

MDIO也可通过作为套件一部分随附的可选MDIO接口加密狗控制。

reference details image

AD-JUPITER-EBZ

Software-Defined Radio

zoom

AD-JUPITER-EBZ

Software-Defined Radio

Software-Defined Radio

特性和优点

  • RF/SDR
    • ADRV9002 transceiver
    • 2 x receiver, 2 x transmitter
    • LO frequency range 30 MHz to 6 GHz
    • 12 kHz to 40 MHz frequency bandwidth
    • Sampling rate 12 kSPS to 61.44 MSPS
  • External Device Clock Input
  • External MCS Input
  • RF Front-end
  • Processing System
    • Zynq UltraScale+ MPSoC XCZU3EG
      • ARM Cortex-A53 1.5 GHz
      • ARM Cortex-R5 500 MHz
      • Mali-400 MP2 graphic processor
      • Programmable logic 154 k
    • DDR4 – 2 GB (x32)
    • Boot source
      • SD card 3.0
      • Flash memory 128 MB
    • User Interfaces
      • USB 3.1 Gen 1 – Type C
        • Upstream Facing Port (UFP)
        • Downstream Facing Port (DFP)
        • USB 2.0 compatible
    • Ethernet 1000BASE-T RGMII
    • Display Port v1.2 (2 lanes, 5.4 Gbps)
    • SATA 3
    • USB (micro) debug interface
    • 16 GPIOs (3V3 LVCMOS)
  • Power Sources
    • USB Type-C (power only)
      • Power Sink 5V, 9V/3A
    • USB Type-C (data)
      • Power Sink 5V/3A
      • Power Source 5V/0.9 A
    • 802.3at POE compliant, 25.5 W Type2 (POE+)

产品详情

The AD-JUPITER-EBZ is a versatile software-defined platform based on Analog Devices ADRV9002 and Xilinx Zynq UltraScale+ MPSoC. The ADRV9002 is a new generation RF transceiver that has dual-channel transmitters, dual-channel receivers covering a frequency range of 30 MHz to 6 GHz. This device has a high-quality RF linearity performance and a set of advanced features like fast profiles switching, flexible power vs. performance configuration, fast frequency hopping, multi-chip synchronization, and digital pre-distortion (DPD) for narrow and wide band waveform.

The evaluation platform includes XCZU3EG processing device that has a wide range of interfaces, making the system capable of local processing or streaming to a remote host. It comes integrated in a self-contained ruggedized aluminum case, which gives flexibility in evaluating and prototyping across different environments.

APPLICATIONS

  • Aerospace and Defense
  • Communications
  • Advanced Education
工具和仿真

工具及仿真模型 1

参考电路

参考电路 1

Figure 1. EVAL-CN0506-FMCZ Simplified Block Diagram (All Connections and Decoupling Not Shown)

10 Mbps/100 Mbps/1000 Mbps双通道、低功耗工业以太网PHY
