特性
- 符合10BASE-T1L IEEE 802.3cg-2019标准要求
- 电缆延伸范围高达1700 m,支持1.0 V/2.4 V
- 集成SPI的MAC
- 支持OPEN Alliance 10BASE-T1x MAC-PHY串行接口
- 16个MAC地址过滤器
- 带28 kB缓冲器的高低优先级队列
- 直通或存储转发操作
- 支持IEEE 1588时间戳
- 统计计数器
- 低功耗:42 mW(双电源,1.0 V p-p)
- 诊断
- 具有TDR的电缆故障检测
- 具有MSE的链路质量指示器
- 帧生成器和检查器
- 多种环回模式
- IEEE测试模式支持
- 支持1.0 V p-p和2.4 V p-p发送电平
- 4针MDI(RXN、RXP、TXN和TXP)
- 适合本质安全应用
- 外部端接电阻
- 自动协商
- 25 MHz晶振或外部时钟输入
- 电磁兼容性(EMC)测试标准
- IEC 61000-4-4电快速瞬变(±4 kV)
- IEC 61000-4-2 ESD(±4 kV接触放电)
- IEC 61000-4-2 ESD(±8 kV空气放电)
- IEC 61000-4-6传导抗扰度(10 V/m)
- IEC 61000-4-5浪涌(±4 kV)
- IEC 61000-4-3辐射抗扰度(A类)
- EN55032辐射发射(B类)
- 小型封装:40引脚(6 mm × 6 mm) LFCSP封装
- 温度范围
- 工业:−40°C至+85°C
- 扩展范围:−40°C至+105°C
ADIN1110是一款面向工业以太网应用的超低功耗单端口10BASE-T1L收发器,符合IEEE® 802.3cg-2019™以太网标准,支持长程10 Mb/s单对以太网(SPE)应用。ADIN1110具有集成的媒体访问控制(MAC)接口,可通过4线式串行外设接口(SPI)与各种主机控制器直接连接。该SPI可使用低功耗处理器,无需集成MAC,整体系统级功耗非常低。SPI可以配置为使用OPEN联盟SPI协议或通用SPI协议。
ADIN1110支持可编程发射电平、外部端接电阻和独立的接收和发送引脚,适合各种本质安全应用。
ADIN1110集成电压电源监控和上电复位(POR)电路,可提高系统级鲁棒性。
ADIN1110采用40引脚、6 mm × 6 mm引脚架构芯片级封装(LFCSP)。
应用
- 现场仪器仪表
- 楼宇自动化和消防安全
- 工厂自动化
- 边缘传感器和执行器
- 状态监控和机器连接
想要开始开发 10BASE-T1L 解决方案吗?
请使用 不妨给我们的专家团队发送电子邮件,以获取 ADIN1110 或评估板的样品。
提问
在下面提交您的问题,我们将从 ADI 的知识库中给出最佳答案:
您可以在其他地方找到帮助
{{modalTitle}}
{{modalDescription}}
{{dropdownTitle}}
- {{defaultSelectedText}} {{#each projectNames}}
- {{name}} {{/each}} {{#if newProjectText}}
- {{newProjectText}} {{/if}}
{{newProjectTitle}}
{{projectNameErrorText}}
ADIN1110
文档
筛查
1 应用
数据手册
2
用户手册
1
WIKI
技术文章
24
HTML
HTML
HTML
HTML
HTML
HTML
HTML
HTML
HTML
HTML
HTML
HTML
HTML
HTML
HTML
HTML
HTML
HTML
HTML
HTML
HTML
HTML
HTML
HTML
应用笔记
1
HTML
产品技术资料帮助
ADI公司所提供的资料均视为准确、可靠。但本公司不为用户在应用过程中侵犯任何专利权或第三方权利承担任何责任。技术指标的修改不再另行通知。本公司既没有含蓄的允许,也不允许借用ADI公司的专利或专利权的名义。本文出现的商标和注册商标所有权分别属于相应的公司。
参考资料
器件驱动器 3
解决方案设计及宣传手册 1
Thought Leadership Page 4
视频
5
ADI 始终高度重视提供符合最高质量和可靠性水平的产品。我们通过将质量和可靠性检查纳入产品和工艺设计的各个范围以及制造过程来实现这一目标。出货产品的“零缺陷”始终是我们的目标。查看我们的质量和可靠性计划和认证以了解更多信息。
产品型号 | 引脚/封装图-中文版 | 文档 | CAD 符号,脚注和 3D模型 |
---|---|---|---|
ADIN1110BCPZ | 40-Lead LFCSP (6mm x 6mm x 0.75mm) |
|
|
ADIN1110BCPZ-R7 | 40-Lead LFCSP (6mm x 6mm x 0.75mm) |
|
|
ADIN1110CCPZ | 40-Lead LFCSP (6mm x 6mm x 0.75mm) |
|
|
ADIN1110CCPZ-R7 | 40-Lead LFCSP (6mm x 6mm x 0.75mm) |
|
- ADIN1110BCPZ
- 引脚/封装图-中文版
- 40-Lead LFCSP (6mm x 6mm x 0.75mm)
- 文档
- HTML Material Declaration
- HTML Reliablity Data
- CAD 符号,脚注和 3D模型
- Ultra Librarian
- SamacSys
- ADIN1110BCPZ-R7
- 引脚/封装图-中文版
- 40-Lead LFCSP (6mm x 6mm x 0.75mm)
- 文档
- HTML Material Declaration
- HTML Reliablity Data
- CAD 符号,脚注和 3D模型
- Ultra Librarian
- SamacSys
- ADIN1110CCPZ
- 引脚/封装图-中文版
- 40-Lead LFCSP (6mm x 6mm x 0.75mm)
- 文档
- HTML Material Declaration
- HTML Reliablity Data
- CAD 符号,脚注和 3D模型
- Ultra Librarian
- SamacSys
- ADIN1110CCPZ-R7
- 引脚/封装图-中文版
- 40-Lead LFCSP (6mm x 6mm x 0.75mm)
- 文档
- HTML Material Declaration
- HTML Reliablity Data
- CAD 符号,脚注和 3D模型
- Ultra Librarian
- SamacSys
评估套件 3
AD-APARD32690-SL
Arduino Form-factor Development Platform Based on MAX32690 ARM Cortex-M4 Microcontroller
产品详情
The AD-APARD32690-SL is a platform for prototyping intelligent, secure, and connected field devices. It has an Arduino Mega-compatible form factor and two Pmod™-compatible connectors.
The system includes the MAX32690 ARM Cortex-M4 with FPU-Based Microcontroller and Bluetooth LE 5.2. The MCU is coupled with external RAM (2 x 512 Mb) and Flash (64 Mb) memories to meet the requirements of the most demanding applications. The MAXQ1065 security coprocessor enables state of the art security features such as for root-of-trust, mutual authentication, data confidentiality and integrity, secure boot, and secure communications.
A 10 Mbps single-pair Ethernet link using the ADIN1110 10BASE-T1L MAC/PHY, enables remote data acquisition and system configuration. The 10BASE-T1L interface also supports Single-pair Power over Ethernet (SPoE) and be used for powering the system via an Arduino shield implementing the required power circuitry.
WiFi connectivity is provided via the on-board NINA-W102 multiradio wireless MCU module with internal antenna.
Power can be supplied either via the USB-C connector or via a 2-pin terminal block. The supported input voltage range is 5 V to 28 V.
The system is accompanied by an open-source software stack and associated collateral, enabling a complete experience from evaluation, and prototyping, all the way to production firmware and application development. The open-source software stack also includes drivers and example applications for a wide variety of ADCs, DACs, sensors, and other devices commonly used in industrial applications, further accelerating the development process. An external programmer such as the MAX32625PICO DAPLink, or any other similar programmer supporting the SWD interface, enables firmware programming and debug. The system’s firmware is based on Analog Devices’ open-source no-OS framework which includes all the tools required for embedded code development and debugging as well as libraries, enabling host-side connectivity for system configuration and data transfer over the UART, USB, WiFi, and 10BASE-T1L interfaces.
APPLICATIONS
- Factory automation
- Process control
- Intelligent buildings
- Secure field instruments
- Internet of Things
资料
AD-SWIOT1L-SL
Software-configurable Analog and Digital I/O with 10BASE-T1L Evaluation and Development Platform
产品详情
The AD-SWIOT1L-SL provides a complete software and hardware platform for prototyping intelligent, secure, network capable field devices.
The design incorporates the AD74413R Quad-Channel, Software Configurable Input and Output and the MAX14906 Quad-Channel Industrial Digital Output/Digital Input ICs, allowing the multiplexing of several analog and digital functions on four channels which can be independently configurable through software to act as:
- voltage output / input
- current output / input
- digital input / output
- RTD measurement
A 10 Mbps single-pair Ethernet link, using the ADIN1110 10BASE-T1L MAC/PHY, enables remote data acquisition and device configuration. The 10BASE-T1L interface can also be used for powering the system via the Single-pair Power over Ethernet (SPoE) technology using the LTC9111 Powered Device (PD) controller. This way, power and data for the system is provided over the same cable to significantly simplify the cabling infrastructure and cost.
For applications requiring high current capabilities, the system can be powered from an external 24 V supply and up to 1.2 A can be output on any of the channels configured as digital outputs. The power supply solution also includes the ADP1032 high performance, isolated micropower management unit (PMU) to provide power and digital control for software configurable I/O devices in one of the most compact formats. The LT8304 Micropower No-Opto Isolated Flyback Converter completes the power tree to provide isolated power to the digital part of the design.
The on-board MAX32650 Ultralow Power ARM® Cortex®-M4 Microcontroller exposes all the necessary debug and programming features to enable a complete software development experience with the system. It is coupled with a 1 Gb (128 MB) external RAM and a 64 Mb (8 MB) external flash memory to meet the most demanding applications and provide the flexibility to implement any protocol stack. Security features are enabled by the MAXQ1065 security coprocessor.
The system is accompanied by an open-source software stack and associated collateral, enabling a complete experience from evaluation and prototyping all the way to production firmware and applications development. An external programmer such as the MAX32625PICO MAXDAP Programming Adapter, or any other similar programmer supporting the SWD interface, is required to enable firmware programming and debug. The system’s firmware is based on Analog Devices’ open-source no-OS framework which includes all the tools required for embedded code development and debugging as well as libraries enabling host-side connectivity for system configuration and data transfer over the UART or the 10BASE-T1L interfaces. A PC application with a user-friendly graphical interface is provided to enable easy system configuration and displaying the acquired data in different ways.
I/O | |
Channels | 4 Software Configurable IO channels |
Digital input | Type 1 and 3, or Type 2 |
Digital output | High-Side (HS) Switch or Push-Pull (PP) Driver |
Analog input | Voltage (0 V to 10 V), Current (0 mA to 25 mA) |
Analog output | Voltage (0 V to 11 V), Current (0 mA to 25 mA) |
RTD measurements | 2-wire RTD (0 Ω to 1 MΩ) |
Computing Resources | |
CPU | MAX32650 Ultra-Low-Power Arm Cortex-M4 with FPU-Based Microcontroller (MCU) with 3 MB Flash and 1MB SRAM |
Memory | 1 Gb RAM |
Storage | 64 Mb QSPI Flash |
Connectivity | |
Ethernet | 10BASE-T1L |
Power Supply | |
External power | 24 DC @ 6A |
Power over Ethernet | SPoE class 12 |
Operating Conditions | |
Temperature range | -25°C to 60°C |
资料
EVAL-ADIN1110
评估 ADIN1110 稳健、工业、低功耗 10BASE-T1L 以太网 MAC-PHY
产品详情

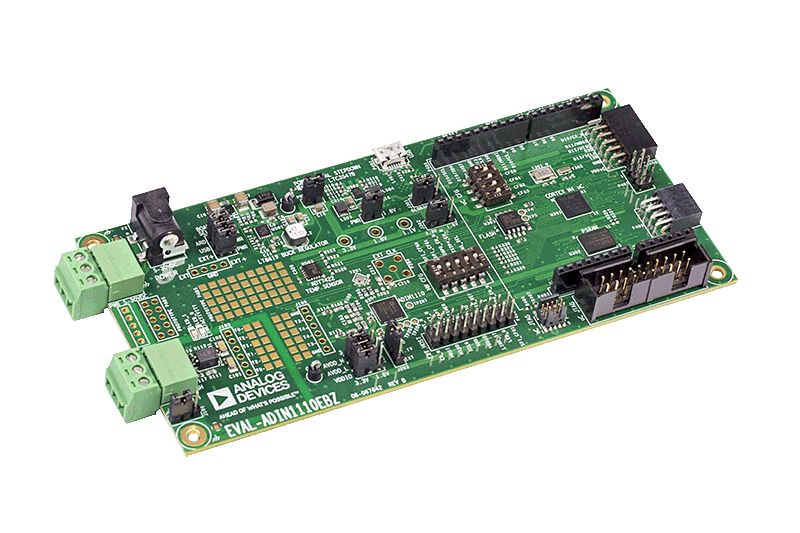

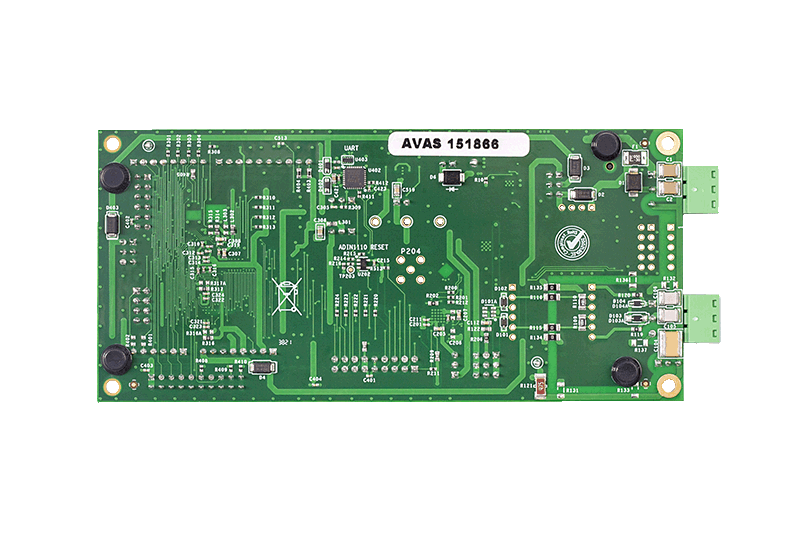

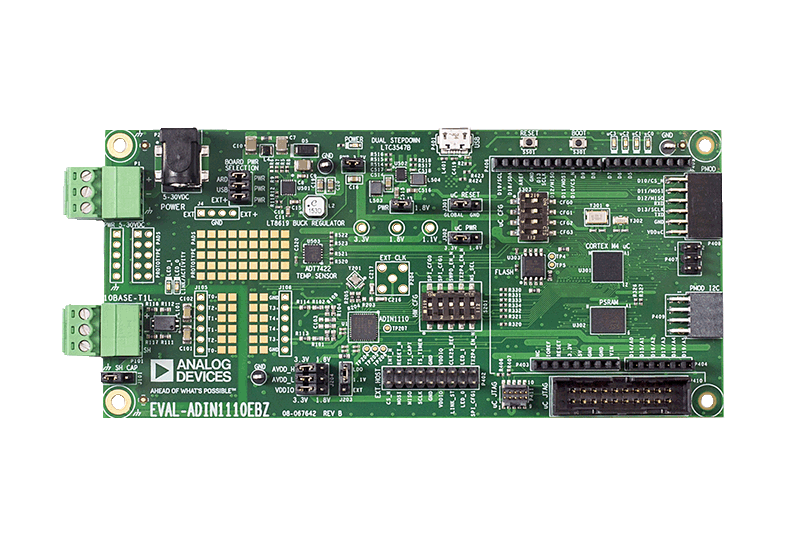

EVAL-ADIN1110EBZ 是灵活的平台,能够快速评估 ADIN1110 稳健、低功耗的 10BASE-T1L MAC-PHY。它通过 1.7 公里的电缆为套件提供每秒 10 兆比特的单对以太网 (SPE) 连接。
