ADIN1100

稳健型、低功耗10BASE-T1L工业以太网PHY

更多 showmore-icon

Info : 推荐新设计使用 tooltip
Info : 推荐新设计使用 tooltip
产品详情
特性
  • 符合10BASE-T1L IEEE 802.3cg-2019标准要求
  • 电缆延伸范围高达1700 m,支持1.0 V p-p和2.4 V p-p
  • 支持1.0 V p-p和2.4 V p-p发送电平
  • 支持本质安全应用
  • 低功耗:39 mW(双电源,1.0 V p-p)
  • 诊断
    • 具有TDR的电缆故障检测
    • 具有MSE的链路质量指示器
    • 帧生成器和检查器
    • 多种环回模式
    • IEEE测试模式支持
  • MII、RMII和RGMII MAC接口
  • MDIO管理接口
  • 使用引脚绑定的非托管配置包括
  • 25 MHz晶振或外部时钟输入(RMII为50 MHz)
  • 采用1.8 V或3.3 V单电源或双电源供电
  • MAC接口VDDIO电源电压:3.3 V、2.5 V或1.8 V
  • 集成电源监控和POR
  • EMC测试标准
    • IEC 61000-4-4 EFT (±4 kV)
    • IEC 61000-4-2 ESD(±4 kV接触放电)
    • IEC 61000-4-2 ESD(±8 kV空气放电)
    • IEC 61000-4-5浪涌(±4 kV)
    • IEC 61000-4-6传导抗扰度(10 V/m)
    • IEC 61000-4-3辐射抗扰度(A类)
    • EN 55032电磁辐射骚扰(B类)
  • 小型封装:40引脚、6 mm x 6 mm LFCSP封装
  • 温度范围
    • 工业:−40°C至+85°C
    • 扩展:-40°C至+105°C
更多细节
show more Icon

ADIN1100是一款低功耗单端口10BASE-T1L收发器,专为工业以太网应用而设计,符合IEEE®802.3cg-2019标准™ 以太网标准,用于长距离10Mbps单对以太网(SPE)。ADIN1100将以太网PHY核心与所有相关的模拟电路、输入和输出时钟缓冲、管理接口控制寄存器和子系统寄存器以及MAC接口和控制逻辑集成在一起,以管理复位、时钟控制和引脚配置。

ADIN1100支持长达1700米的电缆,并启用了自动协商,具有39 mW的超低功耗。

PHY核心支持IEEE 802.3cg标准中定义的1.0V p-p工作模式和2.4V p-p操作模式,可以从1.8V或3.3V的单个电源轨工作,较低电压选项支持1.0V p-p传输电压电平。

ADIN1100具有集成的电压供应监控电路和上电复位(POR)电路,以提高系统级的鲁棒性。

MDIO接口是用于主机处理器或MAC与ADIN1100之间通信的2线串行接口,从而允许访问PHY核心管理寄存器中的控制和状态信息。该接口与IEEE 802.3标准第22条和第45条管理框架结构兼容。

应用

  • 过程控制
  • 工厂自动化
  • 建筑自动化
  • 现场仪表和开关

产品技术资料帮助

close icon

ADI公司所提供的资料均视为准确、可靠。但本公司不为用户在应用过程中侵犯任何专利权或第三方权利承担任何责任。技术指标的修改不再另行通知。本公司既没有含蓄的允许,也不允许借用ADI公司的专利或专利权的名义。本文出现的商标和注册商标所有权分别属于相应的公司。

参考资料

参考资料

视频

产品型号 引脚/封装图-中文版 文档 CAD 符号,脚注和 3D模型
ADIN1100BCPZ
  • HTML
  • HTML
ADIN1100BCPZ-R7
  • HTML
  • HTML
ADIN1100CCPZ
  • HTML
  • HTML
ADIN1100CCPZ-R7
  • HTML
  • HTML

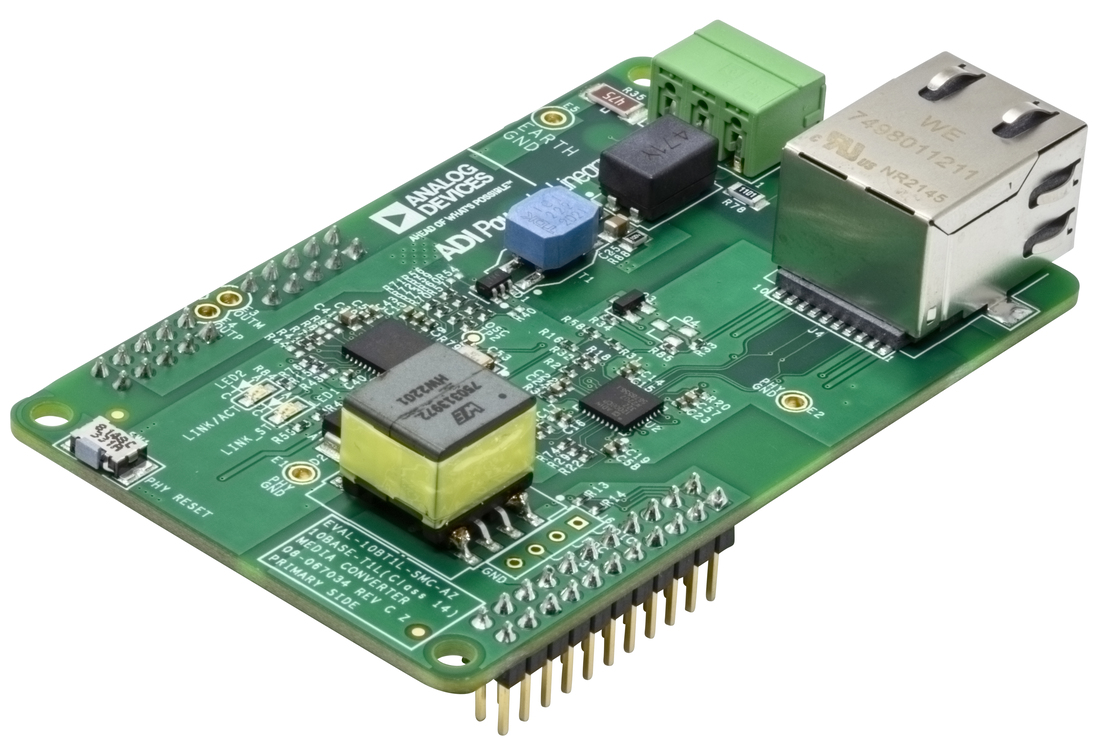

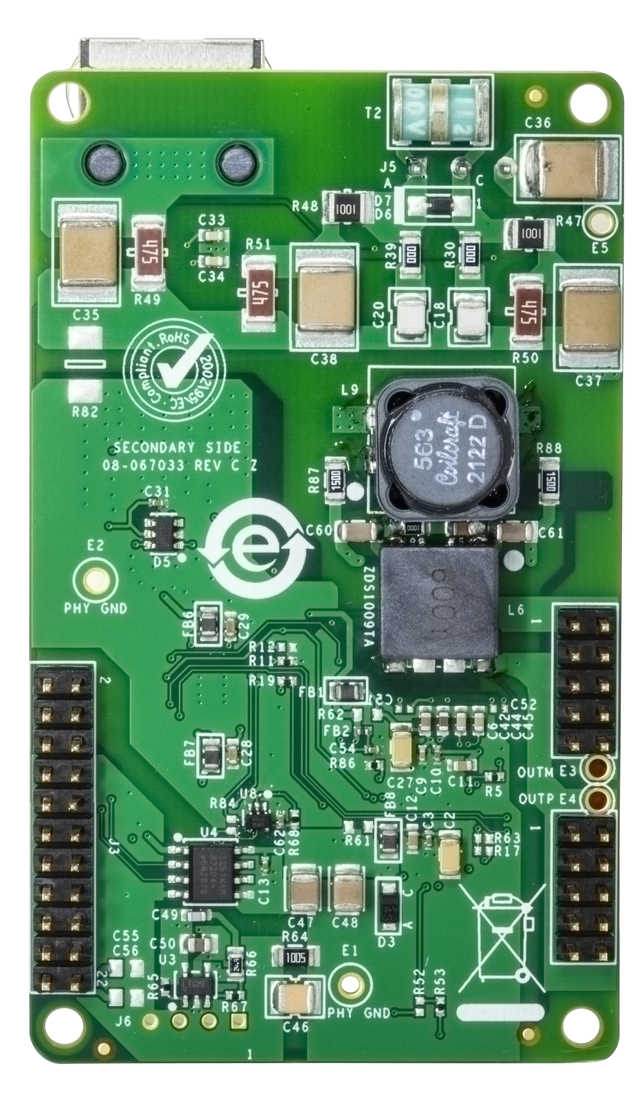

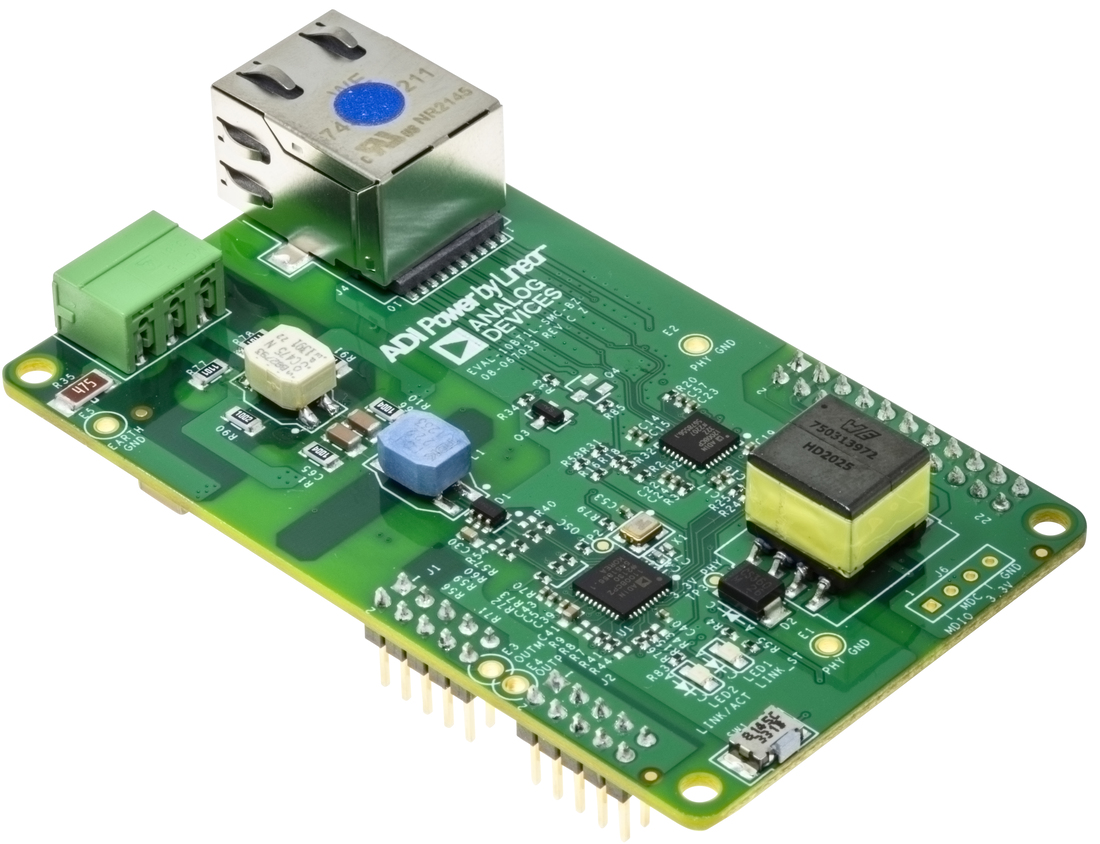

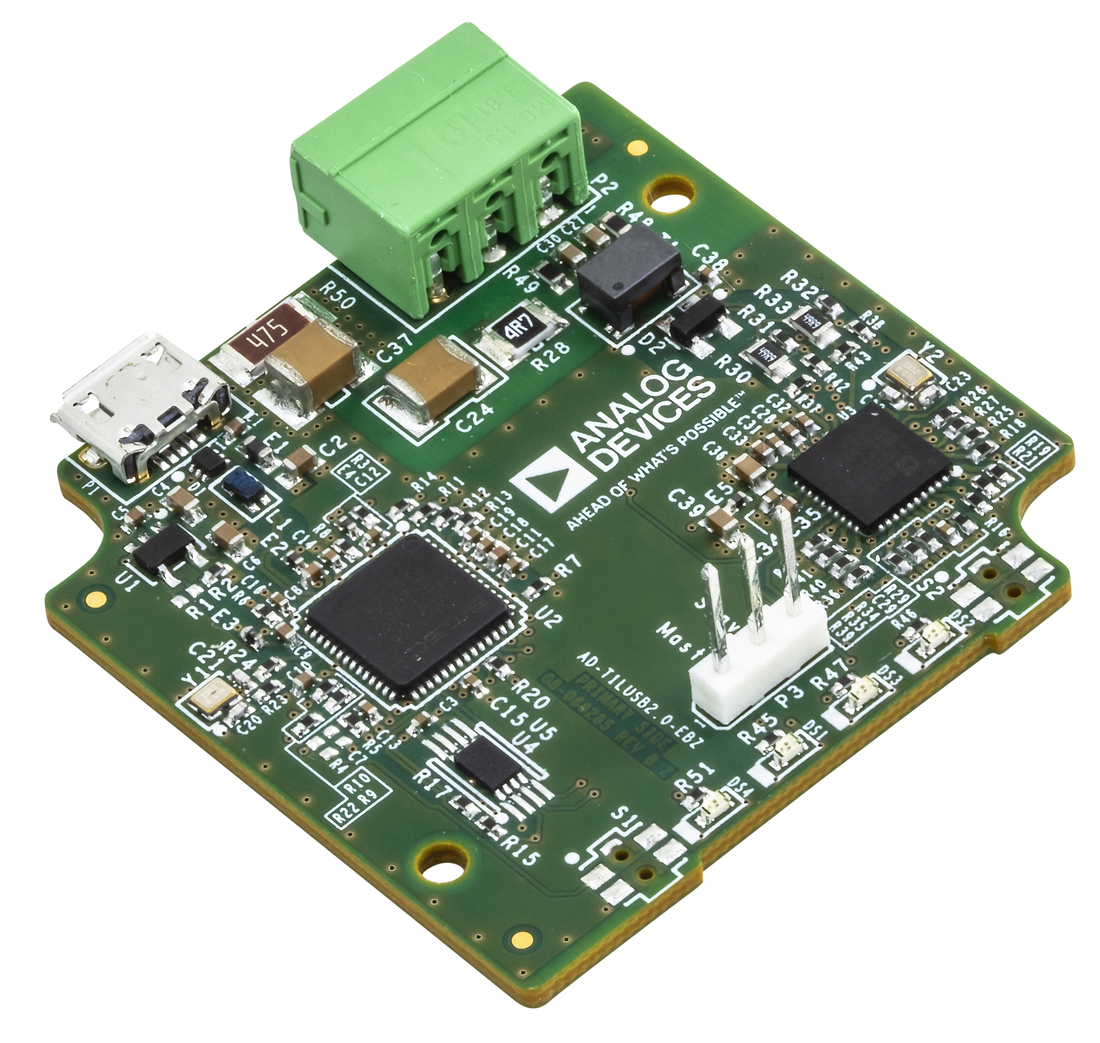

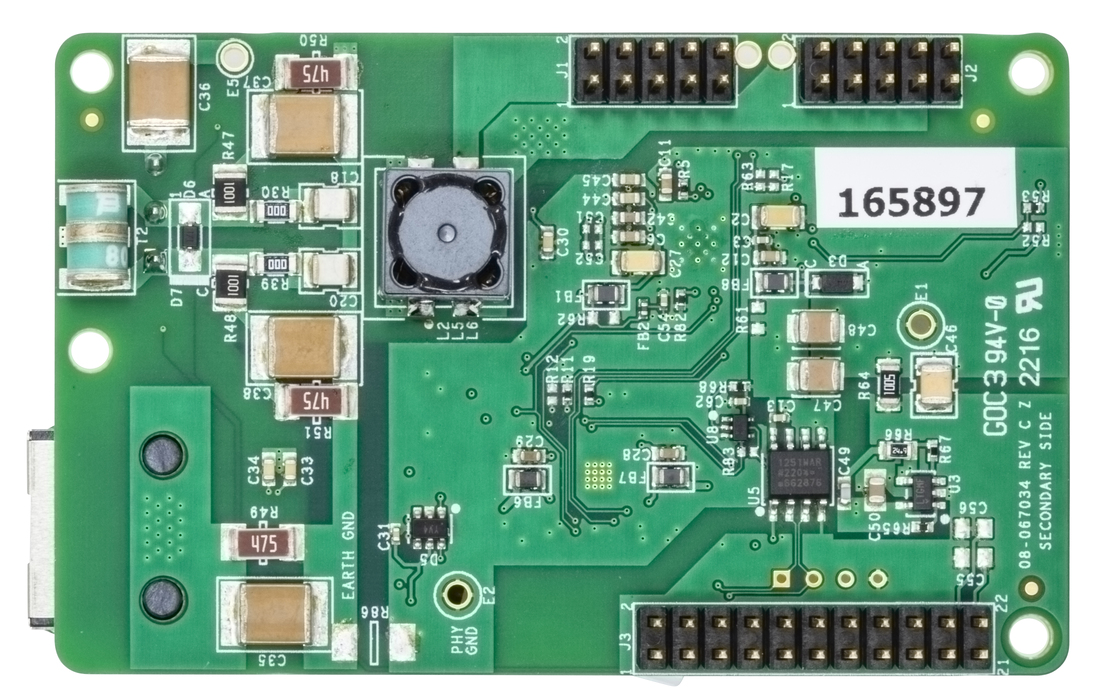

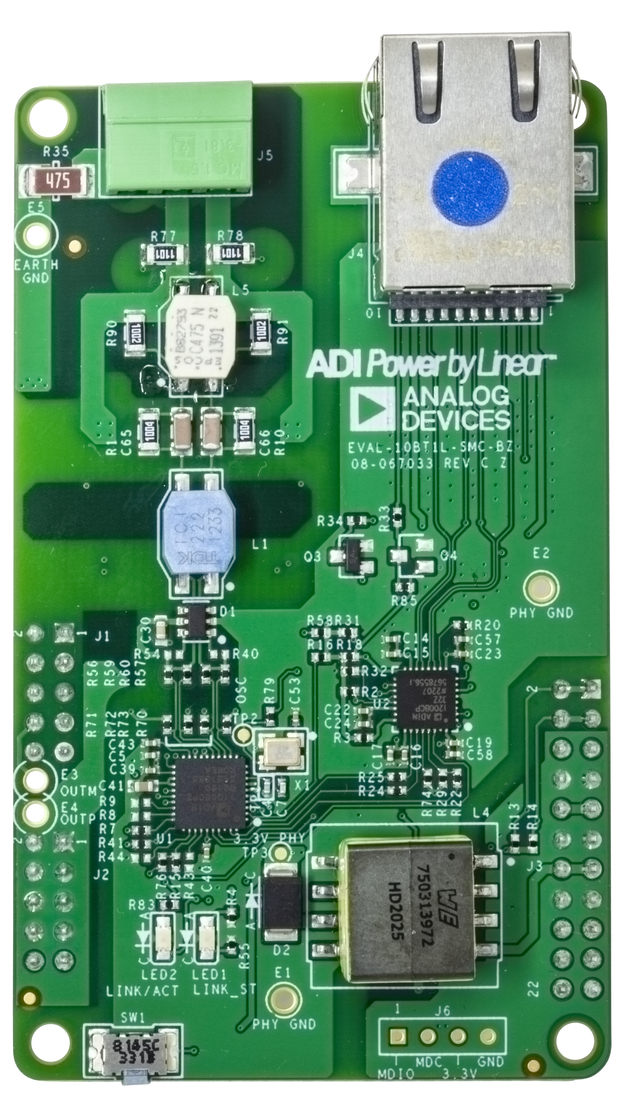

评估套件

评估套件 2

reference details image

EVAL-ADIN1100

Evaluating the ADIN1100 Robust, Industrial, Low Power 10BASE-T1L PHY, and Media Converter to 10BASE-T with ADIN1200 Ethernet PHY

zoom

EVAL-ADIN1100

Evaluating the ADIN1100 Robust, Industrial, Low Power 10BASE-T1L PHY, and Media Converter to 10BASE-T with ADIN1200 Ethernet PHY

Evaluating the ADIN1100 Robust, Industrial, Low Power 10BASE-T1L PHY, and Media Converter to 10BASE-T with ADIN1200 Ethernet PHY

特性和优点

  • User friendly access to all ADIN1100 features
  • (GUI) software on PC or standalone hardware configured operation
  • Flexible power supplies and prototyping options
  • On-board ARM Cortex-M ADuCM4050 microcontroller
  • 10BASE-T1L to 10BASE-T media converter

产品详情

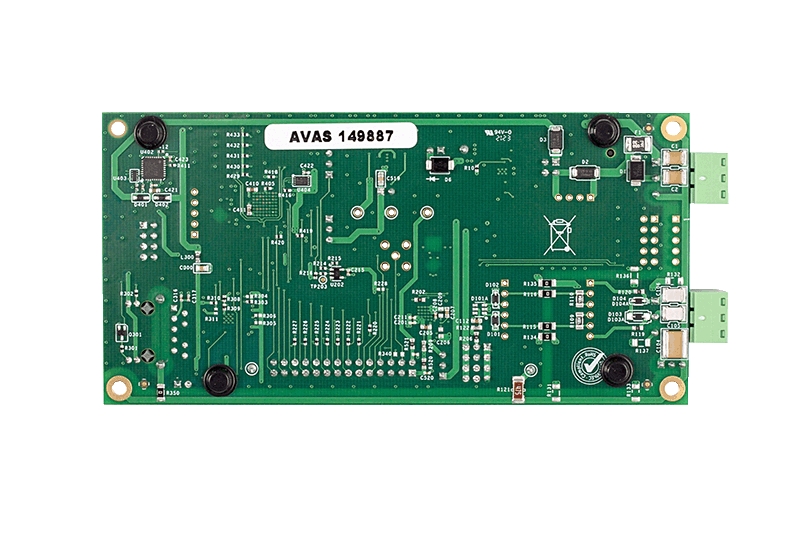

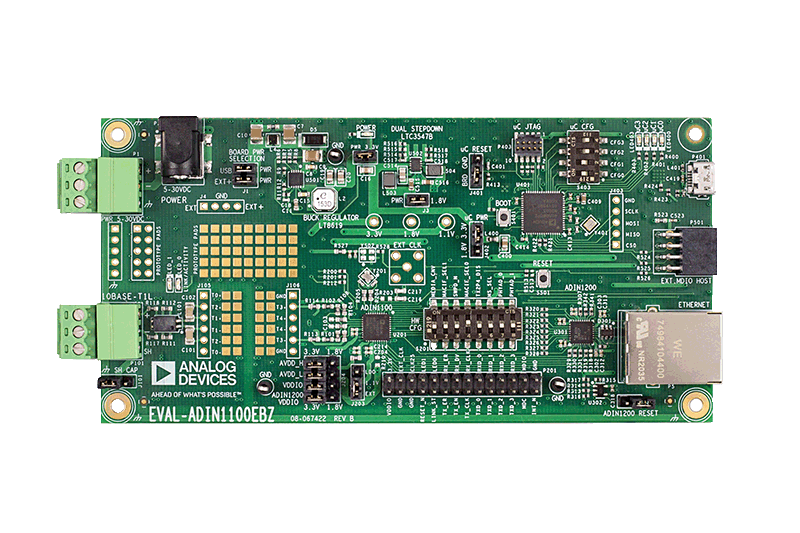

The EVAL-ADIN1100EBZ is a flexible platform enabling quick evaluation of the ADIN1100 robust, low power 10BASE-T1L PHY. The EVAL-ADIN1100EBZ provides 10 Mbps single pair Ethernet (SPE) connections with devices across 1.7 km of cable.

The evaluation board offers two modes of operation for maximum flexibility. Connected to a PC via USB port, the full set of ADIN1100 register settings and features such as link quality monitoring and diagnostics can be accessed with the ADIN1100 GUI software.

Alternatively, the EVAL-ADIN1100EBZ board can operate in stand-alone mode where it is configured by setting hardware configuration links and switches. On-board LEDs provide status indication.

The ADIN1100 data (MII, RMII, and RGMII) and management (MDIO) interfaces are accessible on header connectors for easy connection to an external host controller.

A small prototyping area and test points are provided for experimentation with alternative cable connection topologies including isolation transformers and/or power coupling inductors.

The platform can perform as a 10BASE-T1L to 10BASE-T media converter. This feature enables connection to other devices (demonstration boards or custom prototypes) with a 10BASE-T1L Ether-net port and conversion of the data to standard Ethernet, which is accessible via the RJ45 connector.

Full details about the ADIN1100 are available in the ADIN1100 data sheet, which must be consulted when using the EVAL-ADIN1100EBZ.

reference details image

DEMO-ADIN1100D2Z

10BASE-T to 10BASE-T1L Media Converter Including SPoE/APL, Featuring ADIN1100 and ADIN1200 Ethernet PHYs and LTC4296-1 PSE Controller

zoom

DEMO-ADIN1100D2Z

10BASE-T to 10BASE-T1L Media Converter Including SPoE/APL, Featuring ADIN1100 and ADIN1200 Ethernet PHYs and LTC4296-1 PSE Controller

10BASE-T to 10BASE-T1L Media Converter Including SPoE/APL, Featuring ADIN1100 and ADIN1200 Ethernet PHYs and LTC4296-1 PSE Controller

特性和优点

  • 10BASE-T to 10BASE-T1L media converter
  • SPoE PSE controller compatible with IEEE 802.3cg
  • Power source for APL devices
  • System level diagnostics over USB COM port

产品详情

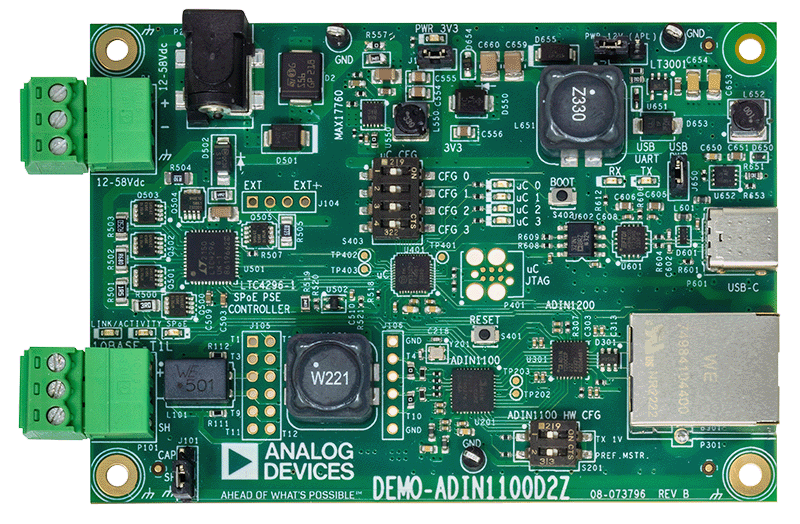

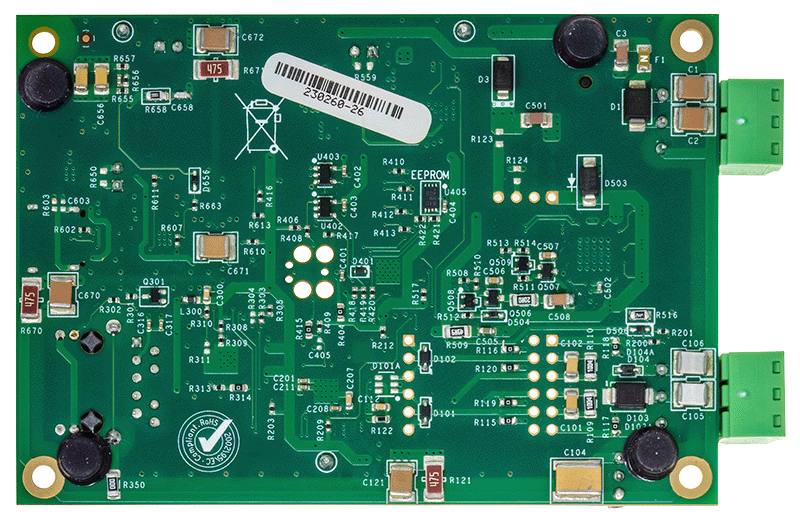

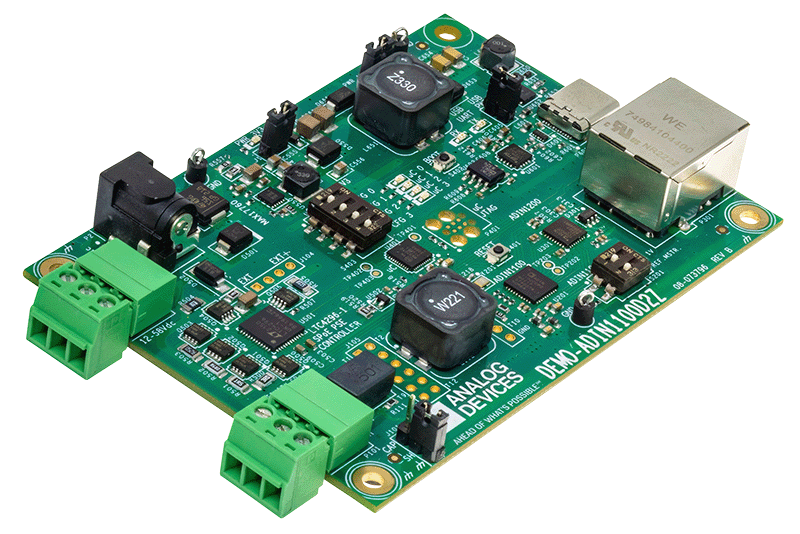

The DEMO-ADIN1100D2Z is a media converter board that provides connection between a standard 10BASE-T RJ45 Ethernet port and a 10BASE-T1L device.

The DEMO-ADIN1100D2Z includes a power sourcing equipment (PSE) controller and it can power the connected 10BASE-T1L or advanced physical layer (APL) device. The PSE controller is configurable for power over data line (PoDL)/single pair power over Ethernet (SPoE) power Class 10, Class 11, Class 12, Class 13, Class 14, and Class 15, and APL power Class A, Class C, and Class 3.

The board requires an external DC power supply with output voltage and maximum output current relevant to the selected power class. For a subset of power classes (Class 10, APL A, and APL C), the board can also be powered from a USB host.

The board requires a minor modification and external power coupling inductors when used for the highest power Class 15 and APL 3.

The DEMO-ADIN1100D2Z can be used as an autonomous device, configurable by a set of switches and jumpers, indicating its status on LEDs.

The DEMO-ADIN1100D2Z can also be connected via USB to a host PC. The 10BASE-T1L link status, power status, and diagnostics are then accessible using a simple set of text commands and messages exchanged over the USB COM port interface using a serial terminal software on a PC.
