Overview
Features and Benefits
- Convenient connections for power through screw terminal blocks
- Add-on BNC connector for 50 Ω signal sources
- On-board signal routing
- Support for signal wrap back
- Simple signal paths to reduce transmission line effects
- Pull-up and pull-down provided for control lines
- Support for isoPower
- Project area that supports surface-mount and through-hole devices
Product Details

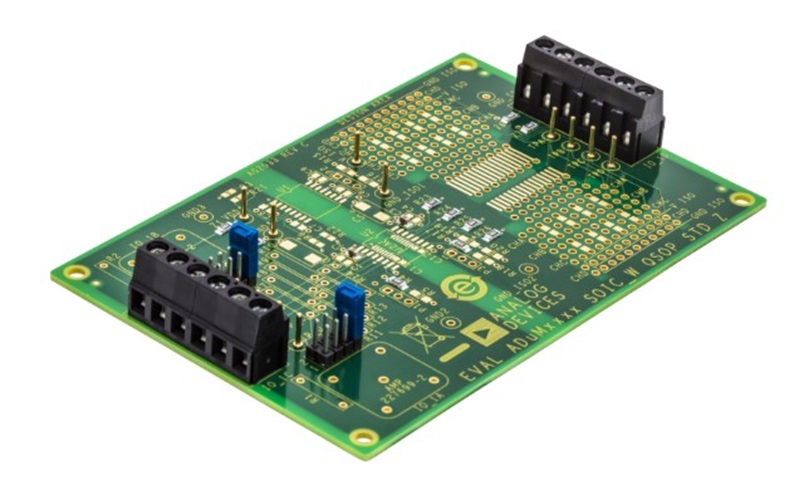

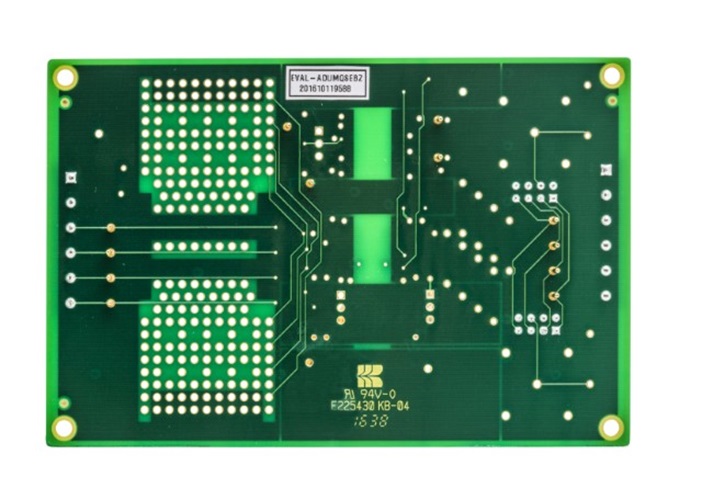

EVAL-ADuMQSEBZ can be used with most iCoupler® and isoPower(R) isolation products in the 16-lead, wide-body SOIC and QSOP packages. The evaluation board supports the common pad positions for power, ground, and I/O pins.Supported iCoupler® Products
- ADuM130x
- ADuM131x
- ADuM140x
- ADuM141x
- ADuM1510
- ADuM240x
- ADuM330x
- ADuM340x
- ADuM344x
- ADuM440x
- ADuM5000
- ADuM520x
- ADuM540x
- ADuM6000
- ADuM620x
- ADuM640x
- ADuM744x
- ADuM7510
Markets and Technologies
Applicable Parts
- ADUM3400
- ADUM1310
- ADUM2401
- ADUM1411
- ADUM1301
- ADUM3301
- ADUM1412
- ADUM2400
- ADUM1311
- ADUM3401
- ADuM1300
- ADUM5401
- ADUM5402
- ADUM5403
- ADUM5404
- ADUM5400
- ADUM5000
- ADUM5200
- ADUM5201
- ADUM5202
- ADUM1510
- ADUM4400
- ADUM4401
- ADUM4402
- ADUM6400
- ADUM6401
- ADUM6402
- ADUM6403
- ADuM6404
- ADUM7510
- ADUM7440
- ADUM7441
- ADUM7442
- ADUM3300
- ADUM1401
- ADUM1400
- ADUM2402
- ADUM1410
- ADUM3402
- ADUM1402
- ADUM140D
- ADUM140E
- ADuM130D
- ADuM131D
- ADuM130E
- ADuM131E
- ADuM240D
- ADuM241D
- ADuM242D
- ADuM240E
- ADuM241E
- ADuM242E
- ADuM230D
- ADuM231D
- ADuM230E
- ADuM231E
- ADUM141D
- ADUM141E
- ADUM142D
- ADUM142E
Documentation & Resources
-
UG-042: Evaluating 16-Lead SOIC and 16-Lead QSOP Digital Isolators3/5/2010PDF504 kB
-
