ADUM2400

PRODUCTION

Quad-Channel Digital Isolator

Data Sheet (Rev. G) Product Selection Table

Part Models: 12
1ku List Price: Starting From $3.67

Viewing:

Overview

Low power operation
- 5 V operation (see data sheet)
- 3 V operation (see data sheet)

Bidirectional communication
3 V/5 V level translation
High temperature operation: 105°C
High data rate: dc to 90 Mbps (NRZ)
Precise timing characteristics
- 2 ns maximum pulse width distortion
- 2 ns maximum channel-to-channel matching
High common-mode transient immunity: >25 kV/μs
Output enable function
See data sheet for additional features

The ADuM2400 / ADuM2401 / ADuM2402 are 4-channel digital isolators based on Analog Devices, Inc., iCoupler^® technology. Combining high speed CMOS and monolithic air core transformer technology, these isolation components provide outstanding performance characteristics that are superior to alternatives, such as optocoupler devices.

By avoiding the use of LEDs and photodiodes, iCoupler devices remove the design difficulties commonly associated with opto-couplers. The typical optocoupler concerns regarding uncertain current transfer ratios, nonlinear transfer functions, and temperature and lifetime effects are eliminated with the simple iCoupler digital interfaces and stable performance characteristics. Furthermore, iCoupler devices run at one-tenth to one-sixth the power of optocouplers at comparable signal data rates.

The ADuM2400 / ADuM2401 / ADuM2402 isolators provide four independent isolation channels in a variety of channel configurations and data rates (see the Ordering Guide). The ADuM2400 / ADuM2401 / ADuM2402 models operate with the supply voltage of either side ranging from 2.7 V to 5.5 V, providing compatibility with lower voltage systems as well as enabling a voltage translation functionality across the isolation barrier. In addition, the ADuM2400 / ADuM2401 / ADuM2402 provide low pulse width distortion (<2 ns for CRWZ grade) and tight channel-to-channel matching (<2 ns for CRWZ grade). The ADuM2400 / ADuM2401 / ADuM2402 isolators have a patented refresh feature that ensures dc correctness in the absence of input logic transitions and during power-up/power-down conditions.

APPLICATIONS

General-purpose, high voltage, multichannel isolation
Medical equipment
Motor drives
Power supplies

Part Models: 12
1ku List Price: Starting From $3.67

Documentation

Frequently Asked Question 1

FAQ 05/17/2017

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
ADUM2400ARIZ	16-Lead SOIC (Increased Creepage)	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
ADUM2400ARIZ-RL	16-Lead SOIC (Increased Creepage)	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys

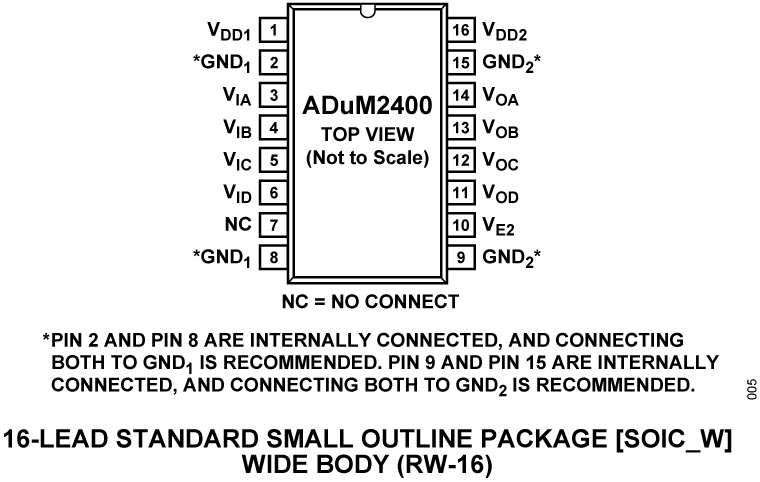

ADUM2400ARWZ	16-Lead SOIC Wide	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
ADUM2400ARWZ-RL	16-Lead SOIC Wide	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys

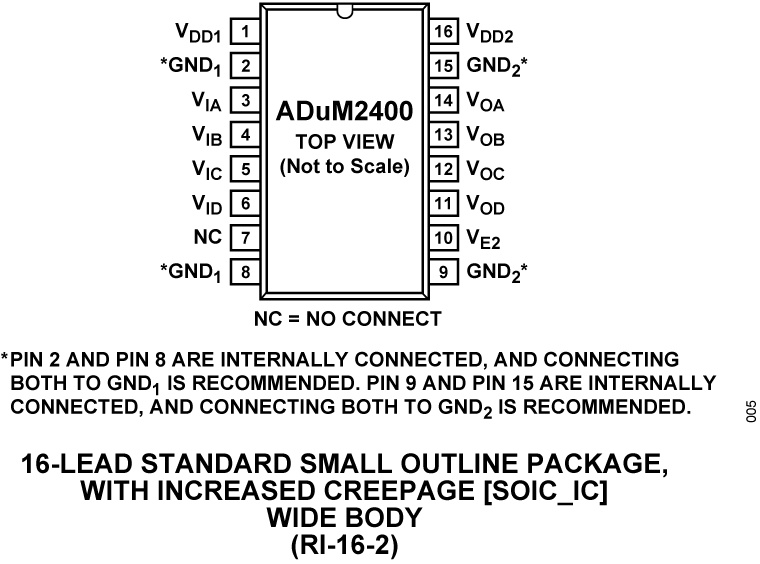

ADUM2400BRIZ	16-Lead SOIC (Increased Creepage)	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
ADUM2400BRIZ-RL	16-Lead SOIC (Increased Creepage)	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
ADUM2400BRWZ	16-Lead SOIC Wide	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
ADUM2400BRWZ-RL	16-Lead SOIC Wide	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
ADUM2400CRIZ	16-Lead SOIC (Increased Creepage)	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
ADUM2400CRIZ-RL	16-Lead SOIC (Increased Creepage)	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
ADUM2400CRWZ	16-Lead SOIC Wide	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
ADUM2400CRWZ-RL	16-Lead SOIC Wide	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys

Part Models	Product Lifecycle	PCN

Feb 9, 2022 - 22_0002 Notification of Qualification of Alternate Fab Foundry at ADI Limerick for IC die in Digital Isolator products.
		PCN22_0002_Form Material_Report Qualification Results Summary Detailed Change Description
ADUM2400ARIZ	PRODUCTION
ADUM2400ARIZ-RL	PRODUCTION
ADUM2400ARWZ	PRODUCTION
ADUM2400ARWZ-RL	PRODUCTION
ADUM2400BRIZ	PRODUCTION
ADUM2400BRIZ-RL	PRODUCTION
ADUM2400BRWZ	PRODUCTION
ADUM2400BRWZ-RL	PRODUCTION
ADUM2400CRIZ	PRODUCTION
ADUM2400CRIZ-RL	PRODUCTION
ADUM2400CRWZ	PRODUCTION
ADUM2400CRWZ-RL	PRODUCTION
Sep 22, 2015 - 15_0135 Alternate Assembly Site of Select Isolator Products in 8L/16L SOIC_N, 16L/20L SOIC_W and 16L/20L SOIC_IC at ASE Chungli
		PCN15_0135_Form Material_Report Detailed Change Description Qualification Results Summary
ADUM2400ARIZ	PRODUCTION
ADUM2400ARIZ-RL	PRODUCTION
ADUM2400ARWZ	PRODUCTION
ADUM2400ARWZ-RL	PRODUCTION
ADUM2400BRIZ	PRODUCTION
ADUM2400BRIZ-RL	PRODUCTION
ADUM2400BRWZ	PRODUCTION
ADUM2400BRWZ-RL	PRODUCTION
ADUM2400CRIZ	PRODUCTION
ADUM2400CRIZ-RL	PRODUCTION
ADUM2400CRWZ	PRODUCTION
ADUM2400CRWZ-RL	PRODUCTION
Mar 30, 2015 - 14_0211 ADUM2400/01/02 Die Revision
		PCN14_0211_Form Material_Report Qualification Results Summary
ADUM2400ARIZ	PRODUCTION
ADUM2400ARIZ-RL	PRODUCTION
ADUM2400BRIZ	PRODUCTION
ADUM2400BRIZ-RL	PRODUCTION
ADUM2400CRIZ	PRODUCTION
ADUM2400CRIZ-RL	PRODUCTION
Nov 6, 2013 - 13_0283 Change of Moisture Sensitivity Level Rating for iCoupler Products Assembled in an RI-16 Package from MSL 1 to MSL 3
		PCN13_0283_Form Material_Report
ADUM2400ARIZ	PRODUCTION
ADUM2400ARIZ-RL	PRODUCTION
ADUM2400BRIZ	PRODUCTION
ADUM2400BRIZ-RL	PRODUCTION
ADUM2400CRIZ	PRODUCTION
ADUM2400CRIZ-RL	PRODUCTION
Feb 27, 2012 - 11_0066 Qualification of Alternate Fab Foundry Gold Plating Process Site for Isolation Products at ADI Limerick.
		PCN11_0066_Form Material_Report Qualification Plan Summary Flow Chart
ADUM2400ARIZ	PRODUCTION
ADUM2400ARIZ-RL	PRODUCTION
ADUM2400ARWZ	PRODUCTION
ADUM2400ARWZ-RL	PRODUCTION
ADUM2400BRIZ	PRODUCTION
ADUM2400BRIZ-RL	PRODUCTION
ADUM2400BRWZ	PRODUCTION
ADUM2400BRWZ-RL	PRODUCTION
ADUM2400CRIZ	PRODUCTION
ADUM2400CRIZ-RL	PRODUCTION
ADUM2400CRWZ	PRODUCTION
ADUM2400CRWZ-RL	PRODUCTION
Jan 20, 2015 - 14_0211 ADUM2400/01/02 Die Revision
		PCN14_0211_Form Material_Report Qualification Results Summary
ADUM2400ARWZ	PRODUCTION
ADUM2400ARWZ-RL	PRODUCTION
ADUM2400BRWZ	PRODUCTION
ADUM2400BRWZ-RL	PRODUCTION
ADUM2400CRWZ	PRODUCTION
ADUM2400CRWZ-RL	PRODUCTION

This is the most up-to-date revision of the Data Sheet.

Hardware Ecosystem

Parts	Product Life Cycle	Description
ADUM340E	RECOMMENDED FOR NEW DESIGNS	5.7 kV/3.0 kV rms Quad Digital Isolators

Tools & Simulations

IBIS Model 2

Evaluation Kits

EVAL-ADUMQS

Buy Now View Details

Features and Benefits

Convenient connections for power through screw terminal blocks
Add-on BNC connector for 50 Ω signal sources
On-board signal routing
Support for signal wrap back
Simple signal paths to reduce transmission line effects
Pull-up and pull-down provided for control lines
Support for isoPower
Project area that supports surface-mount and through-hole devices

Product Details

EVAL-ADuMQSEBZ can be used with most iCoupler^® and isoPower(R) isolation products in the 16-lead, wide-body SOIC and QSOP packages. The evaluation board supports the common pad positions for power, ground, and I/O pins.
