ADUM2401

Quad-Channel Digital Isolator

Show More showmore-icon

Info: : PRODUCTION tooltip
Info: : PRODUCTION tooltip
Viewing: Part Details
arrow-icon
Part Details

Not the part you were looking for?

viewall Go to Product Selection Table
file View Data Sheet (Rev.G)
Documentation View All Documentation
IBIS Model ADuM1401/ADuM2401 5V IBIS Model Download 26.92 KB IBIS Model ADuM1401 and ADuM2401 (All Speed Grades) Download B
Part Models 12
1ku List Price Starting From $3.67
Features
  • Low power operation
    • 5 V operation (see data sheet)
      • 1.0 mA per channel maximum @ 0 Mbps to 2 Mbps
      • 3.5 mA per channel maximum @ 10 Mbps
      • 31 mA per channel maximum @ 90 Mbps
    • 3 V operation (see data sheet)
      • 0.7 mA per channel maximum @ 0 Mbps to 2 Mbps
      • 2.1 mA per channel maximum @ 10 Mbps
      • 20 mA per channel maximum @ 90 Mbps
  • Bidirectional communication
  • 3 V/5 V level translation
  • High temperature operation: 105°C
  • High data rate: dc to 90 Mbps (NRZ)
  • Precise timing characteristics
    • 2 ns maximum pulse width distortion
    • 2 ns maximum channel-to-channel matching
  • High common-mode transient immunity: >25 kV/μs
  • Output enable function
  • See data sheet for additional features
Additional Details
show more Icon

The ADuM2400 / ADuM2401 / ADuM2402 are 4-channel digital isolators based on Analog Devices, Inc., iCoupler® technology. Combining high speed CMOS and monolithic air core transformer technology, these isolation components provide outstanding performance characteristics that are superior to alternatives, such as optocoupler devices.

By avoiding the use of LEDs and photodiodes, iCoupler devices remove the design difficulties commonly associated with opto-couplers. The typical optocoupler concerns regarding uncertain current transfer ratios, nonlinear transfer functions, and temperature and lifetime effects are eliminated with the simple iCoupler digital interfaces and stable performance characteristics. Furthermore, iCoupler devices run at one-tenth to one-sixth the power of optocouplers at comparable signal data rates.

The ADuM2400 / ADuM2401 / ADuM2402 isolators provide four independent isolation channels in a variety of channel configurations and data rates (see the Ordering Guide). The ADuM2400 / ADuM2401 / ADuM2402 models operate with the supply voltage of either side ranging from 2.7 V to 5.5 V, providing compatibility with lower voltage systems as well as enabling a voltage translation functionality across the isolation barrier. In addition, the ADuM2400 / ADuM2401 / ADuM2402 provide low pulse width distortion (<2 ns for CRWZ grade) and tight channel-to-channel matching (<2 ns for CRWZ grade). The ADuM2400 / ADuM2401 / ADuM2402 isolators have a patented refresh feature that ensures dc correctness in the absence of input logic transitions and during power-up/power-down conditions.

APPLICATIONS

  • General-purpose, high voltage, multichannel isolation
  • Medical equipment
  • Motor drives
  • Power supplies
Show More Arrow image
file View Data Sheet (Rev.G)
Documentation View All Documentation
IBIS Model ADuM1401/ADuM2401 5V IBIS Model Download 26.92 KB IBIS Model ADuM1401 and ADuM2401 (All Speed Grades) Download B
Part Models 12
1ku List Price Starting From $3.67
modal bookmark icon

{{modalTitle}}

modal close icon

{{modalDescription}}

{{dropdownTitle}}

input down arrow
  • {{defaultSelectedText}}
    • {{#each projectNames}}
  • {{name}}
    • {{/each}} {{#if newProjectText}}
  • plus icon {{newProjectText}}
    • {{/if}}
{{#if toggleButtonDescription}}
{{toggleButtonDescription}}
{{/if}} {{#if newProjectTitle}}

{{newProjectTitle}}

{{projectNameErrorText}}

{{/if}}

ADUM2401

Documentation

40
overlayclose

Filters

1 Applied

mobileoverlaydownarrow
  • All
    TickIcon
  • Application Note
  • User Guide
  • Technical Articles
  • Data Sheet
  • Informational
  • Safety and Regulatory Compliance
  • Frequently Asked Question
  • All
    TickIcon
  • English
  • Chinese
  • Japanese
resetfilter

Reset Filters

Data Sheet

2

PDF Vector

PDF

UPDATED 05/09/2023
English

ADuM2400/ADuM2401/ADuM2402: Quad-Channel Digital Isolators Data Sheet (Rev.G)

Open PDF File

redirect
625.03 K
download

Download PDF

PDF Vector

pdf

UPDATED 10/07/2005
Japanese

ADuM2400/ADuM2401/ADuM2402: 4チャンネル・デジタル・アイソレータ (Rev.D)

Open PDF File

redirect
452 kB
download

Download PDF

Application Note

24

PDF Vector

pdf

UPDATED 06/20/2007
English
AN-913: Isolating I2C Interfaces (Rev.0) redirect icon

280 kB

download

Download PDF

PDF Vector

pdf

UPDATED 06/20/2007
Chinese
AN-913: I²C 接口的隔离 (Rev.0) redirect icon

308 kB

download

Download PDF

PDF Vector

pdf

UPDATED 06/20/2007
Japanese
AN-913: I²Cインターフェースのアイソレーション (Rev.0) redirect icon

365 kB

download

Download PDF

PDF Vector

pdf

UPDATED 11/01/2006
English
AN-770: iCoupler® Isolation in CAN Bus Applications (Rev.0) redirect icon

234 kB

download

Download PDF

PDF Vector

pdf

UPDATED 01/31/2011
Chinese
AN-770: CAN总线应用中的iCoupler®隔离 (Rev.0) redirect icon

362 kB

download

Download PDF

PDF Vector

pdf

UPDATED 11/01/2006
Japanese
AN-770: iCoupler®絶縁のCANバスでの応用 (Rev.0) redirect icon

291 kB

download

Download PDF

PDF Vector

PDF

UPDATED 11/01/2006
English
AN-740: iCoupler® Isolation in RS-232 Applications (Rev.A) redirect icon

218.29 K

download

Download PDF

PDF Vector

pdf

UPDATED 08/31/2010
Chinese
AN-740: RS-232应用中的iCoupler® 隔离 (Rev.0) redirect icon

494 kB

download

Download PDF

PDF Vector

pdf

UPDATED 11/09/2010
Japanese
AN-740: RS-232アプリケーションでのiCoupler®アイソレーション (Rev.0) redirect icon

560 kB

download

Download PDF

PDF Vector

pdf

UPDATED 11/01/2006
English
AN-727: iCoupler® Isolation in RS-485 Applications (Rev.0) redirect icon

282 kB

download

Download PDF

PDF Vector

pdf

UPDATED 07/26/2010
Chinese
AN-727: RS-485应用中的iCoupler®隔离 (Rev.0) redirect icon

373 kB

download

Download PDF

PDF Vector

pdf

UPDATED 02/21/2011
Japanese
AN-727: RS-485アプリケーションでのiCoupler®アイソレータ (Rev.0) redirect icon

756 kB

download

Download PDF

PDF Vector

pdf

UPDATED 11/01/2006
English
AN-825: Power Supply Considerations in iCoupler® Isolation Products (Rev.0) redirect icon

181 kB

download

Download PDF

PDF Vector

pdf

UPDATED 09/09/2010
Chinese
AN-825: iCoupler®隔离产品的电源考虑因素 (Rev.0) redirect icon

181 kB

download

Download PDF

PDF Vector

pdf

UPDATED 11/01/2006
Japanese
AN-825: iCoupler®アイソレーション製品での電源の考慮事項 (Rev.0) redirect icon

340 kB

download

Download PDF

PDF Vector

pdf

UPDATED 11/01/2006
English
AN-793: ESD/Latch-Up Considerations with iCoupler® Isolation Products (Rev.A) redirect icon

246 kB

download

Download PDF

PDF Vector

pdf

UPDATED 01/31/2011
Chinese
AN-793: iCoupler®隔离产品的ESD/闩锁考虑因素 (Rev.A) redirect icon

500 kB

download

Download PDF

PDF Vector

pdf

UPDATED 11/01/2006
Japanese
AN-793: iCoupler®アイソレータ製品のESD / ラッチアップに関する考慮事項 (Rev.0) redirect icon

331 kB

download

Download PDF

PDF Vector

HTML

UPDATED 11/22/2023
English
AN-913: Isolating I2C Interfaces redirect icon

PDF Vector

HTML

UPDATED 11/22/2023
Chinese
AN-913: Isolating I2C Interfaces redirect icon

PDF Vector

HTML

UPDATED 11/22/2023
Japanese
AN-913: I2Cインターフェースのアイソレーション redirect icon

PDF Vector

HTML

UPDATED 07/03/2020
English
AN-0971: Recommendations for Control of Radiated Emissions with isoPower Devices redirect icon

PDF Vector

HTML

UPDATED 07/03/2020
Chinese
AN-0971: isoPower器件的辐射控制建议 redirect icon

PDF Vector

HTML

UPDATED 07/03/2020
Japanese
AN-0971：isoPower デバイスでの EMI 放射制御についての推奨事項 redirect icon

User Guide

3

PDF Vector

PDF

UPDATED 05/11/2016
English
UG-935: Using the EVAL-3CH4CHSOICEBZ iCoupler Data Isolator Evaluation Board (Rev.A) redirect icon

307.25 K

download

Download PDF

PDF Vector

pdf

UPDATED 03/05/2010
English
UG-042: Evaluating 16-Lead SOIC and 16-Lead QSOP Digital Isolators redirect icon

504 kB

download

Download PDF

PDF Vector

pdf

UPDATED 03/05/2010
Japanese
UG-042: 16 ピン SOIC/16 ピン QSOP デジタル・アイソレータの評価 redirect icon

504 kB

download

Download PDF

Technical Articles

6

PDF Vector

pdf

UPDATED 12/10/2010
English
NAppkin Note: Lowering the Power of the ADuM524x redirect icon

223 kB

download

Download PDF

PDF Vector

URL

UPDATED 10/01/2008
English
Microtransformer Isolation Benefits Digital Control redirect icon

PDF Vector

pdf

UPDATED 12/10/2010
English
Inside iCoupler® Technology:ADuM347x PWM Controller and Transformer Driver with Quad-Channel Isolators Design Summary redirect icon

291 kB

download

Download PDF

PDF Vector

pdf

UPDATED 07/01/2005
English
Isolation in Medical Applications redirect icon

PDF Vector

URL

UPDATED 09/28/2006
English
Medical Devices Demand Stringent Isolation Techniques redirect icon

PDF Vector

URL

UPDATED 09/08/2010
Chinese
医疗设备要求严格的隔离技术 redirect icon

Informational

2

PDF Vector

HTML

UPDATED 02/14/2015
English
First Digital Isolators to Achieve 8.3mm Creepage Packaging redirect icon

PDF Vector

HTML

UPDATED 02/10/2015
Japanese
8mm沿面距離パッケージを実現した初のデジタル・アイソレータ redirect icon

Safety and Regulatory Compliance

2

PDF Vector

HTML

UPDATED 01/28/2016
English
Safety and Regulatory Compliance Information redirect icon

PDF Vector

HTML

UPDATED 01/28/2016
Japanese
安全規格認証や適合の取得状況 redirect icon

Frequently Asked Question

1

PDF Vector

HTML

UPDATED 12/07/2014
English
FAQ redirect icon

There are no results matching this criteria. Try resetting your filters or searching for a different term

close icon
Documentation

Documentation

Technical Documents 19
show more Icon

Data Sheet 1

ADuM2400/ADuM2401/ADuM2402: Quad-Channel Digital Isolators Data Sheet (Rev.G)

User Guide 2

UG-935: Using the EVAL-3CH4CHSOICEBZ iCoupler Data Isolator Evaluation Board (Rev.A)
UG-042: Evaluating 16-Lead SOIC and 16-Lead QSOP Digital Isolators

Application Note 8

AN-913: Isolating I2C Interfaces (Rev.0)
AN-770: iCoupler® Isolation in CAN Bus Applications (Rev.0)
AN-740: iCoupler® Isolation in RS-232 Applications (Rev.A)
AN-727: iCoupler® Isolation in RS-485 Applications (Rev.0)
AN-825: Power Supply Considerations in iCoupler® Isolation Products (Rev.0)
AN-793: ESD/Latch-Up Considerations with iCoupler® Isolation Products (Rev.A)
AN-913: Isolating I2C Interfaces
AN-0971: Recommendations for Control of Radiated Emissions with isoPower Devices

Technical Articles 5

NAppkin Note: Lowering the Power of the ADuM524x
Microtransformer Isolation Benefits Digital Control
Inside iCoupler® Technology:ADuM347x PWM Controller and Transformer Driver with Quad-Channel Isolators Design Summary
Isolation in Medical Applications
Medical Devices Demand Stringent Isolation Techniques

Informational 1

First Digital Isolators to Achieve 8.3mm Creepage Packaging

Safety and Regulatory Compliance 1

Safety and Regulatory Compliance Information

Frequently Asked Question 1

FAQ

Product Selection Guide 1

Digital Isolation and Interface Technology Selection Guide

Solutions Bulletin & Brochure 1

Enhanced Protection with the Latest iCoupler® Digital Isolation

Safety and Regulatory Compliance 1

Safety and Regulatory Compliance Information

Analog Dialogue 1

Precision Signal-Processing and Data-Conversion ICs for PLCs Now Have More Performance at Less Power, Size, and Cost

Webcast 1

Solving Isolation Challenges in Power Conversion Applications

Video

1

Thumbnail Image

Video

2020-10-28

01:00

Protect your Innovations: from High Precision to High Power

Learn More
Show More Arrow image

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model Pin/Package Drawing Documentation CAD Symbols, Footprints, and 3D Models

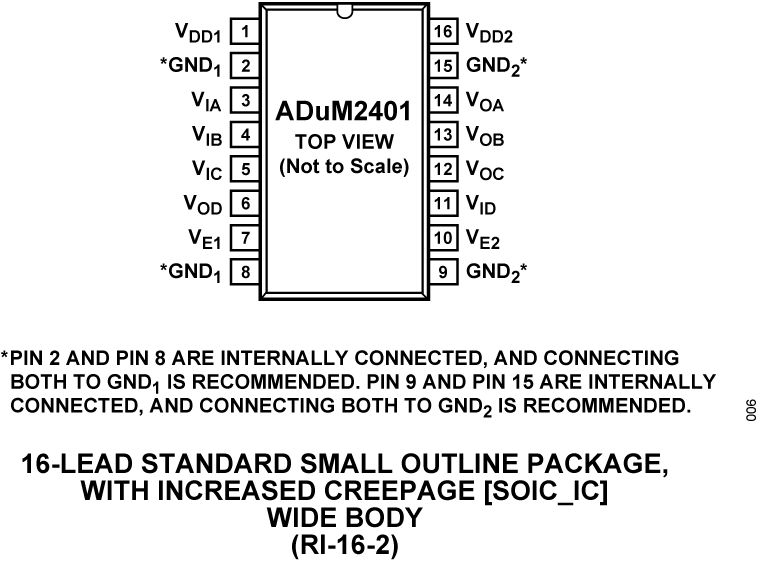

ADUM2401ARIZ 16-Lead SOIC (Increased Creepage) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
ADUM2401ARIZ-RL 16-Lead SOIC (Increased Creepage) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link

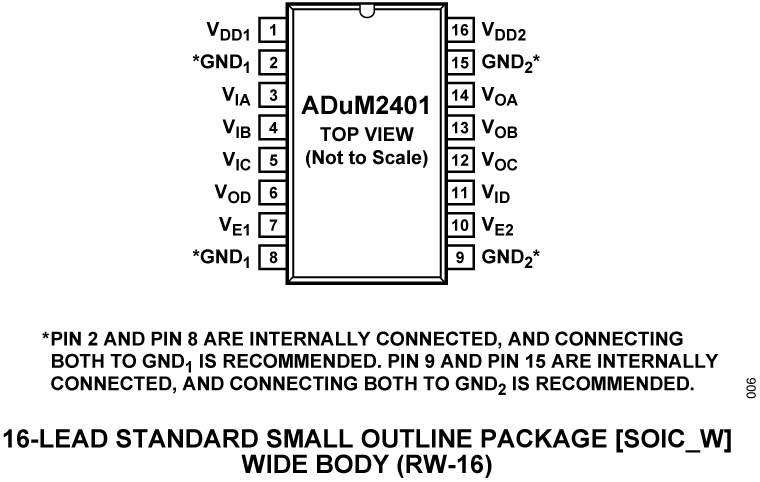

ADUM2401ARWZ 16-Lead SOIC Wide external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
ADUM2401ARWZ-RL 16-Lead SOIC Wide external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
ADUM2401BRIZ 16-Lead SOIC (Increased Creepage) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
ADUM2401BRIZ-RL 16-Lead SOIC (Increased Creepage) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
ADUM2401BRWZ 16-Lead SOIC Wide external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
ADUM2401BRWZ-RL 16-Lead SOIC Wide external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
ADUM2401CRIZ 16-Lead SOIC (Increased Creepage) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
ADUM2401CRIZ-RL 16-Lead SOIC (Increased Creepage) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
ADUM2401CRWZ 16-Lead SOIC Wide external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
ADUM2401CRWZ-RL 16-Lead SOIC Wide external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Feb 9, 2022

- 22_0002

Notification of Qualification of Alternate Fab Foundry at ADI Limerick for IC die in Digital Isolator products.

ADUM2401ARIZ

PRODUCTION

ADUM2401ARIZ-RL

PRODUCTION

ADUM2401ARWZ

PRODUCTION

ADUM2401ARWZ-RL

PRODUCTION

ADUM2401BRIZ

PRODUCTION

ADUM2401BRIZ-RL

PRODUCTION

ADUM2401BRWZ

PRODUCTION

ADUM2401BRWZ-RL

PRODUCTION

ADUM2401CRIZ

PRODUCTION

ADUM2401CRIZ-RL

PRODUCTION

ADUM2401CRWZ

PRODUCTION

ADUM2401CRWZ-RL

PRODUCTION

pdf

PCN22_0002_Form

external-icon

xls

Material_Report

Download

pdf

Qualification Results Summary

external-icon

pdf

Detailed Change Description

external-icon

Sep 22, 2015

- 15_0135

Alternate Assembly Site of Select Isolator Products in 8L/16L SOIC_N, 16L/20L SOIC_W and 16L/20L SOIC_IC at ASE Chungli

ADUM2401ARIZ

PRODUCTION

ADUM2401ARIZ-RL

PRODUCTION

ADUM2401ARWZ

PRODUCTION

ADUM2401ARWZ-RL

PRODUCTION

ADUM2401BRIZ

PRODUCTION

ADUM2401BRIZ-RL

PRODUCTION

ADUM2401BRWZ

PRODUCTION

ADUM2401BRWZ-RL

PRODUCTION

ADUM2401CRIZ

PRODUCTION

ADUM2401CRIZ-RL

PRODUCTION

ADUM2401CRWZ

PRODUCTION

ADUM2401CRWZ-RL

PRODUCTION

pdf

PCN15_0135_Form

external-icon

xls

Material_Report

Download

Detailed Change Description

pdf

Qualification Results Summary

external-icon

Mar 30, 2015

- 14_0211

ADUM2400/01/02 Die Revision

ADUM2401ARIZ

PRODUCTION

ADUM2401ARIZ-RL

PRODUCTION

ADUM2401BRIZ

PRODUCTION

ADUM2401BRIZ-RL

PRODUCTION

ADUM2401CRIZ

PRODUCTION

ADUM2401CRIZ-RL

PRODUCTION

pdf

PCN14_0211_Form

external-icon

xls

Material_Report

Download

pdf

Qualification Results Summary

external-icon

Nov 6, 2013

- 13_0283

Change of Moisture Sensitivity Level Rating for iCoupler Products Assembled in an RI-16 Package from MSL 1 to MSL 3

ADUM2401ARIZ

PRODUCTION

ADUM2401ARIZ-RL

PRODUCTION

ADUM2401BRIZ

PRODUCTION

ADUM2401BRIZ-RL

PRODUCTION

ADUM2401CRIZ

PRODUCTION

ADUM2401CRIZ-RL

PRODUCTION

pdf

PCN13_0283_Form

external-icon

xls

Material_Report

Download

Feb 27, 2012

- 11_0066

Qualification of Alternate Fab Foundry Gold Plating Process Site for Isolation Products at ADI Limerick.

ADUM2401ARIZ

PRODUCTION

ADUM2401ARIZ-RL

PRODUCTION

ADUM2401ARWZ

PRODUCTION

ADUM2401ARWZ-RL

PRODUCTION

ADUM2401BRIZ

PRODUCTION

ADUM2401BRIZ-RL

PRODUCTION

ADUM2401BRWZ

PRODUCTION

ADUM2401BRWZ-RL

PRODUCTION

ADUM2401CRIZ

PRODUCTION

ADUM2401CRIZ-RL

PRODUCTION

ADUM2401CRWZ

PRODUCTION

ADUM2401CRWZ-RL

PRODUCTION

pdf

PCN11_0066_Form

external-icon

xls

Material_Report

Download

pdf

Qualification Plan Summary

external-icon

pdf

Flow Chart

external-icon

Jan 4, 2021

- 20_0320

Alternate Assembly Site of Select Isolator Products in SO Packages

ADUM2401ARWZ

PRODUCTION

ADUM2401ARWZ-RL

PRODUCTION

ADUM2401BRWZ

PRODUCTION

ADUM2401BRWZ-RL

PRODUCTION

ADUM2401CRWZ

PRODUCTION

ADUM2401CRWZ-RL

PRODUCTION

pdf

PCN20_0320_Form

external-icon

xls

Material_Report

Download

pdf

Qualification Results Summary

external-icon

pdf

Qualification Results Summary

external-icon

pdf

Qualification Results Summary

external-icon

pdf

Qualification Results Summary

external-icon

pdf

Other

external-icon

Jan 20, 2015

- 14_0211

ADUM2400/01/02 Die Revision

ADUM2401ARWZ

PRODUCTION

ADUM2401ARWZ-RL

PRODUCTION

ADUM2401BRWZ

PRODUCTION

ADUM2401BRWZ-RL

PRODUCTION

ADUM2401CRWZ

PRODUCTION

ADUM2401CRWZ-RL

PRODUCTION

pdf

PCN14_0211_Form

external-icon

xls

Material_Report

Download

pdf

Qualification Results Summary

external-icon

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Feb 9, 2022

- 22_0002

arrow down

Notification of Qualification of Alternate Fab Foundry at ADI Limerick for IC die in Digital Isolator products.

ADUM2401ARIZ

PRODUCTION

ADUM2401ARIZ-RL

PRODUCTION

ADUM2401ARWZ

PRODUCTION

ADUM2401ARWZ-RL

PRODUCTION

ADUM2401BRIZ

PRODUCTION

ADUM2401BRIZ-RL

PRODUCTION

ADUM2401BRWZ

PRODUCTION

ADUM2401BRWZ-RL

PRODUCTION

ADUM2401CRIZ

PRODUCTION

ADUM2401CRIZ-RL

PRODUCTION

ADUM2401CRWZ

PRODUCTION

ADUM2401CRWZ-RL

PRODUCTION

pdf

PCN22_0002_Form

external-icon

xls

Material_Report

Download

pdf

Qualification Results Summary

external-icon

pdf

Detailed Change Description

external-icon
Sep 22, 2015

- 15_0135

arrow down

Alternate Assembly Site of Select Isolator Products in 8L/16L SOIC_N, 16L/20L SOIC_W and 16L/20L SOIC_IC at ASE Chungli

ADUM2401ARIZ

PRODUCTION

ADUM2401ARIZ-RL

PRODUCTION

ADUM2401ARWZ

PRODUCTION

ADUM2401ARWZ-RL

PRODUCTION

ADUM2401BRIZ

PRODUCTION

ADUM2401BRIZ-RL

PRODUCTION

ADUM2401BRWZ

PRODUCTION

ADUM2401BRWZ-RL

PRODUCTION

ADUM2401CRIZ

PRODUCTION

ADUM2401CRIZ-RL

PRODUCTION

ADUM2401CRWZ

PRODUCTION

ADUM2401CRWZ-RL

PRODUCTION

pdf

PCN15_0135_Form

external-icon

xls

Material_Report

Download
Detailed Change Description

pdf

Qualification Results Summary

external-icon
Mar 30, 2015

- 14_0211

arrow down

ADUM2400/01/02 Die Revision

ADUM2401ARIZ

PRODUCTION

ADUM2401ARIZ-RL

PRODUCTION

ADUM2401BRIZ

PRODUCTION

ADUM2401BRIZ-RL

PRODUCTION

ADUM2401CRIZ

PRODUCTION

ADUM2401CRIZ-RL

PRODUCTION

pdf

PCN14_0211_Form

external-icon

xls

Material_Report

Download

pdf

Qualification Results Summary

external-icon
Nov 6, 2013

- 13_0283

arrow down

Change of Moisture Sensitivity Level Rating for iCoupler Products Assembled in an RI-16 Package from MSL 1 to MSL 3

ADUM2401ARIZ

PRODUCTION

ADUM2401ARIZ-RL

PRODUCTION

ADUM2401BRIZ

PRODUCTION

ADUM2401BRIZ-RL

PRODUCTION

ADUM2401CRIZ

PRODUCTION

ADUM2401CRIZ-RL

PRODUCTION

pdf

PCN13_0283_Form

external-icon

xls

Material_Report

Download
Feb 27, 2012

- 11_0066

arrow down

Qualification of Alternate Fab Foundry Gold Plating Process Site for Isolation Products at ADI Limerick.

ADUM2401ARIZ

PRODUCTION

ADUM2401ARIZ-RL

PRODUCTION

ADUM2401ARWZ

PRODUCTION

ADUM2401ARWZ-RL

PRODUCTION

ADUM2401BRIZ

PRODUCTION

ADUM2401BRIZ-RL

PRODUCTION

ADUM2401BRWZ

PRODUCTION

ADUM2401BRWZ-RL

PRODUCTION

ADUM2401CRIZ

PRODUCTION

ADUM2401CRIZ-RL

PRODUCTION

ADUM2401CRWZ

PRODUCTION

ADUM2401CRWZ-RL

PRODUCTION

pdf

PCN11_0066_Form

external-icon

xls

Material_Report

Download

pdf

Qualification Plan Summary

external-icon

pdf

Flow Chart

external-icon
Jan 4, 2021

- 20_0320

arrow down

Alternate Assembly Site of Select Isolator Products in SO Packages

ADUM2401ARWZ

PRODUCTION

ADUM2401ARWZ-RL

PRODUCTION

ADUM2401BRWZ

PRODUCTION

ADUM2401BRWZ-RL

PRODUCTION

ADUM2401CRWZ

PRODUCTION

ADUM2401CRWZ-RL

PRODUCTION

pdf

PCN20_0320_Form

external-icon

xls

Material_Report

Download

pdf

Qualification Results Summary

external-icon

pdf

Qualification Results Summary

external-icon

pdf

Qualification Results Summary

external-icon

pdf

Qualification Results Summary

external-icon

pdf

Other

external-icon
Jan 20, 2015

- 14_0211

arrow down

ADUM2400/01/02 Die Revision

ADUM2401ARWZ

PRODUCTION

ADUM2401ARWZ-RL

PRODUCTION

ADUM2401BRWZ

PRODUCTION

ADUM2401BRWZ-RL

PRODUCTION

ADUM2401CRWZ

PRODUCTION

ADUM2401CRWZ-RL

PRODUCTION

pdf

PCN14_0211_Form

external-icon

xls

Material_Report

Download

pdf

Qualification Results Summary

external-icon
Software & Part Ecosystem

Software & Part Ecosystem

Parts Product Life Cycle Description
ADuM341E
popup image
Cart

RECOMMENDED FOR NEW DESIGNS

5.7 kV/3.0 kV rms Quad Digital Isolators

Evaluation Kit

Evaluation Kits 1

reference details image

EVAL-ADUMQS

EVAL-ADUMQS

zoom

EVAL-ADUMQS

EVAL-ADUMQS

download icon

Download

 print icon

Print
EVAL-ADUMQS
EVAL-ADUMQS

Features and Benefits

  • Convenient connections for power through screw terminal blocks
  • Add-on BNC connector for 50 Ω signal sources
  • On-board signal routing
  • Support for signal wrap back
  • Simple signal paths to reduce transmission line effects
  • Pull-up and pull-down provided for control lines
  • Support for isoPower
  • Project area that supports surface-mount and through-hole devices

Buy Now View Details

Product Detail

EVAL-ADuMQSEBZ can be used with most iCoupler® and isoPower(R) isolation products in the 16-lead, wide-body SOIC and QSOP packages. The evaluation board supports the common pad positions for power, ground, and I/O pins.

Supported iCoupler® Products

  • ADuM130x
  • ADuM131x
  • ADuM140x
  • ADuM141x
  • ADuM1510
  • ADuM240x
  • ADuM330x
  • ADuM340x
  • ADuM344x
  • ADuM440x
  • ADuM5000
  • ADuM520x
  • ADuM540x
  • ADuM6000
  • ADuM620x
  • ADuM640x
  • ADuM744x
  • ADuM7510

Resources

pdf icon

HTML

PLC Demo System reference design link

pdf icon

pdf

UG-042: Evaluating 16-Lead SOIC and 16-Lead QSOP Digital Isolators Download

504 kB

Show More Arrow image

Evaluation Kits1

evaluation kit item images

EVAL-ADUMQS

EVAL-ADUMQS

Recently Viewed

Part Details
Documentation
Software & Part Ecosystem
Evaluation Kit
Tools & Simulations
Latest Discussions
