ADUM2402

Quad-Channel Digital Isolator

Show More showmore-icon

Info: : PRODUCTION tooltip
Info: : PRODUCTION tooltip

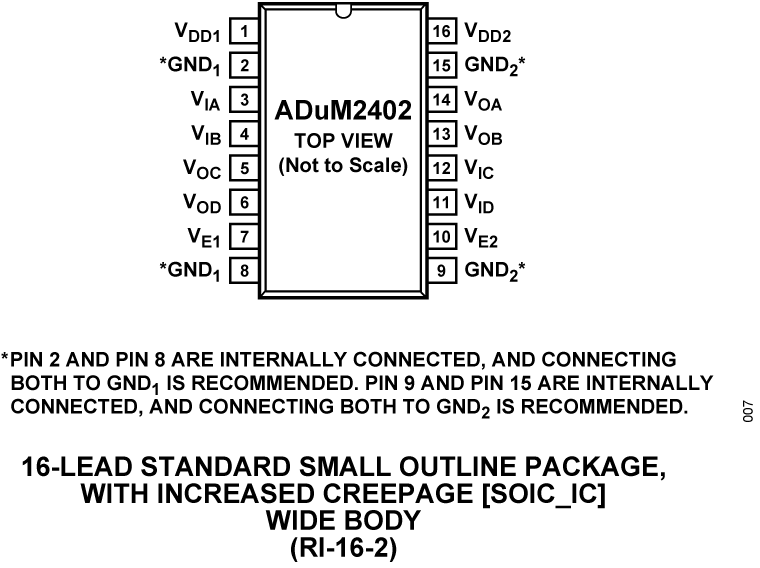

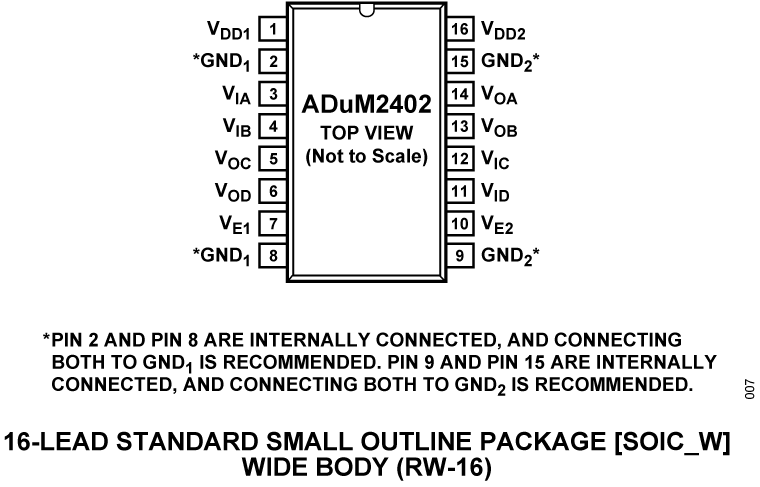

Part Details
Part Models 12
1ku List Price Starting From $3.67
Features
  • Low power operation
    • 5 V operation (see data sheet)
      • 1.0 mA per channel maximum @ 0 Mbps to 2 Mbps
      • 3.5 mA per channel maximum @ 10 Mbps
      • 31 mA per channel maximum @ 90 Mbps
    • 3 V operation (see data sheet)
      • 0.7 mA per channel maximum @ 0 Mbps to 2 Mbps
      • 2.1 mA per channel maximum @ 10 Mbps
      • 20 mA per channel maximum @ 90 Mbps
  • Bidirectional communication
  • 3 V/5 V level translation
  • High temperature operation: 105°C
  • High data rate: dc to 90 Mbps (NRZ)
  • Precise timing characteristics
    • 2 ns maximum pulse width distortion
    • 2 ns maximum channel-to-channel matching
  • High common-mode transient immunity: >25 kV/μs
  • Output enable function
  • See data sheet for additional features
Additional Details
show more Icon

The ADuM2400/ADuM2401/ADuM2402 are 4-channel digital isolators based on Analog Devices, Inc., iCoupler® technology. Combining high speed CMOS and monolithic air core transformer technology, these isolation components provide outstanding performance characteristics that are superior to alternatives, such as optocoupler devices.

By avoiding the use of LEDs and photodiodes, iCoupler devices remove the design difficulties commonly associated with opto-couplers. The typical optocoupler concerns regarding uncertain current transfer ratios, nonlinear transfer functions, and temperature and lifetime effects are eliminated with the simple iCoupler digital interfaces and stable performance characteristics. Furthermore, iCoupler devices run at one-tenth to one-sixth the power of optocouplers at comparable signal data rates.

The ADuM2400/ADuM2401/ADuM2402 isolators provide four independent isolation channels in a variety of channel configurations and data rates (see the Ordering Guide). The ADuM2400/ADuM2401/ADuM2402 models operate with the supply voltage of either side ranging from 2.7 V to 5.5 V, providing compatibility with lower voltage systems as well as enabling a voltage translation functionality across the isolation barrier. In addition, the ADuM2400/ADuM2401/ADuM2402 provide low pulse width distortion (<2 ns for CRWZ grade) and tight channel-to-channel matching (<2 ns for CRWZ grade). The ADuM2400/ADuM2401/ADuM2402 isolators have a patented refresh feature that ensures dc correctness in the absence of input logic transitions and during power-up/power-down conditions.

APPLICATIONS

  • General-purpose, high voltage, multichannel isolation
  • Medical equipment
  • Motor drives
  • Power supplies
Part Models 12
1ku List Price Starting From $3.67

close icon
Documentation

Documentation

Video

Part Model Pin/Package Drawing Documentation CAD Symbols, Footprints, and 3D Models
ADUM2402ARIZ
  • HTML
  • HTML
ADUM2402ARIZ-RL
  • HTML
  • HTML
ADUM2402ARWZ
  • HTML
  • HTML
ADUM2402ARWZ-RL
  • HTML
  • HTML
ADUM2402BRIZ
  • HTML
  • HTML
ADUM2402BRIZ-RL
  • HTML
  • HTML
ADUM2402BRWZ
  • HTML
  • HTML
ADUM2402BRWZ-RL
  • HTML
  • HTML
ADUM2402CRIZ
  • HTML
  • HTML
ADUM2402CRIZ-RL
  • HTML
  • HTML
ADUM2402CRWZ
  • HTML
  • HTML
ADUM2402CRWZ-RL
  • HTML
  • HTML

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Feb 9, 2022

- 22_0002

Notification of Qualification of Alternate Fab Foundry at ADI Limerick for IC die in Digital Isolator products.

ADUM2402ARIZ

PRODUCTION

ADUM2402ARIZ-RL

PRODUCTION

ADUM2402ARWZ

PRODUCTION

ADUM2402ARWZ-RL

PRODUCTION

ADUM2402BRIZ

PRODUCTION

ADUM2402BRIZ-RL

PRODUCTION

ADUM2402BRWZ

PRODUCTION

ADUM2402BRWZ-RL

PRODUCTION

ADUM2402CRIZ

PRODUCTION

ADUM2402CRIZ-RL

PRODUCTION

ADUM2402CRWZ

PRODUCTION

ADUM2402CRWZ-RL

PRODUCTION

Sep 22, 2015

- 15_0135

Alternate Assembly Site of Select Isolator Products in 8L/16L SOIC_N, 16L/20L SOIC_W and 16L/20L SOIC_IC at ASE Chungli

ADUM2402ARIZ

PRODUCTION

ADUM2402ARIZ-RL

PRODUCTION

ADUM2402ARWZ

PRODUCTION

ADUM2402ARWZ-RL

PRODUCTION

ADUM2402BRIZ

PRODUCTION

ADUM2402BRIZ-RL

PRODUCTION

ADUM2402BRWZ

PRODUCTION

ADUM2402BRWZ-RL

PRODUCTION

ADUM2402CRIZ

PRODUCTION

ADUM2402CRIZ-RL

PRODUCTION

ADUM2402CRWZ

PRODUCTION

ADUM2402CRWZ-RL

PRODUCTION

Mar 30, 2015

- 14_0211

ADUM2400/01/02 Die Revision

ADUM2402ARIZ

PRODUCTION

ADUM2402ARIZ-RL

PRODUCTION

ADUM2402BRIZ

PRODUCTION

ADUM2402BRIZ-RL

PRODUCTION

ADUM2402CRIZ

PRODUCTION

ADUM2402CRIZ-RL

PRODUCTION

Nov 6, 2013

- 13_0283

Change of Moisture Sensitivity Level Rating for iCoupler Products Assembled in an RI-16 Package from MSL 1 to MSL 3

ADUM2402ARIZ

PRODUCTION

ADUM2402ARIZ-RL

PRODUCTION

Feb 27, 2012

- 11_0066

Qualification of Alternate Fab Foundry Gold Plating Process Site for Isolation Products at ADI Limerick.

ADUM2402ARIZ

PRODUCTION

ADUM2402ARIZ-RL

PRODUCTION

ADUM2402ARWZ

PRODUCTION

ADUM2402ARWZ-RL

PRODUCTION

ADUM2402BRIZ

PRODUCTION

ADUM2402BRIZ-RL

PRODUCTION

ADUM2402BRWZ

PRODUCTION

ADUM2402BRWZ-RL

PRODUCTION

ADUM2402CRIZ

PRODUCTION

ADUM2402CRIZ-RL

PRODUCTION

ADUM2402CRWZ

PRODUCTION

ADUM2402CRWZ-RL

PRODUCTION

Jan 20, 2015

- 14_0211

ADUM2400/01/02 Die Revision

ADUM2402ARWZ

PRODUCTION

ADUM2402ARWZ-RL

PRODUCTION

ADUM2402BRWZ

PRODUCTION

ADUM2402BRWZ-RL

PRODUCTION

ADUM2402CRWZ

PRODUCTION

ADUM2402CRWZ-RL

PRODUCTION

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Feb 9, 2022

- 22_0002

arrow down

Notification of Qualification of Alternate Fab Foundry at ADI Limerick for IC die in Digital Isolator products.

ADUM2402ARIZ

PRODUCTION

ADUM2402ARIZ-RL

PRODUCTION

ADUM2402ARWZ

PRODUCTION

ADUM2402ARWZ-RL

PRODUCTION

ADUM2402BRIZ

PRODUCTION

ADUM2402BRIZ-RL

PRODUCTION

ADUM2402BRWZ

PRODUCTION

ADUM2402BRWZ-RL

PRODUCTION

ADUM2402CRIZ

PRODUCTION

ADUM2402CRIZ-RL

PRODUCTION

ADUM2402CRWZ

PRODUCTION

ADUM2402CRWZ-RL

PRODUCTION

Sep 22, 2015

- 15_0135

arrow down

Alternate Assembly Site of Select Isolator Products in 8L/16L SOIC_N, 16L/20L SOIC_W and 16L/20L SOIC_IC at ASE Chungli

ADUM2402ARIZ

PRODUCTION

ADUM2402ARIZ-RL

PRODUCTION

ADUM2402ARWZ

PRODUCTION

ADUM2402ARWZ-RL

PRODUCTION

ADUM2402BRIZ

PRODUCTION

ADUM2402BRIZ-RL

PRODUCTION

ADUM2402BRWZ

PRODUCTION

ADUM2402BRWZ-RL

PRODUCTION

ADUM2402CRIZ

PRODUCTION

ADUM2402CRIZ-RL

PRODUCTION

ADUM2402CRWZ

PRODUCTION

ADUM2402CRWZ-RL

PRODUCTION

Mar 30, 2015

- 14_0211

arrow down

ADUM2400/01/02 Die Revision

ADUM2402ARIZ

PRODUCTION

ADUM2402ARIZ-RL

PRODUCTION

ADUM2402BRIZ

PRODUCTION

ADUM2402BRIZ-RL

PRODUCTION

ADUM2402CRIZ

PRODUCTION

ADUM2402CRIZ-RL

PRODUCTION

Nov 6, 2013

- 13_0283

arrow down

Change of Moisture Sensitivity Level Rating for iCoupler Products Assembled in an RI-16 Package from MSL 1 to MSL 3

ADUM2402ARIZ

PRODUCTION

ADUM2402ARIZ-RL

PRODUCTION

Feb 27, 2012

- 11_0066

arrow down

Qualification of Alternate Fab Foundry Gold Plating Process Site for Isolation Products at ADI Limerick.

ADUM2402ARIZ

PRODUCTION

ADUM2402ARIZ-RL

PRODUCTION

ADUM2402ARWZ

PRODUCTION

ADUM2402ARWZ-RL

PRODUCTION

ADUM2402BRIZ

PRODUCTION

ADUM2402BRIZ-RL

PRODUCTION

ADUM2402BRWZ

PRODUCTION

ADUM2402BRWZ-RL

PRODUCTION

ADUM2402CRIZ

PRODUCTION

ADUM2402CRIZ-RL

PRODUCTION

ADUM2402CRWZ

PRODUCTION

ADUM2402CRWZ-RL

PRODUCTION

Jan 20, 2015

- 14_0211

arrow down

ADUM2400/01/02 Die Revision

ADUM2402ARWZ

PRODUCTION

ADUM2402ARWZ-RL

PRODUCTION

ADUM2402BRWZ

PRODUCTION

ADUM2402BRWZ-RL

PRODUCTION

ADUM2402CRWZ

PRODUCTION

ADUM2402CRWZ-RL

PRODUCTION

Software & Part Ecosystem

Software & Part Ecosystem

Evaluation Kit

Evaluation Kits 1

reference details image

EVAL-ADUMQS

EVAL-ADUMQS

zoom

EVAL-ADUMQS

EVAL-ADUMQS

EVAL-ADUMQS

Features and Benefits

  • Convenient connections for power through screw terminal blocks
  • Add-on BNC connector for 50 Ω signal sources
  • On-board signal routing
  • Support for signal wrap back
  • Simple signal paths to reduce transmission line effects
  • Pull-up and pull-down provided for control lines
  • Support for isoPower
  • Project area that supports surface-mount and through-hole devices

Product Detail

EVAL-ADuMQSEBZ can be used with most iCoupler® and isoPower(R) isolation products in the 16-lead, wide-body SOIC and QSOP packages. The evaluation board supports the common pad positions for power, ground, and I/O pins.

Supported iCoupler® Products

  • ADuM130x
  • ADuM131x
  • ADuM140x
  • ADuM141x
  • ADuM1510
  • ADuM240x
  • ADuM330x
  • ADuM340x
  • ADuM344x
  • ADuM440x
  • ADuM5000
  • ADuM520x
  • ADuM540x
  • ADuM6000
  • ADuM620x
  • ADuM640x
  • ADuM744x
  • ADuM7510
