MAX20840T
量产40A, 2MHz, 2.7V to 16V Integrated Step-Down Switching Regulator with PMBus
- 产品模型
- 2
产品详情
- High Power Density with Low Component Count
- Compact 4.3mm x 6.55mm, 16-Pin FC2QFN Package
- Internal Compensation
- Single-Supply Operation with Integrated LDO for Bias Generation
- Wide Operating Range
- 2.7V to 16V Input Voltage Range
- 0.4V to 5.8V Output Voltage Range
- 500kHz to 2MHz Configurable SwitchingFrequency
- -40°C to +125°C Junction Temperature Range
- Optimized Performance and Efficiency
- 94.5% Peak Efficiency with VDDH = 12V andVOUT = 1.8V
- High Efficiency with Optional External Bias Input Supply
- AMS to Improve Load-Transient Response
- Differential Remote Sense
- PMBus Interfac
- Adaptive Voltage Scaling of 0.4V to 0.8V Reference Range
- PMBus Telemetry of Output Current, OutputVoltage, Input Voltage, and Junction Temperature

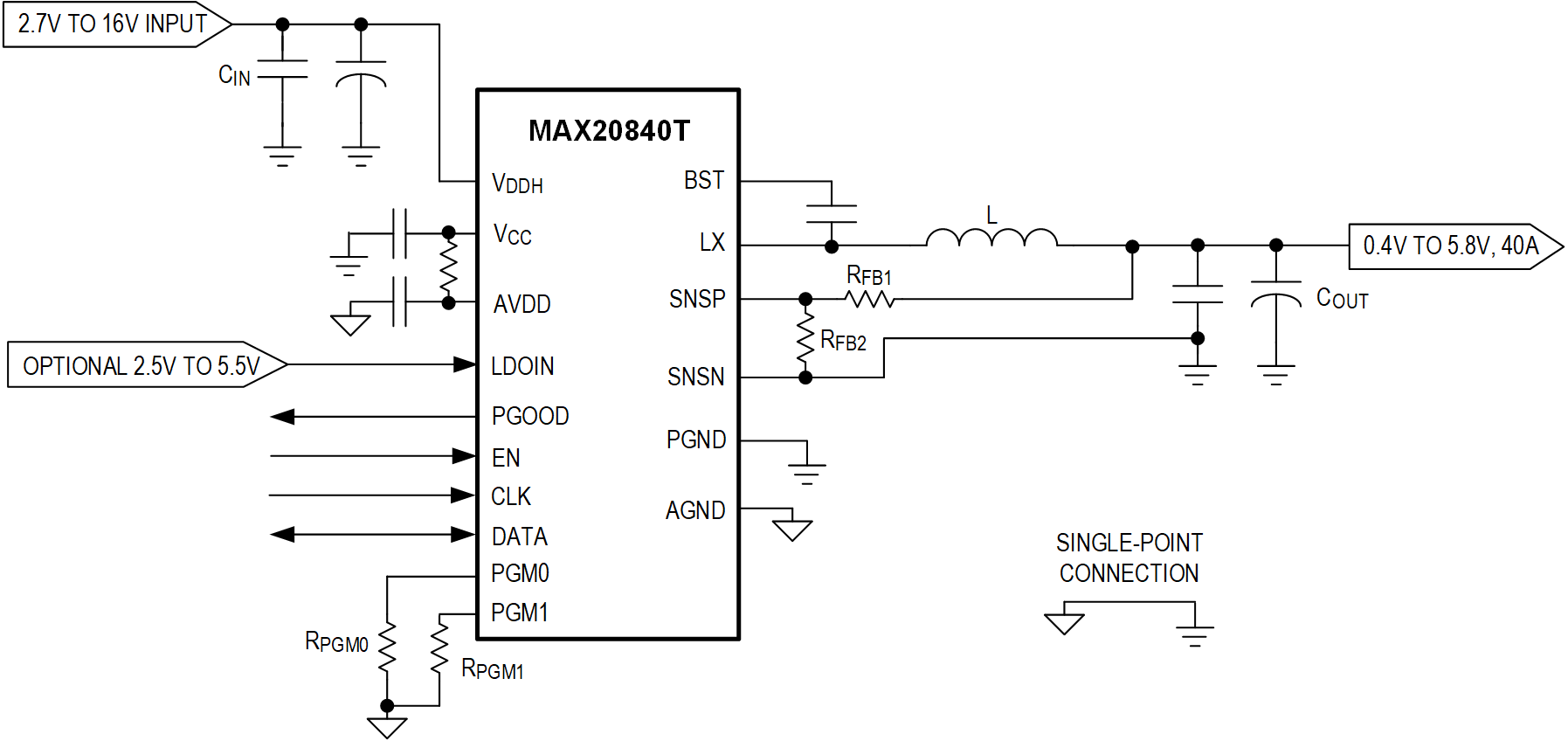

The MAX20840T is a fully integrated, highly efficient, step-down DC-DC switching regulator with a PMBus interface. The device operates from 2.7V to 16V input supplies, and the output can be adjusted from 0.4V to 5.8V, delivering up to 40A of load current.
The switching frequency of the device can be configured from 500kHz to 2MHz to provide optimization of the design in terms of size and performance.
The MAX20840T utilizes fixed-frequency, current-mode control with internal compensation. The IC features selectable advanced modulation scheme (AMS) to provide improved performance during fast load transients. Operation settings and configurable features can be selected by connecting a pin-strap resistors from PGM_ pins to ground or using PMBus commands.
The MAX20840T has an internal 1.8V LDO output to power the gate drives (VCC) and internal circuitry (AVDD). The device also has an optional LDO input pin (LDOIN), allowing connection from a 2.5V to 5.5V bias input supply for optimized efficiency.
The IC has multiple protections including positive and negative overcurrent protection, output overvoltage protection, and overtemperature protection to ensure robust design.
The device is available in a 4.3mm x 6.55mm FC2QFN package. It supports -40°C to +125°C junction temperature operation. The MAX20840T is footprint compatible with the MAX20830/MAX20830T, MAX20810, and MAX20815.
Applications
- Data Center Power
- Communications Equipment
- Networking Equipment
- Servers and Storage
- Point-of-Load Voltage Regulators
参考资料
数据手册 1
用户手册 1
ADI 始终高度重视提供符合最高质量和可靠性水平的产品。我们通过将质量和可靠性检查纳入产品和工艺设计的各个范围以及制造过程来实现这一目标。出货产品的“零缺陷”始终是我们的目标。查看我们的质量和可靠性计划和认证以了解更多信息。

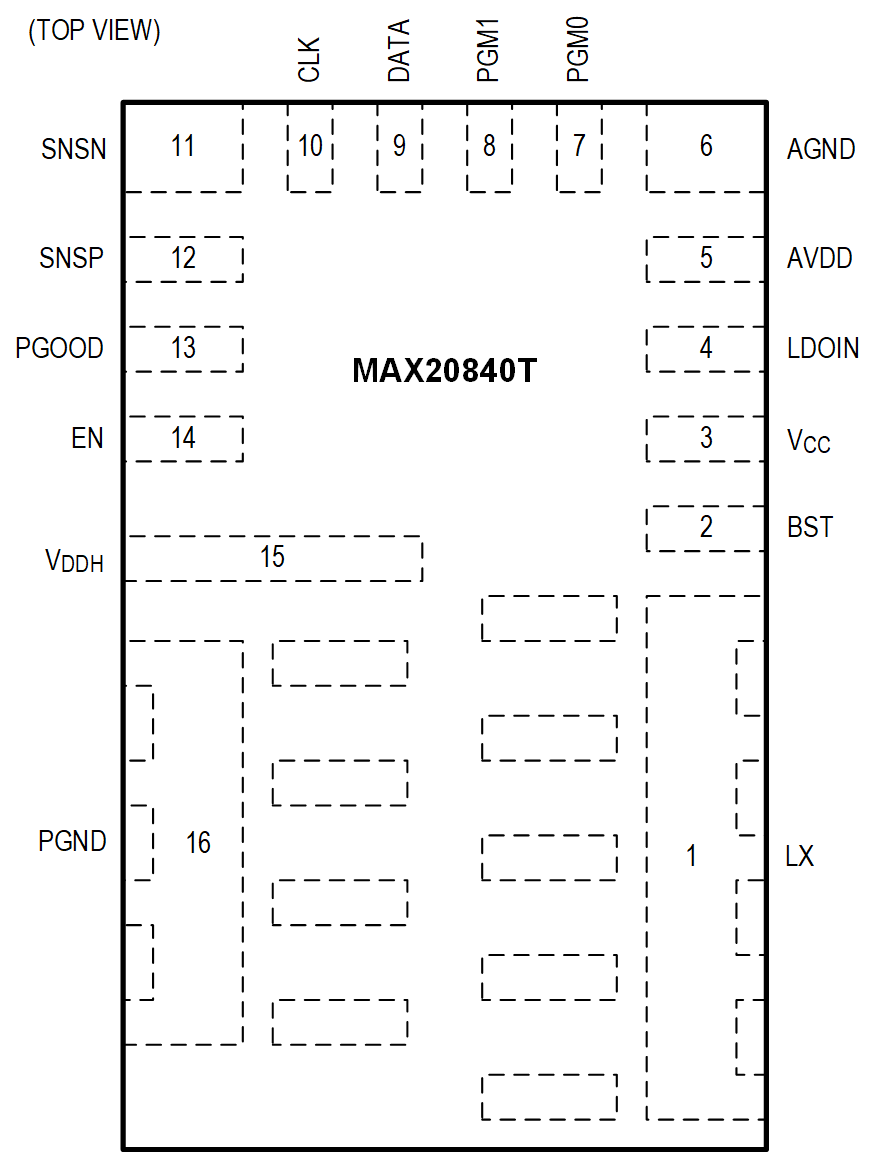

产品型号 | 引脚/封装图-中文版 | 文档 | CAD 符号,脚注和 3D模型 |
---|---|---|---|
MAX20840TAFE+ | 16-LFCSP-6.55X4.3X0.7 | ||
MAX20840TAFE+T | 16-LFCSP-6.55X4.3X0.7 |
