概览

优势和特点

  • Wide Operating Range
    • 8V to 76V Input Voltage Range for Boost and -8V to -76V Input Voltage Range for Inverting Buck-Boost Configuration
    • 3.3V to 60V Output Voltage Range on the Top of Input Voltage
    • Single-/Dual-/Triple-/Quad-Phase Operation
    • -40°C to +125°C Temperature Range
  • Integration Reduces Design Footprint
    • Multiphase Multiple Controller Synchronization and Interleave
    • Output Voltage Sense Level Shifter
  • I2C Digital Interface
    • Programmable Internal VREF
    • Programmable Overcurrent Fault Limit
    • Readback for VIN, VOUT, and Phase Current Reporting
    • Fault Status

产品详情

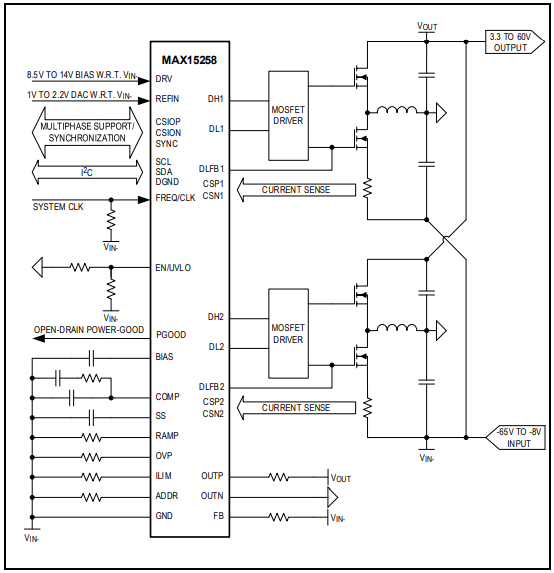

The MAX15258, a high-voltage, multiphase boost controller with a I2C digital interface, is designed to support up to two MOSFET drivers and four external MOSFETs in single-phase or dual-phase boost/inverting-buck-boost configurations. Two devices can be stacked up for triple-phase or quad-phase operation. When configured as inverting-buck-boost converter, the MAX15258 has an internal high-voltage FB level shifter to differentially sense the output voltage. The output voltage can be dynamically set through the 1V to 2.2V REFIN or I2C digital interface.

The switching frequency is controlled either through an external resistor setting the internal oscillator or by synchronizing the regulator to an external clock. The device is designed to support 120kHz to 1MHz switching frequencies. When two devices are stacked up as controller-target for triple-phase or quad-phase operation, the SYNC pins of two devices are connected to ensure clock synchronization and phase interleaving. The controller has a dedicated enable/input under voltage-lockout (EN/UVLO) pin to configure for flexible power sequencing.

The MAX15258 has a dedicated RAMP pin to adjust internal slope compensation. The device features adjustable overcurrent protection. The device incorporates current-sense amplifiers to accurately measure the current of each phase across external sense resistors to implement accurate phase current sharing. The controller is also protected against output overvoltage, input undervoltage, and thermal shutdown.

APPLICATIONS

  • Communications
  • Industrial
  • Multiphase Boost

产品生命周期 icon-recommended 推荐新设计使用

本产品已上市。数据手册包含所有最终性能规格和工作条件。ADI公司推荐新设计使用这些产品。

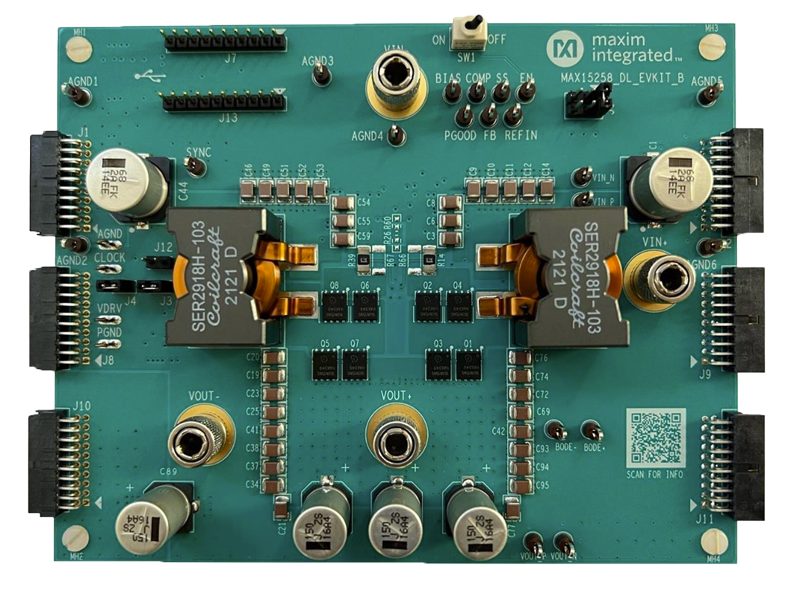

评估套件 (1)
