概览

优势和特点

  • Wide Operating Range Reduces Development Time
    • 8V to 60V Input Voltage Range
    • 3V to 0.95 × VIN Output Voltage Range
    • 60kHz to 1MHz Switching Frequency Range
    • Interleaved 1/2/3/4/6/8-Phase Operation
    • -40°C to +125°C Temperature Range
  • Integration Reduces Design Footprint
    • Internal LDO for Bias Supply Generation
    • Synchronization Input
    • Current Monitor Output
    • Internal 2V Precision Reference
    • 2Ω Pullup and 0.6Ω Pulldown Fast Power FET Drivers
    • Accurate MOSFET Dead Time Adaptive Control
  • Robust Fault Protection Improves Quality and Simplifies System Design
    • Adjustable Input Undervoltage Lockout
    • Adjustable Input EN
    • Adjustable Cycle-by-Cycle OvercurrentProtection
    • Input Undervoltage Fault Protection
    • Multiple Levels of Overvoltage Protection
    • Thermal Shutdown
  • Flexible, Simple System Design
    • Adjustable Slope Compensation
    • Discrete Inductor or Compact Coupled Inductor Architecture
    • Lossless RDSON or Resistor Current Sensing
  • Small 5mm × 5mm, 32-Pin TQFN, 0.5mm Pitch
  • 产品详情

    The MAX15157D is the evolution of the MAX15157B HV buck controller family. The MAX15157D implements a single-phase, PWM valley current-mode controller and drives two external power MOSFETs in a buck configuration. The output voltage can be dynamically set through the 1V to 2.2V reference input (REFIN) for modular design support.

    The switching frequency is controlled either through external resistor that sets the internal oscillator, or by synchronizing the regulator to an external clock. The device is designed to support 60kHz to 1MHz switching frequencies. The controller has a dedicated undervoltage lockout pin (UVLO) and an accurate enable input threshold for flexible power sequence configuration. The controller also has multiple fault-protection circuits to protect against overcurrent (OCP) adjustable through the ILIM pin, output overvoltage (OVP), input undervoltage (UVLO), and thermal shutdown.

    The MAX15157D features an adjustable internal compensation ramp. The device incorporates an accurate current-sense amplifier that reports output current through an analog output (IMON).

    The MAX15157D features lossless LS FET RDSON or resistor current sensing. The device allows programmable single-phase or multiphase operation, up to eight interleaved phases, and implements an accurate current balance scheme. The MAX15157D can operate with either discrete inductors or coupled inductors in case of multiphase operation.

    The device is available in a 5mm × 5mm, 32-pin TQFN package and supports a -40°C to +125°C junction temperature range.

    Applications

    • Data Center
    • Industrial
    • Multiphase Buck

    产品生命周期 icon-recommended 量产

    该产品系列中至少有一个型号已量产并可供采购。该产品适合用于新设计,但也可能有更新的替代产品。

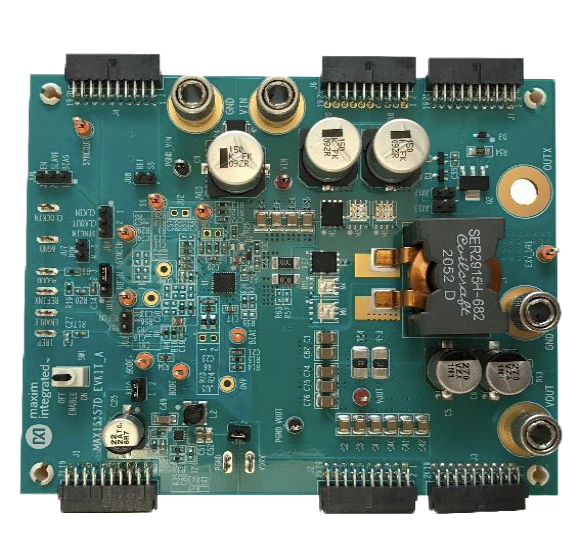

    评估套件 (1)
