MAX15106C
High-Efficiency, 6A, Current-Mode Synchronous Step-Down Switching Regulator
更多
Smallest (2mm x 2.5mm), 6A, DC-DC Solution with Integrated MOSFETs in the Market
不是您想寻找的产品？
提问
在下面提交您的问题，我们将从 ADI 的知识库中给出最佳答案:
搜索
您可以在其他地方找到帮助
特性
- Continuous 6A Output Current
- Efficiency Up to 96%
- ±1% Accuracy Over Load, Line, and Temperature
- Operates from a 2.7V to 5.5V Supply
- Adjustable Output from 0.6V to 0.95 × VIN
- Programmable Soft-Start
- Safe Startup into Prebiased Output
- External Reference Input
- 0.9MHz, 1.0MHz, and 1.1MHz Switching Frequency Options
- Stable with Low-ESR Ceramic Output Capacitors
- Forced PWM Mode
- Enable Input and Power-Good Output for PowerSupply Sequencing
- Cycle-by-Cycle Overcurrent Protection
- Fully Protected Features Against Overcurrent and Overtemperature
- Input Undervoltage Lockout
- 20-Bump (4 x 5 Array), 2.5mm x 2mm, WLP Package
.svg?rev=fd385c90e2cf4716ae9a8c8d20e6b8e3&la=zh&h=24&w=24&hash=7CDDC996281D9E966D391D97E93C6727){kind=icon}
The MAX15106A/MAX15106B/MAX15106C family of high-efficiency, current-mode, synchronous step-down switching regulators with integrated power switches deliver up to 6A of output current. The regulators operate from 2.7V to 5.5V and provide an output voltage from 0.6V up to 95% of the input voltage, making the devices ideal for distributed power systems, portable devices, and pre-regulation applications.
The ICs utilize a current-mode control architecture with a high-gain transconductance error amplifier. The current-mode control architecture facilitates easy compensation design and ensures cycle-by-cycle current limit with fast response to line and load transients.
The low RDS(ON) integrated switches ensure high efficiency at heavy loads while minimizing critical inductance, making the layout design a much simpler task with respect to discrete solutions. The ICs’ simple layout and footprint assures first-pass success in new designs.
The regulator features 0.9MHz (MAX15106A), 1.0MHz (MAX15106B), and 1.1MHz (MAX15106C) factory-trimmed fixed frequency PWM-mode operation. The high-switching frequency, along with the PWM current-mode architecture allows for a compact, all-ceramic capacitor design.
The IC features a capacitor-programmable soft-start to reduce input inrush current. Internal control circuitry ensures safe startup into a prebiased output. Power sequencing is controlled with the enable input and power-good output.
The IC is available in a 20-bump (4 x 5 array), 2.5mm x 2mm WLP package and is fully specified over the -40°C to +105°C temperature range.
APPLICATIONS
- Distributed Power Systems
- DDR Memory
- Base Stations
- Portable Devices
- Notebook Power
- Server Power
提问
在下面提交您的问题，我们将从 ADI 的知识库中给出最佳答案:
搜索
您可以在其他地方找到帮助
{{modalTitle}}
{{modalDescription}}
{{dropdownTitle}}
- {{defaultSelectedText}} {{#each projectNames}}
- {{name}} {{/each}} {{#if newProjectText}}
-
{{newProjectText}}
{{/if}}
{{newProjectTitle}}
{{projectNameErrorText}}
产品技术资料帮助
ADI公司所提供的资料均视为准确、可靠。但本公司不为用户在应用过程中侵犯任何专利权或第三方权利承担任何责任。技术指标的修改不再另行通知。本公司既没有含蓄的允许，也不允许借用ADI公司的专利或专利权的名义。本文出现的商标和注册商标所有权分别属于相应的公司。
参考资料
ADI 始终高度重视提供符合最高质量和可靠性水平的产品。我们通过将质量和可靠性检查纳入产品和工艺设计的各个范围以及制造过程来实现这一目标。出货产品的“零缺陷”始终是我们的目标。查看我们的质量和可靠性计划和认证以了解更多信息。
| 产品型号 | 引脚/封装图-中文版 | 文档 | CAD 符号，脚注和 3D模型 |
|---|---|---|---|
| MAX15106CGWP+ |
Wafer-Level Package 4x5 Bump, Full Array
|
|
|
| MAX15106CGWP+T |
Wafer-Level Package 4x5 Bump, Full Array
|
|
- MAX15106CGWP+
- 引脚/封装图-中文版
-
Wafer-Level Package 4x5 Bump, Full Array
- 文档
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD 符号，脚注和 3D模型
-
Ultra Librarian
-
SamacSys
- MAX15106CGWP+T
- 引脚/封装图-中文版
-
Wafer-Level Package 4x5 Bump, Full Array
- 文档
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD 符号，脚注和 3D模型
-
Ultra Librarian
-
SamacSys
软件和型号相关生态系统
评估套件 3
MAX15106CEVKIT
Evaluation Kit for the MAX15106A/MAX15106B/MAX15106C
产品详情

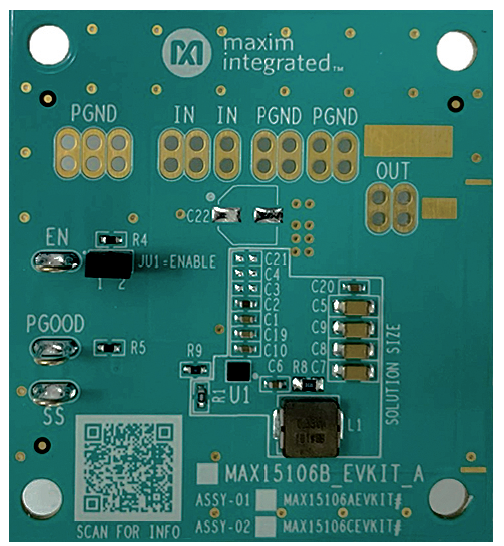

The MAX15106 evaluation kit (EV kit) provides a proven design to evaluate the MAX15106A/MAX15106B/ MAX15106C high-efficiency, 6A, step-down regulator with integrated switches in a 20-bump wafer-level package (WLP). The EV kit is preset for 1.5V output at load currents up to 6A from a 2.7V to 5.5V input supply. The device features a 1MHz fixed switching frequency, which allows the EV kit to achieve an all-ceramic capacitor design and fast transient responses.
