ADPL76030
55 V, 1.4 MHz Synchronous 4-Switch Buck-Boost Controller with Spread Spectrum
更多
不是您想寻找的产品？
提问
在下面提交您的问题，我们将从 ADI 的知识库中给出最佳答案:
搜索
您可以在其他地方找到帮助
特性
- 4-Switch Single Inductor Architecture Allows VIN
- Above, Below, or Equal to VOUT
- Up to 95% Efficiency at 1.4 MHz
- Proprietary Peak-Buck, Peak-Boost Current-Mode
- Wide VIN Range: 4 V to 55 V
- ±2% Output Voltage Accuracy: 1 V ≤ VOUT ≤ 55 V
- ±3% Input or Output Current Accuracy with Monitor
- Spread Spectrum Frequency Modulation for Low EMI
- No Top MOSFET Refresh Noise in Buck or Boost
- Adjustable and Synchronizable: 600 kHz to 1.4 MHz
- VOUT Disconnected from VIN During Shutdown
.svg?rev=fd385c90e2cf4716ae9a8c8d20e6b8e3&la=zh&h=24&w=24&hash=7CDDC996281D9E966D391D97E93C6727){kind=icon}
The ADPL76030 is a synchronous 4-switch buck-boost DC/DC controller that regulates output voltage, and input or output current from an input voltage above, below, or equal to the output voltage. The proprietary peak-buck, peak-boost current-mode control scheme allows adjustable and synchronizable 600 kHz to 1.4 MHz fixed frequency operation, or internal 25% triangle spread spectrum frequency modulation for low EMI. With a 4 V to 55 V input voltage range, 0 V to 55 V output voltage capability, and seamless low noise transitions between operation regions, the ADPL76030 is ideal for voltage regulators, and battery and supercapacitor charger applications in industrial, telecom, and even battery-powered systems.
The ADPL76030 provides input or output current monitor and power good flag. Fault protection is also provided to detect output short-circuit condition, during which the ADPL76030 retries, latches off, or keeps running.
All registered trademarks and trademarks are the property of their respective owners.
Applications
- Industrial, Telecom Systems
- High Frequency, Battery-Powered System
提问
在下面提交您的问题，我们将从 ADI 的知识库中给出最佳答案:
搜索
您可以在其他地方找到帮助
{{modalTitle}}
{{modalDescription}}
{{dropdownTitle}}
- {{defaultSelectedText}} {{#each projectNames}}
- {{name}} {{/each}} {{#if newProjectText}}
-
{{newProjectText}}
{{/if}}
{{newProjectTitle}}
{{projectNameErrorText}}
产品技术资料帮助
ADI公司所提供的资料均视为准确、可靠。但本公司不为用户在应用过程中侵犯任何专利权或第三方权利承担任何责任。技术指标的修改不再另行通知。本公司既没有含蓄的允许，也不允许借用ADI公司的专利或专利权的名义。本文出现的商标和注册商标所有权分别属于相应的公司。
参考资料
ADI 始终高度重视提供符合最高质量和可靠性水平的产品。我们通过将质量和可靠性检查纳入产品和工艺设计的各个范围以及制造过程来实现这一目标。出货产品的“零缺陷”始终是我们的目标。查看我们的质量和可靠性计划和认证以了解更多信息。
| 产品型号 | 引脚/封装图-中文版 | 文档 | CAD 符号，脚注和 3D模型 |
|---|---|---|---|
| ADPL76030EUFD#PBF |
28-Lead QFN (4mm x 5mm x 0.75mm w/ EP)
|
|
|
| ADPL76030EUFD#TRPBF |
28-Lead QFN (4mm x 5mm x 0.75mm w/ EP)
|
|
- ADPL76030EUFD#PBF
- 引脚/封装图-中文版
-
28-Lead QFN (4mm x 5mm x 0.75mm w/ EP)
- 文档
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD 符号，脚注和 3D模型
-
Ultra Librarian
-
SamacSys
- ADPL76030EUFD#TRPBF
- 引脚/封装图-中文版
-
28-Lead QFN (4mm x 5mm x 0.75mm w/ EP)
- 文档
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD 符号，脚注和 3D模型
-
Ultra Librarian
-
SamacSys
软件和型号相关生态系统
评估套件 1
EVAL-ADPL76030
Evaluation Board for ADPL73030
特性和优点
- 4-Switch Single Inductor Architecture Allows VIN Above, Below, or Equal to VOUT
- Up to 95% Efficiency at 1.4 MHz
- Proprietary Peak-Buck, Peak-Boost Current-Mode
- Wide VIN Range: 4 V to 55 V
- ±2% Output Voltage Accuracy: 1 V ≤ VOUT ≤ 55 V
- ±3% Input or Output Current Accuracy with Monitor
- Spread-Spectrum Frequency Modulation for Low EMI
- No Top MOSFET Refresh Noise in Buck or Boost
- Adjustable and Synchronizable: 600 kHz to 1.4
产品详情

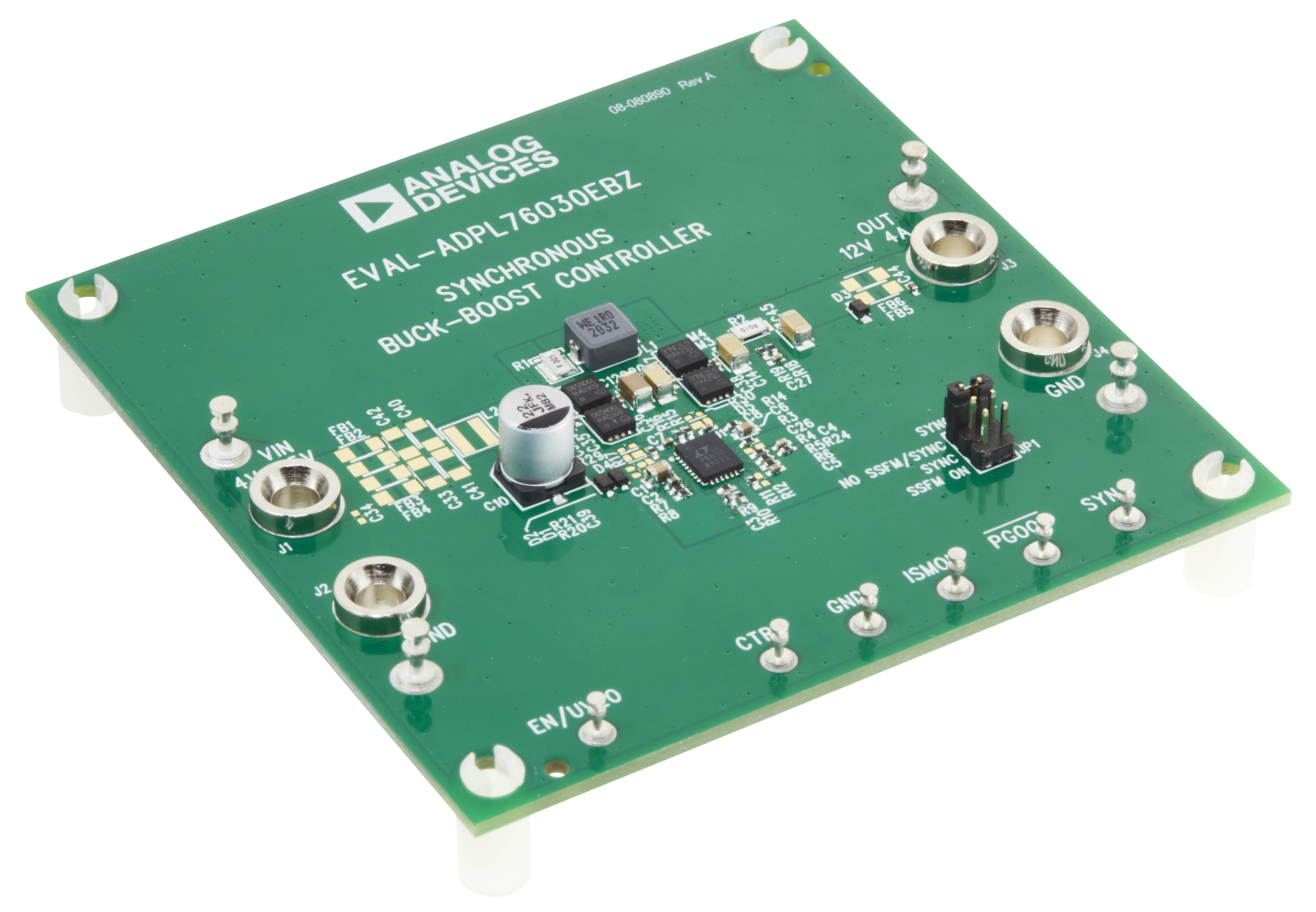

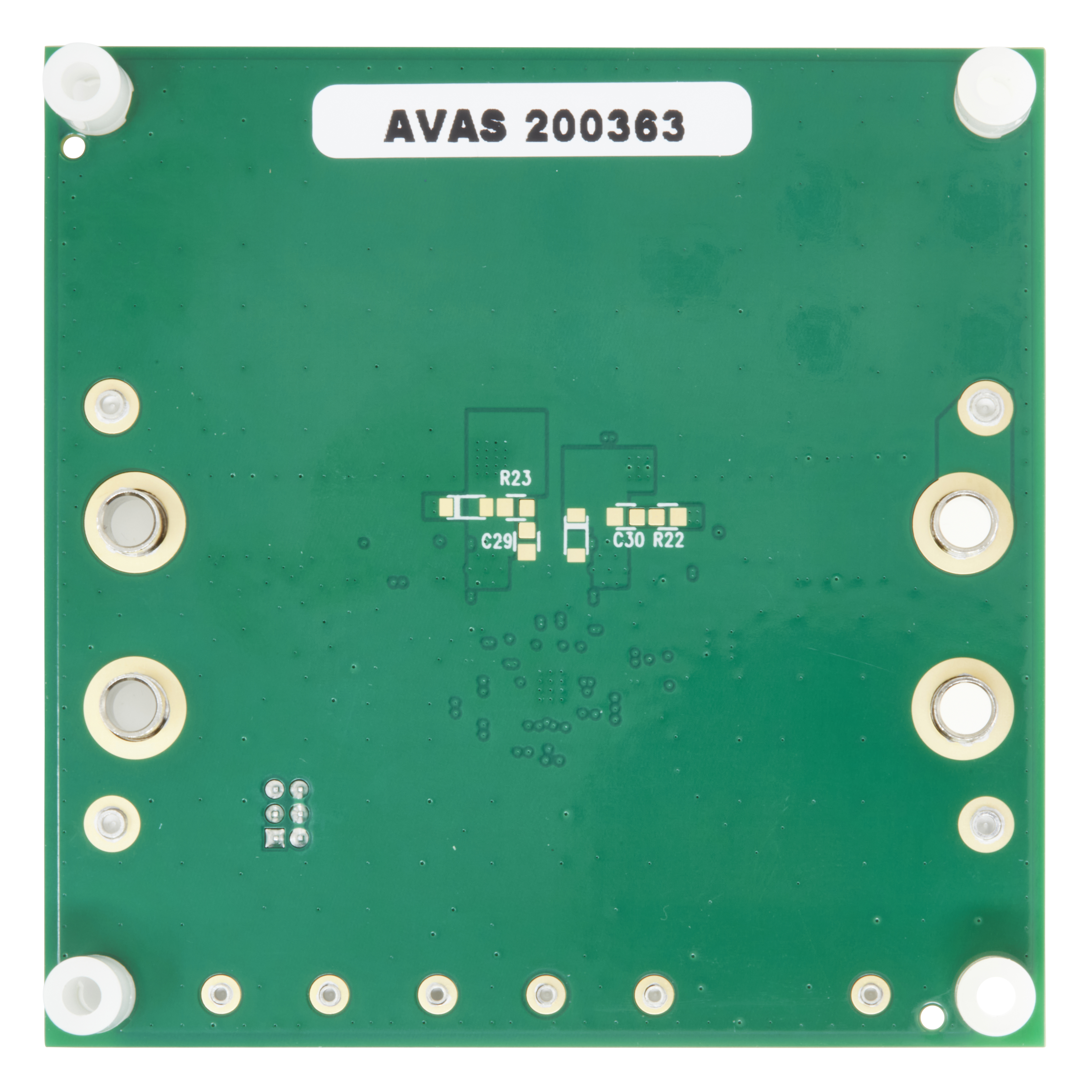

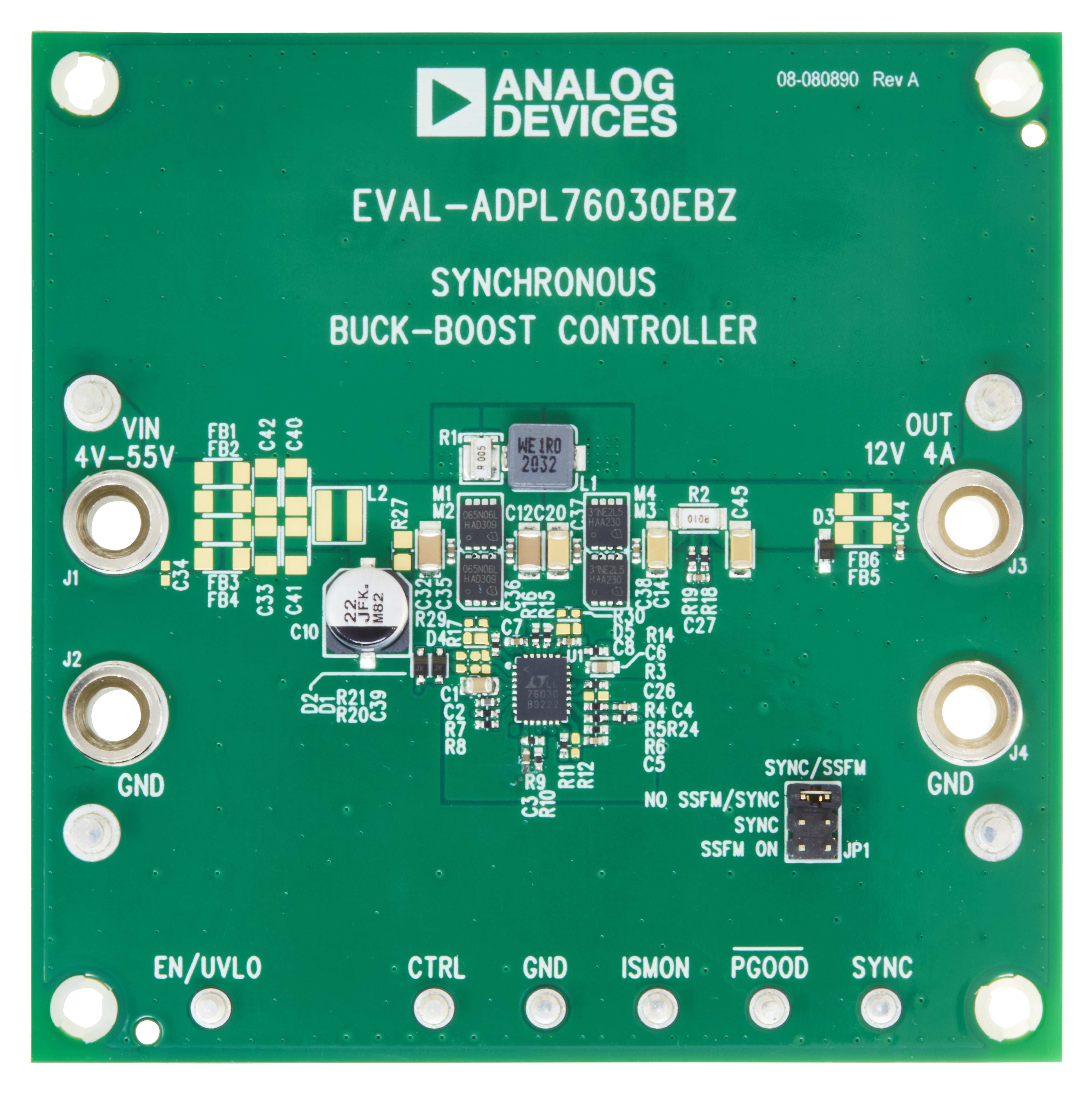

The ADPL76030 evaluation kit (EV kit) is a fully assembled and tested circuit board that demonstrates the features of the ADPL76030, a synchronous 4-switch buck-boost DC/DC controller in a 28-lead 4 mm x 5 mm QFN package. The proprietary peak-buck, peak-boost current-mode control scheme allows adjustable and synchronizable 600 kHz to 1.4 MHz fixed frequency operation, or internal 25% triangle spread-spectrum frequency modulation for low EMI. The board accepts a continuous 4 V to 25 V input voltage with transient voltage up to 55 V. Various test points are available for monitoring (PGOOD and ISMON) and control (EN/UVLO, CTRL, and SYNC). Optional EMI input, output, and gate resistor component placeholders are included to support the option of adding, if required.
Read the ADP76030 data sheet with this user guide for a proper understanding and operation of the controller and its numerous features. Component placement and board layout as part of the overall design is essential for proper electrical and thermal performance.
The ADPL76030 provides input or output current monitor and power good flag. Fault protection is also provided to detect output short-circuit condition, during which the ADPL76030 retries, latches off, or keeps running.
