ADGM3144

推荐用于新设计

3mm × 3mm SP4T MEMS Switch, 0Hz/DC to 30GHz

数据手册 (Rev. 0) 产品选型表
产品技术资料帮助

ADI公司所提供的资料均视为准确、可靠。但本公司不为用户在应用过程中侵犯任何专利权或第三方权利承担任何责任。技术指标的修改不再另行通知。本公司既没有含蓄的允许，也不允许借用ADI公司的专利或专利权的名义。本文出现的商标和注册商标所有权分别属于相应的公司。
Viewing:

概述

  • Operational frequency range:
    • −3dB bandwidth:
      • DC to 19GHz (typical) for RF1, RF4
      • DC to 17GHz (typical) for RF2, RF3
    • −6dB bandwidth:
      • DC to 29GHz (typical) for RF1, RF4
      • DC to 22GHz (typical) for RF2, RF3
  • High bit rate capability up to 64Gbps
  • Low insertion loss:
    • 0.55dB (typical) at 6GHz
    • 0.85dB (typical) at 10GHz
  • Off isolation:
    • 26dB (typical) at 6GHz
    • 23dB (typical) at 10GHz
  • Return loss:
    • 28dB (typical) at 6GHz
    • 25dB (typical) at 10GHz
  • High input IIP3: 70dBm (typical)
  • High RF power handling: 33dBm (maximum)
  • On resistance: 1.9Ω (typical)
  • High DC current handling: 200mA (maximum)
  • High switch cycle count: 100 million cycles (minimum at +85°C)
  • Fast switching time: 200μs TON (maximum)
  • Integrated 3.3V driver for simple control with parallel interface and SPI
  • Space saving integrated passive shunt resistors
  • Small 24-lead, 3mm × 3mm × 1.5mm land grid array package
  • Temperature range: −40°C to +85°C

The ADGM3144 is a wideband, single-pole, four-throw (SP4T) switch, fabricated using Analog Devices, Inc., microelectromechanical system (MEMS) switch technology. This technology enables a small form factor, wide RF bandwidth, highly linear, low insertion loss switch that is operational down to 0Hz/DC, making it an ideal solution for a wide range of RF and precision equipment switching needs.

An integrated driver chip generates a high voltage to electrostatically actuate switch that can be controlled by a parallel interface or a serial peripheral interface (SPI). All switches are independently controllable.

The device is packaged in a 24-lead, 3mm × 3mm × 1.5mm land grid array package. To ensure optimum operation of the ADGM3144 refer to the Critical Operational Requirements section. The on-resistance (RON) performance of the ADGM3144 is affected by part-to-part variation, channel-to-channel variation, cycle actuations, settling time post turn on, bias voltage, and temperature changes.

APPLICATIONS

  • ATE load and probe boards
  • DC with high speed loopback testing
  • Supports digital standards: high speed serialization/deserialization, PCIe Gen4/Gen5/Gen6, USB 4, and PAM 4
  • Relay replacements
  • Reconfigurable filters and attenuators
  • Military and microwave radios
  • Cellular infrastructure: 5G mmWave
ADGM3144
3mm × 3mm SP4T MEMS Switch, 0Hz/DC to 30GHz
ADGM3144 Functional Block Diagram ADGM3144 Circuit Diagram ADGM3144 Pin Configuration ADGM3144 Chip Illustration
添加至 myAnalog

将产品添加到myAnalog 的现有项目或新项目中（接收通知）。

创建新项目
提问

参考资料

数据手册 1

用户手册 1

了解更多
添加至 myAnalog

Add media to the Resources section of myAnalog, to an existing project or to a new project.

创建新项目

软件资源

找不到您所需的软件或驱动?

申请驱动/软件

工具及仿真模型

LTspice 1

IBIS 模型 1

S-参数 1

LTspice

LTspice®是一款强大高效的免费仿真软件、原理图采集和波形观测器，为改善模拟电路的仿真提供增强功能和模型。

评估套件

eval board
schematic 1
schematic 2
schematic 3
EVAL-ADGM3144

Evaluating the ADGM3144 0Hz/DC to 30GHz, SP4T, MEMS Switch

立即购买 更多内容

特性和优点

  • Single-supply voltage: 3.3V
  • Wide frequency range: DC to 30GHz
  • 2.92mm connectors for RF signals
  • Parallel interface and SPI
  • On-board calibration through transmission line for analyzer calibration

产品详情

The user guide describes the EVAL-ADGM3144SDZ for the ADGM3144, a dual-chip, RF switching solution containing a single-pole, four-throw (SP4T), microelectromechanical systems (MEMS) switch, and a control chip co-packaged in a compact, 3.00mm × 3.00mm × 1.50mm, LGA package.

The SP4T switch uses Analog Devices, Inc., MEMS switch technology, providing optimum performance in terms of bandwidth, power handling capability, and linearity for RF applications. The control chip generates the high-voltage signals needed for the MEMS switch and allows the user to control its operation through a simple and flexible complementary metal-oxide semiconductor (CMOS)/low voltage transistor to transistor logic (LVTTL)-compliant parallel-interface as well as through a serial-peripheral interface (SPI). It is possible to daisy-chain multiple ADGM3144 devices together to enable the configuration of multiple devices with a minimal number of digital lines.

For SPI, the EVAL-ADGM3144SDZ connects to the USB port of a PC through the system demonstration platform (SDP) board. The EVAL-SDP-CB1Z board (SDP-B controller board) is available to order at the Analog Devices website.

The ADGM3144 comes fitted with connectors for RF and control signals as well as links to control the operation of the switch and evaluate its performance.

For full details on the ADGM3144, see the ADGM3144 data sheet, which must be consulted in conjunction with this user guide when using the EVAL-ADGM3144SDZ.
EVAL-ADGM3144
Evaluating the ADGM3144 0Hz/DC to 30GHz, SP4T, MEMS Switch

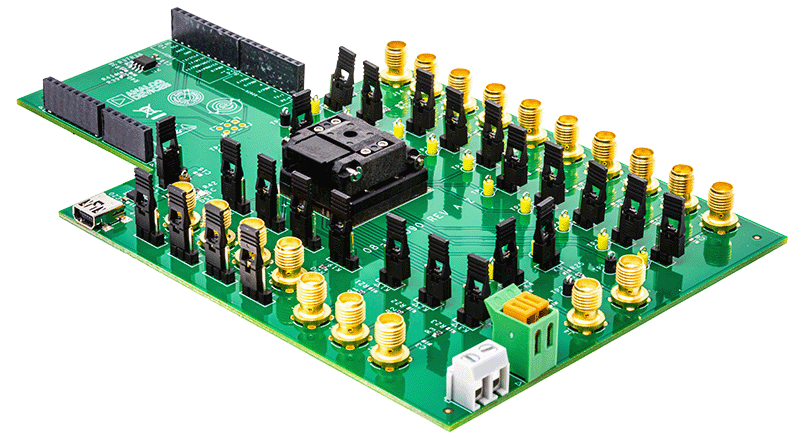

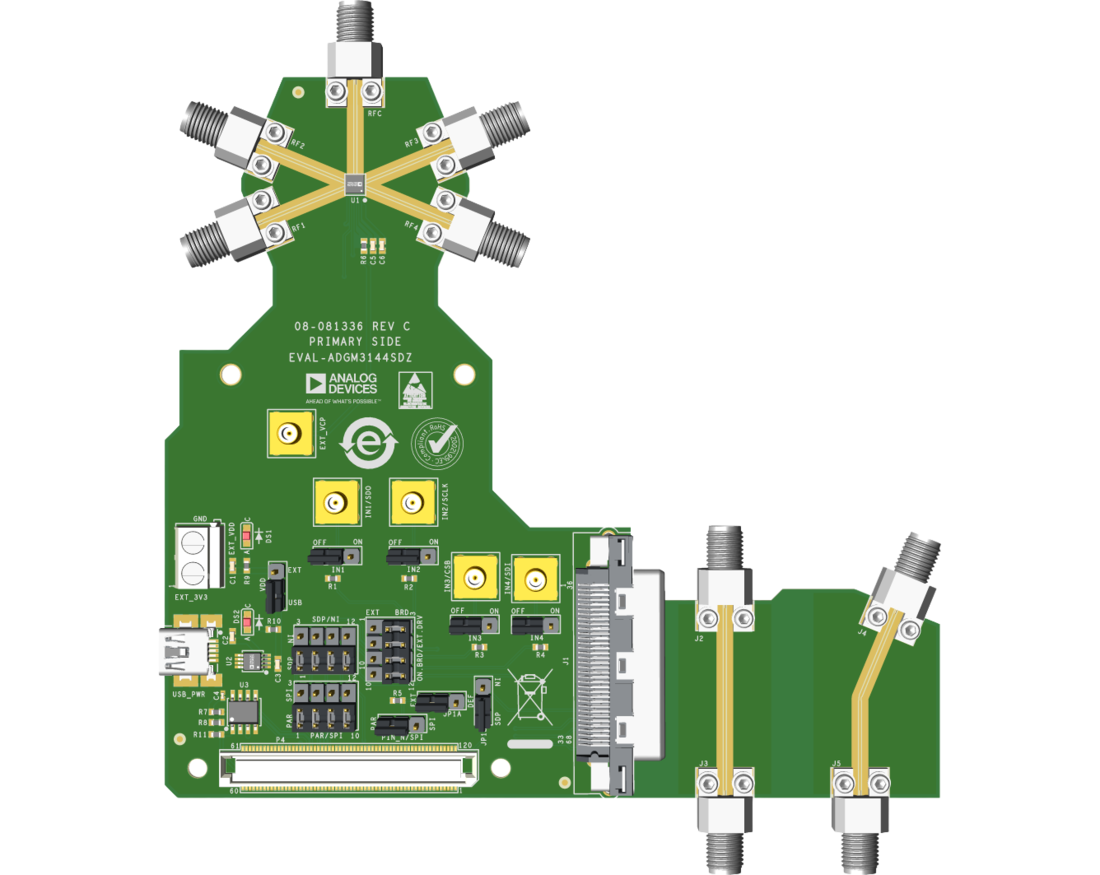

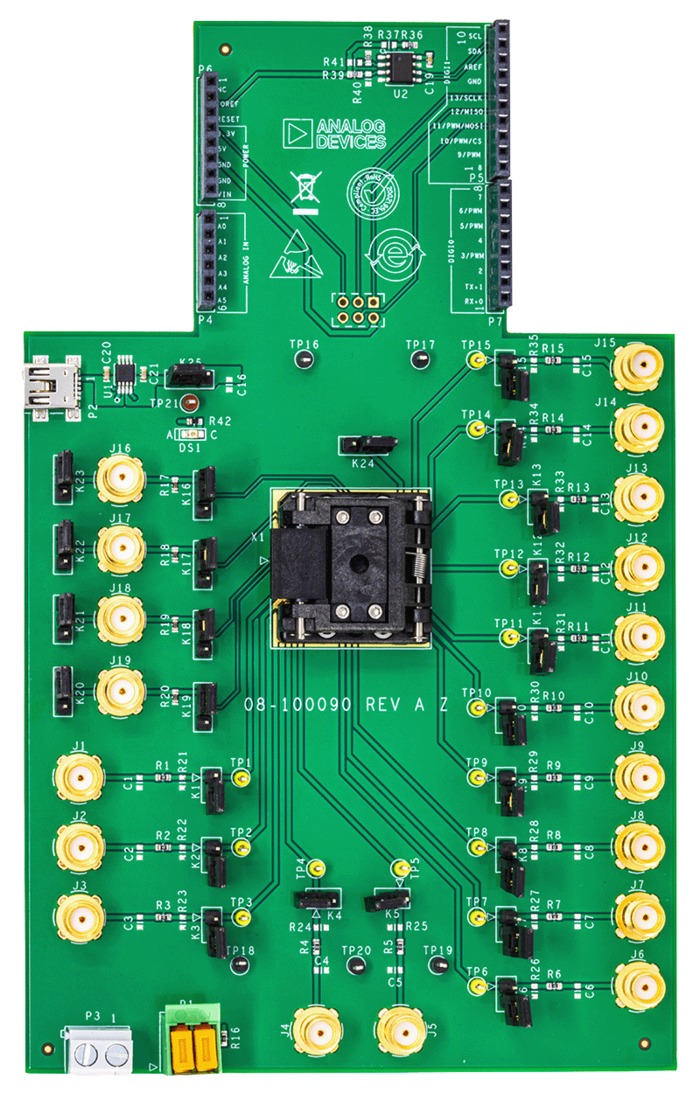

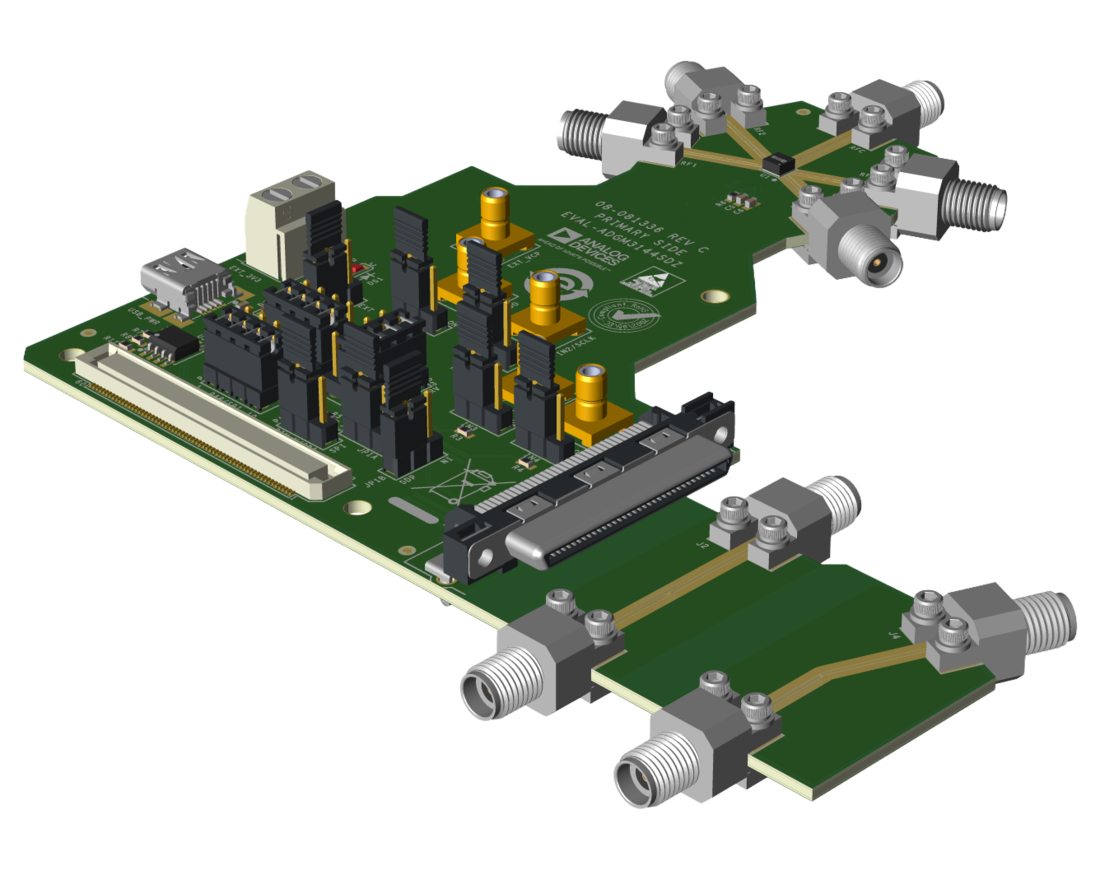

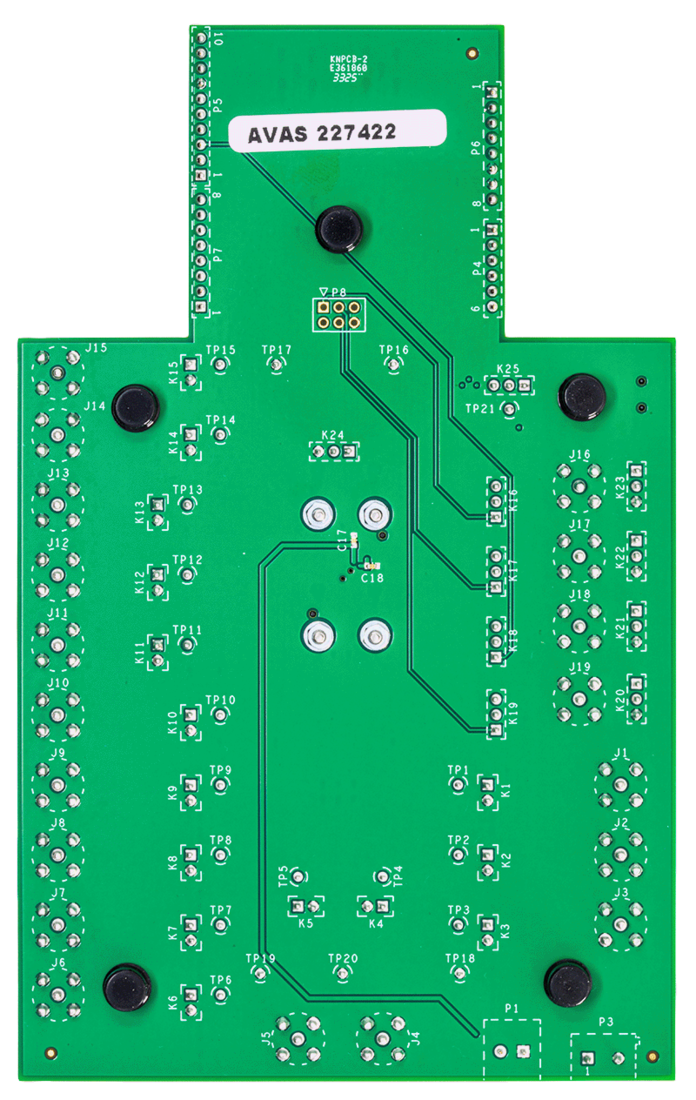

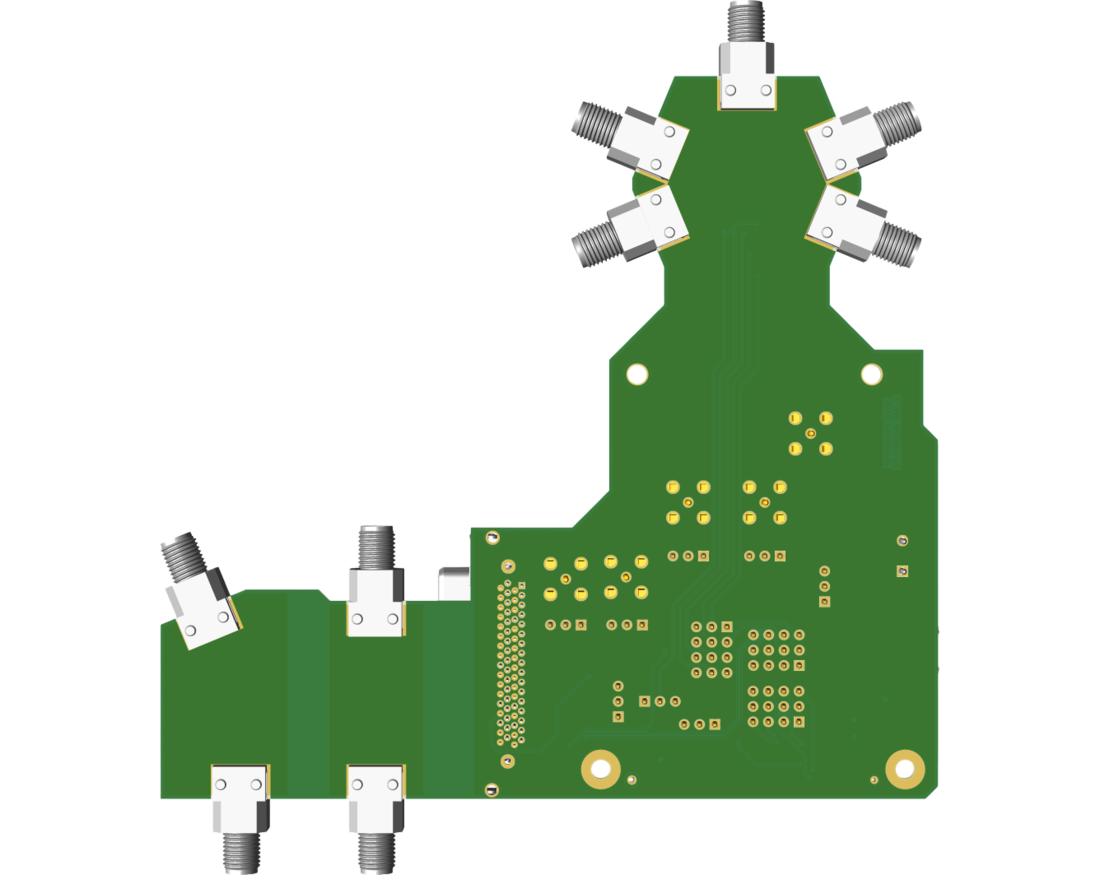

EVAL-ADGM3144-SDZ Angle Evaluation Board EVAL-ADGM3144-SDZ Top Evaluation Board EVAL-ADGM3144-SDZ Bottom Evaluation Board
