MAX20806

量产

6A, 3MHz, 2.7V to 16V, Step-Down Switching Regulator

Shrink your new power designs footprint with compact and fast switching regulator

数据手册 (Rev. 0) 产品选型表

产品模型: 2

Viewing:

概述

High Power Density with Low Component Count
- Single-Supply Operation with Integrated LDO for Bias Generation

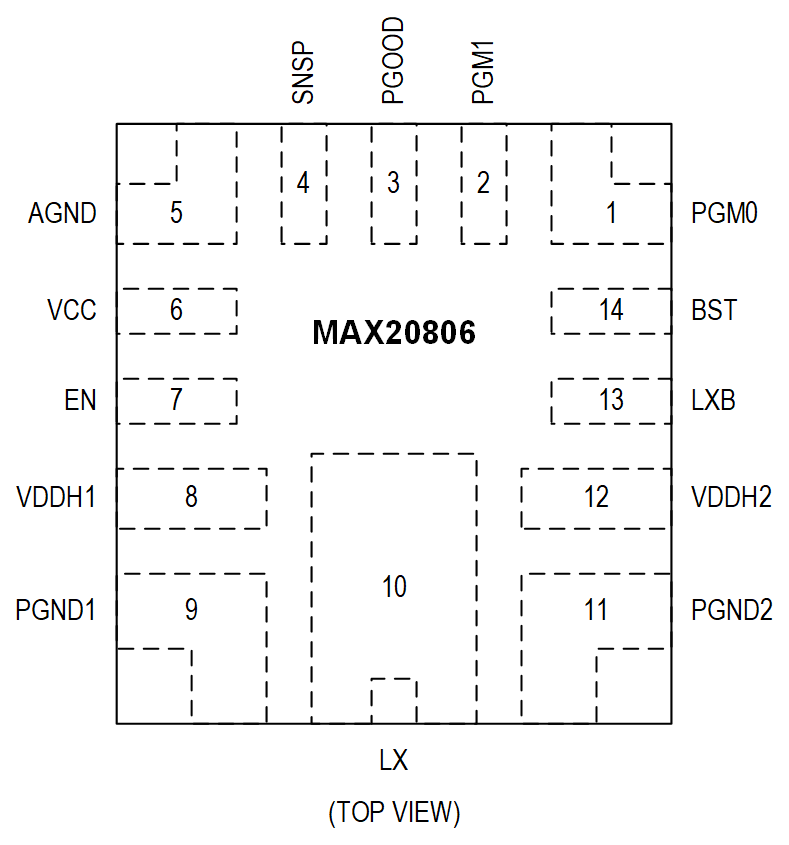

- Compact 3.0mm x 2.5mm, 14-Pin, FC2QFN Package
- Internal Compensation
Wide Operating Range
- 2.7V to 16V Input Voltage Range
- 0.5V to 5.8V Output Voltage Range
- 500kHz to 3MHz Configurable Switching Frequency

-40°C to +150°C Junction Temperature Range
Two Pin-Strap Programming Pins to Select Different Configurations

Optimized Performance and Efficiency
- 91.9% Peak Efficiency with V_DDH = 12V,V_OUT = 1.8V, and f_SW = 1MHz
- Selectable AMS to Improve Load Transient
- Selectable DCM to Improve Light Load Efficiency

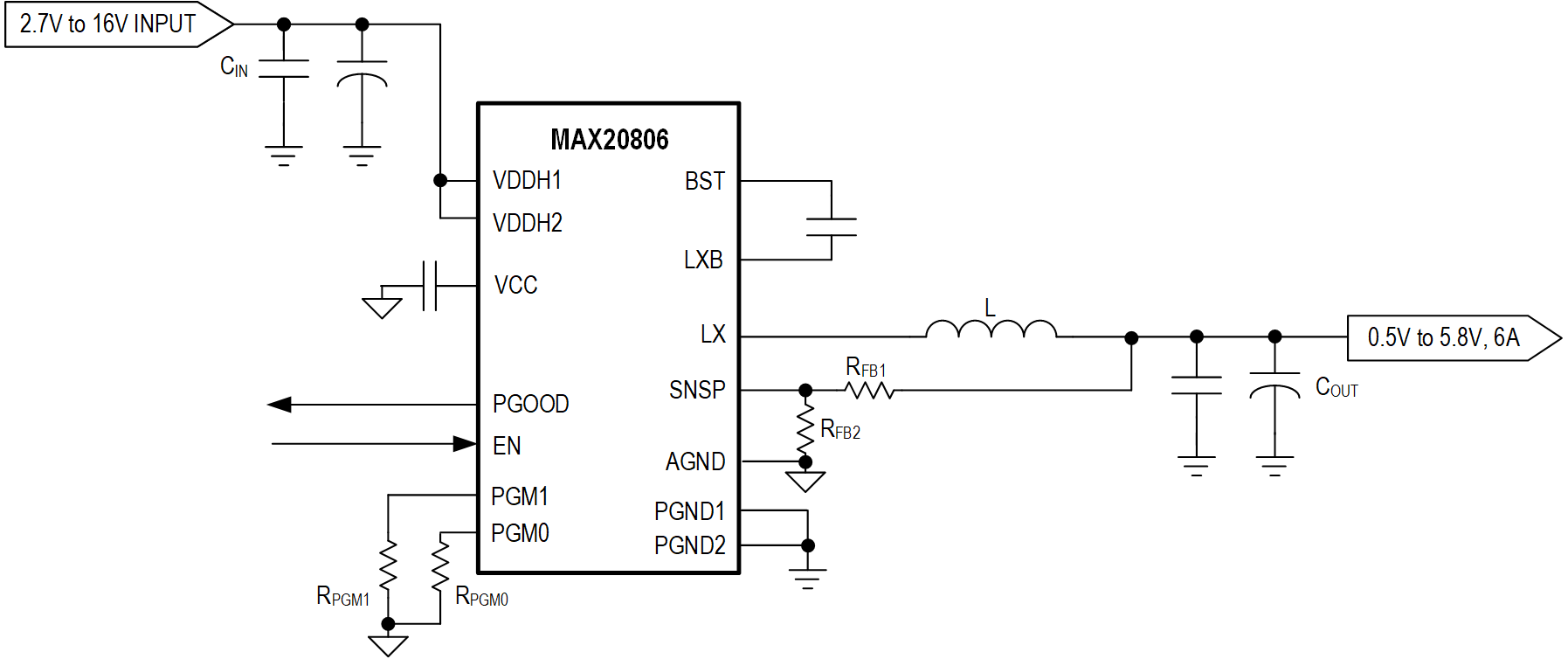

The MAX20806 is a fully integrated, highly efficient, step-down DC-DC switching regulator. It is able to operate from 2.7V to 16V input supplies, and the output can be regulated from 0.5V to 5.8V, delivering up to 6A of load current.

The switching frequency of this device can be configured from 500kHz to 3.0MHz and provides the capability of optimizing the design in terms of solution size and performance.

The MAX20806 utilizes fixed-frequency, current-mode control with internal compensation. The MAX20806 features a selectable advanced modulation scheme (AMS) to provide improved dynamic load transient performance. The device also features selectable discontinuous current mode (DCM) operation to improve light load efficiency. Operation settings and configurable features can be selected by connecting pin-strap resistors from the PGM_ pins to ground.

The MAX20806 has an internal 1.8V LDO output to power the gate drives and internal circuitry (V_CC).

The MAX20806 integrates multiple protections including positive and negative overcurrent protection, output overvoltage protection, and overtemperature protection to ensure a robust design.

The MAX20806 is available in a compact 3.0mm x 2.5mm FC2QFN package that supports -40°C to +150°C junction temperature operation.

APPLICATIONS

Communications Equipment
Networking Equipment
Servers and Storage Equipment
Point-of-Load Voltage Regulators

产品模型: 2

参考资料

数据手册 1

MAX20806: 6A, 3MHz, 2.7V to 16V, Step-Down Switching Regulator Data Sheet (Rev.0) 08/02/2024

用户手册 1

MAX20806EVKIT User Guide: Evaluation Kit for MAX20806 (Rev.0) 08/02/2024

ADI 始终高度重视提供符合最高质量和可靠性水平的产品。我们通过将质量和可靠性检查纳入产品和工艺设计的各个范围以及制造过程来实现这一目标。出货产品的“零缺陷”始终是我们的目标。查看我们的质量和可靠性计划和认证以了解更多信息。

产品型号	引脚/封装图-中文版	文档	CAD 符号，脚注和 3D模型
MAX20806TFD+	N/A	Material Declaration Reliablity Data 资料包	Ultra Librarian SamacSys
MAX20806TFD+T	N/A	Material Declaration Reliablity Data 资料包	Ultra Librarian SamacSys

这是最新版本的数据手册

软件资源

找不到您所需的软件或驱动?

申请驱动/软件

工具及仿真模型

EE-Sim Power®工具 1

EE-Sim DC-DC转换器工具可根据您的要求快速创建完整的电源设计，包括原理图、BOM（采用市售部件）、时域和频域仿真。您可以下载自定义原理图，在独立EE-Sim OASIS仿真器中进一步分析，其中采用SIMPLIS和SIMetrix SPICE引擎。

立即开始EE-Sim

SIMPLIS Models 1

MAX20806 Simplis Schematic

评估套件

Evaluation Kit for MAX20806

立即购买更多内容

特性和优点

2.7V to 16V Input Voltage Range
0.5V to 5.8V Output Voltage Range
500kHz to 3.0MHz Switching Frequency Range
High Efficiency and Power Density
Low Component Count
Optimized Performance
Proven PCB Layout
Fully Assembled and Tested

产品详情

The MAX20806 evaluation kit (EV kit) is a reference platform designed for the evaluation of the MAX20806, a compact, low-cost, fully integrated, highly efficient, step-down DC-DC switching regulator IC. The IC is in a 14-pin, 3.0mm x 2.5mm FC2QFN package. This EV kit can deliver up to 6A load current. For more information, refer to the MAX20806 IC data sheet.

The EV kit comprises a fully assembled and tested PCB implementation of the MAX20806. The jumper pins, test points, and input/output connectors are included to provide a flexible and convenient use in a wide range of applications.
