EVAL-INAMP
AD62x, AD822x, AD842x Series InAmp Evaluation Board
Top
Overview
Product Details
Analog Devices provides a line of evaluation boards designed to help users evaluate our instrumentation amplifiers in 8 pin packages. Access the user guide UG-261.
This user guide describes three generic evaluation boards that can be used to evaluate many of Analog Devices instrumentation amplifiers. For information on the performance of a specific instrumentation amplifier, see the data sheet for that instrumentation amplifier.
- 3 generic, easy-to-use evaluation boards
- Shipped with an assortment of Analog Devices in-amps
- Solder in the in-amp to be tested
- Test pins already populated
- Decoupling capacitors already populated
- EVAL-INAMP-62RZ board: Compatible with AD620, AD621, AD622, AD623, AD627, AD8223, AD8225, LT1167, LT1168 and LT6370 in SOIC or PDIP
- EVAL-INAMP-82RZ board: Compatible with AD8221, AD8226, AD8227, AD8228, AD8229, AD8421, AD8428, and AD8429 in SOIC package

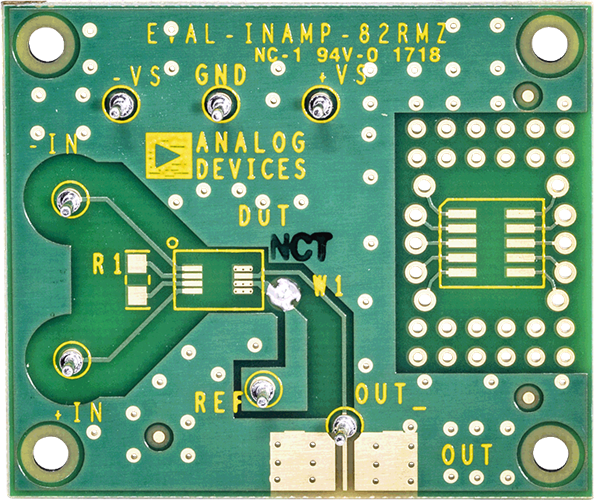

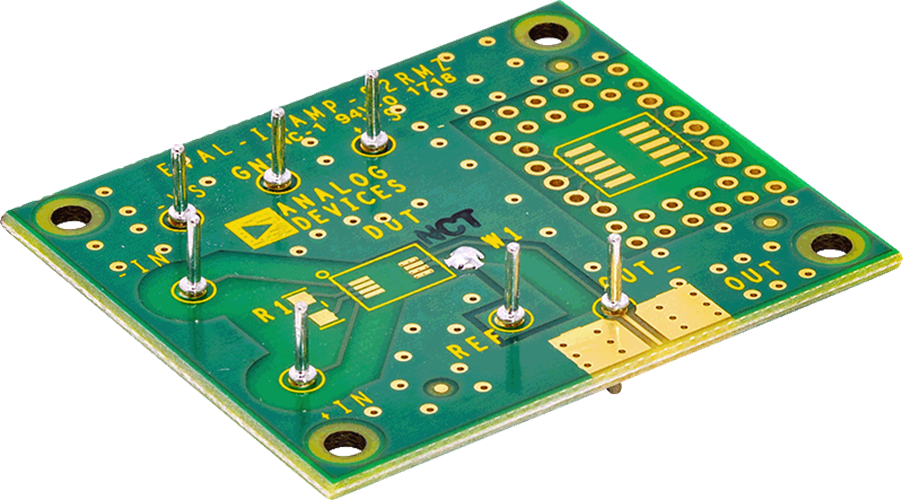

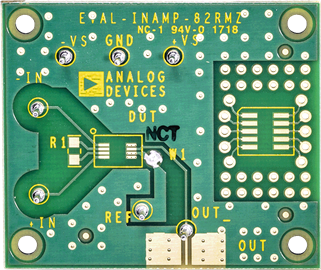

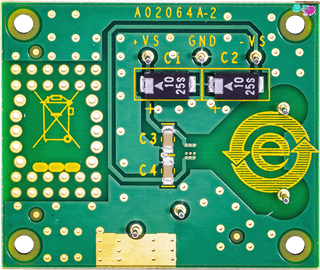

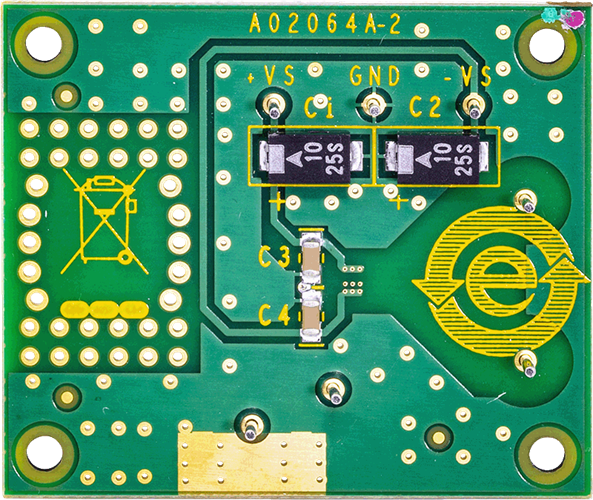

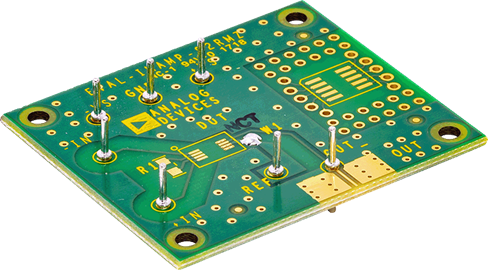

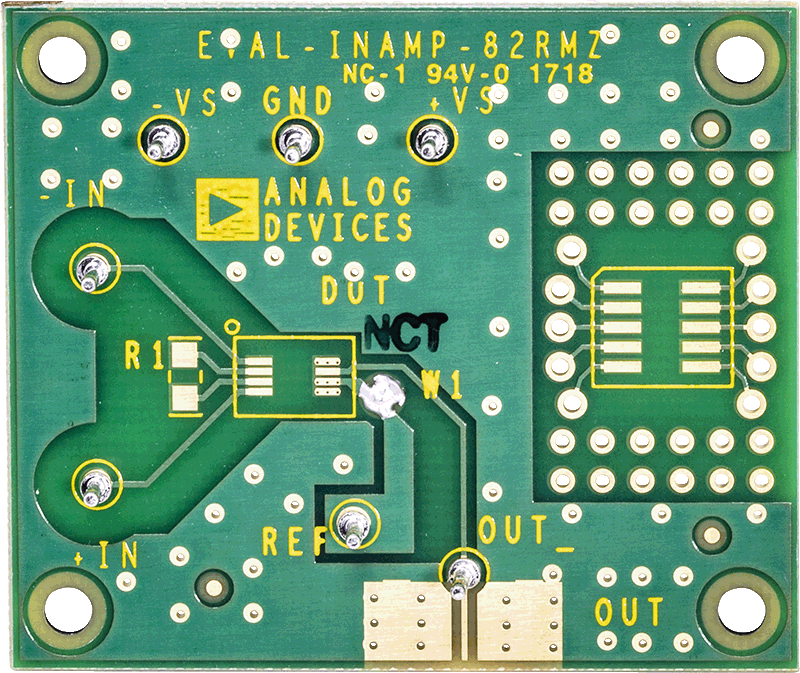

- EVAL-INAMP-82RMZ board: Compatible with AD8220, AD8221, AD8226, AD8227, AD8228, AD8236, and AD8421 in MSOP package
Markets and Technologies
Applicable Parts
Documentation & Resources
-
UG-261: Evaluation Boards for the AD62x, AD822x and AD842x Series10/17/2019PDF604 kB
