AD623

Single and Dual-Supply, Rail-to-Rail, Low Cost Instrumentation Amplifier

Show More showmore-icon

Info: : PRODUCTION tooltip
Info: : PRODUCTION tooltip
Part Details
Part Models 11
1ku List Price Starting From $2.27
Features
  • Easy to use
  • Rail-to-rail output swing
  • Input voltage range extends 150 mV below ground (single supply)
  • Low power, 550 μA maximum quiescent current
  • Gain set with one external resistor
    • Gain range: 1 to 1000
  • 14-terminal, 6 mm × 5.6 mm × 2.2 mm, LCC package
  • High accuracy dc performance
    • 0.10% gain error (G = 1)
    • 0.35% gain error (G > 1)
  • Noise: 35 nV/√Hz RTI noise at 1 kHz
  • Optimal dynamic specifications
    • 800 kHz bandwidth (G = 1)
    • 20 μs settling time to 0.01% (G = 10)
Additional Details
show more Icon

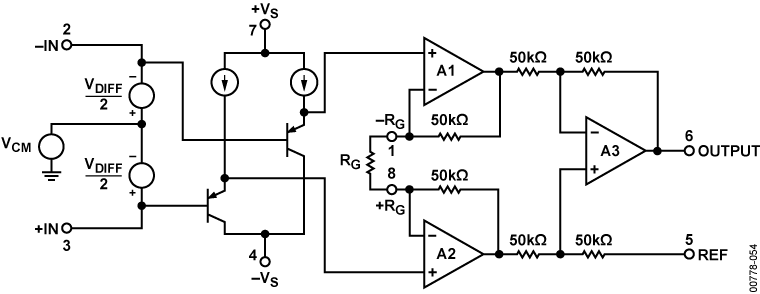

The AD623 is an integrated, single- or dual-supply instrumentation amplifier that delivers rail-to-rail output swing using supply voltages from 2.7 V to 12 V. The AD623 offers user flexibility by allowing single gain set resistor programming and by conforming to the 8-lead industry standard pinout configuration. With no external resistor, the AD623 is configured for unity gain (G = 1), and with an external resistor, the AD623 can be programmed for gains of up to 1000.

The accuracy of the AD623 is the result of increasing ac common-mode rejection ratio (CMRR) coincident with increasing gain. Line noise harmonics are rejected due to constant CMRR up to 200 Hz. The AD623 has a wide input common-mode range and amplifies signals with common-mode voltages as low as 150 mV below ground. The AD623 maintains optimal performance with dual and single polarity power supplies.

Applications

  • Low power medical instrumentation
  • Transducer interfaces
  • Thermocouple amplifiers
  • Industrial process controls
  • Difference amplifiers
  • Low power data acquisition
Part Models 11
1ku List Price Starting From $2.27

close icon
Documentation

Documentation

Part Model Pin/Package Drawing Documentation CAD Symbols, Footprints, and 3D Models
AD623ANZ
  • HTML
  • HTML
AD623ARMZ
  • HTML
  • HTML
AD623ARMZ-REEL
  • HTML
  • HTML
AD623ARMZ-REEL7
  • HTML
  • HTML
AD623ARZ
  • HTML
  • HTML
AD623ARZ-R7
  • HTML
  • HTML
AD623ARZ-RL
  • HTML
  • HTML
AD623BNZ
  • HTML
  • HTML
AD623BRZ
  • HTML
  • HTML
AD623BRZ-R7
  • HTML
  • HTML
AD623BRZ-RL
  • HTML
  • HTML

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Apr 19, 2018

- 18_0072

AD623 Data Sheet Correction

AD623ANZ

PRODUCTION

AD623ARMZ

PRODUCTION

AD623ARMZ-REEL

PRODUCTION

AD623ARMZ-REEL7

PRODUCTION

AD623ARZ

PRODUCTION

AD623ARZ-R7

PRODUCTION

AD623ARZ-RL

PRODUCTION

AD623BNZ

PRODUCTION

AD623BRZ

PRODUCTION

AD623BRZ-R7

PRODUCTION

AD623BRZ-RL

PRODUCTION

Oct 15, 2013

- 13_0199

Polymide thickness change for AD623

AD623ANZ

PRODUCTION

AD623ARMZ

PRODUCTION

AD623ARMZ-REEL

PRODUCTION

AD623ARMZ-REEL7

PRODUCTION

AD623ARZ

PRODUCTION

AD623ARZ-R7

PRODUCTION

AD623ARZ-RL

PRODUCTION

AD623BNZ

PRODUCTION

AD623BRZ

PRODUCTION

AD623BRZ-R7

PRODUCTION

AD623BRZ-RL

PRODUCTION

Jan 18, 2012

- 11_0303

AD623 Die Revision

AD623ANZ

PRODUCTION

AD623ARMZ

PRODUCTION

AD623ARMZ-REEL

PRODUCTION

AD623ARMZ-REEL7

PRODUCTION

AD623ARZ

PRODUCTION

AD623ARZ-R7

PRODUCTION

AD623ARZ-RL

PRODUCTION

AD623BNZ

PRODUCTION

AD623BRZ

PRODUCTION

AD623BRZ-R7

PRODUCTION

AD623BRZ-RL

PRODUCTION

Aug 19, 2009

- 07_0024

Package Material Changes for SOT23, MiniSO, MQFP, PDIP, PLCC, SOIC (narrow and wide body), SSOP, TSSOP and TSSOP exposed pad

May 17, 2018

- 18_0077

AD623 Die Revision and Wafer Fabrication Process Change

AD623ARMZ

PRODUCTION

AD623ARMZ-REEL

PRODUCTION

AD623ARMZ-REEL7

PRODUCTION

AD623ARZ

PRODUCTION

AD623ARZ-R7

PRODUCTION

AD623ARZ-RL

PRODUCTION

AD623BRZ

PRODUCTION

AD623BRZ-R7

PRODUCTION

AD623BRZ-RL

PRODUCTION

Jan 5, 2015

- 14_0246

Qualification of ASE Chungli, as an Alternate Assembly Site for Select MSOP Devices

AD623ARMZ

PRODUCTION

AD623ARMZ-REEL

PRODUCTION

AD623ARMZ-REEL7

PRODUCTION

May 15, 2012

- 10_0006

Halogen Free Material Change for mini SOIC Products

AD623ARMZ

PRODUCTION

AD623ARMZ-REEL

PRODUCTION

AD623ARMZ-REEL7

PRODUCTION

Jul 20, 2012

- 12_0105

Halogen Free Material Change for Select SOIC Narrow and Wide Body Products Assembled at Amkor

AD623ARZ

PRODUCTION

AD623ARZ-R7

PRODUCTION

AD623ARZ-RL

PRODUCTION

AD623BRZ

PRODUCTION

AD623BRZ-R7

PRODUCTION

AD623BRZ-RL

PRODUCTION

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Apr 19, 2018

- 18_0072

arrow down

AD623 Data Sheet Correction

AD623ANZ

PRODUCTION

AD623ARMZ

PRODUCTION

AD623ARMZ-REEL

PRODUCTION

AD623ARMZ-REEL7

PRODUCTION

AD623ARZ

PRODUCTION

AD623ARZ-R7

PRODUCTION

AD623ARZ-RL

PRODUCTION

AD623BNZ

PRODUCTION

AD623BRZ

PRODUCTION

AD623BRZ-R7

PRODUCTION

AD623BRZ-RL

PRODUCTION

Oct 15, 2013

- 13_0199

arrow down

Polymide thickness change for AD623

AD623ANZ

PRODUCTION

AD623ARMZ

PRODUCTION

AD623ARMZ-REEL

PRODUCTION

AD623ARMZ-REEL7

PRODUCTION

AD623ARZ

PRODUCTION

AD623ARZ-R7

PRODUCTION

AD623ARZ-RL

PRODUCTION

AD623BNZ

PRODUCTION

AD623BRZ

PRODUCTION

AD623BRZ-R7

PRODUCTION

AD623BRZ-RL

PRODUCTION

Jan 18, 2012

- 11_0303

arrow down

AD623 Die Revision

AD623ANZ

PRODUCTION

AD623ARMZ

PRODUCTION

AD623ARMZ-REEL

PRODUCTION

AD623ARMZ-REEL7

PRODUCTION

AD623ARZ

PRODUCTION

AD623ARZ-R7

PRODUCTION

AD623ARZ-RL

PRODUCTION

AD623BNZ

PRODUCTION

AD623BRZ

PRODUCTION

AD623BRZ-R7

PRODUCTION

AD623BRZ-RL

PRODUCTION

Aug 19, 2009

- 07_0024

arrow down

Package Material Changes for SOT23, MiniSO, MQFP, PDIP, PLCC, SOIC (narrow and wide body), SSOP, TSSOP and TSSOP exposed pad

May 17, 2018

- 18_0077

arrow down

AD623 Die Revision and Wafer Fabrication Process Change

AD623ARMZ

PRODUCTION

AD623ARMZ-REEL

PRODUCTION

AD623ARMZ-REEL7

PRODUCTION

AD623ARZ

PRODUCTION

AD623ARZ-R7

PRODUCTION

AD623ARZ-RL

PRODUCTION

AD623BRZ

PRODUCTION

AD623BRZ-R7

PRODUCTION

AD623BRZ-RL

PRODUCTION

Jan 5, 2015

- 14_0246

arrow down

Qualification of ASE Chungli, as an Alternate Assembly Site for Select MSOP Devices

AD623ARMZ

PRODUCTION

AD623ARMZ-REEL

PRODUCTION

AD623ARMZ-REEL7

PRODUCTION

May 15, 2012

- 10_0006

arrow down

Halogen Free Material Change for mini SOIC Products

AD623ARMZ

PRODUCTION

AD623ARMZ-REEL

PRODUCTION

AD623ARMZ-REEL7

PRODUCTION

Jul 20, 2012

- 12_0105

arrow down

Halogen Free Material Change for Select SOIC Narrow and Wide Body Products Assembled at Amkor

AD623ARZ

PRODUCTION

AD623ARZ-R7

PRODUCTION

AD623ARZ-RL

PRODUCTION

AD623BRZ

PRODUCTION

AD623BRZ-R7

PRODUCTION

AD623BRZ-RL

PRODUCTION

Software & Part Ecosystem

Software & Part Ecosystem

Evaluation Kit

Evaluation Kits 1

reference details image

EVAL-INAMP

AD62x, AD822x, AD842x Series InAmp Evaluation Board

zoom

EVAL-INAMP

AD62x, AD822x, AD842x Series InAmp Evaluation Board

AD62x, AD822x, AD842x Series InAmp Evaluation Board

Product Detail

Analog Devices provides a line of evaluation boards designed to help users evaluate our instrumentation amplifiers in 8 pin packages. Access the user guide UG-261.

This user guide describes three generic evaluation boards that can be used to evaluate many of Analog Devices instrumentation amplifiers. For information on the performance of a specific instrumentation amplifier, see the data sheet for that instrumentation amplifier.

  • 3 generic, easy-to-use evaluation boards
    • Shipped with an assortment of Analog Devices in-amps
    • Solder in the in-amp to be tested
    • Test pins already populated
    • Decoupling capacitors already populated
  • EVAL-INAMP-62RZ board: Compatible with AD620, AD621, AD622, AD623, AD627, AD8223, AD8225,  LT1167, LT1168 and LT6370 in SOIC or PDIP
  • EVAL-INAMP-82RZ board: Compatible with AD8221, AD8226, AD8227, AD8228, AD8229, AD8421, AD8428, and AD8429 in SOIC package
  • EVAL-INAMP-82RMZ board: Compatible with AD8220, AD8221, AD8226, AD8227, AD8228, AD8236, and AD8421 in MSOP package
