AD5700

Low Power HART Modem

Show More showmore-icon

Info: : PRODUCTION tooltip
Info: : PRODUCTION tooltip
Part Details
Part Models 3
1ku List Price Starting From $4.61
Features
  • HART-compliant fully integrated FSK modem
  • 1200 Hz and 2200 Hz sinusoidal shift frequencies
  • 115 µA maximum supply current in receive mode
  • Suitable for intrinsically safe applications
  • Integrated receive band-pass filter
    • Minimal external components required
  • Clocking optimized for various system configurations
    • Ultralow power crystal oscillator (60 µA maximum)
    • External CMOS clock source
  • Buffered HART output—extra drive capability
  • 8 kV HBM ESD rating
  • 1.71 V to 5.5 V power supply
  • 1.71 V to 5.5 V interface
  • −40°C to +125°C operation

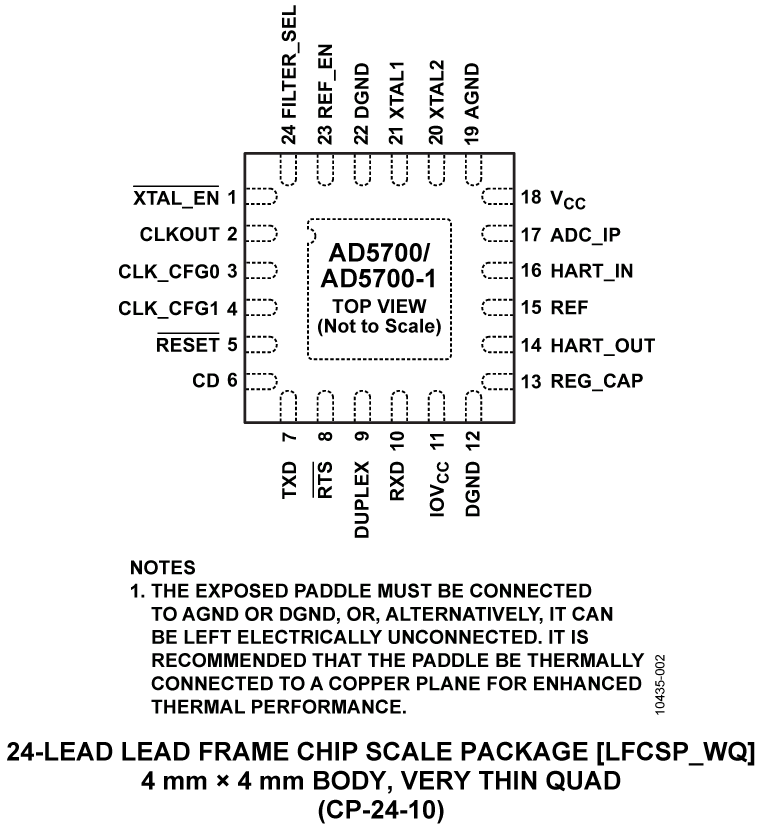

  • 4 mm × 4 mm LFCSP package
  • HART physical layer compliant
  • UART interface
Additional Details
show more Icon

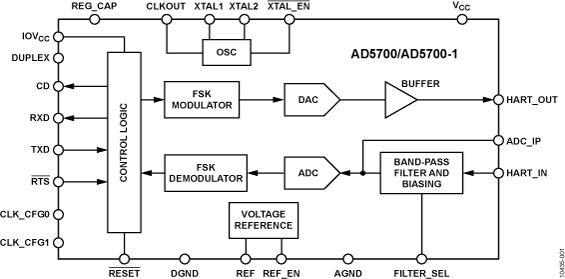

The AD5700/AD5700-1 are single-chip solutions, designed and specified to operate as a HART® FSK half-duplex modem, complying with the HART physical layer requirements. The AD5700/AD5700-1 integrate all of the necessary filtering, signal detection, modulating, demodulating and signal generation functions, thus requiring few external components. The 0.5% precision internal oscillator on the AD5700-1 greatly reduces the board space requirements, making it ideal for line-powered applications in both master and slave configurations. The maximum supply current consumption is 115µA, making theAD5700/AD5700-1 an optimal choice for low power loop-powered applications. Transmit waveforms are phase continuous 1200 Hz and 2200 Hz sinusoids. The AD5700/AD5700-1 contain accurate carrier detect circuitry and use a standard UART interface.

Applications

  • Field transmitters
  • HART multiplexers
  • PLC and DCS analog I/O modules
  • HART network connectivity

Design News Golden Mousetrap Award 2012

Part Models 3
1ku List Price Starting From $4.61

close icon
Documentation

Documentation

Video

Part Model Pin/Package Drawing Documentation CAD Symbols, Footprints, and 3D Models
AD5700ACPZ-RL7
  • HTML
  • HTML
AD5700BCPZ-R5
  • HTML
  • HTML
AD5700BCPZ-RL7
  • HTML
  • HTML

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Aug 6, 2014

- 13_0230

Assembly and Test Transfer of Select 3.5x3.5, 4x3, 4x4, and 5x5mm LFCSP Products to STATS ChipPAC China

Jan 28, 2013

- 12_0143

AD5700/AD5700-1 Metal Mask Edit Resulting in updated Datasheet to reflect Extended Supply Range.

AD5700ACPZ-RL7

PRODUCTION

AD5700BCPZ-R5

PRODUCTION

AD5700BCPZ-RL7

PRODUCTION

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Aug 6, 2014

- 13_0230

arrow down

Assembly and Test Transfer of Select 3.5x3.5, 4x3, 4x4, and 5x5mm LFCSP Products to STATS ChipPAC China

Jan 28, 2013

- 12_0143

arrow down

AD5700/AD5700-1 Metal Mask Edit Resulting in updated Datasheet to reflect Extended Supply Range.

AD5700ACPZ-RL7

PRODUCTION

AD5700BCPZ-R5

PRODUCTION

AD5700BCPZ-RL7

PRODUCTION

Software & Part Ecosystem

Software & Part Ecosystem

Evaluation Kit

Evaluation Kits 1

reference details image

EVAL-AD5700

AD5700/AD5700-1 Evaluation Board

zoom

EVAL-AD5700

AD5700/AD5700-1 Evaluation Board

AD5700/AD5700-1 Evaluation Board

Product Detail

Both the AD5700 and the AD5700-1 products can be evaluated using the EVAL-AD5700-1EBZ Evaluation board. If evaluating the AD5700 product, simply disable the internal oscillator (i.e. configure the part to use either a CMOS clock or a crystal oscillator). No SDP board is required for this Evaluation board.

Reference Designs

Reference Designs 4

4 mA to 20 mA, Loop Powered Field Instrument with HART Interface

Isolated 4 mA to 20 mA/HART Temperature and Pressure Industrial Transmitter Using a Low Power, Precision, 24-Bit, Sigma-Delta ADC

zoomopens a dialog

CN0382

Isolated 4 mA to 20 mA/HART Temperature and Pressure Industrial Transmitter Using a Low Power, Precision, 24-Bit, Sigma-Delta ADC

CN0382

Circuits from the lab

tooltip Info:Circuits from the lab
Isolated 4 mA to 20 mA/HART Temperature and Pressure Industrial Transmitter Using a Low Power, Precision, 24-Bit, Sigma-Delta ADC

Features and Benefits

  • Isolated 4-20mA Field Instrument
  • HART Transmitter
  • Loop Powered
  • Temperature and Pressure Inputs
View Detailed Reference Design external link

Design & Integration Tools

pdf icon

ZIP

1.33 M

AD5422 HART-Enabled Circuit Simplified Schematic

Complete 4 mA to 20 mA HART Solution with Additional Voltage Output Capability

4 mA to 20 mA, Loop Powered Field Instrument

Complete 4 mA to 20 mA Loop Powered Field Instrument with HART Interface

zoomopens a dialog

CN0267

Complete 4 mA to 20 mA Loop Powered Field Instrument with HART Interface

CN0267

Circuits from the lab

tooltip Info:Circuits from the lab
Complete 4 mA to 20 mA Loop Powered Field Instrument with HART Interface

Features and Benefits

  • Complete 4mA to 20mA loop powered field instrument
  • HART compliant interface
  • Registered by HART Communication Foundation (HFC)
  • Low power, small footprint
View Detailed Reference Design external link

Design & Integration Tools

pdf icon

zip

936 kB

AD5420 HART-Enabled Circuit Simplified Schematic

Complete 4 mA to 20 mA HART Solution
