Features and Benefits

  • 16-bit resolution and monotonicity
  • Current output ranges: 4 mA to 20 mA, 0 mA to 20 mA, or 0 mA to 24 mA
    • ±0.01% FSR typical total unadjusted error (TUE)
    • ±3 ppm/°C typical output drift
  • Flexible serial digital interface
  • On-chip output fault detection
  • On-chip reference (10 ppm/°C maximum)
  • Feedback/monitoring of output current
  • Asynchronous clear function
  • Power supply (AVDD) range
    • 10.8 V to 40 V; AD5410AREZ/AD5420AREZ
    • 10.8 V to 60 V; AD5410ACPZ/AD5420ACPZ
  • Output loop compliance to AVDD − 2.5 V
  • Temperature range: −40°C to +85°C

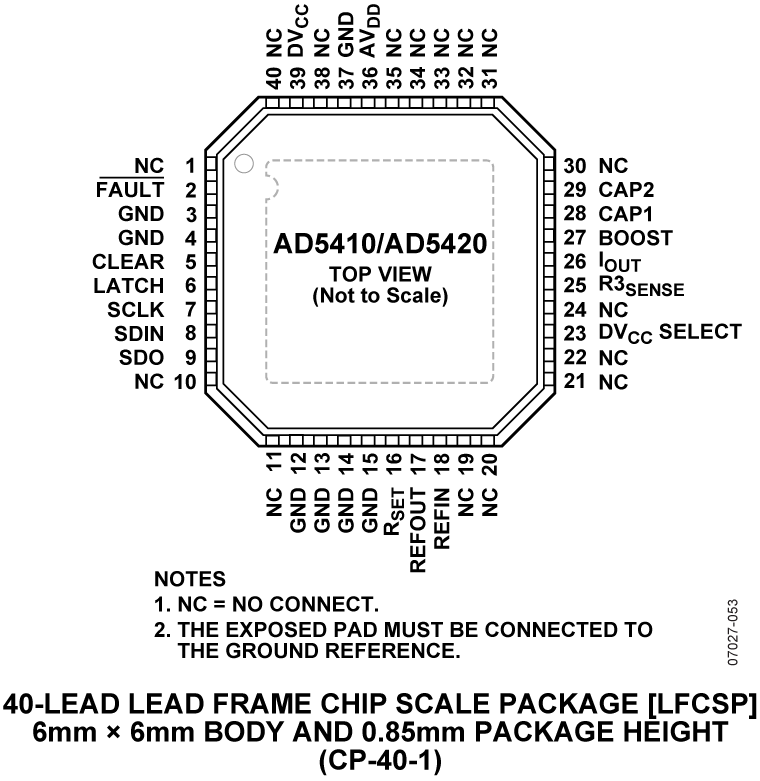

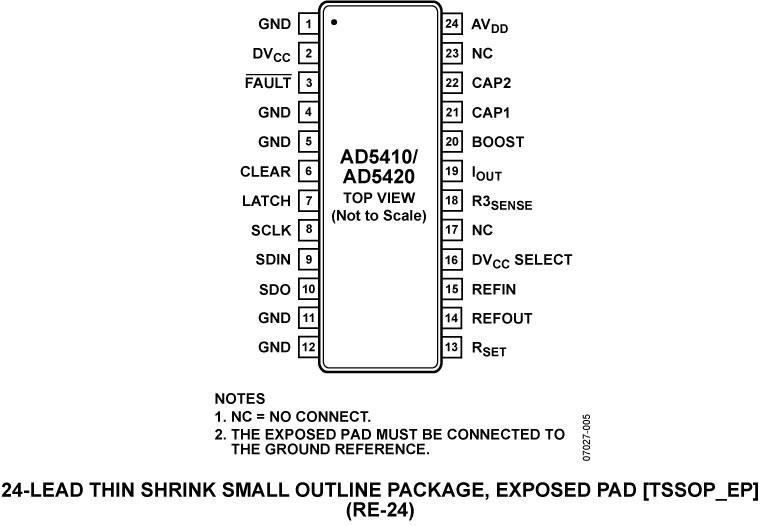

  • 24-lead TSSOP and 40-lead LFCSP packages

Product Details

The AD5410/AD5420 are low cost, precision, fully integrated 12-/16-bit converters offering a programmable current source output designed to meet the requirements of industrial process control applications. The output current range is programmable at 4 mA to 20 mA, 0 mA to 20 mA, or an overrange function of 0 mA to 24 mA. The output is open-circuit protected. The device operates with a power supply (AVDD) range from 10.8 V to 60 V. Output loop compliance is 0 V to AVDD − 2.5 V.

The flexible serial interface is SPI, MICROWIRE™, QSPI™, and DSP compatible and can be operated in 3-wire mode to minimize the digital isolation required in isolated applications.

The device also includes a power-on reset function, ensuring that the device powers up in a known state, and an asynchronous CLEAR pin that sets the output to the low end of the selected current range.

The total unadjusted error is typically ±0.01% FSR.


  • Process control
  • Actuator control
  • PLC
  • HART network connectivity

Product Lifecycle icon-recommended Production

At least one model within this product family is in production and available for purchase. The product is appropriate for new designs but newer alternatives may exist.
