AD5410
Single-Channel, 12-Bit, Serial Input, 4 mA to 20 mA, Current Source DAC, HART Connectivity
Top
Alternative Parts
AD5755-1
DPC, More Channels, More Accurate, Programmable Ranges, Enhanced Feature Set, HART Connectivity
Overview
Features and Benefits
- 12-bit resolution and monotonicity
- Current output ranges: 4 mA to 20 mA, 0 mA to 20 mA, or 0 mA to 24 mA
- ±0.01% FSR typical total unadjusted error (TUE)
- ±3 ppm/°C typical output drift
- Flexible serial digital interface
- On-chip output fault detection
- On-chip reference (10 ppm/°C maximum)
- Feedback/monitoring of output current
- Asynchronous clear function
- Power supply (AVDD) range
- 10.8 V to 40 V; AD5410AREZ/AD5420AREZ
- 10.8 V to 60 V; AD5410ACPZ/AD5420ACPZ
- Output loop compliance to AVDD − 2.5 V
- Temperature range: −40°C to +85°C
- 24-lead TSSOP and 40-lead LFCSP packages
Product Details
The AD5410/AD5420 are low cost, precision, fully integrated 12-/16-bit converters offering a programmable current source output designed to meet the requirements of industrial process control applications. The output current range is programmable at 4 mA to 20 mA, 0 mA to 20 mA, or an overrange function of 0 mA to 24 mA. The output is open-circuit protected. The device operates with a power supply (AVDD) range from 10.8 V to 60 V. Output loop compliance is 0 V to AVDD − 2.5 V.
The flexible serial interface is SPI, MICROWIRE™, QSPI™, and DSP compatible and can be operated in 3-wire mode to minimize the digital isolation required in isolated applications.
The device also includes a power-on reset function, ensuring that the device powers up in a known state, and an asynchronous CLEAR pin that sets the output to the low end of the selected current range.
The total unadjusted error is typically ±0.01% FSR.
Applications
- Process control
- Actuator control
- PLC
- HART network connectivity
Product Categories
Product Lifecycle
Production
At least one model within this product family is in production and available for purchase. The product is appropriate for new designs but newer alternatives may exist.

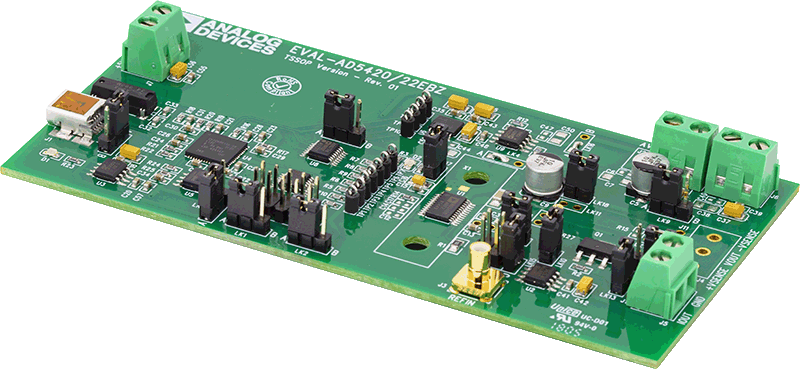

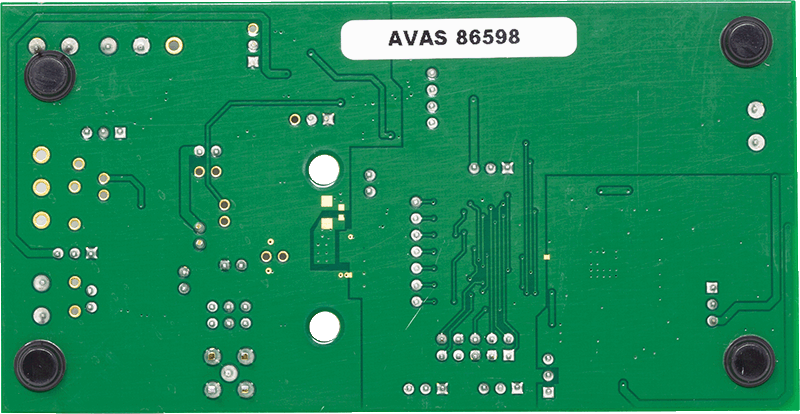

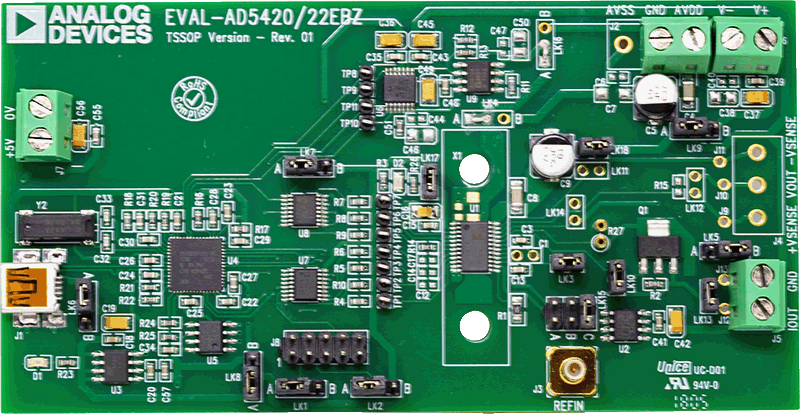

Evaluation Kits (1)
Documentation & Resources
Tools & Simulations
Precision DAC Error Budget Tool
The Precision DAC Error Budget Tool is a web application that calculates the DC Accuracy of precision DAC signal chains. It shows how the static errors accumulate throughout your signal chain to quickly evaluate the design tradeoffs. Calculations include the DC errors introduced by Voltage References, Operation Amplifiers and Precision DACs.
Product Recommendations
AD5410 Companion Parts
Recommended Digital Isolators
- For digital isolators with integrated isolated power: ADUM5401, ADUM5402, ADUM5403.
- For isolated USB designs in healthcare and industrial control: ADUM4160.
- For cost sensitive designs: ADUM7440, ADUM7441, ADUM7442.
- For process control applications: ADUM1400, ADUM1200.
Recommended Low Power Hart Modem
