ADP7158

2 A, Ultralow Noise, High PSRR, Fixed Output, RF Linear Regulator

Show More showmore-icon

Info : RECOMMENDED FOR NEW DESIGNS tooltip
Info : RECOMMENDED FOR NEW DESIGNS tooltip
Part Models 14
1ku List Price Starting From $3.60
Features
  • Input voltage range: 2.3 V to 5.5 V
  • 16 standard voltages between 1.2 V and 3.3 V available
  • Maximum load current: 2 A
  • Low noise
    • 0.9 µV rms total integrated noise from 100 Hz to 100 kHz
    • 1.6 µV rms total integrated noise from 10 Hz to 100 kHz
  • Noise spectral density: 1.7 nV/√Hz from 10 kHz to 1 MHz
  • Power supply rejection ratio (PSRR)
    • 70 dB from 1 kHz to 100 kHz; 50 dB at 1 MHz, VOUT = 3.3 V, VIN = 4.0 V
  • Dropout voltage: 200 mV typical at IOUT = 2 A, VOUT = 3.3 V
  • Initial accuracy: ±0.6% at ILOAD = 10 mA
  • Accuracy over line, load, and temperature: ±1.5%
  • Quiescent current: IGND = 4.0 mA at no load, 9.0 mA at 2 A
  • Low shutdown current: 0.2 μA
  • Stable with a 10 µF ceramic output capacitor
  • 10-lead, 3 mm × 3 mm LFCSP and 8-lead SOIC packages
  • Precision enable
  • Supported by ADIsimPower tool
Additional Details
show more Icon

The ADP7158 is a linear regulator that operates from 2.3 V to 5.5 V and provides up to 2 A of output current. Using an advanced proprietary architecture, it provides high power supply rejection and ultralow noise, achieving excellent line and load transient response with only a 10 µF ceramic output capacitor.

There are 16 standard output voltages for the ADP7158. The following voltages are available from stock: 1.2 V, 1.8 V, 2.0 V, 2.5 V, 2.8 V, 3.0 V, and 3.3 V. Additional voltages available by special order are 1.3 V, 1.5 V, 1.6 V, 2.2 V, 2.6 V, 2.7 V, 2.9 V, 3.1 V, and 3.2 V.

The ADP7158 regulator typical output noise is 0.9 μV rms from 100 Hz to 100 kHz and 1.7 nV/√Hz for noise spectral density from 10 kHz to 1 MHz. The ADP7158 is available in a 10-lead, 3 mm × 3 mm LFCSP and 8-lead SOIC packages, making it not only a very compact solution, but also providing excellent thermal performance for applications requiring up to 2 A of output current in a small, low profile footprint.

Applications

  • Regulation to noise sensitive applications: phase-locked loops (PLLs), voltage controlled oscillators (VCOs), and PLLs with integrated VCOs
  • Communications and infrastructure
  • Backhaul and microwave links
Part Models 14
1ku List Price Starting From $3.60

close icon

Documentation

Video

Part Model Pin/Package Drawing Documentation CAD Symbols, Footprints, and 3D Models
ADP7158ACPZ-1.2-R7
  • HTML
  • HTML
ADP7158ACPZ-1.8-R7
  • HTML
  • HTML
ADP7158ACPZ-2.0-R7
  • HTML
  • HTML
ADP7158ACPZ-2.5-R7
  • HTML
  • HTML
ADP7158ACPZ-2.8-R7
  • HTML
  • HTML
ADP7158ACPZ-3.0-R7
  • HTML
  • HTML
ADP7158ACPZ-3.3-R7
  • HTML
  • HTML
ADP7158ARDZ-1.2-R7
  • HTML
  • HTML
ADP7158ARDZ-1.8-R7
  • HTML
  • HTML
ADP7158ARDZ-2.0-R7
  • HTML
  • HTML
ADP7158ARDZ-2.5-R7
  • HTML
  • HTML
ADP7158ARDZ-2.8-R7
  • HTML
  • HTML
ADP7158ARDZ-3.0-R7
  • HTML
  • HTML
ADP7158ARDZ-3.3-R7
  • HTML
  • HTML

Software & Part Ecosystem

Evaluation Kits 1

reference details image

EVAL-ADP7158

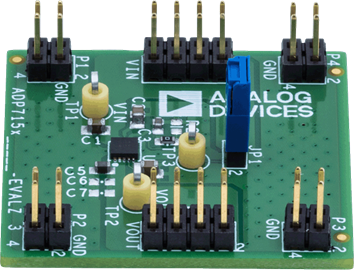

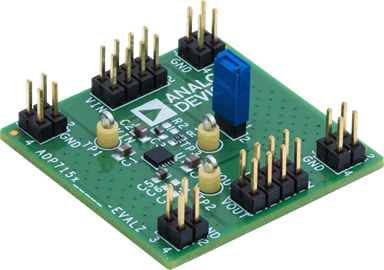

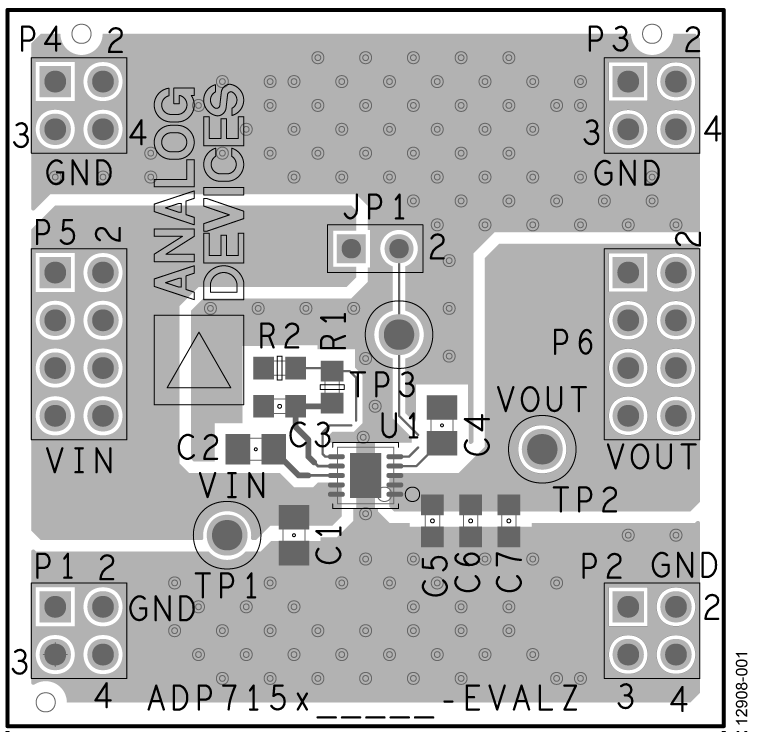

ADP7158 Evaluation Board

zoom

EVAL-ADP7158

ADP7158 Evaluation Board

ADP7158 Evaluation Board

Features and Benefits

  • Power supply rejection ratio (PSRR)
    • 70 dB from 1 kHz to 100 kHz; 50 dB at 1 MHz, VOUT = 3.3 V, VIN = 4.0 V
  • Low noise
    • 0.9 µV rms total integrated noise from 100 Hz to 100 kHz
    • 1.6 µV rms total integrated noise from 10 Hz to 100 kHz
  • Noise spectral density: 1.7 nV/√Hz from 10 kHz to 1 MHz
  • Low dropout voltage: 200 mV typical at VOUT = 3.3 V, IOUT = 2 A
  • Maximum output current: 2 A
  • Input voltage range: 2.3 V to 5.5 V
  • Low quiescent and shutdown current
  • Initial accuracy: ±0.6% at ILOAD = 10 mA
  • Accuracy over line, load, and temperature: ±1.5%
  • 10-lead 3mm x 3mm LFCSP and 8-lead SOIC packages

Product Detail

The ADP7158CP-3.3EVALZ evaluation board demonstrates the operation and functionality of the ADP7158 ultralow noise, 2 A, fixed output, radio frequency (RF) linear regulator.


Simple device measurements, such as line and load regulation, dropout voltage, and ground current, can be demonstrated using only a single voltage supply, load resistors, and a voltmeter or an ammeter.


Complete specifications for the ADP7158 ultralow noise, 2 A, linear regulator are available in the ADP7158 data sheet available from Analog Devices, Inc., and should be consulted in conjunction with user guide UG-794 when using the evaluation board.

Tools & Simulations 2

LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.

To launch ready-to-run LTspice demonstration circuits for this part:

Step 1: Download and install LTspice on your computer.

Step 2: Click on the link in the section below to download a demonstration circuit.

Step 3: If LTspice does not automatically open after clicking the link below, you can instead run the simulation by right clicking on the link and selecting “Save Target As.” After saving the file to your computer, start LTspice and open the demonstration circuit by selecting ‘Open’ from the ‘File’ menu.

Reference Designs 1

Figure 1. CN0566 Simplified Block Diagram

Phased Array (Phaser) Development Platform

zoomopens a dialog

CN0566

Phased Array (Phaser) Development Platform

CN0566

Circuits from the lab

tooltip Info:Circuits from the lab
Phased Array (Phaser) Development Platform

Features and Benefits

  • 10 GHz to 10.5 GHZ Beamsteering Platform
  • 360 degree Phase Shift w/ 2.8 Degree Resolution
  • 31 dB Amplitude Tuning Range w/ 0.5 dB Resolution.
  • 8-Element Linear Array Antenna
  • Digitized with PlutoSDR
  • Runs directly on a Raspberry Pi
View Detailed Reference Design external link
