Features and Benefits

  • Ultrawide common-mode range: −VS – 0.1 V to −VS + 70 V
  • Wide power supply voltage range (VSY): +3.15 V to +50 V (±25 V for PSRR)
  • Low supply current: 1.5 mA (typical)
  • Low input offset voltage: ±30 µV maximum

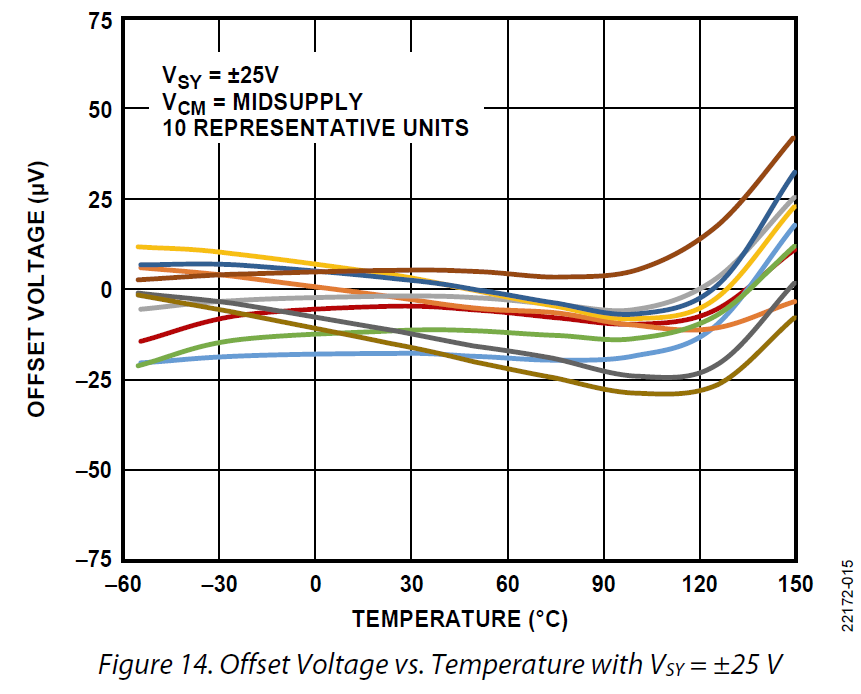

  • Low input offset voltage drift: ±0.4 µV/°C maximum
  • Low voltage noise:
    • 1/f noise corner: 6 Hz typical
    • 150 nV p-p typical at 0.1 Hz to 10 Hz
    • 7 nV/√Hz typical at 100 Hz (en)
  • Low power shutdown: <20 µA maximum
  • High speed
    • GBP: 8 MHz typical
    • Slew rate: 5.5 V/µs typical at ΔVOUT = 25 V
  • Low input bias current: ±10 nA maximum
  • Large signal voltage gain: 120 dB minimum
  • CMRR: 123 dB, minimum
  • PSRR: 126 dB, minimum
  • Input overdrive tolerant with no phase reversal
  • ±2 kV HBM and ±2 kV FICDM
  • Wide temperature range: −55°C to +150°C (H grade)

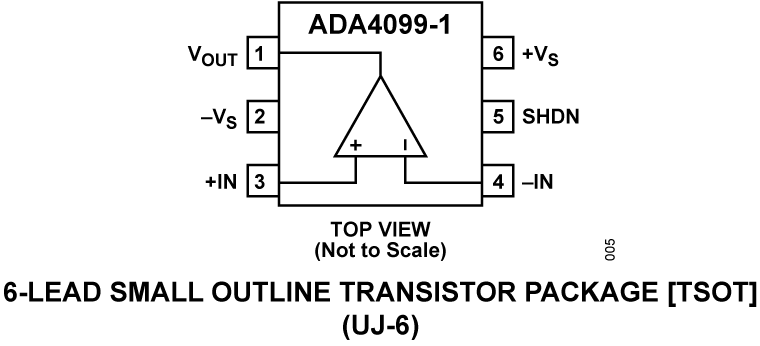

  • 6-lead TSOT package

Product Details

The ADA4099-1 is a robust, precision, rail-to-rail input/output operational amplifier (op amp) with inputs that operate from −VS to +VS and beyond, which is referred to in the data sheet as Over-The-Top. The device features offset voltages of <30 µV, input bias currents (IB) of <10 nA, and can operate on single or split supplies that range from 3.15 V to 50 V. The ADA4099-1 draws 1.5 mA of quiescent current.

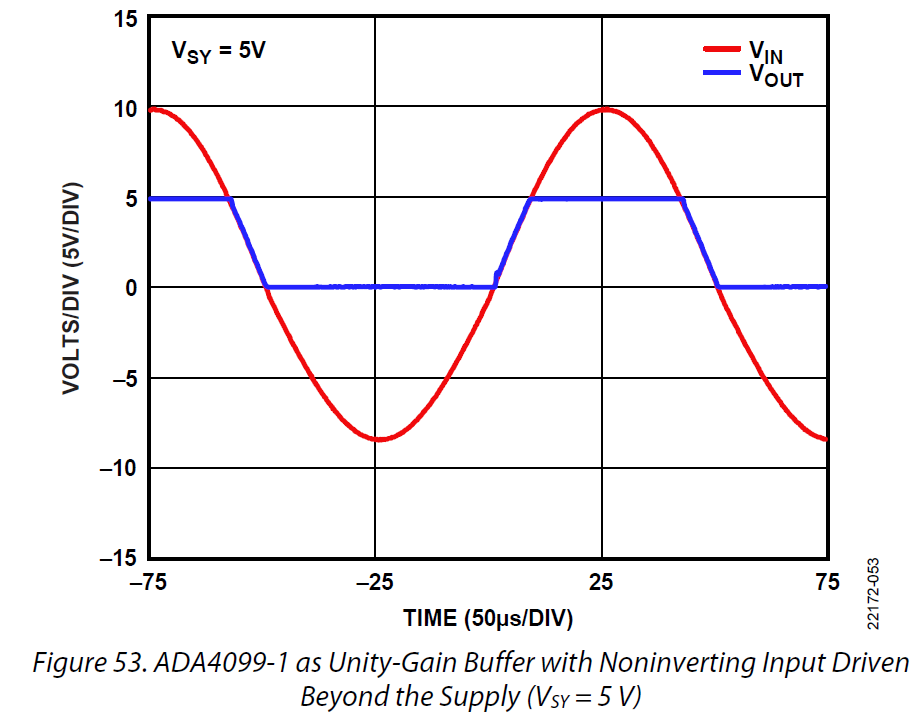

The ADA4099-1 Over-The-Top input stage has robust input protection features for abusive environments. The inputs can tolerate up to 80 V of differential voltage without damage or degradation to dc accuracy. The operating input common-mode range extends from rail-to-rail and beyond, up to 70 V > –VS, independent of the +VS supply.

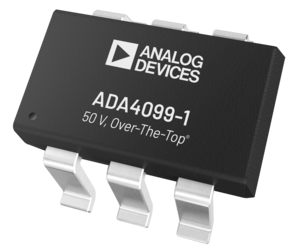

The ADA4099-1 is unity-gain stable and can drive loads requiring up to 20 mA. The device can also drive capacitive loads as large as 100 pF. The amplifier is available with low power shutdown. The ADA4099-1 is available in a standard, 6-lead, thin small outline transistor (TSOT) package.


  • Industrial sensor conditioning

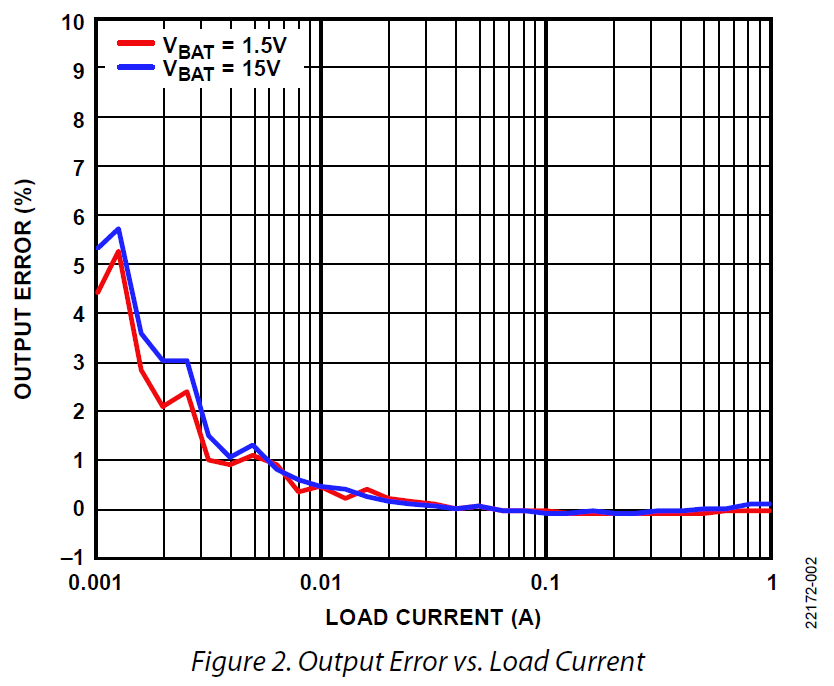

  • Supply current sensing
  • Battery and power supply monitoring
  • Front-end amplifiers in abusive environments
  • 4 mA to 20 mA transmitters

Product Lifecycle icon-recommended Recommended for New Designs

This product has been released to the market. The data sheet contains all final specifications and operating conditions. For new designs, ADI recommends utilization of these products.

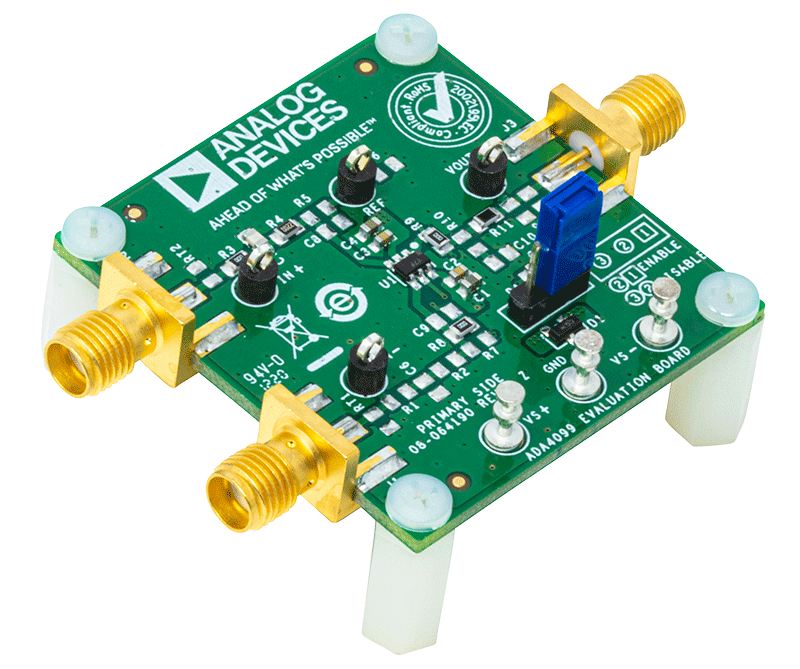

Evaluation Kits (1)

Tools & Simulations


LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.


Models for the following parts are available in LTspice:
